Introduction
This manual provides detailed instructions for the safe and efficient operation of your Petra PT5108VDEEU7 3-in-1 Espresso Machine. Designed for versatility, this machine allows you to prepare delicious espressos, lattes, and cappuccinos using ground coffee or 30/54mm capsules. Please read all instructions carefully before initial use and retain this manual for future reference.
Safety Information
To ensure safe operation and prevent damage, please observe the following safety precautions:
- Electrical Safety: Always connect the machine to a grounded power outlet. Do not immerse the machine, power cord, or plug in water or any other liquid.
- Hot Surfaces and Steam: The machine produces hot water and steam during operation. Exercise extreme caution to avoid burns. Keep hands and face away from the steam wand and coffee dispenser during use.
- Children and Vulnerable Individuals: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Keep out of reach of children.
- Maintenance: Always unplug the machine from the power outlet before cleaning, descaling, or performing any maintenance.
- Damage: Do not operate the machine if the power cord or plug is damaged, or if the machine malfunctions, has been dropped, or is visibly damaged. Contact customer support for repair or replacement.
- BPA-Free: This product is manufactured with BPA-free materials.
Product Overview
Familiarize yourself with the various components of your Petra PT5108VDEEU7 Espresso Machine.

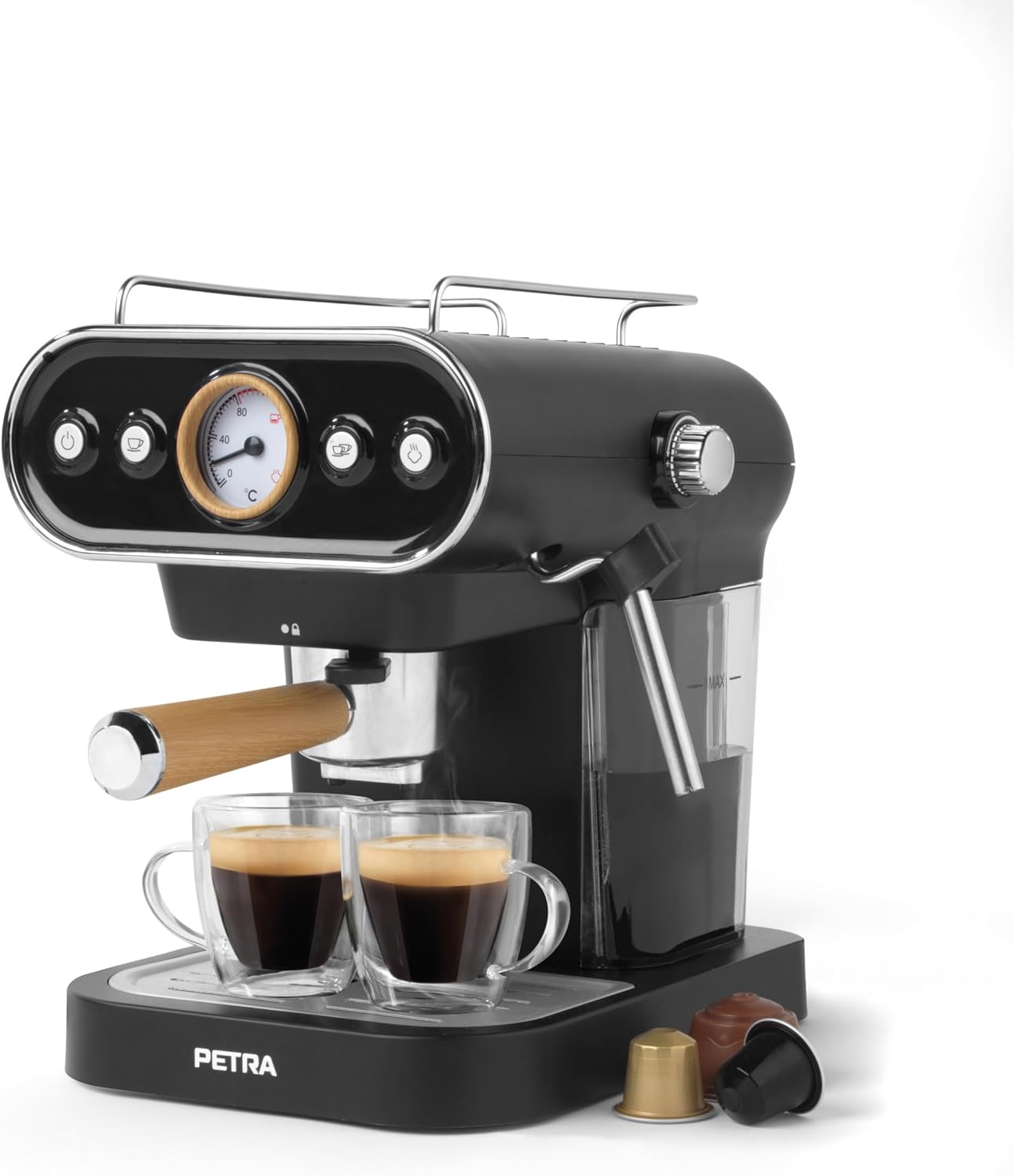

Image: Front view of the Petra PT5108VDEEU7 Espresso Machine, showcasing its sleek black and steel design, control panel with temperature gauge, portafilter with wooden handle, and two glass espresso cups on the drip tray. Various coffee capsules are visible next to the machine.
Image: A close-up view of the control panel of the Petra PT5108VDEEU7 Espresso Machine, highlighting the power button, single shot button, double shot button, steam button, and the central temperature gauge with a wooden-look bezel.
Key Components:
- Control Panel: Features illuminated buttons for power, single shot, double shot, and steam, along with a temperature gauge.
- Portafilter: A detachable handle with a filter basket holder, compatible with ground coffee and capsules.
- Steam Wand: Used for frothing milk to create lattes and cappuccinos.
- Water Tank: A removable 1.2-liter capacity tank for easy filling and cleaning.
- Drip Tray: Collects excess liquid and is removable for convenient cleaning.
- Filter Baskets: Includes baskets for single espresso shots, double espresso shots, and 30/54mm coffee capsules.
Setup
Follow these steps for the initial setup of your espresso machine:
- Unpacking: Carefully remove all packaging materials, protective films, and accessories from the box.
- Placement: Position the machine on a stable, level, and heat-resistant surface. Ensure there is adequate space around the machine for ventilation and operation.
- Initial Cleaning: Before first use, wash the detachable water tank, portafilter, and all filter baskets with warm, soapy water. Rinse them thoroughly with clean water and dry.
- Fill Water Tank: Remove the water tank, fill it with fresh, cold drinking water up to the 'MAX' indicator line, and securely place it back into the machine.
- First Use Cycle (Priming):
- Plug the machine into a grounded power outlet.
- Place an empty cup or container under the portafilter.
- Press the power button. The indicator lights will flash as the machine heats up.
- Once the lights are solid, press the single shot button to run hot water through the system without coffee. Repeat this process 2-3 times to prime the pump and clean internal components.
- Briefly activate the steam wand for a few seconds to clear any air from the steam system.
Operating Instructions
Making Espresso (Ground Coffee):
- Ensure the machine is preheated and the indicator lights are solid.
- Select the appropriate filter basket (single or double shot) and place it securely into the portafilter.
- Add finely ground espresso coffee to the filter basket. For a single shot, use approximately 7-8g; for a double shot, use 14-16g.
- Lightly tamp the coffee grounds with the provided tamper to create an even, compact puck. Avoid over-tamping.
- Attach the portafilter to the group head by aligning it and twisting firmly to the right until it is securely locked in place.
- Place your espresso cup(s) on the drip tray directly under the portafilter spouts.
- Press the single shot or double shot button. The machine will automatically dispense the programmed amount of espresso and stop.
- Once brewing is complete, carefully remove the portafilter and discard the used coffee grounds.
Image: A hand inserting the portafilter with a wooden handle into the group head of the Petra PT5108VDEEU7 Espresso Machine. A cup of coffee is on the drip tray, and a pastry is visible in the background.
Using Coffee Capsules (30/54mm):
- Ensure the machine is preheated.
- Select the appropriate capsule filter basket (compatible with 30mm or 54mm capsules) and place it into the portafilter.
- Insert the coffee capsule into the filter basket.
- Attach the portafilter to the group head, ensuring it is securely locked.
- Place your cup under the portafilter.
- Press the single shot button to brew.
- After brewing, carefully remove the portafilter and discard the used capsule.
Frothing Milk (for Lattes & Cappuccinos):
Image: A hand holding a stainless steel milk frothing pitcher under the steam wand of the Petra PT5108VDEEU7 Espresso Machine, preparing frothed milk for a beverage.
- Fill a milk frothing pitcher with cold milk (dairy or non-dairy) to just below the spout.
- Press the steam button on the control panel. The steam indicator light will flash and then become solid when the machine is ready to produce steam.
- Position the steam wand just below the surface of the milk in the pitcher.
- Turn the steam control knob to release steam. Move the pitcher up and down gently to incorporate air and create foam.
- Once the desired foam texture and milk temperature are reached, turn off the steam control knob and press the steam button to deactivate the steam function.
- Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying and clogging.
Maintenance
Regular cleaning and maintenance will prolong the life of your espresso machine and ensure consistent coffee quality.
Daily Cleaning:
- Portafilter & Filter Baskets: After each use, remove the portafilter, discard coffee grounds, and rinse thoroughly under hot water.
- Drip Tray: Empty and clean the drip tray regularly to prevent overflow and maintain hygiene.
- Water Tank: Rinse the water tank daily and refill with fresh water.
- Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Steam Wand: Always wipe the steam wand immediately after frothing milk. If clogged, use a small pin to clear the steam nozzle.
Descaling:
Descaling is crucial to remove mineral buildup (limescale) that can affect machine performance and coffee taste. The frequency of descaling depends on your water hardness and usage. It is recommended to descale every 2-3 months or as needed.
- Prepare a descaling solution according to the descaler manufacturer's instructions. Use a descaler specifically designed for coffee machines.
- Fill the water tank with the prepared descaling solution.
- Place a large container under the portafilter and another under the steam wand.
- Run several cycles of hot water through the portafilter (using the single or double shot button) and through the steam wand until the water tank is empty.
- Rinse the water tank thoroughly and refill it with fresh, clean water.
- Run several cycles of fresh water through the machine (both portafilter and steam wand) to rinse out any remaining descaling solution.
Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No coffee dispenses. | No water in tank; machine not primed; clogged filter basket. | Fill water tank; perform first use cycle; clean filter basket thoroughly. |
| Coffee is too weak or watery. | Coffee grounds too coarse; not enough coffee; insufficient tamping. | Use a finer grind; increase coffee amount; tamp more firmly. |
| Coffee flow is too slow or drips. | Coffee grounds too fine; too much coffee; over-tamping; machine needs descaling. | Use a coarser grind; reduce coffee amount; tamp less firmly; descale the machine. |
| Steam wand not producing steam. | Steam button not activated; wand clogged; machine not hot enough. | Press steam button and wait for indicator light to become solid; clean steam wand hole; allow machine to fully heat. |
| Machine leaks. | Portafilter not properly secured; drip tray full; water tank not seated correctly; seal issue. | Ensure portafilter is tight; empty drip tray; re-seat water tank; contact support if issue persists. |
Specifications
- Model Number: PT5108VDEEU7
- Brand: Petra
- Power: 1050 Watts
- Voltage: 1050 Volts (Please refer to product label for exact regional voltage requirements)
- Pump Pressure: 19 Bars (Italian Pump)
- Water Tank Capacity: 1.2 Liters
- Compatibility: Ground coffee, 30mm & 54mm capsules
- Dimensions (L x W x H): 30.5 x 26.5 x 23 cm
- Weight: 4.95 Kilograms
- Material: Plastic (BPA-free)
- Color: Black/Steel
Warranty and Support
For detailed warranty information, product registration, and customer support, please refer to the warranty card included with your product or visit the official Petra website. Keep your proof of purchase for any warranty claims.
