SHARK Vertex DuoClean PowerFins Powered Lift-Away Upright Vacuum Cleaner AZ1501 User Manual

1. Introduction

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your SHARK Vertex DuoClean PowerFins Powered Lift-Away Upright Vacuum Cleaner, model AZ1501. This vacuum is designed for deep cleaning carpets and directly engaging hard floors with its DuoClean PowerFins technology. It also features a Powered Lift-Away mode for versatile cleaning and Anti-Allergen Complete Seal Technology with a HEPA filter.

Important Safety Instructions

When using an electrical appliance, basic precautions should always be observed, including the following:

• Read all instructions before using this vacuum cleaner.
• Always turn off the vacuum and unplug it from the electrical outlet before performing any maintenance or troubleshooting.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not handle plug or vacuum cleaner with wet hands.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

2. What's Included

Your SHARK Vertex DuoClean PowerFins Powered Lift-Away Upright Vacuum Cleaner AZ1501 package includes the following components:

• SHARK Apex Upright Vacuum Unit
• Crevice Tool
• Pet Multi-Tool

Image: The Pet Multi-Tool and Crevice Tool, designed for various cleaning tasks.

3. Assembly and Setup

Follow these steps to assemble your vacuum cleaner:

1. Place the motorized floor nozzle on a level surface.
2. Insert the wand into the nozzle until it clicks securely into place.
3. Slide the vacuum pod onto the wand and lower it onto the nozzle post until it clicks.
4. Attach the hose to the back of the vacuum pod by pressing it into the connector until it clicks.
5. Store the included accessories (Crevice Tool, Pet Multi-Tool) on the accessory posts located on the vacuum pod.

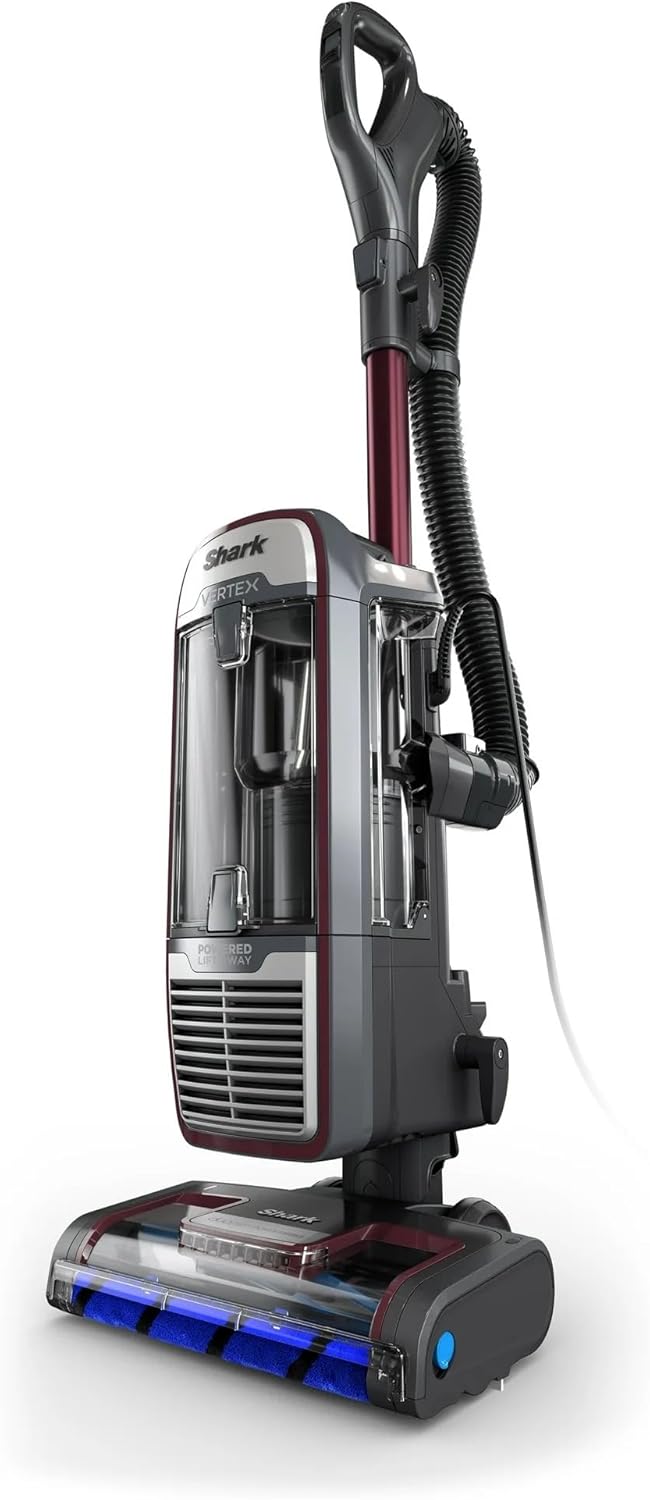

Image: The fully assembled SHARK Vertex vacuum cleaner, ready for use.

4. Operating Instructions

Your SHARK Vertex vacuum offers multiple cleaning modes and features for various surfaces.

Power and Mode Selection

The fingertip controls on the handle allow you to easily switch between cleaning modes:

• Hard Floor Mode: For bare floors and delicate area rugs. The brushrolls spin slowly.
• Carpet Mode: For carpets and thicker area rugs. The brushrolls spin faster to pick up embedded debris.

DuoClean PowerFins Technology

The DuoClean PowerFins feature a two-brushroll system designed to deep-clean carpets and directly engage hard floors for a polished look. This system ensures nonstop contact with the floor, enhancing debris pickup.

Image: A user operating the vacuum on a rug, demonstrating its powerful suction capabilities for deep cleaning.

Self-Cleaning Brushroll

The vacuum is equipped with a self-cleaning brushroll, engineered to prevent hair wrap, making it ideal for homes with pets.

Powered Lift-Away Mode

Detach the pod from the floor nozzle to clean under furniture or above the floor with a motorized nozzle. This mode provides enhanced maneuverability and reach.

Image: The vacuum pod detached, allowing the user to clean under furniture with the motorized nozzle.

Image: A user utilizing the Lift-Away pod to clean stairs, demonstrating its portability for above-floor cleaning.

Image: The vacuum in extended reach mode, allowing the user to clean high-up surfaces.

Anti-Allergen Complete Seal Technology with HEPA Filter

This system traps over 99.9% of dust and allergens inside the vacuum, preventing them from being released back into the air.

LED Headlights

Powerful LED headlights on the nozzle illuminate hidden debris and pet hair, ensuring thorough cleaning.

Using Accessories

Attach the Crevice Tool or Pet Multi-Tool to the end of the hose or wand for specialized cleaning tasks.

Image: The Pet Multi-Tool being used to effectively remove pet hair from upholstery.

5. Maintenance

Regular maintenance ensures optimal performance of your vacuum cleaner.

Emptying the Dust Cup

Empty the dust cup after each use or when debris reaches the MAX FILL line.

1. Press the dust cup release button and lift the dust cup off the vacuum pod.
2. Hold the dust cup over a trash bin and press the bottom release latch to open the bottom of the dust cup.
3. Close the bottom flap until it clicks. If necessary, press the top release latch to access the filter screen and remove any accumulated debris.

Image: A user demonstrating the easy process of emptying the removable dust cup.

Filter Maintenance

Rinse the foam and felt filters every 3 months, or as needed, to maintain suction power. The HEPA filter should be rinsed once a year. Allow all filters to air dry completely before reinstalling.

• Pre-Motor Filters (Foam and Felt): Located above the dust cup. Remove and rinse with water.
• Post-Motor Filter (HEPA): Located at the bottom of the vacuum pod. Remove the cover and rinse the filter with water.

Brushroll Maintenance

While the brushroll is self-cleaning, periodically inspect the floor nozzle for any debris, string, or hair wrapped around the brushrolls. Use scissors to carefully cut away any obstructions.

6. Troubleshooting

If your vacuum cleaner is not performing as expected, consult the following troubleshooting guide:

7. Specifications

8. Warranty and Support

For detailed warranty information, product registration, and customer support, please visit the official SHARK website or contact their customer service directly. Warranty terms and conditions may vary and are subject to the manufacturer's policies.

Please retain your proof of purchase for any warranty claims.
