Moen Ronan 82021BL Single-Handle Tub and Shower Faucet with Magnetix Handheld Shower Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Moen Ronan 82021BL Single-Handle Tub and Shower Faucet. The Ronan collection features refined curves and smooth, tapered lines, designed to complement various bathroom aesthetics. This model includes a showerhead with Moen's innovative Magnetix™ technology for convenient handheld use and secure docking.

Please read all instructions carefully before beginning installation or operation to ensure proper function and to avoid damage.

Safety Information

• Always turn off the main water supply before installing or servicing the faucet.
• Wear safety glasses and gloves during installation.
• If you are unsure about any part of the installation process, it is recommended to consult a licensed plumber.
• Ensure all connections are secure to prevent leaks.

Package Contents

Verify that all components are present before beginning installation:

• Single-Handle Faucet Trim
• Shower Arm & Flange
• Handheld Shower Head with Magnetix Docking
• 60-inch Shower Hose
• Tub Spout
• Valve (included)
• Mounting Hardware
• Instruction Manual

Image: All components of the Moen Ronan 82021BL tub and shower faucet system, including the single-handle control, shower arm, handheld shower with hose, and tub spout.

Setup and Installation

Installation of this tub and shower faucet requires plumbing knowledge. While some users find it straightforward, professional installation is recommended for best results and to ensure compliance with local plumbing codes.

1. Prepare the Installation Area:
   • Turn off the main water supply to the bathroom.
   • Remove any existing faucet fixtures.
   • Ensure the wall opening for the valve is clean and appropriately sized.
2. Install the Valve:
   • Install the included valve body into the wall according to the valve's specific instructions (refer to the separate valve manual if provided).
   • Connect the hot and cold water lines to the valve.
   • Connect the shower and tub outlet lines to the valve.


   Image: Illustration showing the internal plumbing for a shower valve, indicating where water lines connect.

3. Install the Tub Spout:
   • Apply plumber's tape to the threads of the tub spout pipe.
   • Thread the tub spout onto the pipe extending from the wall. Tighten securely.
4. Install the Shower Arm and Flange:
   • Apply plumber's tape to the threads of the shower arm.
   • Thread the shower arm into the fitting in the wall.
   • Slide the flange over the shower arm until it sits flush against the wall.
5. Install the Shower Head and Handheld Assembly:
   • Attach the main shower head to the shower arm.
   • Connect one end of the 60-inch hose to the handheld shower head.
   • Connect the other end of the hose to the outlet on the shower arm or wall connection.
   • Ensure the Magnetix docking system is securely mounted.


   Image: The handheld shower head connected to its hose, ready for use or docking.

6. Install the Faucet Trim:
   • Install the decorative trim plate over the valve body.
   • Attach the handle to the valve stem, securing it with the provided screw.


   Image: Hands installing the decorative trim and handle onto the shower valve.

7. Test for Leaks:
   • Slowly turn the main water supply back on.
   • Check all connections for leaks. Tighten any leaking connections as needed.

Operating Instructions

The Moen Ronan 82021BL faucet is designed for ease of use.

1. Turning Water On/Off and Temperature Control:
   • Rotate the single handle to turn the water on and off.
   • Rotate the handle left for hotter water and right for colder water.
2. Diverting Water to Shower or Tub:
   • To fill the tub, ensure the tub spout diverter is in the down position.
   • To use the shower, pull up the diverter on the tub spout. Water will then flow from the shower head.
3. Using the Magnetix Handheld Shower:
   • The handheld shower head is securely held in place by the Magnetix docking system.
   • To detach, simply pull the handheld shower head away from the dock.
   • To re-dock, guide the handheld shower head back towards the magnetic dock until it snaps securely into place.
   • The handheld shower features 6 spray settings. Rotate the spray face to select your desired spray pattern.


   Image: A close-up view of the Magnetix docking system, showing the handheld shower head being easily released or secured.

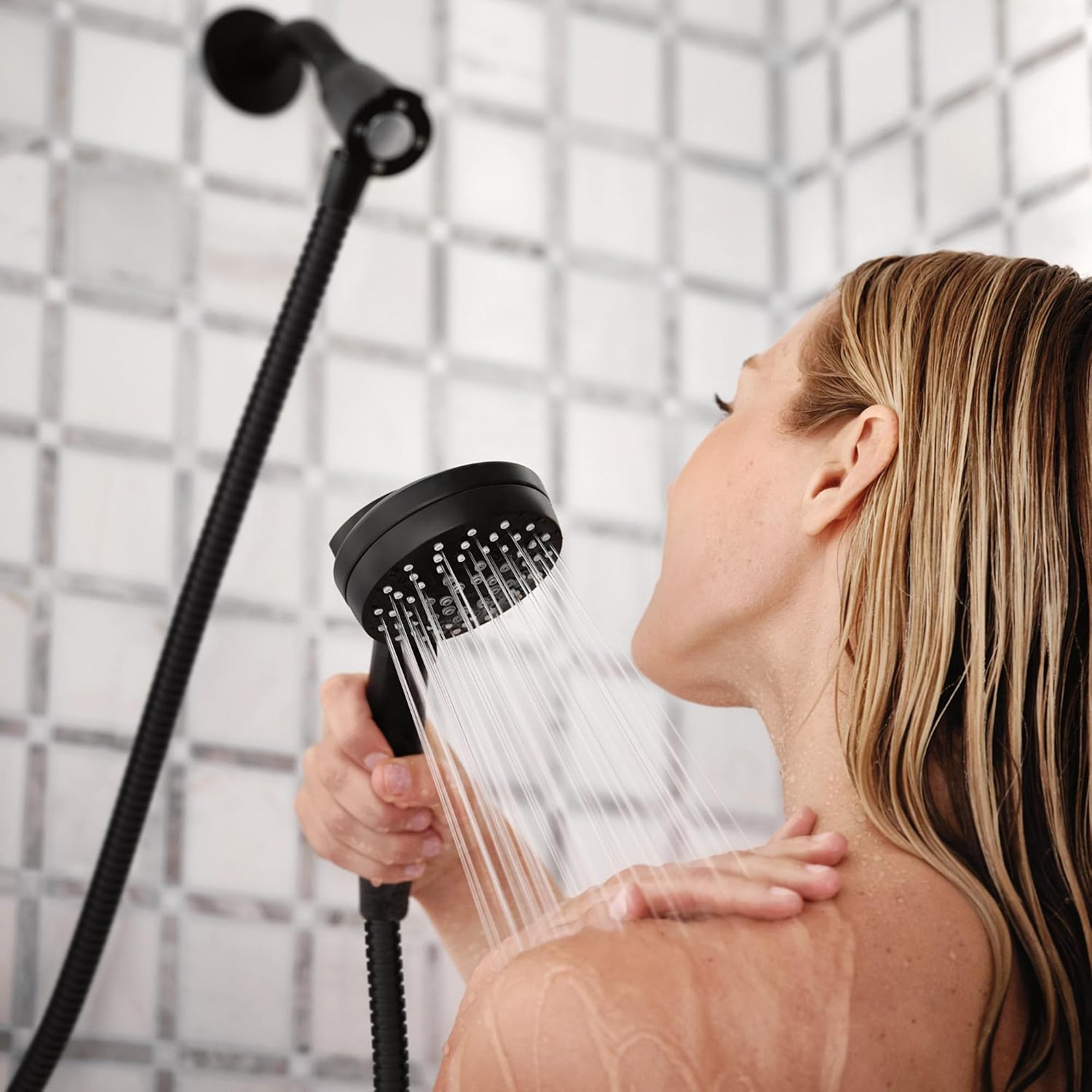

   Image: A person demonstrating the use of the handheld shower head, showing water spraying from its multiple settings.

Maintenance

Proper care will help maintain the finish and performance of your Moen faucet.

• Cleaning: Clean the faucet regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes, as these can damage the matte black finish.
• Mineral Deposits: For hard water spots or mineral deposits, use a solution of equal parts white vinegar and water. Apply with a soft cloth, let it sit for a few minutes, then rinse thoroughly and dry.
• Shower Head Nozzles: If water flow from the shower head becomes uneven, gently rub the rubber nozzles to dislodge any mineral buildup.
• Hose Care: Periodically check the shower hose for kinks or damage. Avoid excessive pulling or twisting.

Troubleshooting

Specifications

Warranty Information

This Moen product is backed by Moen's Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship under normal use for the lifetime of the original consumer purchaser. For full details regarding warranty coverage, limitations, and how to make a claim, please refer to the official Moen warranty documentation or visit the Moen website.

Image: Moen's Limited Lifetime Warranty emblem, signifying quality and craftsmanship.

Support and Contact

For technical assistance, replacement parts, or warranty claims, please contact Moen Customer Service:

• Website: Visit the official Moen website for support resources, FAQs, and contact information.
• Phone: Refer to the contact section on the Moen website for the appropriate customer service phone number in your region.
• When contacting support, please have your product model number (82021BL) and purchase date available.
