1. Introduction
Thank you for choosing the WENKO Young Shower Set. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and retain them for future reference.
The WENKO Young Shower Set in matte black is designed to enhance your bathroom with its modern aesthetic and functional features. It includes a high-quality stainless steel shower rail, a versatile 5-function hand shower, and a durable shower hose.
2. Product Overview

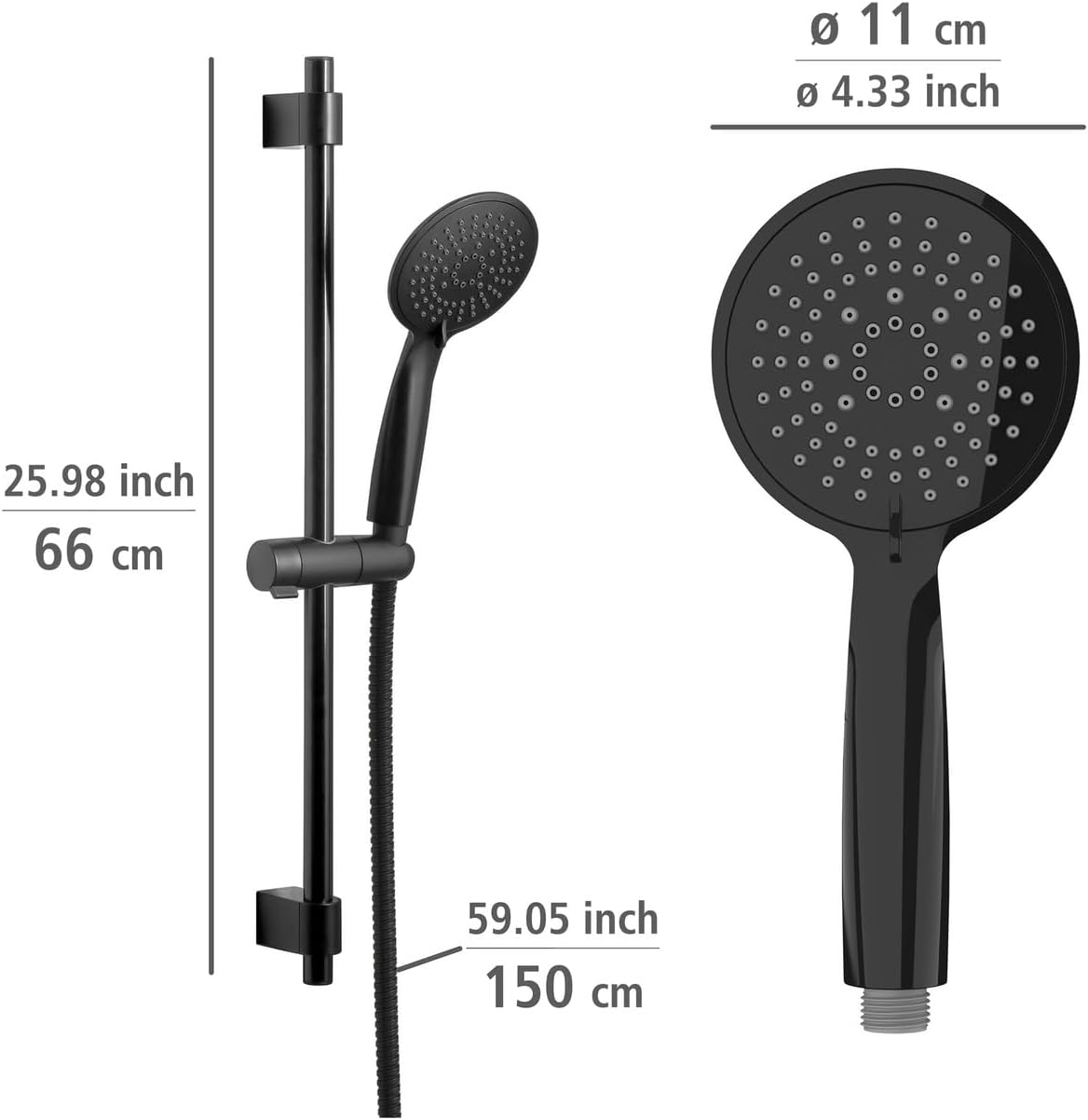

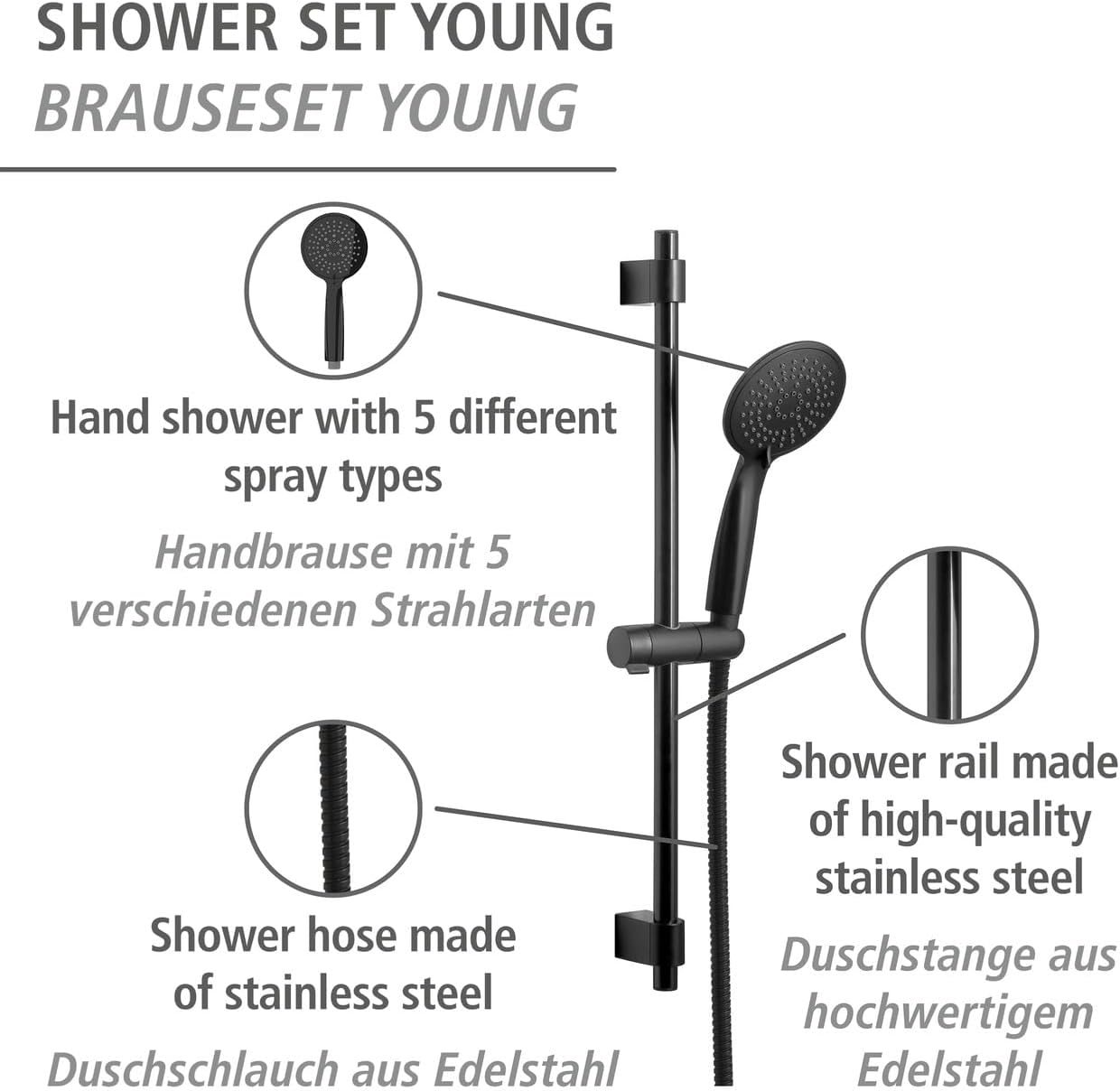

The WENKO Young Shower Set is a complete solution for your shower, offering a blend of design and functionality. It consists of the following main components:
- Shower Rail: Made from high-quality stainless steel, 66 cm in length, with two wall mounts, one of which is sliding for flexible installation.
- Hand Shower: A modern, round shower head (11 cm diameter) with 5 adjustable spray functions. Constructed from sturdy ABS plastic.
- Shower Hose: A 150 cm long, black stainless steel hose with a standard ½ inch connection, designed to be stretchable and kink-resistant.
3. Setup and Installation
This shower set is designed for wall mounting and includes all necessary screws and dowels. The sliding wall bracket offers flexibility for installation.
3.1 Components Check
Before starting, ensure all components listed in Section 2 are present and undamaged.
3.2 Required Tools
- Drill
- Drill bit suitable for your wall type
- Pencil
- Measuring tape
- Spirit level
- Screwdriver
3.3 Installation Steps
- Positioning the Shower Rail: Hold the shower rail against the wall at the desired height. Use a spirit level to ensure it is perfectly vertical. Mark the positions for the two wall brackets with a pencil.
- Utilizing Existing Drill Holes: The shower rail features one sliding wall bracket. This allows for adjustment to potentially align with existing drill holes, or to cover them if new holes are made. Adjust the sliding bracket as needed before marking.
- Drilling Holes: Drill holes at the marked positions. Insert the provided dowels into the drilled holes.
- Attaching Wall Brackets: Secure the wall brackets to the wall using the provided screws.
- Mounting the Shower Rail: Attach the shower rail to the secured wall brackets. Ensure it is firmly in place.
- Connecting the Shower Hose: Connect one end of the 150 cm shower hose to your water outlet (universal ½" connection) and the other end to the hand shower. Ensure all connections are hand-tightened and then gently tightened with a wrench to prevent leaks.
- Attaching the Hand Shower: Place the hand shower into the adjustable shower slide on the rail.
4. Operating Instructions
The WENKO Young Hand Shower offers 5 distinct spray functions to customize your showering experience. To change the spray type, simply rotate the shower head's spray plate or a selector switch on the shower head (depending on the specific design) until the desired function is selected.
4.1 Spray Functions
- Rain: A classic, soft, and wide spray for a gentle shower.
- Spray: A more focused and invigorating spray.
- Massage: A pulsating jet for a relaxing and stimulating massage.
- Rain + Spray: A combination of the gentle rain and invigorating spray.
- Rain + Massage: A combination of the gentle rain and pulsating massage jet.
This shower set is suitable for use with continuous-flow water heaters, ensuring consistent hot water supply.
5. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your WENKO Young Shower Set.
5.1 Cleaning the Hand Shower
The hand shower is equipped with flexible silicone naps (nozzles) that make lime-scale removal easy. Simply rub over the naps to dislodge any mineral deposits. For more thorough cleaning:
- Use a soft cloth and a mild, non-abrasive bathroom cleaner.
- Avoid harsh chemicals, abrasive sponges, or cleaners containing alcohol, as these can damage the matte black finish and plastic components.
- Rinse thoroughly with clean water after cleaning and wipe dry to prevent water spots.
5.2 Cleaning the Shower Rail and Hose
Wipe the stainless steel shower rail and hose with a soft, damp cloth. For stubborn dirt, use a mild soap solution. Always rinse and dry thoroughly.
6. Troubleshooting
If you encounter issues with your WENKO Young Shower Set, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water pressure from hand shower | Lime-scale buildup in nozzles; partially closed water supply | Clean hand shower nozzles (see Section 5.1); ensure water supply valve is fully open. |
| Leaking connections | Loose connections; worn washers | Ensure all hose connections are tightened correctly; check and replace washers if necessary. |
| Hand shower not staying in position | Loose adjustable shower slide | Tighten the screw on the adjustable shower slide if applicable, or ensure it is correctly engaged with the rail. |
If the problem persists after attempting these solutions, please contact WENKO customer support.
7. Specifications
Detailed technical specifications for the WENKO Young Shower Set (Model 25451100):
| Feature | Specification |
|---|---|
| Brand | WENKO |
| Model Number | 25451100 |
| Style | Modern |
| Shape (Hand Shower) | Round |
| Material | Stainless Steel (rail, hose), ABS Plastic (hand shower) |
| Finish Type | Matte Black |
| Installation Type | Wall Mount |
| Product Dimensions (Rail Length) | 66 cm (25.98 inches) |
| Hand Shower Diameter | 11 cm (4.33 inches) |
| Number of Spray Functions | 5 (Rain, Spray, Massage, Rain+Spray, Rain+Massage) |
| Hose Length | 150 cm (59.05 inches) |
| Connection Type | Universal ½ inch |
| Compatibility | Suitable for continuous-flow water heaters |
| Included Components | Shower rail, hand shower, shower hose, mounting hardware |
8. Warranty
For detailed information regarding the warranty period and terms for your WENKO Young Shower Set, please refer to the manufacturer's official website or the warranty documentation included with your purchase. Keep your proof of purchase for any warranty claims.
9. Support
Should you require further assistance, have questions about installation, operation, or maintenance, or need to report a defect, please contact WENKO customer service. You can typically find contact information on the WENKO official website or on the product packaging.
WENKO Official Website: www.wenko.com
