1. Product Overview
The TechniSat DIGITRADIO 50 SE is a compact alarm clock radio designed for versatile audio reception and convenient alarm functions. It supports both DAB+ digital radio and FM analog radio, allowing access to a wide range of stations. Key features include a dimmable LCD display, dual programmable alarms, snooze, and sleep timer functions. Additionally, it offers a USB port for charging external devices and a headphone jack for private listening.

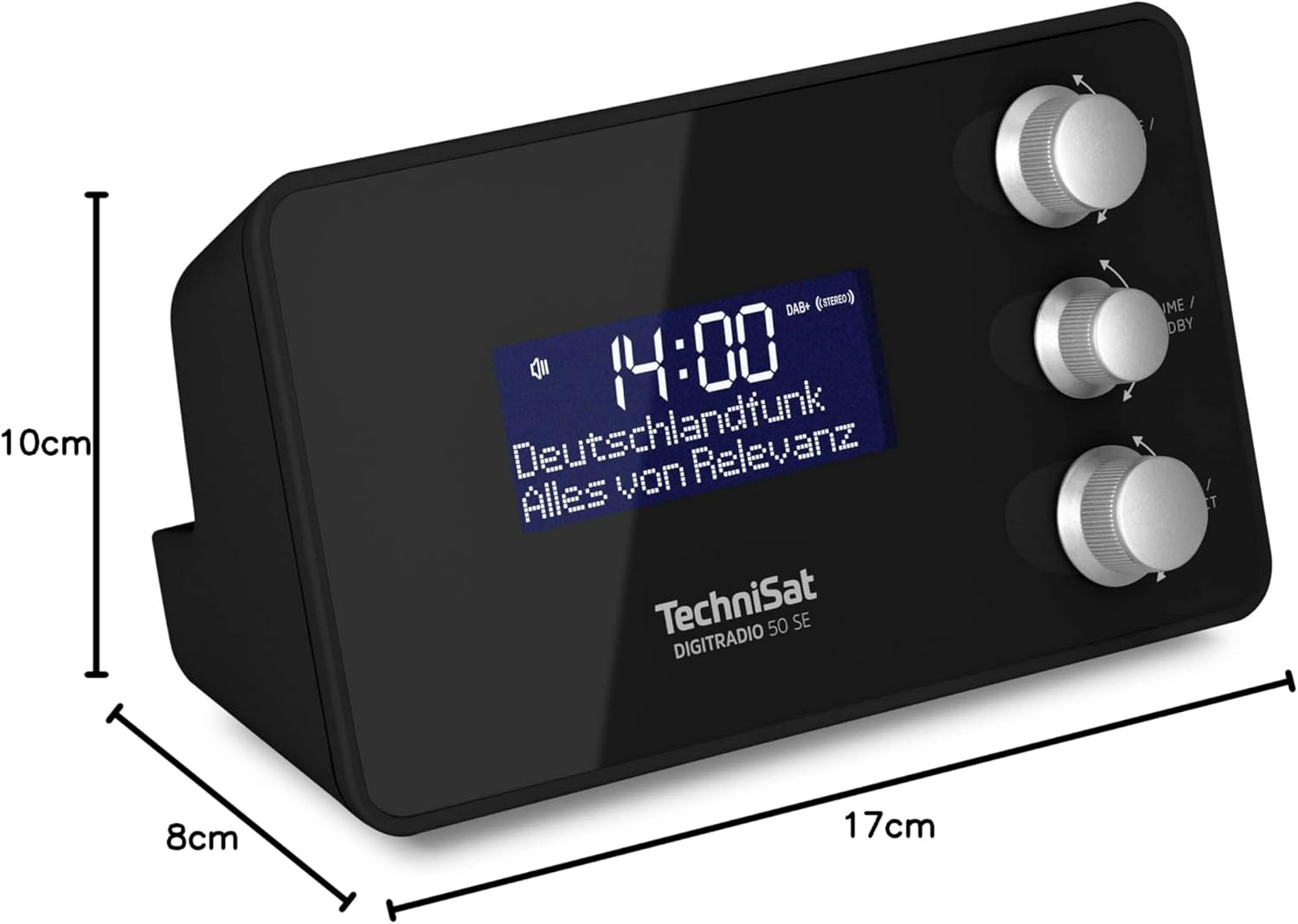

Image 1.1: Front view of the TechniSat DIGITRADIO 50 SE.
2. Package Contents
Please check that all items are present in the package:
- TechniSat DIGITRADIO 50 SE unit
- Wire antenna
- Power adapter (cable length 1.80 m)
- User manual (English version)
3. Setup
3.1 Connecting Power
- Connect the power adapter to the DC IN 5.5V/2.0A port on the rear of the radio.
- Plug the power adapter into a standard wall outlet.
3.2 Antenna Connection
Extend the wire antenna for optimal DAB+ and FM radio reception. Position the antenna away from other electronic devices to minimize interference.
Image 3.1: Rear panel connections including DC IN, Headphone Jack, and USB OUT.
3.3 Initial Power On and Language Selection
- Press the MODE / MENU button to turn on the radio.
- Upon first use, the device may prompt you to select a language. Use the TUNE / SELECT knob to navigate and press to confirm your choice. Available OSD languages include English, German, French, Italian, Danish, and Slovenian.
- The radio will automatically scan for DAB+ stations and set the time.
4. Operating Instructions
4.1 Power On/Off and Standby
- To turn on the radio, press the MODE / MENU button.
- To put the radio into standby mode, press the VOLUME / STANDBY button.
4.2 Radio Tuning (DAB+/FM)
The DIGITRADIO 50 SE supports both DAB+ and FM radio reception.
- Press the MODE / MENU button repeatedly to switch between DAB+ and FM modes.
- In DAB+ mode, the radio will automatically scan for available stations. Use the TUNE / SELECT knob to browse the station list and press to select.
- In FM mode, use the TUNE / SELECT knob to manually tune to a frequency or press and hold to auto-scan for the next available station.
Image 4.1: Display showing DAB+ radio reception.
4.3 Storing and Recalling Favorite Stations
You can store up to 20 favorite stations (10 for DAB+ and 10 for FM) for quick access.
- Tune to the desired station.
- Press and hold the TUNE / SELECT knob until "Preset Store" appears on the display.
- Rotate the TUNE / SELECT knob to choose a preset number (1-10) and press to confirm.
- To recall a favorite station, briefly press the TUNE / SELECT knob, then rotate to select the desired preset and press to confirm.
Image 4.2: Storing a favorite radio station.
4.4 Setting Alarms
The radio features two independent programmable alarms.
- In standby mode, press and hold the MODE / MENU button to enter the menu.
- Navigate to "Alarm" using the TUNE / SELECT knob and press to select.
- Choose "Alarm 1" or "Alarm 2".
- Set the alarm time, alarm source (Buzzer, DAB+, or FM), alarm rhythm (Once, Daily, Weekdays, Weekends), and alarm volume.
- Confirm settings to activate the alarm.
Image 4.3: Overview of alarm and comfort functions.
4.5 Snooze and Sleep Timer
- Snooze: When an alarm sounds, press the large button on top of the unit to activate snooze. The alarm will pause for a set period (e.g., 9 minutes) and then sound again.
- Sleep Timer: To set a sleep timer, press the MODE / MENU button to enter the menu, navigate to "Sleep", and select the desired duration (e.g., 15, 30, 60 minutes). The radio will play for the set time and then automatically switch to standby.
4.6 Display Brightness Adjustment
The LCD display brightness can be adjusted to suit your preference, especially for bedroom use.
- In operating mode or standby, briefly press the large button on top of the unit to cycle through brightness levels (High, Medium, Low, Off).

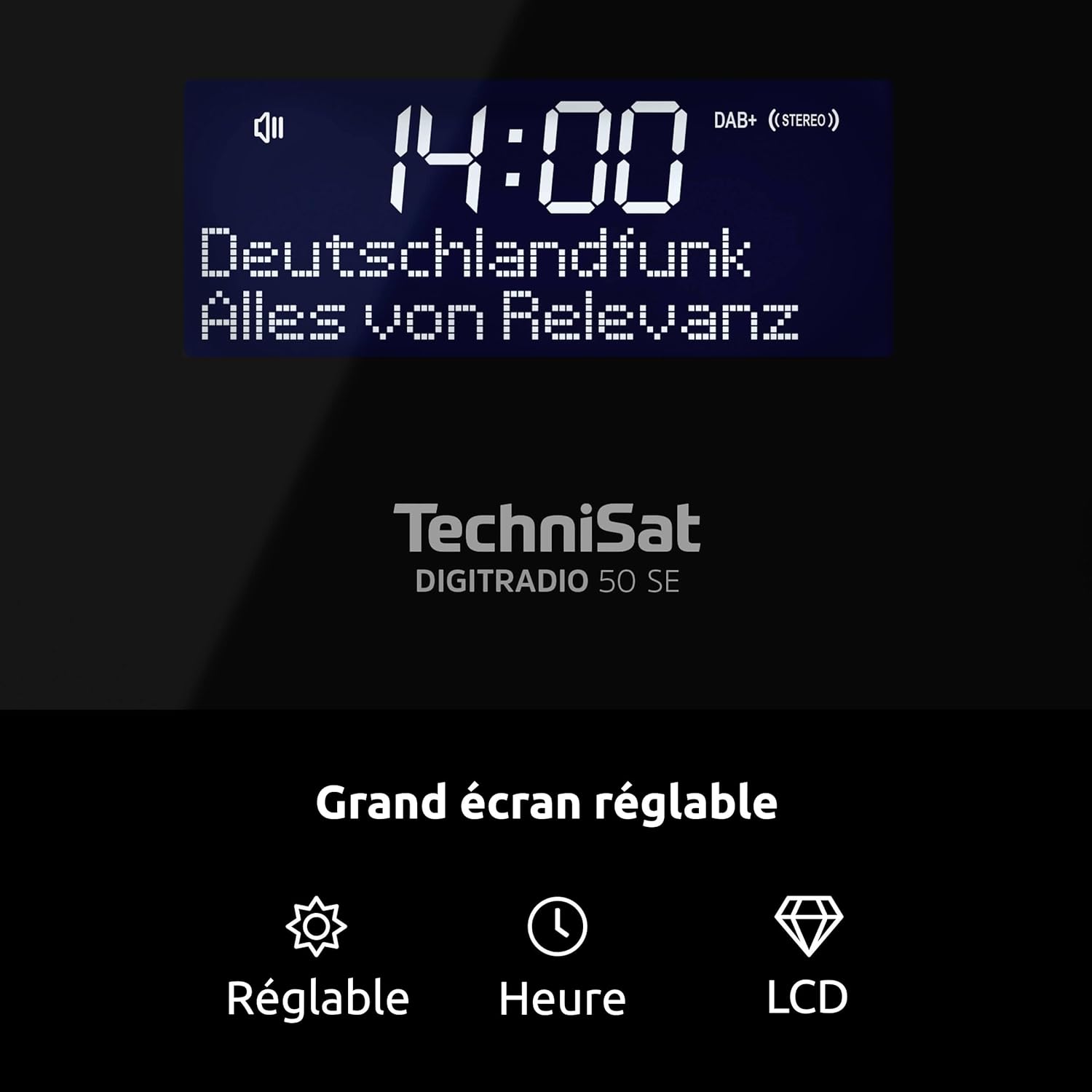

Image 4.4: Dimmable LCD display with time and date.
4.7 USB Charging Function
The DIGITRADIO 50 SE features a USB charging port (DC OUT 5V/1A) on the rear panel.
- Connect your smartphone or other compatible USB-powered device to the DC OUT 5V/1A port using a suitable USB cable.
- The device will begin charging. Note that charging speed may vary depending on the connected device.
4.8 Headphone Use
For private listening, connect standard 3.5mm stereo headphones to the headphone jack on the rear of the unit. The internal speaker will be muted automatically.
5. Maintenance
- Cleaning: Use a soft, dry cloth to clean the exterior of the radio. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
- Placement: Place the radio on a stable, flat surface. Avoid placing it in direct sunlight, near heat sources, or in areas with high humidity or dust.
- Antenna: Handle the wire antenna carefully to avoid damage.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power / Unit does not turn on. | Power adapter not connected or faulty. | Ensure the power adapter is securely connected to the radio and a working power outlet. Try a different outlet. |
| Poor radio reception (DAB+/FM). | Antenna not extended or poorly positioned. Interference from other electronics. Weak signal in the area. | Fully extend and adjust the wire antenna. Move the radio away from other electronic devices. Try repositioning the radio. |
| Alarm does not sound. | Alarm not activated or incorrectly set. Alarm volume too low. | Check alarm settings (time, source, rhythm, volume). Ensure the alarm is enabled. |
| Display is too bright/dim. | Brightness setting needs adjustment. | Briefly press the large button on top of the unit to cycle through brightness levels. |
| USB charging not working. | USB cable faulty. Device not compatible or requires more power. | Try a different USB cable. Ensure your device is compatible with 5V/1A charging. |
7. Specifications
- Brand: TechniSat
- Model Number: 0000/3979
- Color: Black
- Connectivity Technology: USB (for charging)
- Special Features: 2 Alarms, USB Charging, Dimmable Display
- Compatible Devices: Headphones, USB-chargeable devices
- Product Dimensions (L x W x H): 17 cm x 8 cm x 9.5 cm
- Tuning Technology: DAB+/FM
- Power Source: Corded Electric (External Power Supply DC 5.5V/2.0A)
- Supported Radio Bands: DAB+, FM
- Included Components: DIGITRADIO 50 SE unit, Power adapter, User manual, Wire antenna
- OSD Languages: English, German, French, Italian, Danish, Slovenian
- Manufacturer: TechniSat
- Country of Origin: China
8. Warranty and Support
The TechniSat DIGITRADIO 50 SE comes with a manufacturer's warranty of 2 years.
For technical support, warranty claims, or further assistance, please contact TechniSat customer service. Refer to the official TechniSat website or the contact information provided in your product packaging for details.
Note: The availability of spare parts is indicated as 1 year. Software updates are not guaranteed beyond the initial purchase.
