1. Product Overview
The Alveus CADIT 40 is a modern and timeless built-in kitchen sink, crafted from high-quality Granital composite material. This reversible sink features a single bowl and an integrated drainer, designed for seamless integration into your kitchen countertop. It is supplied with a siphon for installation and offers the convenience of connecting a dishwasher or washing machine.
Key Features:
- Material: High-quality Granital (Granite composite)
- Installation Type: Built-in (Integrated)
- Sink Type: Single bowl with drainer, reversible design
- Bowl Dimensions: 445 x 425 x 198 mm
- Minimum Base Cabinet: 600 mm
- Included Components: Sink and siphon
- Appliance Connection: Dishwasher/washing machine connection possible

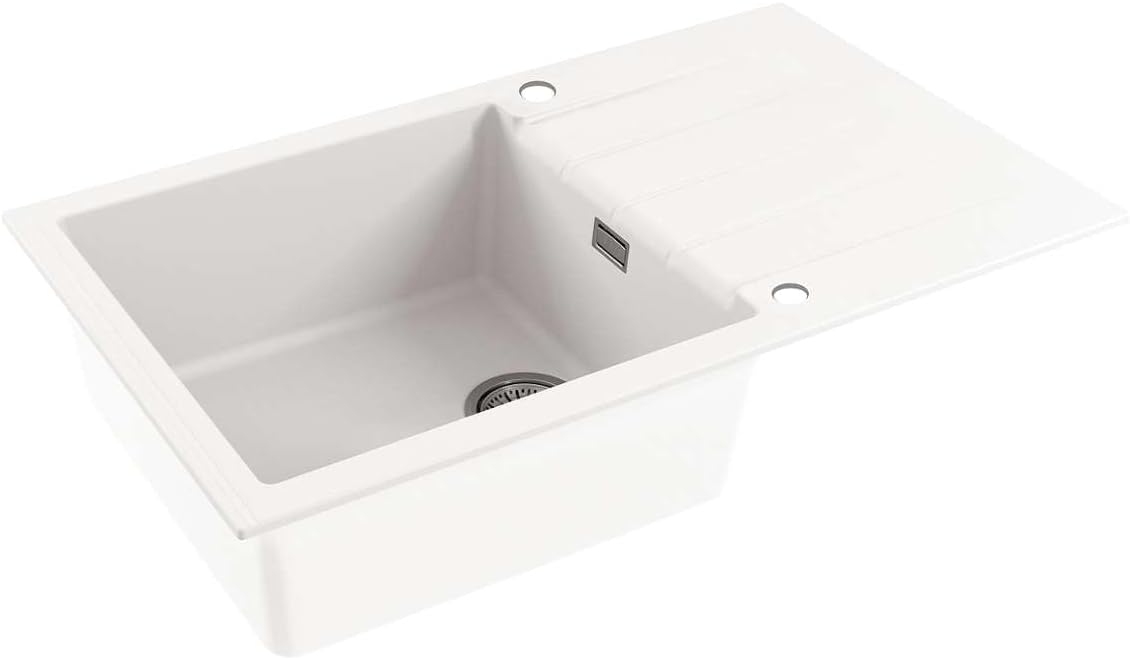

Image 1.1: The Alveus CADIT 40 built-in granite kitchen sink in white, showcasing its single bowl and integrated drainer.
2. Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Alveus |
| Model Number | 1132027 |
| Material | Granital (Granite composite) |
| Color | White |
| Installation Type | Built-in (Integrated) |
| Sink Type | Single bowl with drainer, reversible |
| Bowl Dimensions (L x W x D) | 445 x 425 x 198 mm |
| Overall Product Dimensions (L x W x H) | 86 x 50 x 19.8 cm |
| Minimum Base Cabinet Width | 600 mm |
| Weight | 15.6 kg |
| Drain Type | Pop-Up |
| Components Included | Sink and siphon |
| Dishwasher/Washing Machine Connection | Possible |
Image 2.1: Technical drawing illustrating the dimensions and installation requirements for the Alveus CADIT 40 sink.
3. Setup and Installation
This section provides general guidelines for installing the Alveus CADIT 40 built-in sink. Professional installation is recommended to ensure proper fitting and plumbing connections.
Installation Steps:
- Preparation: Ensure the countertop opening is precisely cut to the sink's dimensions. The sink requires a minimum base cabinet width of 600 mm for proper support.
- Positioning: Carefully place the sink into the prepared opening. The sink is reversible, allowing you to orient the drainer on either the left or right side to suit your kitchen layout.
- Securing: Use appropriate mounting clips (typically supplied with the sink or countertop) to firmly secure the sink to the underside of the countertop. Tighten evenly to create a watertight seal.
- Drain Assembly: Install the included siphon and drain assembly. Follow standard plumbing practices to ensure all connections are tight and leak-free.
- Water Connections: Connect the faucet (not included) and water supply lines according to the faucet manufacturer's instructions.
- Appliance Connection: If connecting a dishwasher or washing machine, utilize the designated connection point on the siphon. Ensure all hoses are securely attached and free from kinks.
After installation, run water through the sink and check all connections for any leaks.
4. Operating Instructions
The Alveus CADIT 40 sink is designed for standard kitchen use, including washing dishes, preparing food, and general cleaning tasks. To operate:
- Filling the Bowl: Ensure the drain stopper is properly seated in the drain opening to retain water in the bowl.
- Draining the Bowl: Remove the drain stopper to allow water to flow into the drain.
- Using the Drainer: Place washed items on the integrated drainer to air dry or to allow excess water to drip into the sink.
5. Maintenance and Care
Proper care will help maintain the appearance and longevity of your Alveus CADIT 40 granite sink.
General Cleaning:
- Daily Cleaning: Clean the sink regularly with a mild dish soap or detergent and a soft cloth or sponge. Rinse thoroughly with clean water after cleaning to remove any soap residue.
- Stain Removal: For stubborn stains, use a non-abrasive cleaner specifically formulated for granite or composite sinks. Apply the cleaner, let it sit for a short period as per product instructions, then scrub gently and rinse thoroughly.
- Avoid Harsh Products: Do not use abrasive cleaners, scouring pads, steel wool, strong acids, alkalis, or bleach, as these can damage the Granital surface.
- Preventing Damage: Avoid dropping heavy or sharp objects into the sink. Do not expose the sink to extreme temperature changes, such as pouring boiling water directly onto a frozen surface, as this can cause thermal shock.
- Hard Water Deposits: In areas with hard water, mineral deposits may accumulate. Regular cleaning helps prevent this. A solution of white vinegar and water (1:1 ratio) can be used for descaling; apply, let sit for a few minutes, then scrub and rinse thoroughly.
6. Troubleshooting
This section addresses common issues you might encounter with your sink.
Common Issues and Solutions:
- Slow Drainage:
- Check the siphon and drain assembly for any blockages (e.g., food particles, grease).
- Ensure the drain stopper is not partially obstructing the flow.
- Leaks Around the Sink or Faucet:
- Inspect all plumbing connections, especially around the siphon, drain, and faucet.
- Gently tighten any loose connections. Do not overtighten.
- If leaks persist, professional plumbing assistance may be required.
- Stains or Discoloration:
- Refer to the "Maintenance and Care" section for recommended cleaning procedures for granite sinks.
- Promptly clean up spills from food items like coffee, tea, red wine, or highly pigmented liquids to prevent potential staining.
7. Warranty and Support
Specific warranty details for the Alveus CADIT 40 sink are not provided in the product information. For warranty claims, technical support, or inquiries about spare parts, please contact your original retailer or the manufacturer, Alveus, directly.
Please note that information regarding the availability of spare parts is currently unavailable through the provided product data.
When contacting support, please have your model number (CADIT 40 1132027) and proof of purchase ready.
