Benro Polaris Astro Module Add-On User Manual

1. Introduction

The Benro Polaris Astro Module Add-On is designed to expand the capabilities of your Benro Polaris Smart Tripod Head (Timelapse Edition), enabling advanced astrophotography features. This module integrates seamlessly with the Polaris system, providing precise control and tracking for capturing stunning images of the night sky.

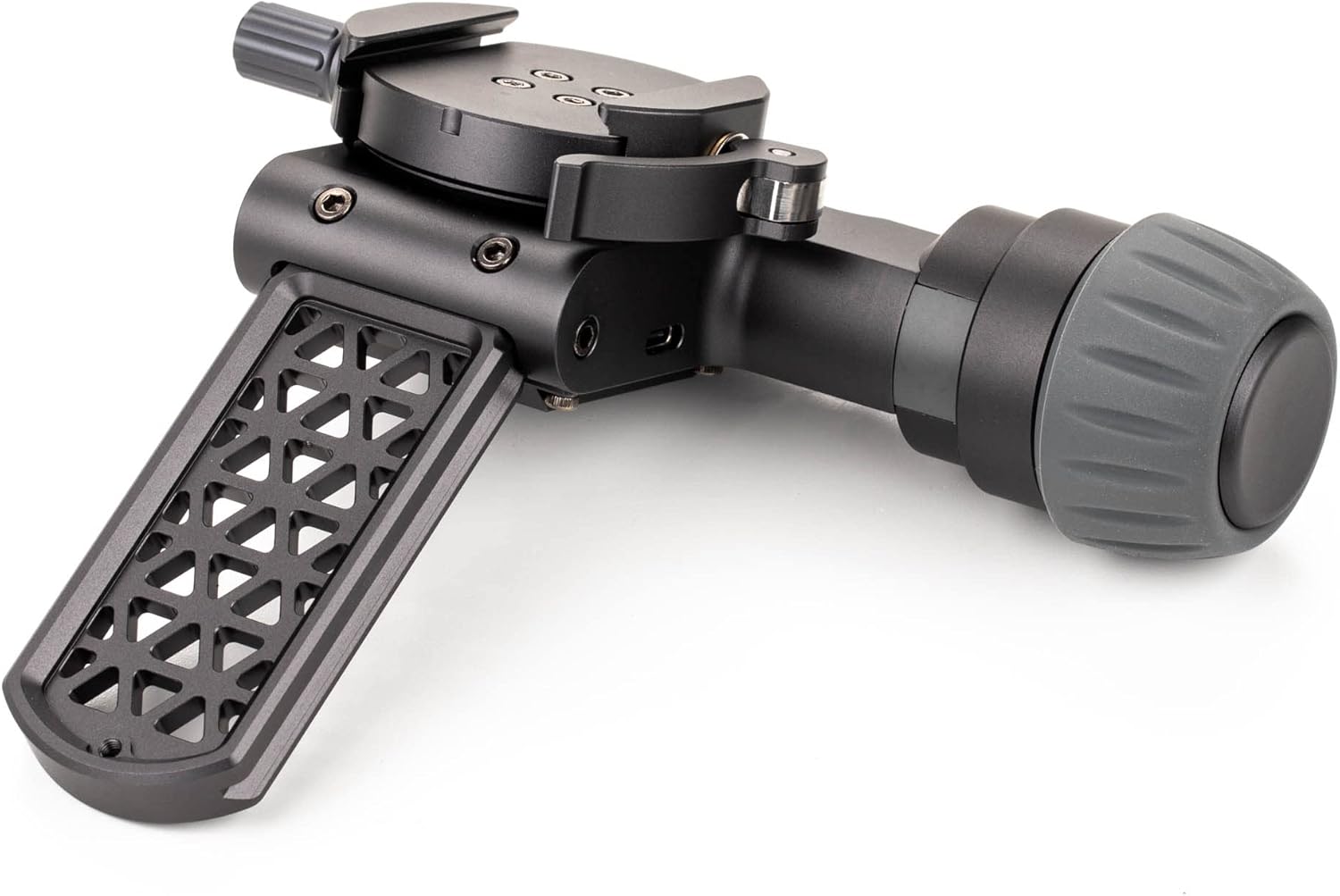

Figure 1: Front view of the Benro Polaris Astro Module Add-On.

2. Product Overview

The Astro Module is an essential accessory for users looking to transition their Polaris Smart Tripod Head from timelapse photography to dedicated astrophotography. It features a rotating Arca clamp specifically designed for star tracking, ensuring your camera remains precisely aligned with celestial objects.

• Seamless Integration: Designed to fit directly into the quick release clamp of the Benro Polaris Smart Tripod Head.
• Precision Tracking: Equipped with a rotating Arca clamp for accurate star tracking.
• Expansion Kit: Part of the Astro Expansion Kit, providing all necessary components to upgrade your Polaris.

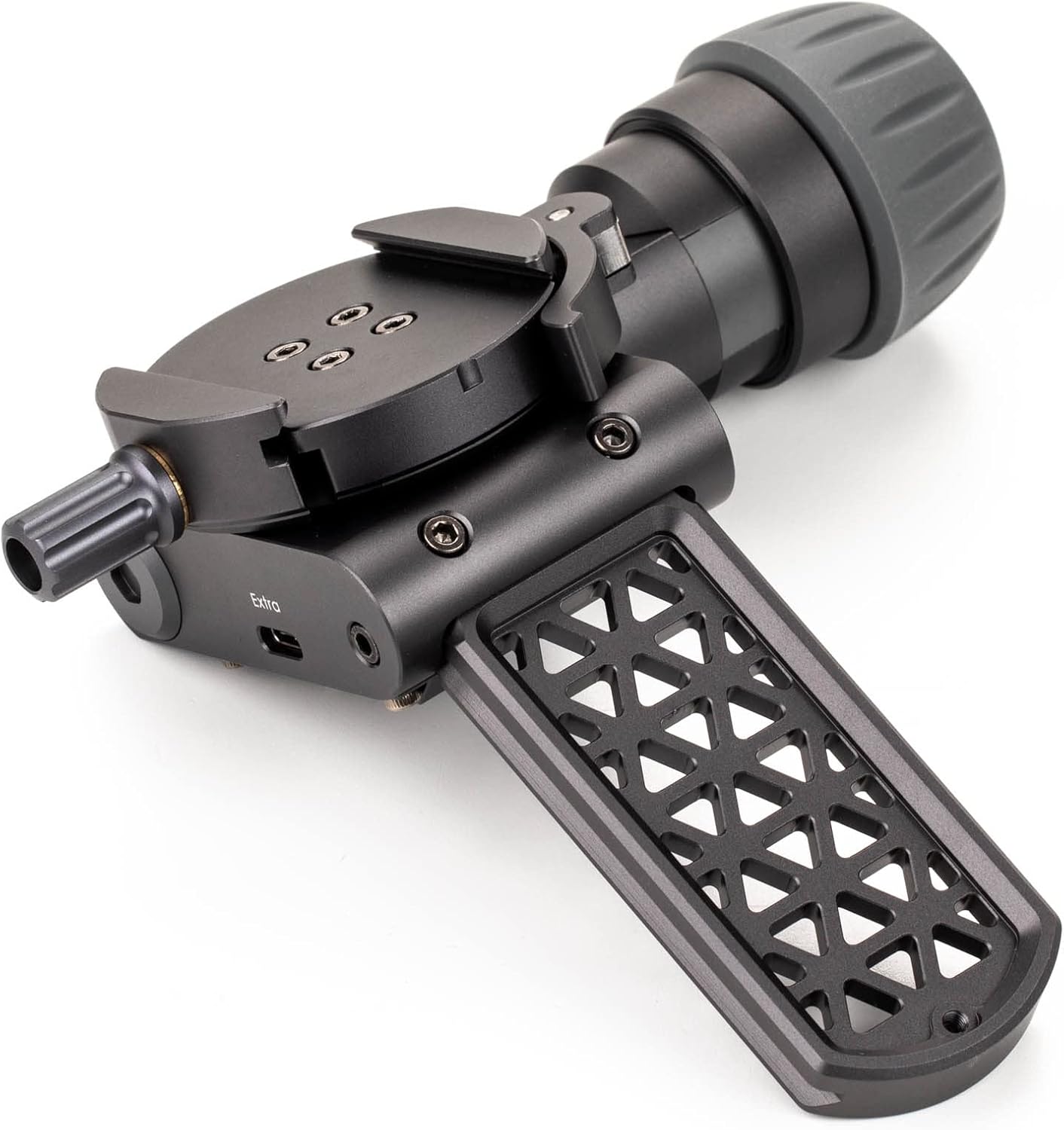

Figure 2: Side view of the Benro Polaris Astro Module Add-On, highlighting the Arca clamp.

3. Key Features

• Robust Construction: CNC machined for exceptional strength and rigidity, supporting camera rigs up to 15 lbs (6.8 kg).
• High Precision Movement: Capable of adjustments as small as 0.0025 degrees, allowing for incredibly precise composition and tracking.
• Extended Battery Life: Over 24 hours of operation, ensuring long shooting sessions without interruption.
• Power Output: Internal battery can charge and power your camera simultaneously via USB-C.
• Weather Resistance: IPX6 waterproof rating for reliable performance in various outdoor conditions.
• Remote Control: Wireless and cellular capabilities (cellular on specific versions) allow for remote control and live view access from anywhere.
• Advanced Astrophotography Modes: Features like "Go-To Star" function and Astro Panorama mode simplify complex astrophotography tasks without requiring polar alignment.

4. Setup

1. Attach to Tripod: Securely mount your Benro Polaris Smart Tripod Head (with the Astro Module attached) onto a stable tripod. Ensure the tripod is level for optimal performance.
2. Mount Camera: Attach your camera to the Arca-Swiss compatible quick release plate on the Astro Module. Ensure it is securely fastened.
3. Connect Camera Control Cable: Connect the appropriate camera control cable (e.g., USB-C to Mini-USB, USB-C to Micro-USB) from your camera to the Polaris unit. This enables remote shutter control and other functions.
4. Power On: Press and hold the power button on the Polaris unit until the indicator lights illuminate.
5. Download App: Download the Benro Polaris companion smartphone application from your device's app store.
6. Pair Device: Open the app and follow the on-screen instructions to pair your smartphone with the Polaris unit via Bluetooth or Wi-Fi.
7. Initial Calibration: Perform any initial calibration steps prompted by the app, such as setting your current location for accurate celestial tracking.

5. Operating the Astro Module

5.1 Astrophotography Modes

• Go-To Star Function:

  Within the app, navigate to the astrophotography section. Select the "Go-To Star" option. You can search for specific celestial objects (stars, constellations, planets) or choose from a list of visible objects based on your location and time. The Polaris will automatically orient your camera to the selected object.

• Astro Panorama Mode:

  This mode allows you to capture wide-field astrophotography panoramas. The Polaris will automatically move the camera to capture multiple overlapping images, which can then be stitched together in post-processing to create a high-resolution panoramic image of the night sky.

• Long Exposure Photography:

  The precise tracking capabilities of the Astro Module are ideal for long exposure astrophotography, minimizing star trails and allowing for greater light collection from faint celestial objects.

5.2 Remote Control and Monitoring

The smartphone app provides comprehensive control over the Polaris and connected camera. You can adjust settings, monitor live view, and initiate captures remotely. This is particularly useful for astrophotography in cold environments or for maintaining a stable setup.

• Live View: Access your camera's live feed directly on your smartphone.
• Settings Adjustment: Control exposure settings, ISO, aperture, and other camera parameters from the app.
• Precise Movement: Use the app's interface for fine-tuning camera position with extreme accuracy.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the Astro Module. Avoid abrasive materials or harsh chemicals.
• Storage: Store the module in a dry, cool place away from direct sunlight and extreme temperatures.
• Firmware Updates: Regularly check the Benro Polaris app for firmware updates to ensure optimal performance and access to new features.
• Battery Care: For long-term storage, ensure the internal battery is charged to approximately 50-70% to maintain battery health.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For detailed warranty information and technical support, please refer to the official Benro website or contact Benro customer service directly. Keep your proof of purchase for warranty claims.

Benro Official Website: www.benro.com

Customer Service: Refer to the contact section on the official website for regional support details.
