Zanussi PerlaMax 6kg 1200 RPM Front Load Washing Machine Instruction Manual

Introduction

Thank you for choosing the Zanussi PerlaMax 6kg 1200 RPM Front Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions carefully before using the washing machine and keep them for future reference.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons. This appliance is intended for domestic use only.

• Electrical Safety: Ensure the appliance is properly grounded. Do not use extension cords or adapters. Disconnect from power before cleaning or maintenance.
• Water Safety: Ensure water inlet and drain hoses are correctly installed to prevent leaks. Do not operate if there is a water leak.
• Children and Vulnerable Persons: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance.
• Installation: The appliance must be installed by a qualified person. Remove all transport bolts before use.
• Flammable Materials: Do not wash items that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances such as gasoline, dry-cleaning solvents, or other flammable or explosive substances.

Product Overview

The Zanussi PerlaMax washing machine is designed for efficient and convenient laundry care. Key features include:

• Capacity: 6 kg front-load.
• Spin Speed: Maximum 1200 revolutions per minute (RPM).
• Programs: 12 different washing programs to suit various fabric types and soil levels.
• XXL Door: Large door for easy loading and unloading of laundry.
• Time Management: Adjust wash cycle duration in 4 steps.
• 20-Minute Refresh Program: Quickly refresh lightly soiled items.
• Plus Steam Option: Reduces wrinkles by up to one-third, minimizing ironing.
• Anti-Foam Rinse System: Ensures thorough rinsing by detecting and managing excessive foam.
• Fuzzy Logic Technology: Adapts to the load for optimized washing performance.
• Load Balance Control: Ensures stable operation during spin cycles.
• Overflow Protection: Prevents water overflow.
• Hygiene Function: Kills 99.9% of bacteria at 40°C.

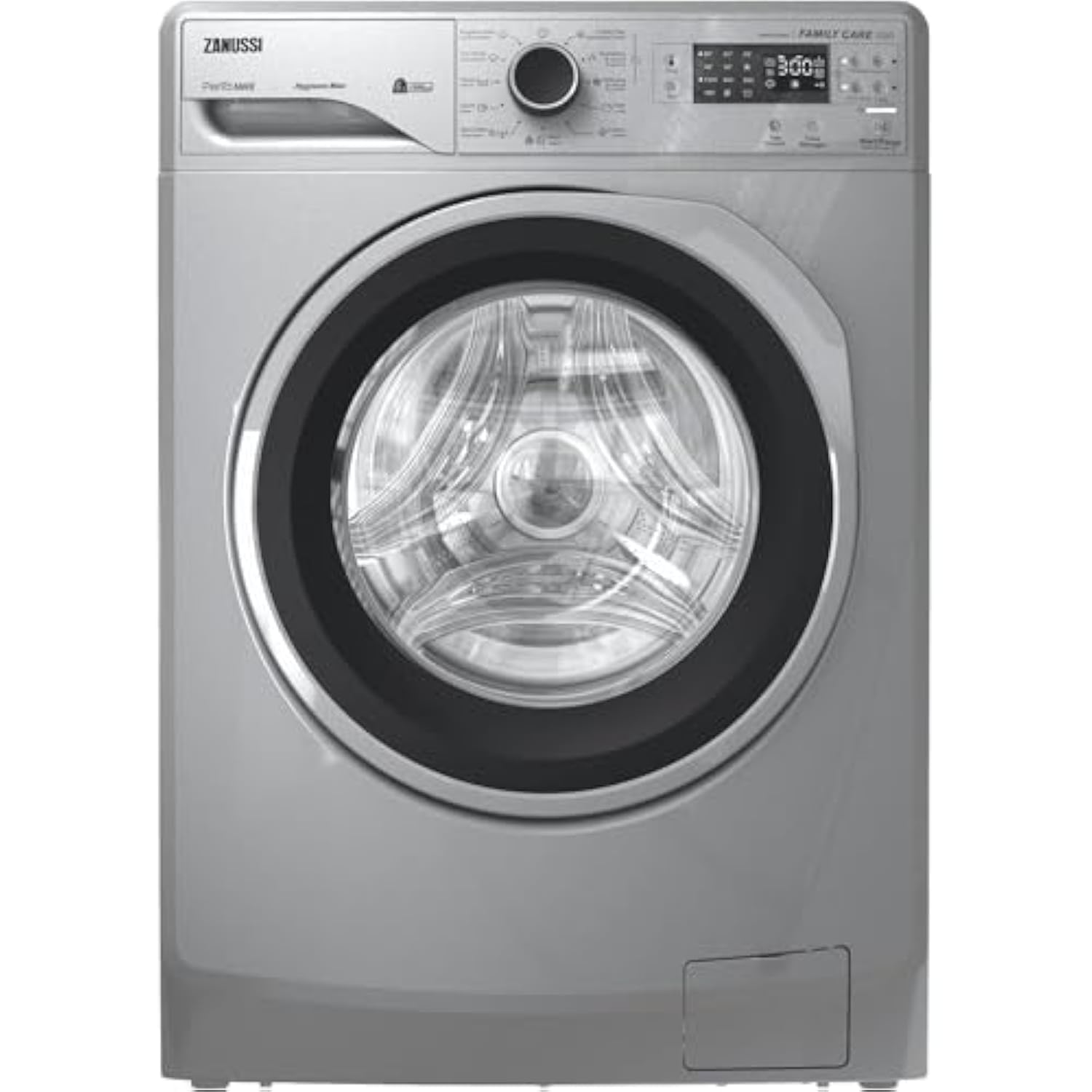

Figure 1: Front view of the Zanussi PerlaMax 6kg 1200 RPM Front Load Washing Machine.

Setup

Proper installation is crucial for the performance and longevity of your washing machine. It is recommended that installation be performed by a qualified technician.

1. Unpacking and Transport Bolt Removal

• Carefully remove all packaging materials.
• Locate and remove the transport bolts from the rear of the machine. These bolts secure the drum during transit and must be removed before operation to prevent damage. Keep the bolts for future transport.

2. Positioning and Leveling

• Place the washing machine on a firm, level floor.
• Adjust the leveling feet at the bottom of the machine until it is perfectly stable and level. Use a spirit level to verify.

3. Water Connection

• Connect the cold water inlet hose to the cold water tap and the corresponding inlet on the back of the machine. Ensure connections are tight to prevent leaks.
• Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during draining.

4. Electrical Connection

• Plug the power cord into a grounded electrical outlet. Ensure the voltage and frequency match the specifications of the appliance.

Operating Instructions

Follow these steps for a typical wash cycle:

1. Load Laundry: Open the XXL door and load your sorted laundry into the drum. Do not overload the machine.
2. Add Detergent: Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and fabric softener to its designated compartment.
3. Select Program: Turn the program selection knob to choose the desired wash program (e.g., Cotton, Synthetics, Delicates, 20-Minute Refresh).
4. Adjust Options (if desired): Use the control panel buttons to select additional options such as temperature, spin speed, or the Plus Steam function. The Time Management feature allows you to shorten the cycle in 4 steps.
5. Start Cycle: Press the Start/Pause button to begin the wash cycle.
6. Adding Forgotten Items: If you forgot to add an item, you can pause the cycle within the first 10-15 minutes (depending on water level and temperature) by pressing the Start/Pause button. Wait for the door to unlock, add the item, close the door, and press Start/Pause again to resume.
7. End of Cycle: The machine will signal when the cycle is complete. Open the door and remove your laundry promptly.

Programs

Your Zanussi washing machine offers 12 different wash programs. Refer to the appliance's control panel for specific program details and recommended load types. Common programs include:

• Cotton: For white and colored cotton items.
• Synthetics: For synthetic or mixed fabric items.
• Delicates: For delicate items requiring gentle washing.
• Wool/Handwash: For woolens and hand-washable items.
• 20-Minute Refresh: A quick cycle for lightly soiled clothes.
• Rinse: An extra rinse cycle.
• Spin/Drain: For draining water and spinning laundry.
• Eco: Energy-efficient wash for normally soiled cottons.
• Mixed: For mixed loads of cotton and synthetics.
• Sportswear: For sports clothing.
• Jeans: For denim items.
• Baby Care: For baby clothes, often with higher temperatures and extra rinses.

Maintenance

Regular maintenance helps ensure optimal performance and extends the life of your washing machine.

1. Cleaning the Detergent Dispenser

• Remove the detergent dispenser drawer and rinse it under running water to remove any detergent residue.
• Clean the housing of the dispenser with a brush.

2. Cleaning the Drum

• Periodically run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent or washing machine cleaner) to prevent odor and residue buildup.

3. Cleaning the Drain Filter

• Locate the drain filter, usually at the bottom front of the machine.
• Place a shallow container underneath to catch any residual water.
• Carefully unscrew and remove the filter. Clean any lint, debris, or foreign objects.
• Screw the filter back in securely.

4. Cleaning the Exterior

• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.

Troubleshooting

If you encounter issues with your washing machine, consult the following table for common problems and solutions before contacting service.

Specifications

Warranty and Support

Your Zanussi PerlaMax washing machine comes with a comprehensive warranty to ensure peace of mind.

• Warranty Period: This appliance is covered by a 5-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
• Warranty Coverage: The warranty covers manufacturing defects and malfunctions under normal domestic use. It does not cover damage caused by improper installation, misuse, neglect, unauthorized repairs, or normal wear and tear.
• Customer Support: For technical assistance, warranty claims, or to schedule a service appointment, please contact Zanussi customer service. Refer to your purchase documentation or the official Zanussi website for local contact details.
