Ailgely Handheld Pressurized Steam Cleaner

Introduction

Thank you for choosing the Ailgely Handheld Pressurized Steam Cleaner. This powerful and versatile cleaning tool is designed to effectively remove stubborn dirt, grease, and grime using high-temperature, pressurized steam, without the need for harsh chemicals. Please read this manual thoroughly before first use to ensure safe and optimal performance.

The Ailgely Handheld Pressurized Steam Cleaner is designed for versatile home cleaning.

Important Safety Information

WARNING: Steam is extremely hot and can cause severe burns. Always exercise caution and follow all safety instructions.

• Always ensure the safety cap is securely tightened before operating the unit.
• Never open the safety cap while the unit is pressurized or hot. Allow the unit to cool down completely and release all pressure before refilling.
• Keep hands, face, and body away from the steam nozzle during operation.
• Do not direct steam at people, pets, or electrical appliances.
• Use only clean tap water. Do not add any cleaning solutions, perfumes, or other chemicals to the water tank, as this can damage the unit and void the warranty.
• Unplug the steam cleaner from the power outlet when not in use and before cleaning or performing maintenance.
• Keep out of reach of children.
• Do not immerse the unit in water or other liquids.
• Regularly inspect the power cord for damage. Do not operate if the cord is damaged.

Product Overview and Components

Familiarize yourself with the parts of your Ailgely Handheld Pressurized Steam Cleaner and its included accessories.

Main unit and included accessories.

Key features and components of the steam cleaner.

Detailed view of all included accessories.

Packing List:

• Main Steam Cleaner Unit
• Flexible Hose
• Cleaning Cloth
• O-rings (2)
• Window Wiper
• Scrubbing Brush
• Angle Nozzle
• Round Brush
• Straight Nozzle
• Measuring Cup
• Funnel
• User Manual (this document)

Setup Instructions

Follow these steps to prepare your steam cleaner for use:

1. Unscrew the Safety Cap: Gently press down and turn the safety cap counter-clockwise to open.
2. Fill with Water: Use the provided measuring cup and funnel to pour up to 350ml of clean tap water into the water tank. Do not overfill.
3. Tighten the Safety Cap: Replace the safety cap and turn it clockwise until it is securely tightened. Ensure it is completely sealed to prevent steam leakage.
4. Attach Desired Accessory: Select the appropriate nozzle or brush for your cleaning task and firmly attach it to the main unit's steam outlet. For extended reach, attach the flexible hose first, then the desired accessory to the hose.
5. Plug In: Insert the power plug into a standard electrical outlet. The power indicator light will illuminate, indicating the unit is heating up.
6. Wait for Heating: The unit requires approximately 2 minutes to heat up and produce pressurized steam. The power indicator light may change or turn off when ready, depending on the model.

Visual guide for the setup process.

Setup and Usage Video:

Operating Instructions

Once the unit is heated and ready, you can begin cleaning. The steam cleaner operates at 100°C-150°C high temperature and up to 3.0 bar pressure for effective cleaning.

• Activate Steam: Press the steam button on the handle to release steam. Release the button to stop the steam flow. The handle features a safety lock to prevent accidental activation.
• Cleaning Surfaces: Direct the steam nozzle towards the surface to be cleaned. For stubborn dirt, hold the nozzle closer to the surface. Use the appropriate accessory for the task:
• Extension Soft Tube: Ideal for reaching tight spaces and hard-to-reach areas like corners, crevices, or behind appliances.
• Bent Spray Nozzle: Excellent for cleaning sinks, faucets, and other curved surfaces.
• Round Brush Nozzle: Suitable for scrubbing tough grime on grout, stove tops, and other durable surfaces.
• General Spray Nozzle: For broader cleaning tasks on upholstery, carpets, and larger areas.
• Long Spray Nozzle: Provides a concentrated jet of steam for precise cleaning, such as car wheels or narrow gaps.
• Spray Nozzle for Window/Door: Use with the cleaning cloth for streak-free cleaning of glass and smooth surfaces.
• Continuous Steam: The 350ml water tank provides continuous steam for approximately 10 minutes.
• Refilling: If the steam output decreases or stops, the water tank may be empty. Unplug the unit, allow it to cool down completely, and release any remaining pressure before carefully unscrewing the safety cap and refilling.

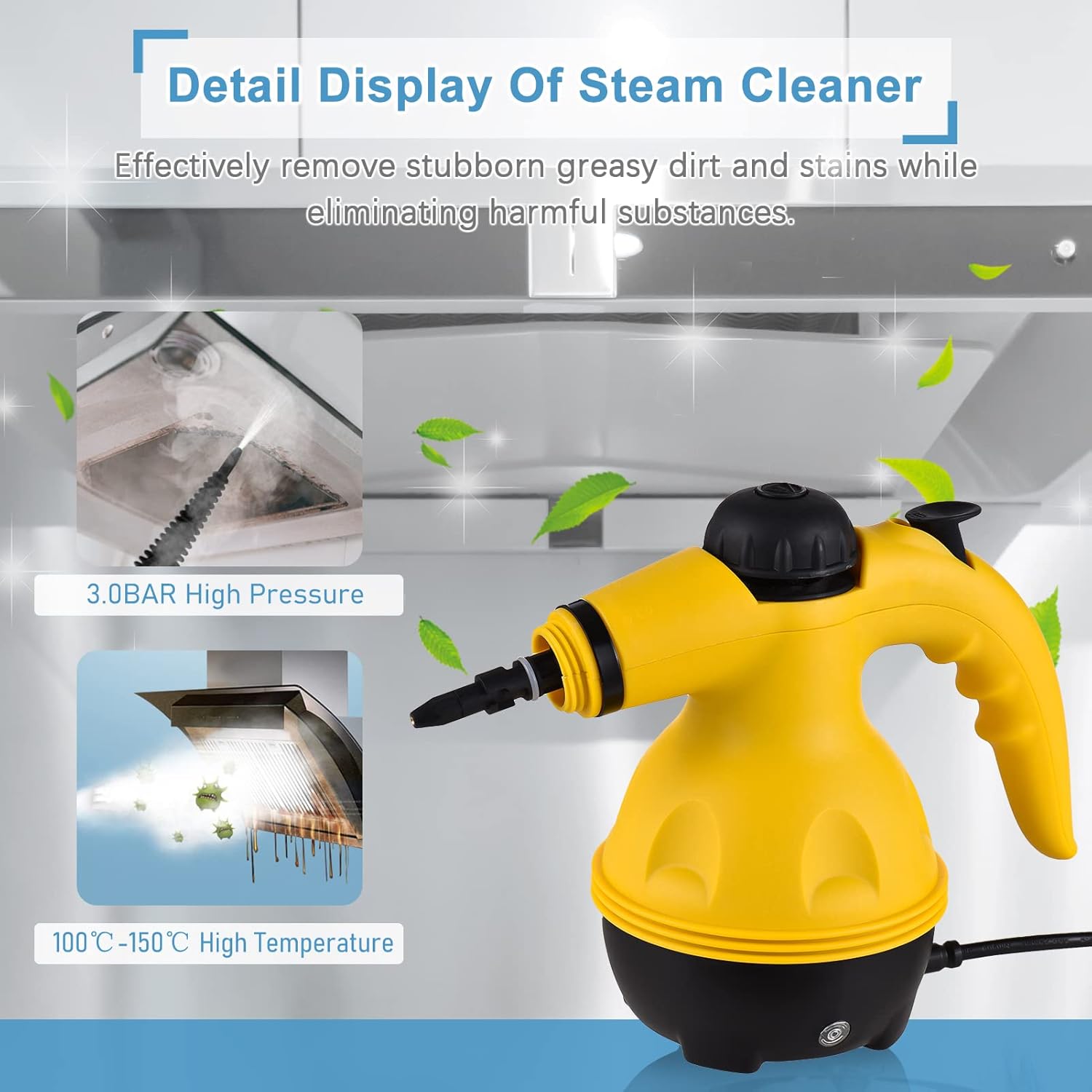

High temperature and pressure for deep cleaning.

Versatile cleaning with various attachments.

Effectiveness of steam cleaning on various surfaces.

Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your steam cleaner.

• Empty Water Tank: After each use, unplug the unit and allow it to cool completely. Carefully unscrew the safety cap and empty any remaining water from the tank.
• Clean Accessories: Wash all removable accessories with warm, soapy water. Rinse thoroughly and allow them to air dry before storing.
• Wipe Down Unit: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or solvents.
• Descaling (Optional): If you notice reduced steam output or mineral buildup, descaling may be necessary. Consult a qualified technician or refer to specialized descaling instructions for steam cleaners. Do not use vinegar or harsh chemicals unless explicitly recommended by the manufacturer.
• Storage: Store the steam cleaner and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues with your steam cleaner, refer to the table below for common problems and solutions.

Specifications

Product dimensions and power cord length.

Warranty and Support

For warranty information, technical support, or any questions regarding your Ailgely Handheld Pressurized Steam Cleaner, please refer to the contact information provided on the product packaging or the official Ailgely website. Keep your purchase receipt as proof of purchase for warranty claims.
