1. Product Overview
The Sofirn Q8 Pro is a high-performance rechargeable LED flashlight designed for various applications including camping, night walking, hunting, and emergency situations. It features a powerful output of up to 11000 lumens and a beam distance of up to 400 meters.

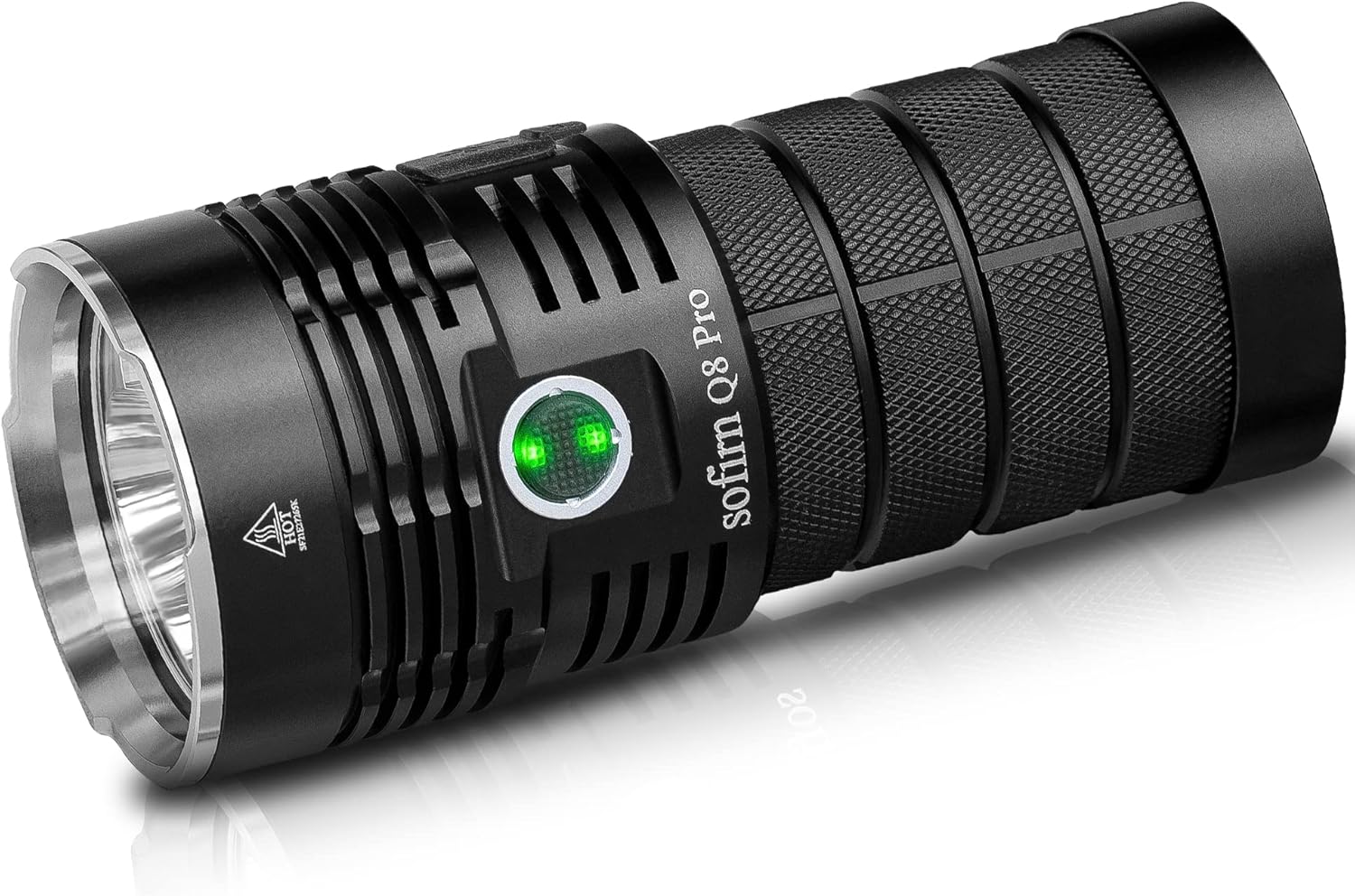

Figure 1.1: Sofirn Q8 Pro Rechargeable Flashlight. This image shows the overall design of the flashlight, highlighting its robust construction and side button interface.
Key features include a USB-C charging port for fast charging, multiple lighting modes controlled by the Anduril2 system, and a durable aviation-grade aluminum alloy body with IPX-8 waterproofing.
Figure 1.2: Overview of Sofirn Q8 Pro features, including Max Output 11000 LM, IPX8 Waterproof, 4xLED, Charges Your Phone, and Type-C Rechargeable.
2. Setup and Charging
2.1 Initial Setup
Before first use, ensure all packaging materials are removed. The Sofirn Q8 Pro comes with batteries included. It is essential to remove the insulation paper located between the battery compartment and the flashlight head to allow for proper electrical contact.
Figure 2.1: Diagram illustrating the removal of the insulation paper from the battery compartment. This step is crucial for the flashlight to function.
2.2 Charging the Flashlight
The Q8 Pro features a USB-C charging port for convenient and fast charging. Connect the provided USB-C charging cable to the flashlight and a 5V 2A power adapter (adapter not included). The indicator inside the side button will turn from blue to green when fully charged.
Figure 2.2: The flashlight connected via its USB-C port for charging. The image also shows the flashlight being used as a power bank to charge a mobile device.
The flashlight can also function as a power bank, allowing you to charge other devices via its USB-C port. Output current ranges from 1.5A to 3A.
3. Operating Instructions
The Sofirn Q8 Pro utilizes the advanced Anduril2 system, offering both a Simple User Interface (UI) and an Advanced User Interface (UI). Most functions are accessible in the Advanced UI.
3.1 Basic Operation (Simple UI)
- Turn On/Off: Single click the side button.
- Brightness Adjustment: While on, press and hold the button to ramp brightness up or down. Release to set.
- Turbo Mode: Double click from ON to activate Turbo mode (maximum brightness). Double click again to return to previous brightness.
- Lockout: From OFF, 4 clicks to activate electronic lockout. Repeat 4 clicks to unlock.
3.2 Advanced Operation (Anduril2 UI)
The Advanced UI provides access to a wide range of customizable features, including adjustable strobe modes, sunset mode, momentary modes, and more. Due to the complexity, refer to the detailed Anduril2 UI diagram for specific click sequences and functions.
Figure 3.1: Comprehensive Anduril 2 User Interface diagram. This diagram details various click patterns and their corresponding functions for both Simple and Advanced UI modes.
3.3 Smart Indicator
The side button features a smart indicator light that provides information on battery level, charging status, and current mode. Colors (green, blue, red) and flashing patterns indicate different states.
3.4 Usage Scenarios
The Sofirn Q8 Pro's powerful output makes it suitable for illuminating large areas, making it ideal for outdoor activities and emergency lighting.
Figure 3.2: The Sofirn Q8 Pro demonstrating its wide beam and high brightness, effectively lighting up a vast outdoor landscape at night.
Video 3.1: Official Sofirn Q8 Pro demonstration video. This video showcases the flashlight's features, brightness levels, and various applications in different environments.
4. Maintenance and Care
Proper maintenance ensures the longevity and optimal performance of your Sofirn Q8 Pro flashlight.
4.1 Waterproofing
The Q8 Pro is rated IPX-8 waterproof, meaning it can withstand immersion in water up to 2 meters. While highly water-resistant, it is not designed for diving. Ensure the USB-C port cover is securely closed to maintain water resistance.
Figure 4.1: The Sofirn Q8 Pro flashlight demonstrating its IPX8 water resistance by being partially submerged in water.
4.2 Cleaning and Storage
Clean the flashlight body with a soft, damp cloth. Avoid using abrasive cleaners. Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, it is recommended to remove the batteries.
4.3 Battery Care
The flashlight uses Lithium Polymer batteries. For optimal battery life, avoid fully discharging the batteries frequently. Recharge them when the indicator shows low battery. Use only the recommended charging methods.
5. Troubleshooting
If you encounter issues with your Sofirn Q8 Pro, consider the following common troubleshooting steps:
- Flashlight not turning on:
- Ensure the insulation paper has been removed from the battery compartment.
- Check if the batteries are properly inserted and fully charged.
- Verify the electronic lockout is not activated (4 clicks from OFF to unlock).
- Dim or inconsistent light output:
- Recharge the batteries. Low battery can cause reduced brightness.
- Clean the battery contacts and threads with a clean cloth.
- Charging issues:
- Ensure the USB-C cable is securely connected to both the flashlight and the power source.
- Try a different USB-C cable or power adapter.
- Check the charging indicator light for status.
- Overheating:
- In Turbo mode or prolonged high brightness, the flashlight may become warm. This is normal.
- The flashlight has built-in temperature regulation to prevent overheating. If it becomes excessively hot, it will automatically reduce brightness.
For further assistance, please refer to the detailed Anduril2 UI diagram or contact customer service.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Sofirn |
| Model Number | AUQ8Pro-6500K |
| Max Output | 11000 Lumens |
| Beam Distance | 400 Meters |
| Light Source Type | LED (4 x CREE XHP50.2 LED) |
| Power Source | Battery Powered (4 x 18650 Li-Ion Battery) |
| Charging Port | USB-C (5V 2A fast charging) |
| Water Resistance Level | IPX-8 Waterproof |
| Material | Aviation-grade Aluminum Alloy |
| Item Weight | 1.49 Pounds (approx. 676 grams) |
| Special Features | Adjustable, Durable, Rechargeable, Power Bank Function, Anduril2 UI |
7. Warranty and Support
7.1 Warranty Information
The Sofirn Q8 Pro Flashlight comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. Please retain your proof of purchase for warranty claims.
7.2 Customer Support
If you have any questions, require technical assistance, or need to make a warranty claim, please feel free to contact Sofirn customer service. Contact details can typically be found on the product packaging or the official Sofirn website.
