HITOP Aquarium Air Pump 4 Outlets 860 Instruction Manual

Introduction

This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your HITOP Aquarium Air Pump 4 Outlets 860. Please read this manual thoroughly before use and retain it for future reference.

Image: The HITOP Aquarium Air Pump 4 Outlets 860, a compact black unit designed for efficient aeration.

Safety Instructions

Always disconnect the power supply before performing any maintenance or installation.
Ensure the pump is placed on a stable, dry surface, above the water level of the aquarium to prevent water backflow. If placing below water level, use a check valve on each air line.
Do not immerse the air pump in water. This product is not submersible.
Keep out of reach of children.
Do not operate the pump if the power cord or plug is damaged.
This appliance is for indoor use only.

Package Contents

Verify that all items are present in the package:

HITOP Aquarium Air Pump with included accessories

Image: The HITOP air pump shown with all included accessories, highlighting its specifications.

HITOP Aquarium Air Pump (1 unit)
Air Tube (4.9 ft / 1.5 m) x 4
Air Stone x 4
Return Valve (Check Valve) x 4
Spare Regulating Valve x 4
Suction Cup for Tube Fixing x 4
T-Connector x 2

Product Features

Double-Layer Design: Engineered for effective noise reduction, ensuring quiet operation.
Adjustable Air Volume: Features a control knob for precise adjustment of air output, up to 4*5L/min.
Replaceable Air Filter: Includes a cotton filter to purify incoming air, protecting the pump and improving air quality.
Durable Metal Outlets: Four robust metal air outlets provide long-lasting performance.
Shock Absorption: Equipped with rubber feet to minimize vibration and further reduce noise.

Image: An exploded view of the air pump, illustrating its double-layer design for noise reduction, featuring an external thickened shell and internal air pump.

Air filter, metal outlets, and rubber feet

Image: Close-up views of the pump's features, including the replaceable air filter cotton, durable metal outlets, and shock-absorbing rubber feet.

Setup Instructions

Positioning the Pump: Place the air pump on a flat, stable surface. For safety and to prevent water backflow, it is recommended to position the pump above the water level of your aquarium.
Connecting Air Tubes: Connect one end of the provided air tubes to each of the four metal outlets on the air pump.
Attaching Air Stones/Accessories: Attach an air stone or other air-driven aquarium accessories (e.g., sponge filters) to the other end of each air tube.
Installing Check Valves: If the pump must be placed below the water level, install a return valve (check valve) on each air line between the pump and the aquarium. This prevents water from siphoning back into the pump during a power outage. Ensure the check valve is oriented correctly to allow air flow towards the aquarium.
Securing Tubing: Use the provided suction cups to fix the air tubes along the back or side of your aquarium, keeping them tidy and preventing kinks.
Power Connection: Once all connections are secure and the pump is safely positioned, plug the power cord into a suitable electrical outlet.

Operating Instructions

Power On: After plugging in the pump, it will begin to operate.
Adjusting Air Volume: The pump features a rotary knob on its top surface. Turn this knob clockwise to increase the air output and counter-clockwise to decrease it. Adjust the air volume to suit the needs of your aquarium and its inhabitants.
Monitoring Performance: Observe the bubble output from your air stones. Ensure consistent and adequate aeration.

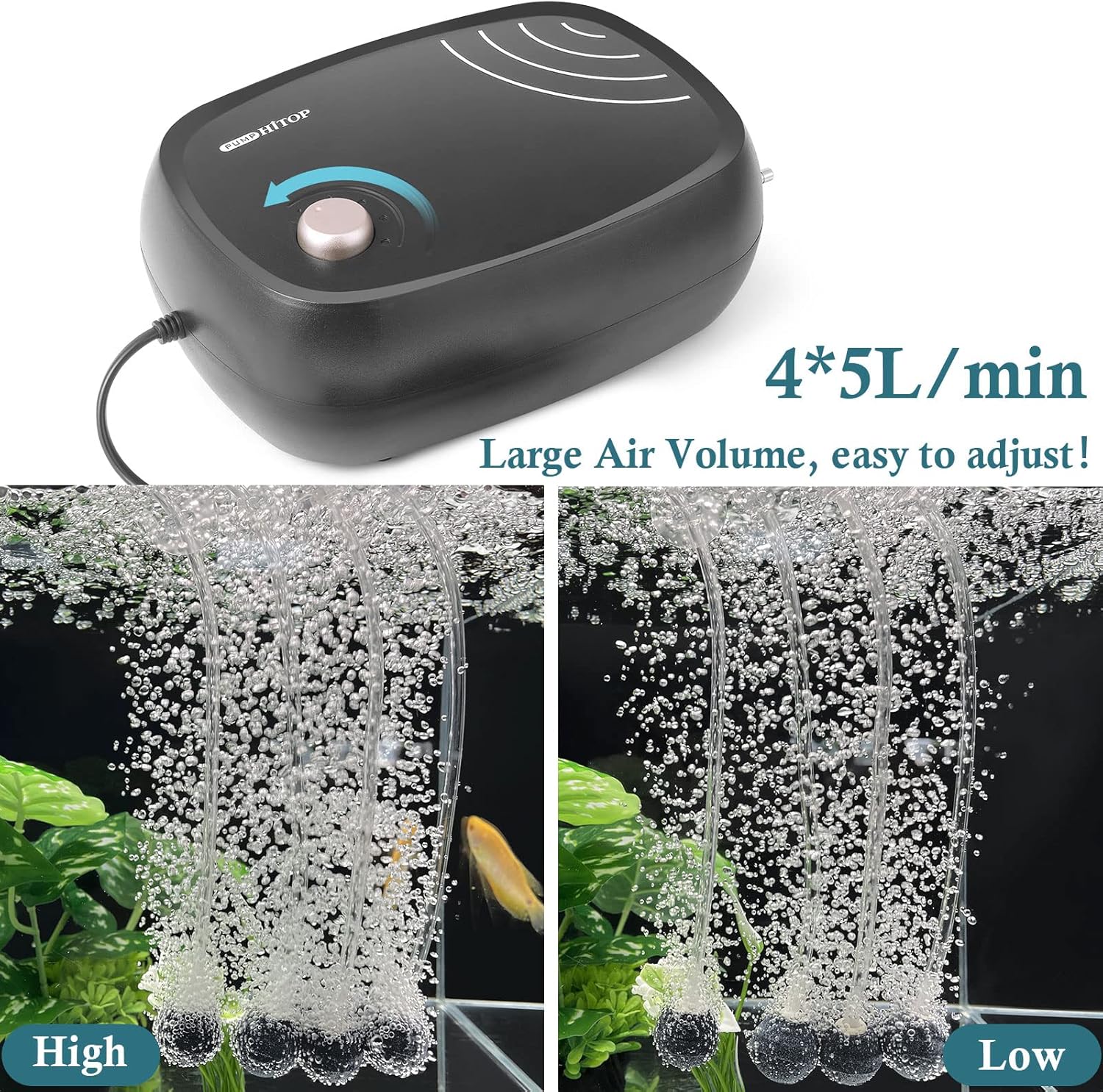

Image: The air pump with an arrow indicating the direction to turn the knob for air volume adjustment, showing both high and low air output levels in an aquarium.

Maintenance

Regular maintenance ensures optimal performance and longevity of your air pump.

Air Filter Replacement: The air filter cotton should be checked periodically (e.g., monthly) and replaced when it appears dirty or clogged. A clogged filter can reduce air output and strain the pump.
Cleaning Air Stones/Accessories: Over time, air stones can become clogged with algae or mineral deposits, reducing bubble output. Clean or replace them as needed.
Tubing Inspection: Regularly inspect air tubing for kinks, cracks, or blockages. Replace damaged tubing to maintain efficient air flow.
External Cleaning: Wipe the exterior of the pump with a dry cloth to remove dust. Do not use harsh chemicals or immerse in water.

Troubleshooting

Problem	Possible Cause	Solution
No air output	No power Kinked or blocked air tube Clogged air stone/accessory Clogged air filter	Check power connection and outlet. Inspect and clear air tubes. Clean or replace air stone/accessory. Replace air filter cotton.
Low air output	Air volume knob set too low Partially clogged air tube or air stone Clogged air filter	Adjust air volume knob clockwise. Inspect and clear air tubes/air stone. Replace air filter cotton.
Excessive noise/vibration	Unstable placement Pump touching other objects Internal component issue	Ensure pump is on a flat, stable surface. Reposition pump to avoid contact with other items. If noise persists, contact customer support.

Specifications

Model: 860
Brand: HITOP
Power: 10W
Voltage: 220-240V / 50Hz
Pressure: 22 KPa
Air Flow: 4 * 5 L/min (Total 20 L/min)
Outlets: 4
Dimensions (L x W x H): 21.6 x 15.2 x 7.1 cm (8.5 x 6.0 x 2.8 inches)
Weight: 1.26 Kilograms (2.78 lbs)
Material: Plastic
Color: Black

Image: Visual representation of various applications for the HITOP air pump, including small ponds, hydroponics, freshwater aquariums, and saltwater aquariums.

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.

HITOP 860
