Canglan Technology GD-313
Canglan Technology GD-313 Portable Milling Cutter Grinding Machine User Manual
Model: GD-313
Introduction
Welcome to the user manual for your new Canglan Technology GD-313 Portable Milling Cutter Grinding Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use to ensure proper handling and to maximize the lifespan of your machine.
Important Safety Instructions
Always adhere to the following safety guidelines to prevent injury and damage to the machine:
- Always wear appropriate personal protective equipment, including safety glasses, during operation.
- Ensure the machine is placed on a stable, level surface to prevent tipping or movement during use.
- Verify the power supply matches the machine's requirements (220V). Connecting to an incorrect voltage can cause severe damage.
- Keep hands, fingers, and loose clothing away from moving parts, especially the grinding wheel, during operation.
- Disconnect power before performing any maintenance, cleaning, or changing grinding wheels.
- Do not operate the machine in wet or damp conditions, or near flammable liquids or gases.
- Keep children and unauthorized personnel away from the operating area.
- Never force the machine or use it for purposes other than its intended function.
Product Overview
The Canglan Technology GD-313 is a portable milling cutter grinding machine designed for sharpening various end mills. It offers precise and efficient grinding for 2, 3, 4, and 6-edge milling cutters, making it a versatile tool for workshops and industrial applications.

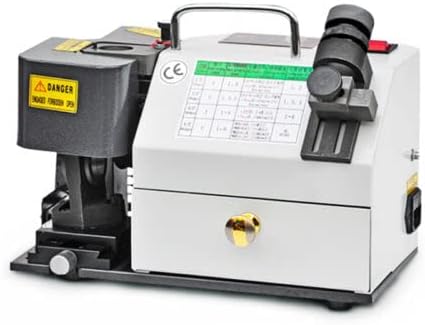

Figure 1: Front view of the GD-313 Portable Milling Cutter Grinding Machine, showcasing its compact design and control panel.
Figure 2: GD-313 machine with the accessory drawer open, revealing collets and other components for various milling cutter sizes.
Key Features
- Portable Design: The compact and lightweight design allows for easy transportation to different work sites, ideal for mobile repair and maintenance tasks.
- Versatile Grinding: Capable of sharpening a wide range of end mills, including two-flute, three-flute, four-flute, and six-flute cutters.
- Precise Grinding: Features a high-precision grinding wheel that delivers accurate and consistent results, ensuring sharp and ready-to-use tools.
- User-Friendly Operation: Designed for ease of use with intuitive controls and a straightforward interface, allowing for quick and simple tool sharpening without extensive training.
- Efficient Performance: Equipped with a powerful 300W motor that provides fast and efficient grinding, optimizing workflow and productivity.
Setup
Follow these steps for the initial setup of your GD-313 grinding machine:
- Unpacking: Carefully remove the machine and all included accessories from the packaging. Inspect all components for any signs of shipping damage. Retain the packaging for future storage or transport.
- Placement: Position the grinder on a stable, flat, and clean workbench. Ensure there is adequate space around the machine for safe operation and ventilation.
- Power Connection: Connect the power cord securely to the machine's power inlet, then plug it into a grounded 220V power outlet. Ensure the machine's power switch is in the "OFF" position before connecting to power.
- Grinding Wheel Installation: The machine typically comes with an SDC grinding wheel pre-installed, which is suitable for carbide milling cutters. If you intend to grind HSS (High-Speed Steel) milling cutters, you will need to replace it with a CBN grinding wheel (sold separately). Refer to the maintenance section for instructions on changing grinding wheels.
Figure 3: Unpacked contents, including the GD-313 machine, power cable, and a set of hex keys for adjustments.
Operating Instructions
This section details the steps for sharpening milling cutters using the GD-313 machine. Always follow safety precautions.
- Select Collet: Choose the appropriate collet that matches the diameter of your milling cutter. The machine supports a grinding range of Ø3mm to Ø13mm.
- Insert Milling Cutter: Securely insert the milling cutter into the selected collet. Ensure it is seated correctly and tightened firmly to prevent slippage during grinding.
- Adjust End Angle: Set the desired end angle for grinding, typically between 0° and 5°, using the adjustment mechanism on the machine. Consult your milling cutter's specifications for the recommended angle.
- Power On: Turn on the machine using the main power switch. The grinding wheel will begin to rotate at 4500 RPM. Allow it to reach full speed before beginning the grinding process.
- Grinding Process: Carefully bring the milling cutter, held in its collet, into contact with the rotating grinding wheel. Apply gentle, consistent pressure. Follow the specific grinding procedure for 2, 3, 4, or 6-edge cutters as indicated on the machine's guide or quick reference chart. Ensure even material removal across all flutes.
- Inspect and Repeat: After grinding, carefully remove the cutter and inspect its edge for sharpness and consistency. Repeat the process if further sharpening is required, making small adjustments as needed.
- Power Off: Once grinding is complete, turn off the machine and allow the grinding wheel to stop completely before removing the cutter or performing any further adjustments.
Figure 4: Illustration of various milling cutter types and the machine's grinding versatility. Note the distinction between CBN grinding wheels for HSS and SDC grinding wheels for carbide materials.
Maintenance
Regular maintenance is crucial for ensuring the longevity, optimal performance, and safety of your GD-313 grinder.
- Cleaning: After each use, clean the machine thoroughly to remove grinding dust, metal shavings, and debris. Use a soft brush or compressed air. Do not use water directly on electrical components.
- Grinding Wheel Inspection: Periodically inspect the grinding wheel for wear, cracks, or damage. A worn or damaged wheel can lead to poor grinding quality and potential safety hazards. Replace worn wheels promptly.
- Grinding Wheel Replacement: To replace the grinding wheel, first disconnect the machine from power. Carefully remove the retaining mechanism holding the wheel in place. Install the new wheel, ensuring it is correctly seated and secured. Reconnect power and test the machine before full operation.
- Lubrication: Refer to the machine's specific lubrication points (if any) in the included quick guide for periodic lubrication. Use only recommended lubricants.
- Storage: When not in use, store the machine in a dry, clean, and dust-free environment. Protect it from extreme temperatures and humidity.
Troubleshooting
This section addresses common issues you might encounter with the GD-313 machine and provides potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on | No power supply; Power switch off; Faulty power cord or outlet | Check power connection to the wall and machine; Ensure power switch is in the "ON" position; Test the outlet with another device; Inspect power cord for damage. |
| Poor grinding quality or uneven edges | Worn or incorrect grinding wheel; Incorrect angle setting; Improper cutter insertion or tightening | Replace grinding wheel if worn (ensure correct type for material); Re-adjust end angle according to specifications; Ensure cutter is securely and correctly inserted into the collet. |
| Excessive vibration during operation | Unstable surface; Loose components; Damaged or unbalanced grinding wheel | Place the machine on a stable, level surface; Check for any loose screws or components and tighten them; Inspect the grinding wheel for damage or imbalance and replace if necessary. |
| Machine overheats quickly | Continuous operation for too long; Blocked ventilation openings; Overloading the motor | Allow the machine to cool down between prolonged uses; Ensure all ventilation openings are clear of dust and debris; Avoid applying excessive pressure during grinding. |
Specifications
Technical specifications for the Canglan Technology GD-313 Portable Milling Cutter Grinding Machine:
| Feature | Specification |
|---|---|
| Product Model | GD-313 |
| Grinding Range | Ø3 - Ø13mm |
| Power Input | 220V / 300W |
| Revolution Speed | 4500 RPM |
| End Angle Adjustment | 0° - 5° |
| Standard Grinding Wheel | SDC (for carbide milling cutters) |
| Optional Grinding Wheel | CBN (for HSS milling cutters) |
| Weight | 14kg (Net) / 16kg (Gross) |
| Material | Metal |
