Hausmeister P005C Portable Carpet and Upholstery Spot Cleaner User Manual

1. Introduction

Thank you for purchasing the Hausmeister P005C Portable Carpet and Upholstery Spot Cleaner. This device is designed for deep cleaning small areas of carpets, rugs, upholstery, and car interiors, effectively removing tough stains and refreshing fabrics. It is not intended as a replacement for a traditional vacuum cleaner. Please read this manual carefully before first use to ensure safe and efficient operation. Keep this manual in a safe place for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.

• Read all instructions before using the appliance.
• Do not immerse the appliance in water or other liquids.
• Always unplug the appliance from the electrical outlet before cleaning or performing any maintenance.
• Do not allow children to operate the appliance. Close supervision is necessary when used near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use highly foaming cleaning solutions, as excessive foam can impair the appliance's function.
• Always ensure the clean water tank and dirty water tank are properly secured before operation.

3. Product Components

Familiarize yourself with the parts of your Hausmeister P005C spot cleaner:

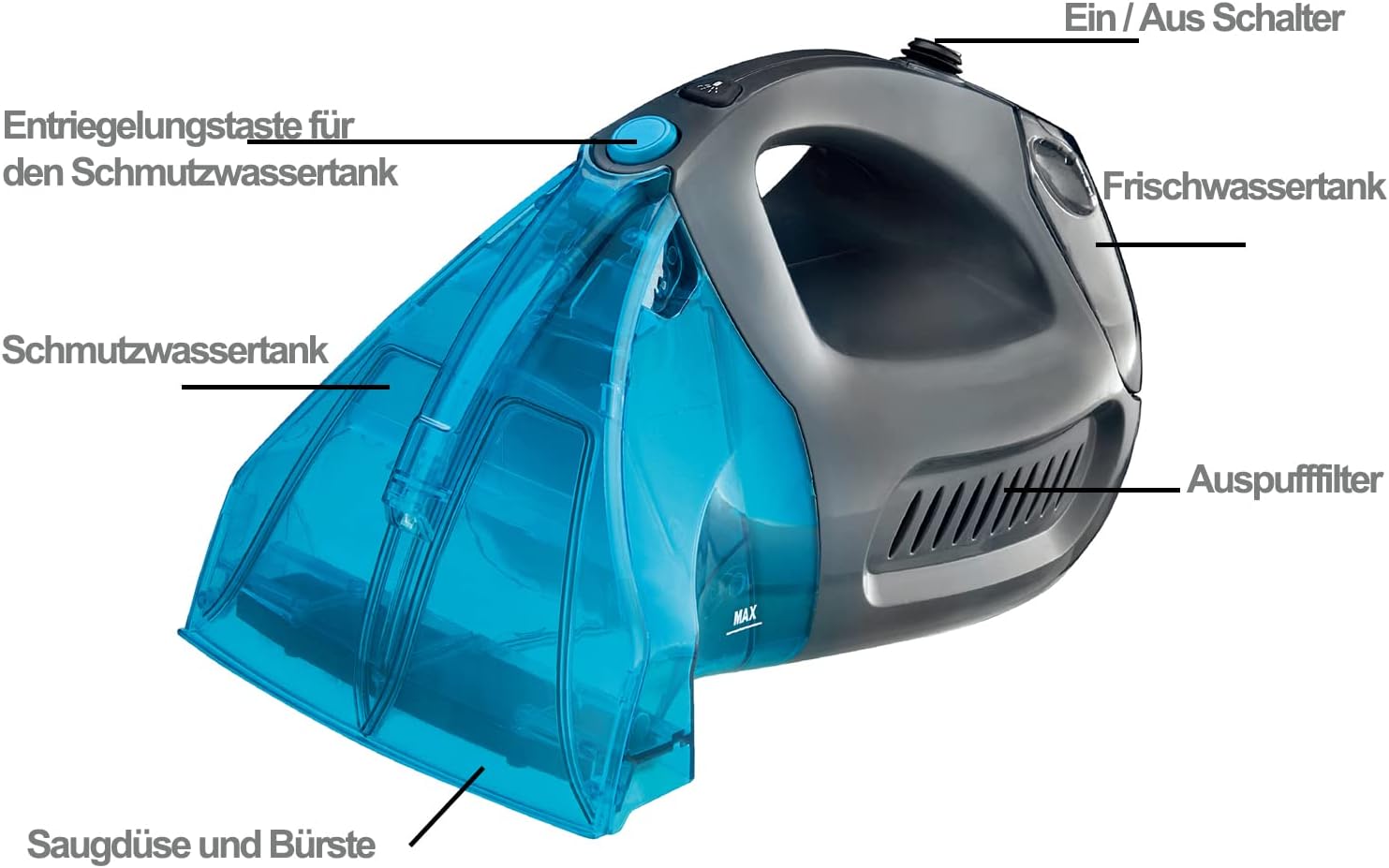

Image Description: A detailed diagram of the Hausmeister P005C spot cleaner, highlighting its main components. Labels point to the On/Off Switch, Release Button for the Dirty Water Tank, Clean Water Tank, Dirty Water Tank, Exhaust Filter, and Suction Nozzle with Brush.

1. On/Off Switch: Activates and deactivates the appliance.
2. Release Button for Dirty Water Tank: Used to detach the dirty water tank for emptying.
3. Clean Water Tank: Holds clean water and cleaning solution. Capacity: 500 ml.
4. Dirty Water Tank: Collects dirty water and debris. Capacity: 800 ml.
5. Exhaust Filter: Filters air expelled from the motor.
6. Suction Nozzle and Brush: The primary cleaning head for spraying, scrubbing, and suctioning.

4. Setup and Preparation

Before using your spot cleaner, follow these steps:

1. Pre-Vacuum Area: For best results, thoroughly vacuum the area to be cleaned with a traditional vacuum cleaner to remove loose dirt and debris. This prevents clogging and improves cleaning efficiency.
2. Fill Clean Water Tank: Remove the clean water tank. Fill it with clean water up to the 'MAX' line. Add the recommended amount of a suitable carpet or upholstery cleaning solution. Refer to the cleaning solution's instructions for proper dilution. Do not use highly foaming cleaners.
3. Secure Tanks: Ensure both the clean water tank and the dirty water tank are securely in place before plugging in the appliance.
4. Connect Power: Plug the power cord into a grounded electrical outlet. The appliance is now ready for use.

5. Operating Instructions

Follow these steps for effective spot cleaning:

1. Turn On: Press the On/Off switch to power on the appliance.
2. Spray Solution: Position the suction nozzle directly over the stain. Press the spray trigger to release the cleaning solution onto the stained area. Allow the solution to penetrate the fabric for a few moments (refer to cleaning solution instructions).
3. Scrub and Suction: Gently scrub the stained area with the integrated brush while simultaneously moving the nozzle back and forth over the area. The powerful suction will lift the dirty solution and debris into the dirty water tank.
4. Repeat if Necessary: For stubborn stains, you may need to repeat the spray, scrub, and suction process until the stain is removed. Avoid oversaturating the fabric.
5. Rinse (Optional): For best results and to prevent residue buildup, you may perform a final pass with only clean water in the tank to rinse the area.
6. Turn Off: Once cleaning is complete, press the On/Off switch to turn off the appliance and unplug it from the outlet.

Image Description: The Hausmeister P005C spot cleaner in action, effectively removing a fresh spill from a light-colored carpet. The transparent dirty water tank shows the extracted liquid.

Image Description: A person using the Hausmeister P005C spot cleaner to clean pet stains from a carpet, with a small dog observing nearby. This demonstrates its use for common household accidents.

Image Description: The Hausmeister P005C spot cleaner being used to clean and refresh light blue upholstery on a sofa, showing its versatility beyond carpets.

6. Care and Maintenance

Proper maintenance ensures the longevity and performance of your spot cleaner.

1. Empty and Clean Dirty Water Tank: After each use, press the release button to detach the dirty water tank. Empty the dirty water and rinse the tank thoroughly with clean water. Allow it to air dry before reattaching.
2. Clean Suction Nozzle and Brush: Remove any hair or debris from the suction nozzle and brush. You can rinse this area with clean water.
3. Clean Clean Water Tank: If any cleaning solution remains, empty and rinse the clean water tank.
4. Wipe Exterior: Wipe the exterior of the appliance with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
5. Storage: Store the appliance in a dry, cool place, away from direct sunlight and out of reach of children. Ensure all tanks are empty and dry before storage.

7. Troubleshooting

If you encounter issues with your Hausmeister P005C, refer to the following common problems and solutions:

8. Product Specifications

• Model: P005C
• Brand: HAUSMEISTER
• Motor Power: 500 W
• Clean Water Tank Capacity: 500 ml
• Dirty Water Tank Capacity: 800 ml
• Power Source: Corded Electric
• Cable Length: 5 meters
• Product Dimensions: 41.29 x 24.4 x 20.3 cm
• Item Weight: 3.53 Kilograms
• Color: Black

9. Warranty Information

This Hausmeister P005C Spot Cleaner comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal household use. It does not cover damage resulting from misuse, neglect, accident, alteration, or improper maintenance. Please retain your proof of purchase for any warranty claims.

10. Customer Support

If you have any questions, require assistance, or need to make a warranty claim, please contact the retailer where you purchased the product or refer to the contact information provided on the product packaging or the official Hausmeister website. Our customer service team is available to help you with any concerns.
