Zanussi Delta GC3 Digital Gas Water Heater (6 Liter)

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Zanussi Delta GC3 Digital Gas Water Heater. Please read these instructions carefully before using the appliance and retain them for future reference.

The Zanussi Delta GC3 is a 6-liter, wall-mounted gas water heater designed for domestic use, featuring a digital temperature display and controls for precise water heating.

2. Safety Information

Your safety and the safety of others are paramount. This appliance incorporates multiple safety features. Always adhere to the following safety guidelines:

• Ensure proper ventilation in the installation area to prevent carbon monoxide buildup.
• Do not store flammable materials near the water heater.
• Regularly check for gas leaks. If a gas odor is detected, immediately shut off the gas supply, open windows, and contact a qualified technician.
• Do not attempt to repair or modify the appliance yourself. Contact authorized service personnel.
• Keep children away from the water heater, especially during operation.
• Ensure the water pressure is within the recommended range (minimum 2.5 bar for optimal performance).

3. Product Features

• Digital Temperature Display: Provides clear, real-time temperature readings.
• Five Safety Elements: Designed for maximum user protection.
• Seasonal Energy Saving: Features a seasonal adjustment switch for optimized gas consumption during warmer months.
• Easy Temperature Control: Intuitive mechanical control knobs for water flow, gas intensity, and seasonal settings.
• Low Water Pressure Operation: Suitable for environments with water pressure as low as 2.5 bar.
• Wall-Mounted Design: Space-saving and secure installation.
• Battery Ignition: Uses dry batteries for reliable ignition.

4. Specifications

5. Setup and Installation

Installation of a gas water heater must be performed by a qualified and certified technician to ensure safety and compliance with local regulations.

5.1 Pre-Installation Checks

• Verify that the installation location has adequate ventilation.
• Ensure the wall can support the weight of the water heater when full.
• Confirm gas and water supply lines are accessible and meet appliance requirements.
• Check that the water pressure is at least 2.5 bar.

5.2 Installation Steps (Summary for Technician)

1. Mount the water heater securely to the wall using appropriate fasteners.
2. Connect the gas supply line, ensuring all connections are leak-free.
3. Connect the cold water inlet and hot water outlet pipes.
4. Install the exhaust flue according to manufacturer guidelines and local codes.
5. Insert dry batteries for the ignition system.
6. Perform a functional test to ensure proper operation and safety.

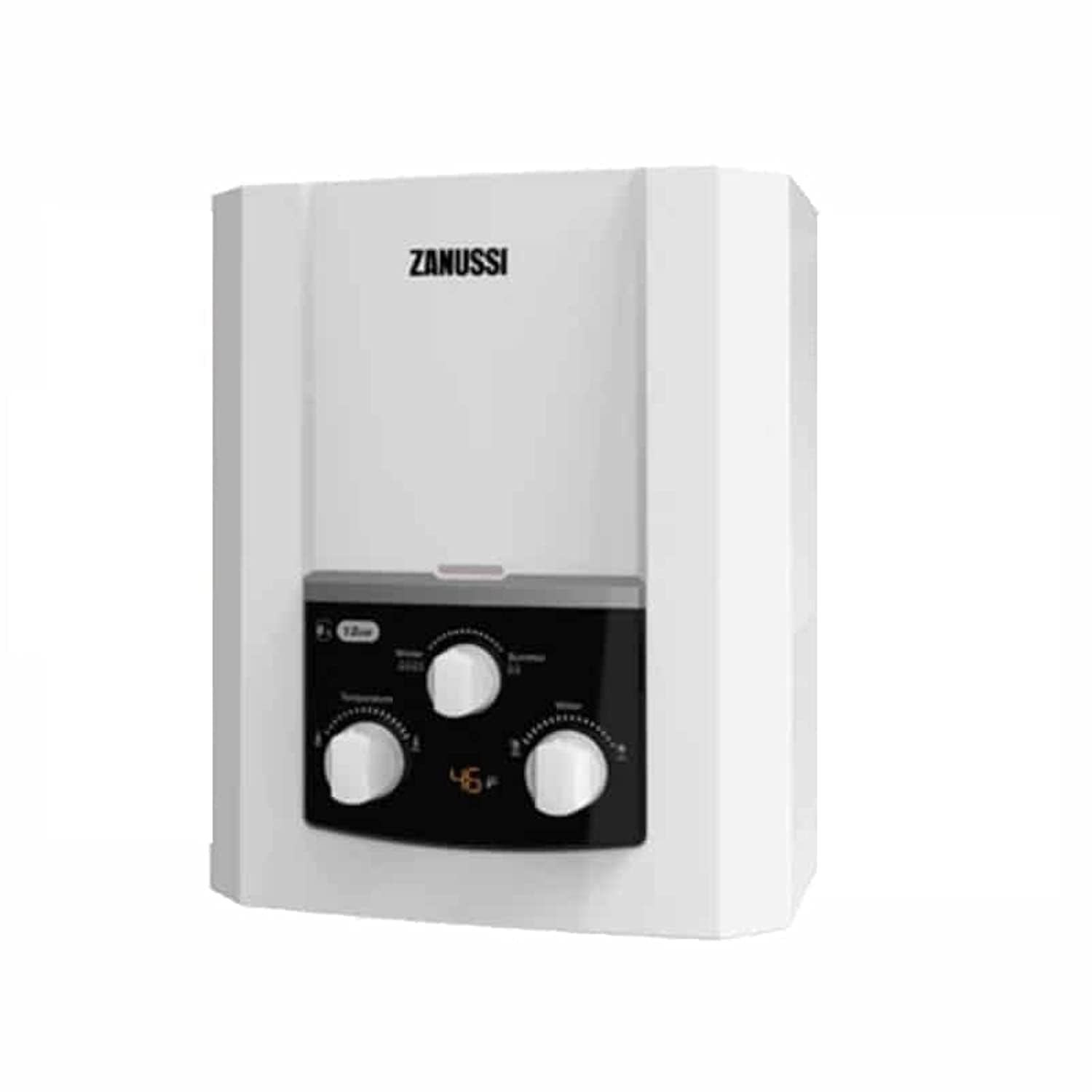

This image shows the front of the Zanussi Delta GC3 Digital Gas Water Heater. It is white with a black control panel featuring three rotary knobs for adjusting water flow, gas intensity, and seasonal settings. A digital display is visible below the central knob, showing '46°'.

6. Operating Instructions

6.1 Initial Start-up

1. Ensure the gas supply valve is open.
2. Open a hot water tap to allow water to flow through the heater.
3. The water heater will automatically ignite when water flow is detected. The digital display will show the current water temperature.

6.2 Control Knobs

• Water Flow Knob: Adjusts the rate of water flow through the heater. Higher flow rates may result in slightly lower temperatures, while lower flow rates allow for hotter water.
• Gas Intensity Knob: Controls the gas supply to the burner, directly affecting the heating power and water temperature. Turn clockwise for higher temperature, counter-clockwise for lower.
• Seasonal Adjustment Knob: Optimizes gas consumption based on the season. Use the 'summer' setting for reduced gas usage when ambient water temperature is higher, and the 'winter' setting for maximum heating.

6.3 Digital Display

The digital display shows the real-time hot water outlet temperature. This allows for precise temperature monitoring and adjustment.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your water heater. It is recommended to have the appliance inspected by a qualified technician annually.

• Cleaning: Wipe the exterior of the water heater with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ventilation: Ensure that the ventilation openings are clear and unobstructed.
• Battery Replacement: Replace the ignition batteries when the display indicates low power or if ignition becomes inconsistent.
• Professional Inspection: An annual check by a certified technician should include inspecting gas connections, burner, heat exchanger, and safety devices.

8. Troubleshooting

Before contacting customer service, please refer to the following common issues and solutions:

If the problem persists after attempting these solutions, please contact Zanussi customer support.

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact Zanussi customer service. Keep your purchase receipt as proof of purchase.

For technical assistance, spare parts, or service requests, please contact your local authorized Zanussi service center. Contact details can typically be found on the Zanussi official website or in your product documentation.
