Sun Joe 24V-MDTCR1-LTW IONMAX Cordless Metal Detector Kit

Introduction

Thank you for choosing the Sun Joe 24V-MDTCR1-LTW IONMAX Cordless Metal Detector Kit. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new metal detector. Please read it thoroughly before use and keep it for future reference.

This metal detector is designed for detecting various metal objects up to 7.8 inches deep, including coins, jewelry, and other metallic items. It features a 10-inch waterproof search coil, a telescopic rod, and an LED display for accurate feedback.

Important Safety Instructions

WARNING:

• Always exercise caution when using the metal detector, especially in public areas.
• Do not operate the metal detector near underground power lines, pipes, or other utilities without confirming their location.
• Avoid using the metal detector during electrical storms.
• Always wear appropriate personal protective equipment, such as gloves, when digging.
• Keep children and bystanders away from the operating area.

Battery Safety

• Use only the specified 24V IONMAX 1.3Ah lithium-ion battery and charger provided with the kit.
• Do not expose batteries to extreme temperatures or direct sunlight.
• Do not short-circuit the battery terminals.
• Dispose of batteries properly according to local regulations.

Product Overview

The Sun Joe 24V-MDTCR1-LTW metal detector is a versatile tool for finding hidden metallic objects. Key components and features include:

• 10-inch Waterproof Search Coil: Ideal for detecting on beaches, along lakes, rivers, or ponds.
• Telescopic Rod: Adjustable from 41.3 inches to 52 inches for comfortable use.
• LED Display: Bright, easy-to-read LCD display (2.8" x 2") provides accurate feedback and visual indicators.
• Adjustable Detection Sensitivity: Customize sensitivity for various ground conditions and target sizes.
• Audio Tones: Different tones assist in identifying target types.
• Detection Depth: Capable of detecting metal up to 7.8 inches deep.
• Ergonomic Design: Features a foam handgrip and armrest for maximum comfort during extended use.
• IONMAX 24-Volt System: Powered by a rechargeable lithium-ion battery (1.3Ah included).
• Accessory Kit: Includes a 180° folding shovel, shovel pouch, and metal detector storage bag.

Figure 1: Fully assembled Sun Joe 24V-MDTCR1-LTW Metal Detector.

Figure 2: Close-up view of the metal detector's LCD display and control panel.

Figure 3: The included 3-piece accessory kit, featuring a folding shovel, shovel pouch, and storage bag.

Setup and Assembly

Follow these steps to assemble your Sun Joe metal detector. For a visual guide, please refer to the assembly video below.

1. Unpack Components: Carefully remove all components from the packaging. Ensure all parts listed in the manual are present.
2. Connect Pole Sections:
   • Connect the middle pole to the lower pole by aligning the spring-loaded buttons with the holes and pushing them together until they click into place.
   • Connect the upper pole to the middle pole in the same manner.
3. Attach Armrest: Slide the armrest onto the upper pole and secure it using the provided screw and knob.
4. Mount Control Panel: Attach the control panel to the upper pole, ensuring it is securely fastened with the locking collar.
5. Attach Search Coil:
   • Align the search coil with the lower pole.
   • Insert the plastic bolt through the holes in the coil and the pole, then secure it with the knob.
6. Connect Search Coil Cable: Wrap the search coil cable around the pole, ensuring it is not too tight or loose, and plug the connector into the port on the control panel.
7. Insert Battery: Open the battery compartment on the control panel and insert the charged 24V IONMAX battery. Close the compartment securely.

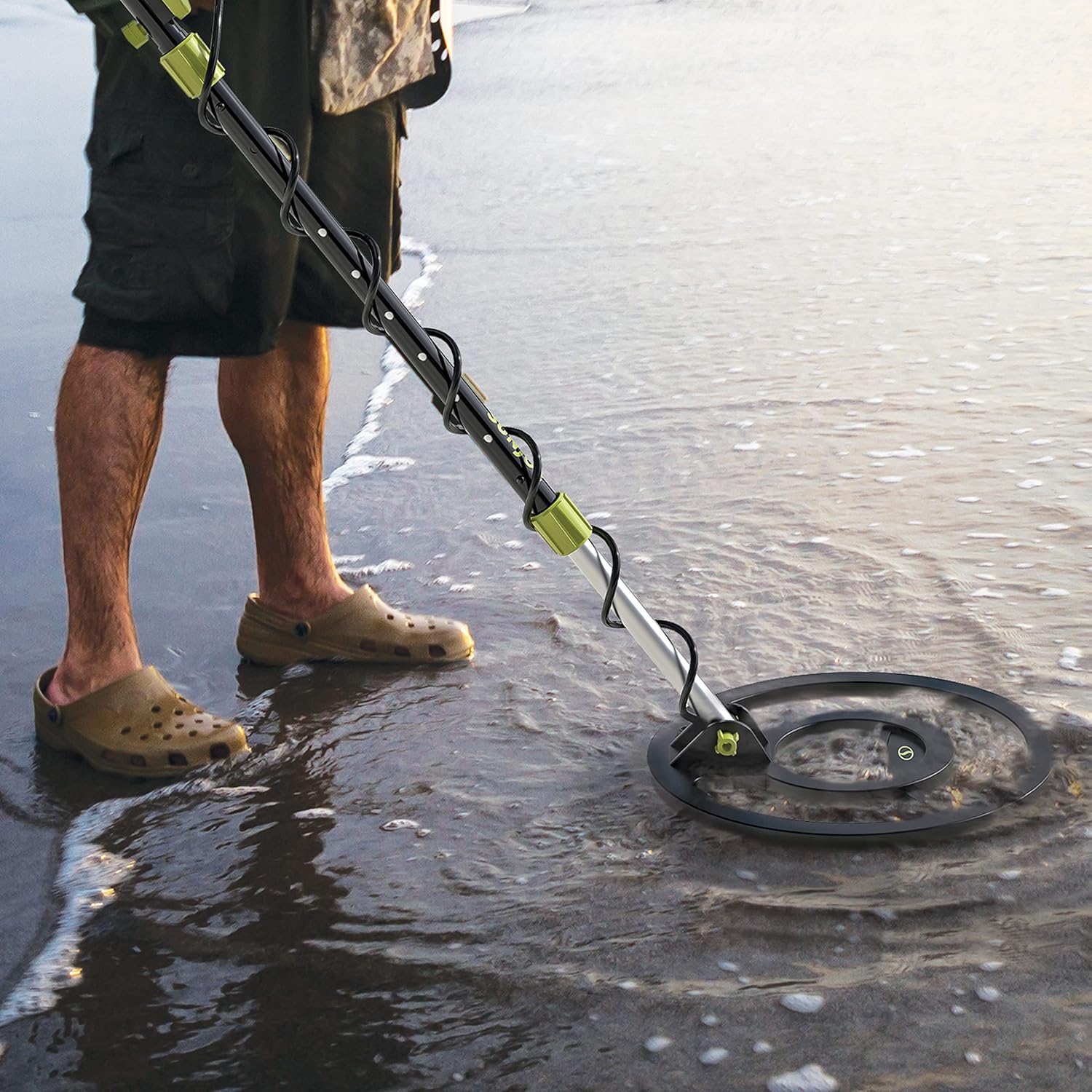

Figure 4: The waterproof search coil allows for detection in shallow water.

Operation

Once assembled and powered on, your Sun Joe metal detector is ready for use. Familiarize yourself with the control panel and its functions.

Control Panel Functions:

• Power Button: Press to turn the detector ON/OFF.
• Sensitivity (SENS) Button: Adjusts the detector's sensitivity to targets. Higher sensitivity increases detection depth but may also increase false signals.
• Discrimination (DISC) / Notch: Allows you to eliminate unwanted metal types (e.g., iron) from detection. Use the arrow buttons to select and deselect target categories.
• Pinpoint (PP) Button: Narrows down the exact location of a detected target. Hold the button and slowly move the coil over the target area.
• Volume: Adjusts the audio output level.
• Depth Indicator: The LCD display shows an approximate depth of the detected object.

Getting Started:

1. Power On: Press the power button to turn on the detector. The LCD display will illuminate.
2. Adjust Sensitivity: Start with a medium sensitivity setting and adjust as needed based on ground conditions. If you experience excessive false signals, reduce the sensitivity.
3. Set Discrimination: Use the discrimination function to filter out unwanted metals. For example, you can set it to ignore iron if you are only searching for valuable metals.
4. Sweep the Coil: Hold the search coil parallel to the ground, about 1-2 inches above the surface. Sweep the coil slowly from side to side in overlapping motions.
5. Identify Targets: When a target is detected, the detector will emit an audio tone, and the LCD display will show an icon indicating the probable metal type and an approximate depth.
6. Pinpoint: Once a target is identified, use the pinpoint function to locate its exact position before digging.

Figure 5: Examples of various metal types and their typical detection depths.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your metal detector.

• Cleaning: After each use, wipe down the search coil and pole with a damp cloth to remove dirt, dust, and debris. Avoid using abrasive cleaners or solvents.
• Storage: Store the metal detector in a dry, cool place, away from direct sunlight and extreme temperatures. Use the provided storage bag for protection.
• Battery Care: Always remove the battery when the detector is not in use for extended periods. Charge the battery fully before storage and periodically during long storage periods to maintain its health.
• Cable Inspection: Regularly inspect the search coil cable for any signs of damage or wear.

Troubleshooting

If you encounter issues with your metal detector, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Sun Joe customer support.

Specifications

Warranty and Support

The Sun Joe 24V-MDTCR1-LTW Metal Detector Kit comes with a 2-year warranty, as mentioned in customer reviews. For detailed warranty information, product support, or to purchase replacement parts, please contact Sun Joe customer service.

Customer Service: 1-866-766-9563

You can also visit the official Sun Joe website for more information and support resources.
