Introduction
This instruction manual provides detailed information on the installation, operation, and maintenance of your Jeanoko Table Saw Throat Plate. Designed for woodworking benches, this aluminum alloy flip cover allows for precise cutting with an electric circular saw in an upside-down position, enhancing both accuracy and efficiency. Please read this manual thoroughly before use to ensure safe and optimal performance.
Product Overview
The Jeanoko Table Saw Throat Plate is a robust accessory designed to convert your electric circular saw into a functional table saw. It features an adjustable design for angle settings and is constructed from durable aluminum alloy.

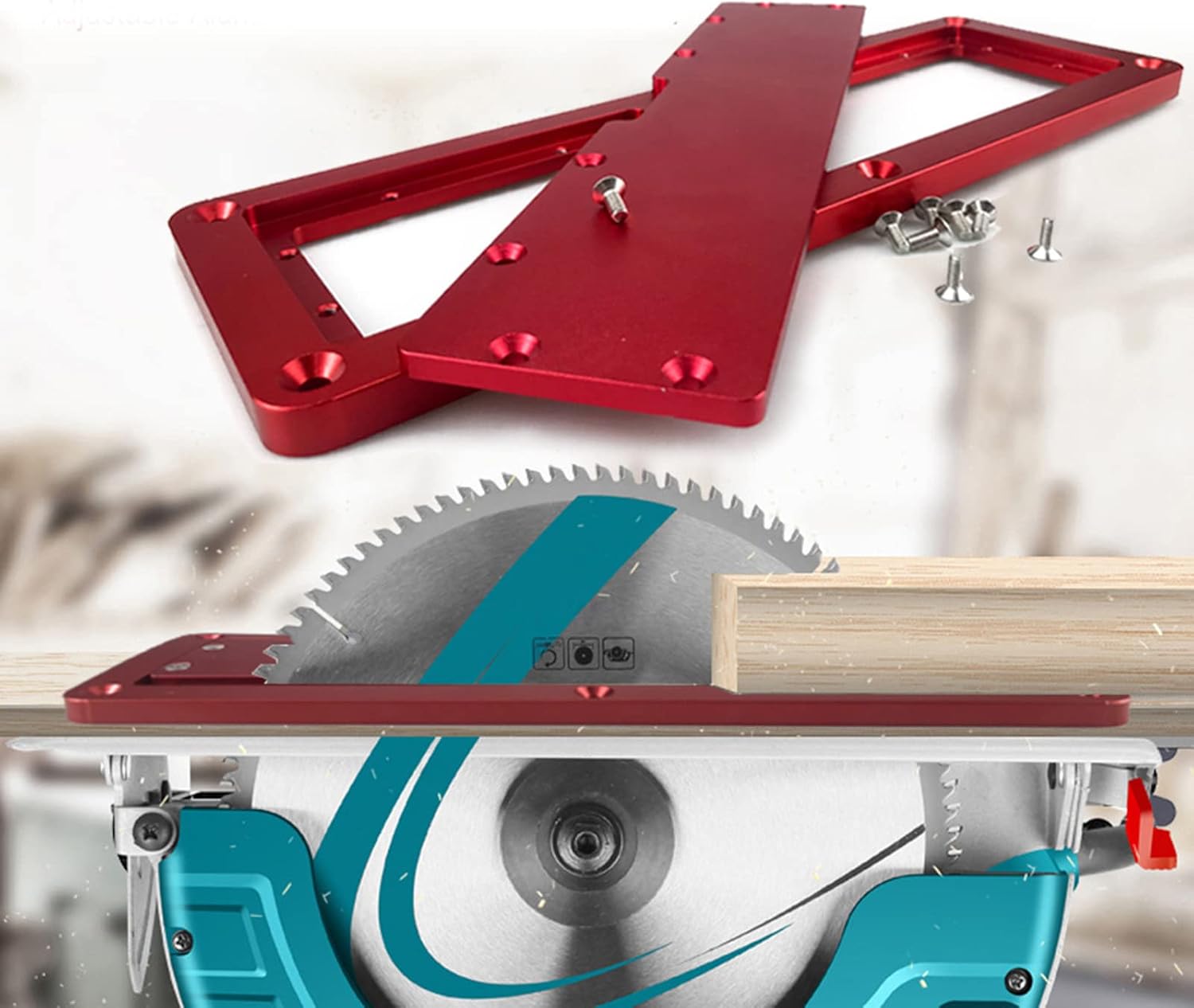

Figure 1: The Jeanoko Table Saw Throat Plate shown from a top-down perspective, alongside an illustration of it installed in a table saw setup with a circular saw blade protruding through it. This image highlights the product's primary function and appearance.
Figure 2: A circular saw positioned beneath the flip cover plate, demonstrating how the plate allows for cutting wood from an inverted saw setup. This illustrates the practical application of the product for woodworking tasks.
Figure 3: The Circular Saw Flip Cover Plate displayed with a text overlay, emphasizing its adjustable aluminum insert plate design for table saws. This image provides a clear view of the product's full form.

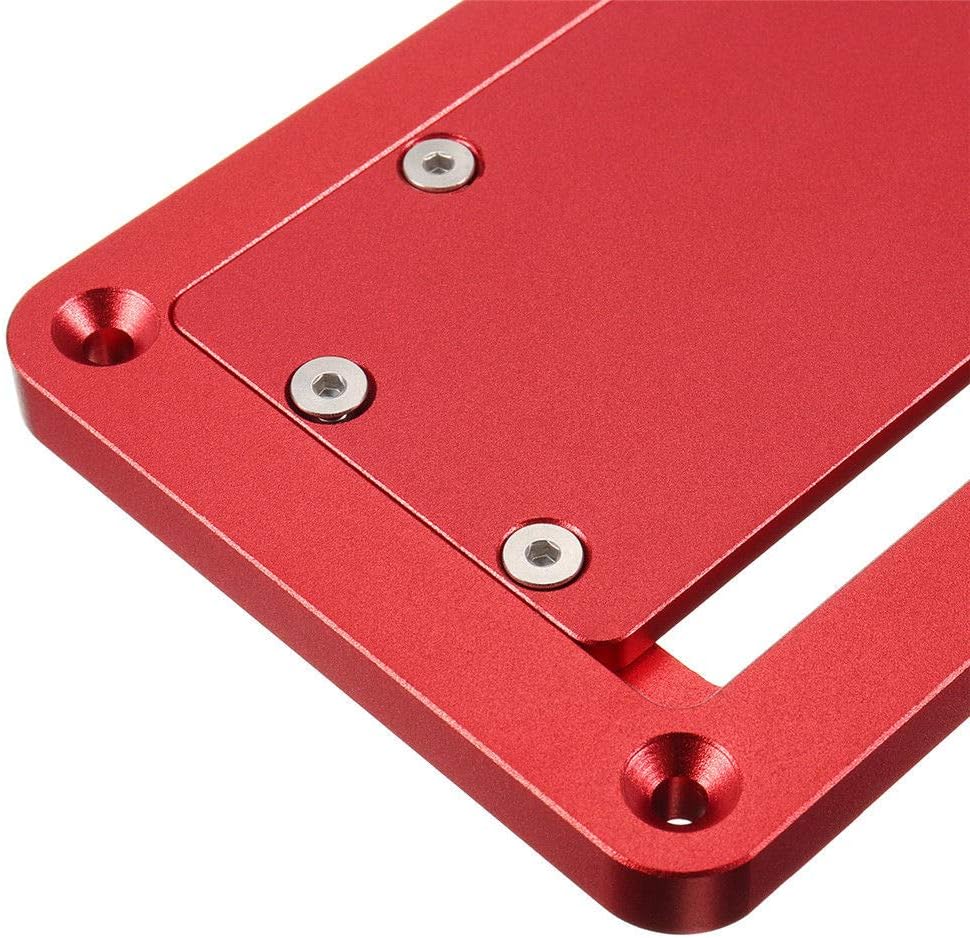

Figure 4: A detailed close-up of the throat plate, highlighting the precision-machined surface and the countersunk screw holes for secure mounting. This view emphasizes the quality of construction.
Figure 5: An illustration showing the key dimensions of the table saw throat plate, including the overall length, width, and the dimensions of the removable insert. This provides critical information for compatibility and installation.
Specifications
| Feature | Detail |
|---|---|
| Brand | Jeanoko |
| Model Number | h3ZOIWuMql2stBmy |
| Material | Aluminum Alloy |
| Color | Red |
| Product Dimensions | 11.83"L x 3.93"W x 0.39"H |
| Item Weight | 1.2 Pounds |
| Cutting Angle Adjustment | 45 to 90 Degrees |
| Compatibility | Electric Circular Saws for Woodworking Benches |
Setup and Installation
- Preparation: Ensure your woodworking bench or table saw is clean and free of debris. Identify the existing throat plate opening.
- Positioning: Carefully place the Jeanoko Table Saw Throat Plate into the designated opening on your table. Ensure it sits flush with the table surface.
- Circular Saw Mounting: Secure your electric circular saw to the underside of the throat plate using appropriate fasteners (not included, typically provided with your circular saw or table saw conversion kit). Ensure the saw blade aligns correctly with the slot in the throat plate.
- Adjustment: The flip cover allows for angle adjustments. Loosen the securing screws on the flip cover to set the desired cutting angle (45 to 90 degrees), then tighten the screws firmly.
- Final Check: Before operation, verify that the throat plate is securely fastened and the circular saw is stable. Ensure the blade can move freely through the slot without obstruction.
Note: Pay close attention to the position of any tabs or alignment features during installation and make minor adjustments as needed to achieve a perfect fit. Always check the size and compatibility before purchase and installation.
Operating Instructions
The Jeanoko Table Saw Throat Plate is designed to simplify woodworking operations by allowing your circular saw to function as a table saw.
- Power On: Once the throat plate and circular saw are securely installed, connect your circular saw to a power source.
- Material Placement: Place the material to be cut on the table surface, aligning it with the saw blade.
- Cutting: Carefully guide the material through the saw blade. Always maintain a firm grip on the material and use push sticks or other safety devices as necessary.
- Angle Adjustment: To change the cutting angle, loosen the screws on the flip cover, adjust to the desired angle between 45 and 90 degrees, and then re-tighten the screws securely.
Safety Precautions:
- Always wear appropriate personal protective equipment (PPE), including safety glasses and hearing protection.
- Ensure the workpiece is stable and properly supported before cutting.
- Never force the material through the blade.
- Keep hands and fingers clear of the saw blade at all times.
- Disconnect power before making any adjustments or maintenance.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your Jeanoko Table Saw Throat Plate.
- Cleaning: After each use, clean the throat plate and surrounding area to remove sawdust and debris. A soft brush or compressed air can be used.
- Inspection: Periodically inspect the throat plate for any signs of wear, damage, or deformation. Check that all screws are tight and secure.
- Lubrication: No specific lubrication is required for the throat plate itself, but ensure your circular saw is maintained according to its manufacturer's instructions.
- Storage: When not in use, store the throat plate in a clean, dry environment to prevent corrosion or damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Throat plate not sitting flush. | Incorrect positioning or debris underneath. | Remove plate, clean opening, re-position carefully. Adjust tabs if present. |
| Circular saw blade not aligning with slot. | Improper saw mounting or plate orientation. | Re-check saw mounting to the plate. Ensure plate is oriented correctly. |
| Angle adjustment slips. | Screws not tightened sufficiently. | Ensure adjustment screws are firmly tightened after setting the angle. |
Warranty and Support
The Jeanoko Table Saw Throat Plate comes with a Limited Warranty. For specific details regarding warranty coverage, duration, and claims, please refer to the documentation provided with your purchase or contact Jeanoko customer support.
For technical support, inquiries, or assistance with your product, please visit the official Jeanoko store on Amazon or contact their customer service directly. You can find more information at: Jeanoko Store on Amazon.
Additional protection plans may be available for purchase, offering extended coverage. Please check Amazon product page for details on 3-Year or 4-Year Protection Plans.
