1. Introduction
This manual provides essential instructions for the safe and effective use of your AMIO 02025 Ratchet Tie-Down Strap. Designed for securing loads, this 2-ton, 6-meter strap is a critical component for safe transport and work. Please read these instructions thoroughly before use to ensure proper operation and to prevent injury or damage to property.
2. Product Components
Your AMIO 02025 Ratchet Tie-Down Strap kit includes the following:
- One (1) Ratchet Tie-Down Strap (2 tons capacity, 6 meters length)
- One (1) Instruction Manual
3. Safety Instructions
Adherence to these safety guidelines is crucial for preventing accidents and ensuring the longevity of your strap.
- Inspect Before Each Use: Always check the strap and ratchet mechanism for cuts, fraying, tears, excessive wear, or damage before each use. Do not use a damaged strap.
- Load Capacity: Never exceed the stated working load limit (WLL) of 2 tons (2T). Overloading can lead to strap failure and serious injury.
- Secure Attachment Points: Ensure that the hooks are securely attached to appropriate, strong anchor points on your vehicle or cargo.
- Protect from Edges: Use edge protectors or padding when the strap comes into contact with sharp edges to prevent cutting or abrasion.
- Avoid Twisting: Ensure the strap is flat and not twisted when tensioning, as twisting reduces its strength.
- Even Tension: Distribute tension evenly across multiple straps if used.
- Regular Checks: Re-check tension periodically during transit, especially after the first few miles, as loads can settle.
- Release Carefully: When releasing tension, be aware of potential recoil and ensure no one is in the path of the strap or cargo.
- Storage: Store straps in a clean, dry place away from direct sunlight, chemicals, and extreme temperatures.
- Not for Lifting: This strap is designed for securing loads, not for lifting. Do not use it as a lifting sling.
4. Setup and Installation
- Prepare the Load: Position your cargo securely on the transport surface.
- Attach Hooks: Secure one hook of the strap to a strong, designated anchor point on your vehicle or trailer.
- Route the Strap: Pass the strap over or around the load, ensuring it is flat and untwisted.
- Attach Second Hook: Secure the other hook to another strong anchor point, ensuring the strap is taut but not yet tensioned.

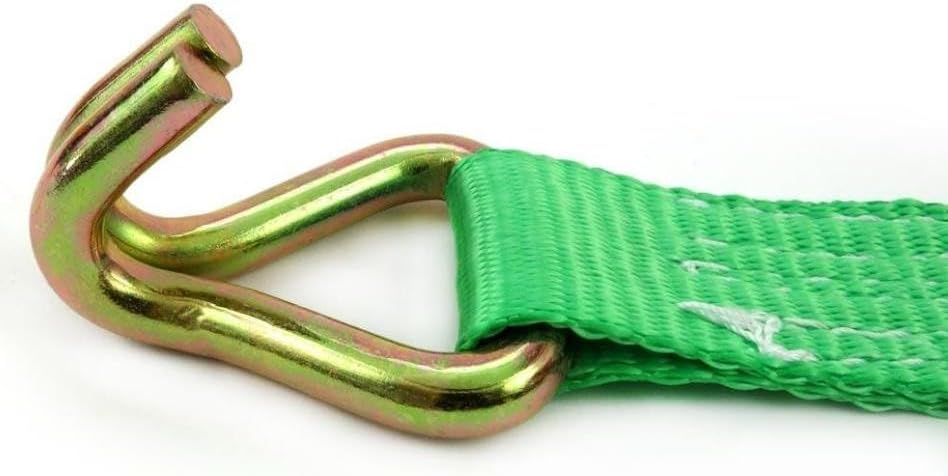

Figure 4.1: Double J-hook for secure attachment to anchor points.
5. Operating Instructions
5.1. Engaging the Ratchet and Tensioning
- Open Ratchet: Pull the release lever on the ratchet handle (often a small metal tab) and open the handle fully until it lies flat.
- Thread Strap: Feed the loose end of the strap through the slot in the rotating spindle of the ratchet mechanism. Pull the strap through until most of the slack is removed and the strap is snug against the load. Ensure there are at least 6 inches (15 cm) of strap threaded through the spindle for secure engagement.
- Tension the Strap: Begin ratcheting the handle up and down. The spindle will rotate, winding the strap and increasing tension. Continue until the strap is tight and the load is securely fastened. Do not overtighten, as this can damage the strap or the load.
- Lock Ratchet: Once the desired tension is achieved, close the ratchet handle fully. The handle should lock into a closed position, securing the strap.

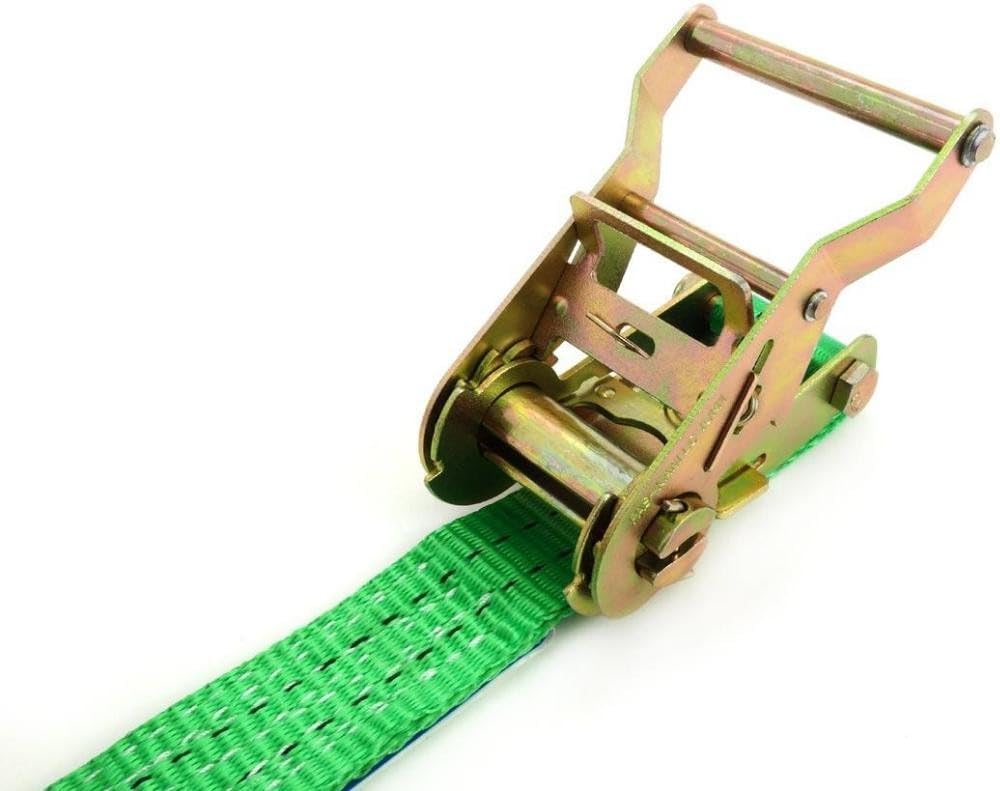

Figure 5.1: Ratchet mechanism with strap threaded.
5.2. Releasing the Strap
- Locate Release Lever: Find the release lever on the ratchet handle.
- Open Ratchet Fully: Pull the release lever and open the ratchet handle completely, pushing it past the normal open position until it lies flat and straight. This will disengage the locking mechanism and allow the spindle to spin freely.
- Release Tension: Carefully pull the strap out of the spindle. Be mindful of the sudden release of tension and potential movement of the load.
- Close Ratchet: Once the strap is fully released, close the ratchet handle to its locked position for storage.
6. Maintenance
- Cleaning: Clean the strap with mild soap and water if it becomes dirty. Allow it to air dry completely before storage. Do not use harsh chemicals or solvents.
- Inspection: Regularly inspect the entire strap, including the webbing, stitching, hooks, and ratchet mechanism, for any signs of wear, damage, corrosion, or deformation.
- Lubrication: Occasionally apply a light lubricant to the moving parts of the ratchet mechanism to ensure smooth operation.
- Storage: Store the strap rolled up or neatly folded in a dry, cool place, away from direct sunlight, UV radiation, and corrosive substances. This helps prevent degradation of the webbing material.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Strap does not tension | Strap not threaded correctly through the spindle; too much slack; ratchet mechanism jammed. | Ensure strap is threaded correctly and pulled taut before ratcheting. Check for obstructions in the ratchet. |
| Ratchet handle is stuck | Over-tensioned; debris in mechanism; corrosion. | Apply gentle pressure to the release lever. Clean and lubricate the mechanism. If severely stuck, do not force it; replace the strap. |
| Strap slips after tensioning | Ratchet not fully locked; worn mechanism; strap damage. | Ensure the handle is fully closed and locked. Inspect the ratchet and strap for wear. Replace if damaged. |
8. Specifications
- Model Number: AMI-02025
- Brand: AMIO
- Product Type: Ratchet Tie-Down Strap
- Load Capacity (WLL): 2 Tons (2T)
- Strap Length: 6 Meters (6M)
- Closure Type: Buckle (Ratchet)
- Color: Multicolored
9. Warranty and Support
For warranty information or technical support regarding your AMIO 02025 Ratchet Tie-Down Strap, please refer to the purchase documentation or contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty claims.
