1. Product Overview
This document provides instructions for the Coway Airmega Max2 Replacement Filter Set, designed for use with Coway Airmega 230 and 240 air purifiers. The Max2 filter is an all-in-one system combining a True HEPA filter with an Activated Carbon filter to enhance air quality.

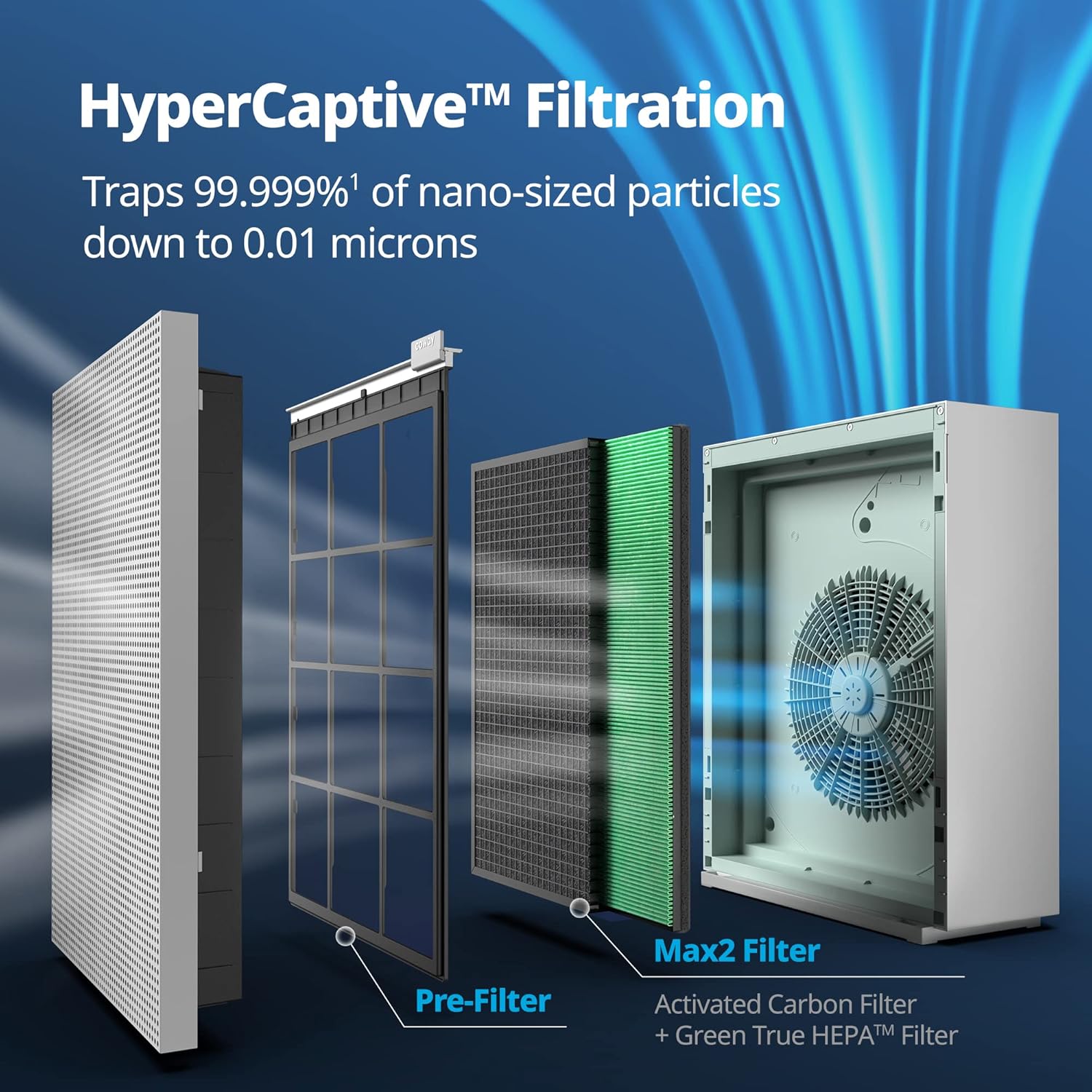

Figure 1: HyperCaptive™ Filtration System with Max2 Filter components.
The True HEPA filter captures and reduces up to 99.99% of 0.01-micron particles in the air, including pollen, pollutants, and other allergens. The Activated Carbon filter reduces more than 99% of odors and volatile organic compounds (VOCs) such as NH3 and CH3CHO.
Figure 2: Detailed view of the Pre-Filter, Activated Carbon Filter, and Green True HEPA Filter layers and their filtration capabilities.
Figure 3: The Coway Airmega Max2 filter effectively captures a wide range of airborne particles and odors.
2. Compatibility
This replacement filter set is specifically designed for the following Coway Airmega air purifier models:
- Coway Airmega 230 Air Purifier
- Coway Airmega 240 Air Purifier

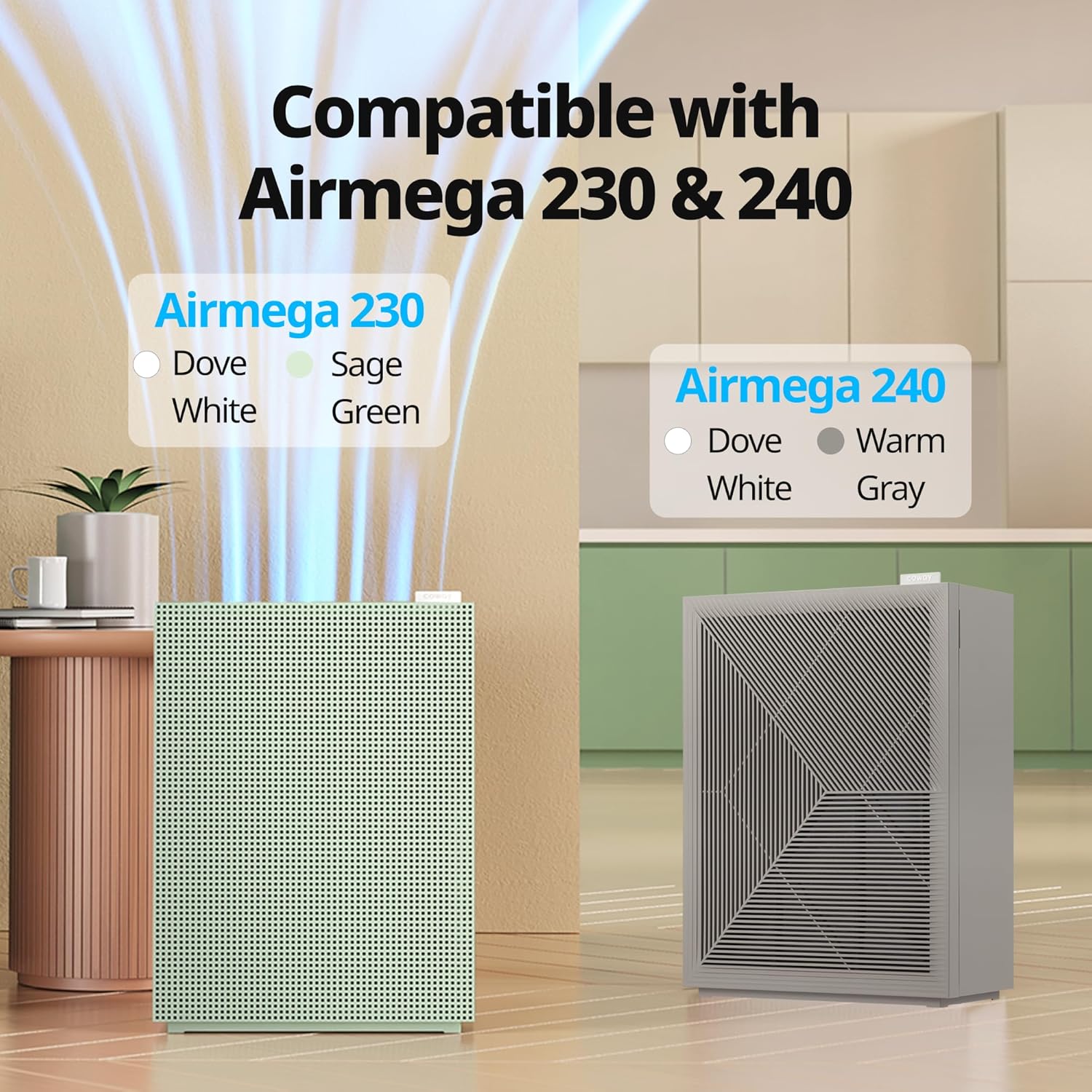

Figure 4: The Max2 filter is compatible with both Airmega 230 and Airmega 240 models.
3. Installation and Replacement
Regular replacement of your air purifier filters is crucial for maintaining optimal performance and air quality. The Max2 filter set has an average lifespan of 12 months, but this can vary based on usage and environmental conditions.
Filter Replacement Indicators
Your Coway Airmega air purifier is equipped with indicator lights that signal when the Pre-Filter or Max2 filter (Green True HEPA + Activated Carbon) needs attention or replacement.
Figure 5: Filter replacement indicators on the air purifier's control panel.
Steps to Replace the Max2 Filter
- Remove Plastic Wraps: Before installation, ensure all plastic packaging is removed from the new filters.
- Pull Ez-Release Pre-Filter: Gently pull the tab on the pre-filter to remove it from the unit.
- Remove Old Max2 Filter: Carefully remove the used Max2 filter.
- Insert New Max2 Filter: Place the new Max2 filter into the designated slot, ensuring it fits securely.
- Reinstall Pre-Filter: Slide the cleaned pre-filter back into place.
- Reset Filter Indicator: Press and hold the 'Filter Reset' button (usually for 3 seconds) to clear the replacement indicator light.
Figure 6: Simple steps for Max2 filter replacement and pre-filter maintenance.
Video Guide: Filter Replacement for Airmega 230
Video 1: This video demonstrates the filter replacement process for the Coway Airmega 230 Air Purifier, including how to access and change both the HEPA and carbon filters, and how to clean the washable pre-filter.
4. Maintenance
To ensure continuous optimal performance of your Coway Airmega air purifier, adhere to the following maintenance guidelines:
- Max2 Filter (True HEPA + Activated Carbon): Replace approximately every 12 months. The air purifier's indicator light will signal when replacement is due.
- Pre-Filter: The pre-filter is washable and should be cleaned regularly (e.g., every few weeks or as needed) to remove larger dust particles, hair, and pet dander. After washing, ensure it is completely dry before re-installing.
Video Guide: Filter Maintenance
Video 2: This video from Coway USA, Inc. provides a general guide on filter maintenance for Coway Airmega air purifiers, including cleaning the pre-filter.
Video 3: Another instructional video from Coway USA, Inc. detailing filter maintenance steps for Airmega models.
5. Specifications
| Attribute | Detail |
|---|---|
| Brand | Coway |
| Model Info | AIRMEGA 240/230 FILTER SET |
| Compatible Devices | Coway Airmega 230 Air Purifier, Coway Airmega 240 Air Purifier |
| Material Type | True HEPA, Active Carbon Filter |
| Included Components | True HEPA Filter, Active Carbon Filter |
| Item Weight | 3 pounds |
| Product Dimensions | 21 x 16 x 3 inches |
| MERV Rating | 13 |
| Number of Items | 1 (set includes multiple filters) |
| UPC | 826439000592 |
6. Warranty and Support
For warranty information or technical support regarding your Coway Airmega air purifier or replacement filters, please refer to the official Coway website or contact Coway customer service directly. Ensure you retain your proof of purchase for any warranty claims.
