Sojag Moreno 10 ft. x 12 ft. Gazebo Instruction Manual

1. Introduction

Thank you for choosing the Sojag Moreno 10 ft. x 12 ft. Gazebo. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image 1.1: The Sojag Moreno Gazebo provides a shaded outdoor living space.

2. Product Features

The Sojag Moreno Gazebo is designed for durability and comfort, offering a year-round outdoor shelter solution. Key features include:

• All-Season Design: Constructed with an aluminum frame featuring AkzoNobel's Interpon Powder Coating for maximum scratch and corrosion resistance.
• Reinforced Construction: Extruded aluminum design enhances durability and provides superior sun protection.
• Durable Roof: Galvanized steel roof panels offer robust protection from various weather elements.
• Enhanced Stability: Features wide diameter posts and cross beams for a stable structure.
• Double Track System: Allows for simultaneous use of mosquito netting and curtains (curtains sold separately).
• Integrated Mosquito Net: A nylon mosquito net is included to help keep insects out.

Image 2.1: Wide diameter columns for improved strength and durability.

Image 2.2: Rustproof aluminum frame provides maximum protection.

Image 2.3: Double-track system for versatile protection.

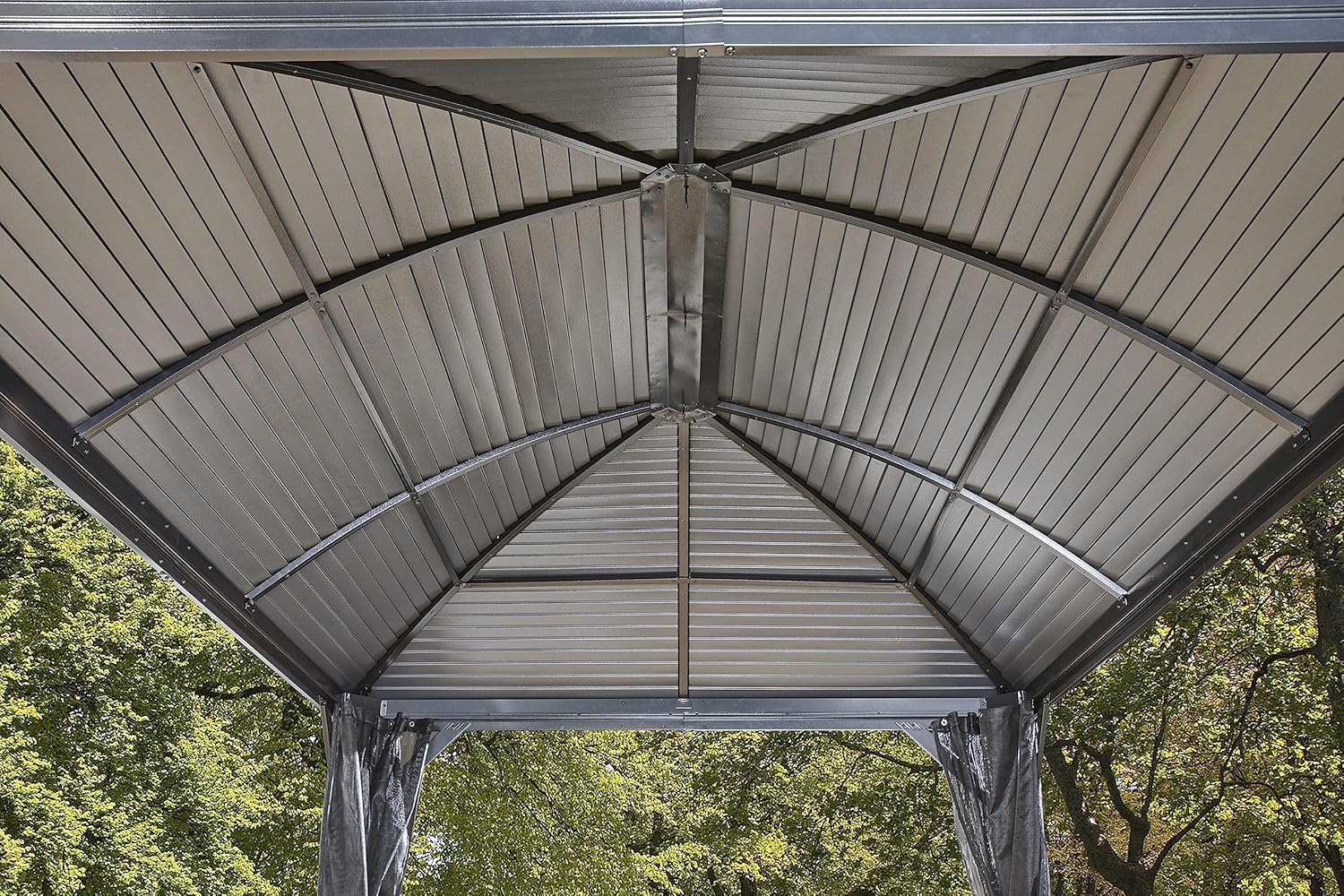

Image 2.4: Durable galvanized steel roof construction.

3. Package Contents

Please refer to the detailed parts list and hardware diagram included in your product packaging for a complete inventory of all components. Verify all parts are present and undamaged before beginning assembly.

4. Safety Information

Adhering to these safety guidelines is crucial for preventing injury and damage to the product:

• Always follow local building codes and regulations for outdoor structures.
• Ensure the gazebo is securely anchored to a level surface to prevent tipping or movement due to wind.
• Remove any significant snow accumulation from the gazebo roof promptly to prevent structural damage and collapse.
• Do not use open flames, heating devices, or barbecues inside the gazebo.
• Keep children and pets away from the assembly area during installation.
• Periodically inspect the gazebo for loose parts, damage, or wear, and address issues immediately.

5. Setup and Assembly

Assembly of the Sojag Moreno Gazebo requires a minimum of two people. Follow the step-by-step instructions and diagrams provided in the separate assembly manual included with your packaging. Ensure you have all necessary tools before starting.

1. Site Preparation: Choose a level, stable location for your gazebo. Clear the area of any debris or obstructions.
2. Unpack and Identify Parts: Carefully unpack all components and lay them out. Compare them against the parts list in your assembly manual.
3. Assemble Frame: Follow the instructions to connect the main frame components, including posts and beams.
4. Install Roof Panels: Securely attach the galvanized steel roof panels according to the provided diagrams.
5. Attach Mosquito Netting: Install the included nylon mosquito netting onto the double track system.
6. Anchor Gazebo: Securely anchor the gazebo to the ground using appropriate hardware for your chosen surface.

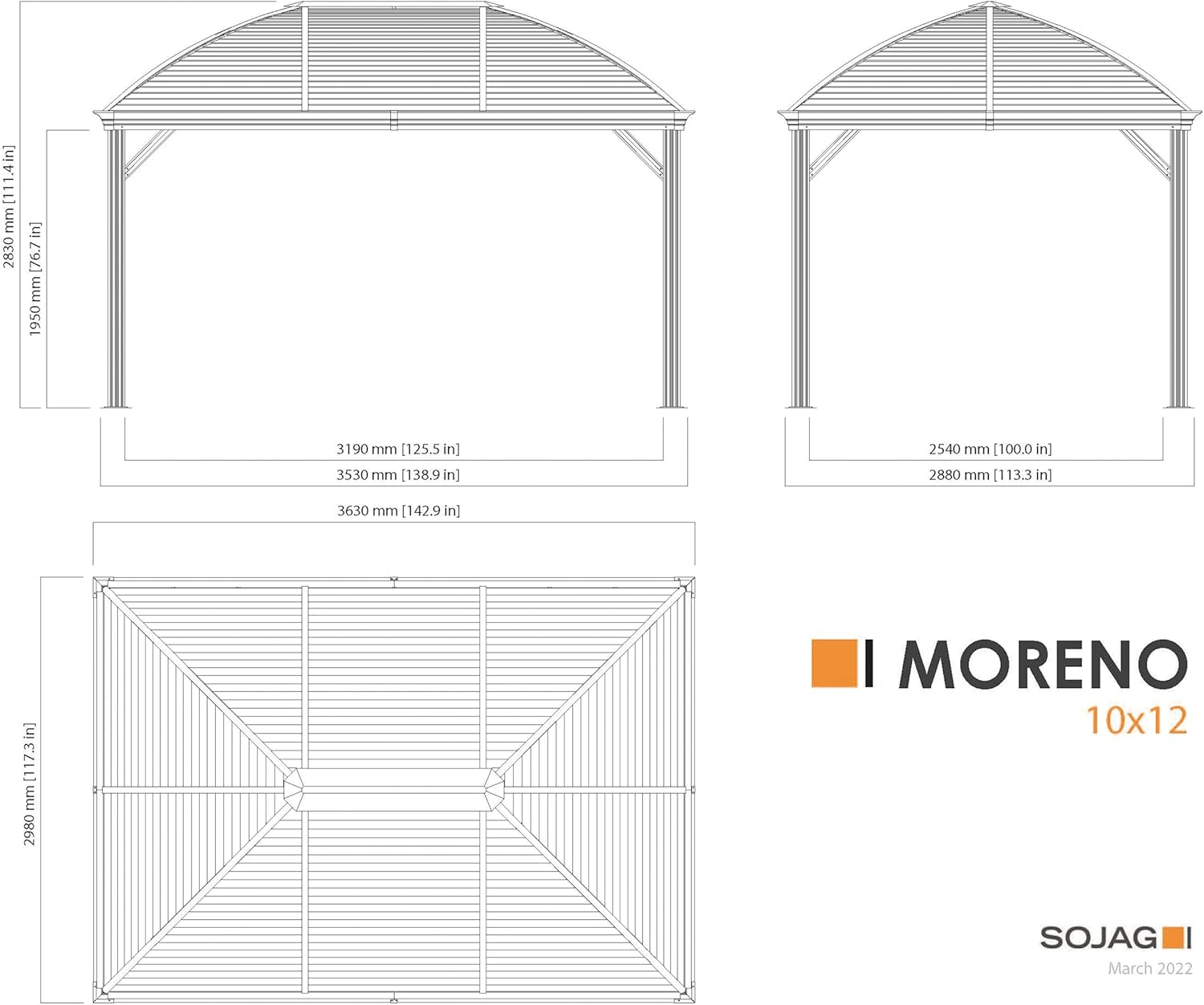

Image 5.1: Gazebo dimensions and structural overview for assembly planning.

Image 5.2: Example of a post base plate for secure anchoring.

6. Operating Instructions

The Sojag Moreno Gazebo is designed for straightforward use to enhance your outdoor living space.

• Mosquito Netting: The included nylon mosquito net can be easily drawn closed to protect against insects. Ensure the zippers are fully closed for maximum effectiveness.
• Curtains (Sold Separately): If you have purchased optional curtains, they can be installed on the second track of the double track system. This allows you to use both netting and curtains simultaneously for privacy and additional weather protection.
• Year-Round Use: The robust construction allows for year-round enjoyment, provided proper maintenance and snow removal are performed.

Image 6.1: Double track system with mosquito netting.

7. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning the Frame and Roof: Clean the aluminum frame and galvanized steel roof panels periodically with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
• Mosquito Netting Care: The nylon mosquito netting can be hand-washed with mild soap and water. Allow it to air dry completely before storing or re-installing.
• Snow Removal: During winter months, it is critical to remove snow accumulation from the roof regularly. Heavy snow can cause structural damage. Use a soft broom or snow rake to gently clear snow, avoiding sharp objects that could damage the roof panels.
• Fastener Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten any loose fasteners to maintain structural integrity.
• Seasonal Storage: While designed for year-round use, consider removing mosquito netting and curtains during severe weather conditions or off-season for prolonged durability.

8. Troubleshooting

This section addresses common issues you might encounter.

9. Specifications

10. Warranty Information

For detailed warranty terms and conditions, please refer to the warranty card or documentation included with your product packaging. Typically, Sojag products come with a limited warranty covering manufacturing defects. Keep your proof of purchase for any warranty claims.

11. Customer Support

If you have any questions, require assistance with assembly, or need to report missing or damaged parts, please contact Sojag customer support. You can find contact information on the official Sojag website or in your product packaging.
