NORTHCLAN 1250

NORTHCLAN Self-Cleaning Ice Maker, Model 1250: User Manual

Comprehensive instructions for safe and efficient operation.

1. Introduction

Thank you for choosing the NORTHCLAN Self-Cleaning Ice Maker, Model 1250. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before use and retain them for future reference.

NORTHCLAN Ice Maker with ice scoop and ice cubes
Figure 1.1: The NORTHCLAN Ice Maker, Model 1250, shown with an ice scoop and freshly made ice cubes.

2. Product Overview and Features

The NORTHCLAN Ice Maker, Model 1250, is designed for convenient and efficient ice production. Key features include:

  • Rapid Ice Production: Produces 9 ice cubes in approximately 6-8 minutes, with a daily capacity of up to 14 kg.
  • Two Ice Cube Sizes: Offers small ice cubes suitable for smoothies and large ice cubes ideal for cooling beverages like vodka.
  • Automatic Self-Cleaning Function: Simplifies maintenance by preventing mineral buildup and odors, ensuring clean ice.
  • Quiet Operation: Equipped with an upgraded Pro Compressor, operating at less than 40 dB, minimizing disturbance.
  • Portable and Versatile: Compact design (22 x 30 x 29 cm) allows for placement in various locations such as kitchens, offices, camping sites, or on boats.
  • Intelligent Sensors: Features infrared sensors to detect "ICE FULL" and "WATER EMPTY" conditions, providing audible and visual alerts.
  • Durable Construction: Made with food-grade PP materials for the inner layer, high-density polyurethane foam for insulation, and a premium stainless steel outer layer.

2.1 Key Features Visualized

Diagram showing two ice cube sizes and compact body dimensions of the NORTHCLAN ice maker
Figure 2.1: Illustration of the two available ice cube sizes (small and large) and the compact dimensions of the NORTHCLAN Ice Maker.

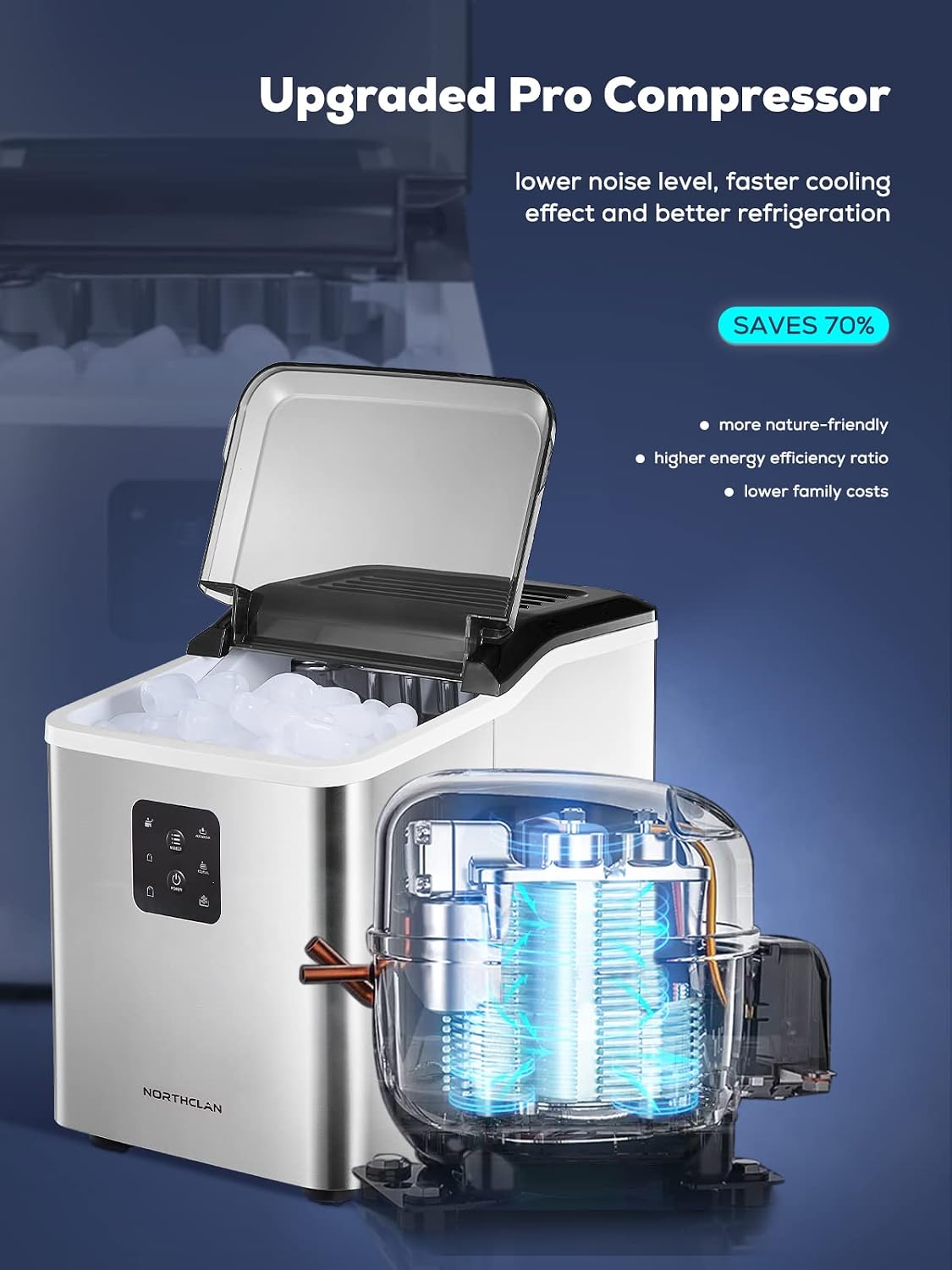

Internal view of the NORTHCLAN ice maker highlighting the upgraded Pro Compressor
Figure 2.2: The upgraded Pro Compressor ensures efficient and quiet cooling, contributing to the ice maker's performance.
Noise level comparison chart showing NORTHCLAN ice maker at 35dB compared to other appliances
Figure 2.3: Noise level comparison, demonstrating the NORTHCLAN Ice Maker's quiet operation at approximately 35dB.
Cross-section diagram showing the three layers of the ice maker: food-grade PP, polyurethane foam, and stainless steel
Figure 2.4: Illustration of the durable and insulated construction, featuring food-grade inner materials and a stainless steel exterior.
Image showing the ice maker producing 14kg of ice in 24 hours
Figure 2.5: The ice maker's capacity to produce up to 14 kg of ice within 24 hours.

3. Safety Instructions

To ensure safe operation and prevent damage, please observe the following safety precautions:

  • Read all instructions before using the appliance.
  • Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
  • Do not immerse the power cord, plug, or any part of the appliance in water or other liquids.
  • Keep the appliance away from heat sources and direct sunlight.
  • Ensure the appliance is placed on a stable, level surface.
  • Do not block ventilation openings. Maintain at least 15 cm of clearance around the appliance for proper air circulation.
  • Use only potable water in the water reservoir.
  • Unplug the appliance before cleaning or when not in use for extended periods.
  • This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

4. Setup

Follow these steps for initial setup:

  1. Unpacking: Carefully remove the ice maker from its packaging. Retain packaging materials for future transport or storage.
  2. Placement: Place the ice maker on a flat, stable surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit (at least 15 cm clearance on all sides).
  3. Initial Cleaning: Before first use, clean the interior of the ice maker. Refer to the "Maintenance and Cleaning" section for detailed instructions.
  4. Power Connection: Plug the power cord into a grounded electrical outlet (220V).
NORTHCLAN ice maker shown in various settings like office, kitchen, camping, and boat, highlighting its portability
Figure 4.1: The ice maker's compact design allows for flexible placement in diverse environments, from home kitchens to outdoor settings.

5. Operating Instructions

Operating your NORTHCLAN Ice Maker is straightforward:

  1. Add Water: Open the lid and fill the water reservoir with potable water up to the MAX fill line. Do not overfill.
  2. Power On: Press the POWER button to turn on the appliance.
  3. Select Ice Size: Use the SELECT button to choose between small (S) or large (L) ice cubes. The selected size indicator will illuminate.
  4. Ice Production: The ice maker will begin the ice-making cycle. The first batch of ice will be ready in approximately 6-8 minutes.
  5. Ice Full Indicator: When the ice basket is full, the "ICE FULL" indicator will light up, and the machine will automatically pause. Remove ice to resume production.
  6. Water Empty Indicator: If the water reservoir is empty, the "WATER EMPTY" indicator will light up, and the machine will stop. Add more water and press the POWER button twice to restart.
  7. Removing Ice: Use the provided ice scoop to remove ice from the basket.
  8. Power Off: Press the POWER button to turn off the appliance when not in use.
Four steps to make ice: Add Water, Start the machine, Select Size, Remove Ice, with images of various drinks
Figure 5.1: A visual guide to the simple four-step process of making fresh ice with the NORTHCLAN Ice Maker.

6. Maintenance and Cleaning

Regular cleaning and maintenance ensure optimal performance and longevity of your ice maker.

6.1 Automatic Self-Cleaning Function

The NORTHCLAN Ice Maker features an automatic self-cleaning cycle:

  1. Ensure the water reservoir is filled with clean water.
  2. Press and hold the CLEAN button (if available, or refer to specific model instructions for self-clean activation, typically a combination of buttons or a dedicated button). The machine will run a cleaning cycle, circulating water through its internal components.
  3. Once the cycle is complete, drain the water from the reservoir and dry the interior.
Image showing the automatic self-cleaning function of the ice maker with water swirling inside
Figure 6.1: The self-cleaning function actively circulates water to clean internal components, reducing manual effort.
Description of how the self-clean function simplifies cleaning by preventing mineral buildup in hard water areas
Figure 6.2: Explanation of how the self-cleaning feature addresses mineral deposits, ensuring cleaner ice and easier maintenance.

6.2 Manual Cleaning

  • Unplug the ice maker from the power outlet.
  • Remove the ice basket.
  • Drain any remaining water from the reservoir using the drain plug located at the bottom of the unit.
  • Clean the interior with a soft cloth dampened with a mild detergent solution. Rinse thoroughly with clean water.
  • Wipe the exterior with a soft, damp cloth.
  • Ensure all parts are completely dry before reassembling and using the appliance.

7. Troubleshooting

If you encounter issues with your ice maker, refer to the following table for common problems and solutions:

ProblemPossible CauseSolution
Ice maker does not turn on.No power supply.Check if the power cord is securely plugged into a grounded outlet. Check the circuit breaker.
"WATER EMPTY" indicator is on.Water reservoir is empty.Fill the water reservoir with potable water and press the POWER button twice to restart.
"ICE FULL" indicator is on.Ice basket is full.Remove ice from the basket. The machine will resume operation automatically.
Ice cubes are too small or cloudy.Insufficient water temperature or mineral content.Use colder water. Perform a self-cleaning cycle to remove mineral buildup.
Ice maker is noisy.Normal operation sounds or improper placement.Some operational noise is normal. Ensure the unit is on a stable, level surface and not touching other objects.
Ice melts quickly.Ice maker is not a freezer; insulation is for temporary storage.Transfer ice to a freezer for long-term storage.

8. Specifications

Technical specifications for the NORTHCLAN Ice Maker, Model 1250:

FeatureDetail
BrandNORTHCLAN
Model Number1250
Product Dimensions32 x 30 x 24 cm (Length x Width x Height)
Weight6.7 kg
Water Tank Capacity2.3 Liters
Daily Ice ProductionUp to 14 Kilograms
Voltage220 Volts
Wattage1200 Watts (1.2E+3)
RefrigerantR600a
UPC735940861717

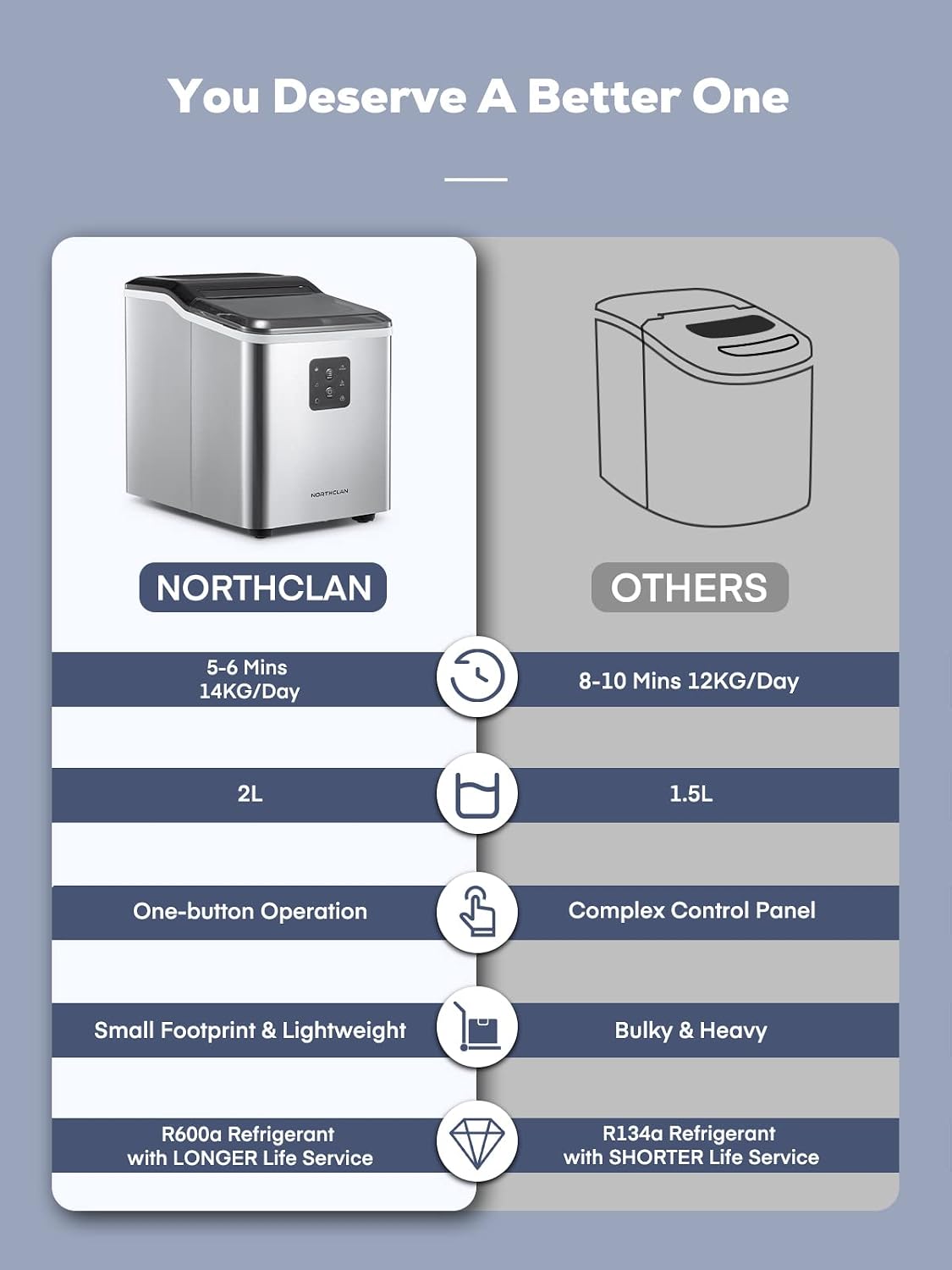

Comparison chart showing NORTHCLAN ice maker features versus generic 'OTHERS' ice makers, highlighting faster ice production, larger capacity, simpler operation, and R600a refrigerant
Figure 8.1: A comparative overview of the NORTHCLAN Ice Maker's specifications and advantages over typical ice makers.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact NORTHCLAN customer service through their official website or the retailer where the product was purchased. Please have your model number (1250) and proof of purchase ready when contacting support.

© 2023 NORTHCLAN. All rights reserved.
