CLP Salford Office Chair User Manual

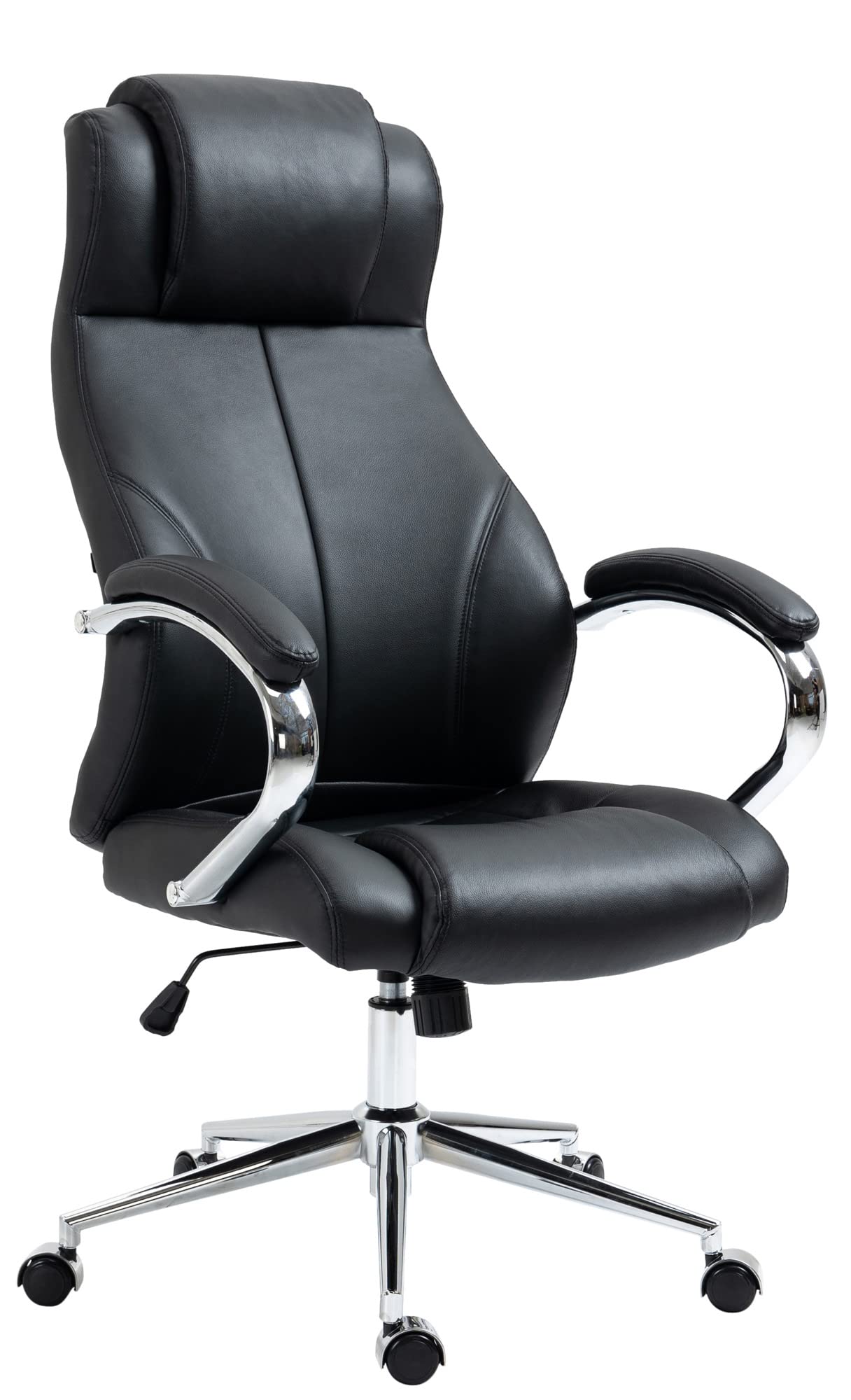

1. Product Overview

The CLP Salford office chair is designed to provide exceptional seating comfort and a timeless aesthetic for your workspace. It features generous padding on the seat, backrest, and armrests, ensuring a supportive and comfortable experience during extended use.

The chair's ergonomic S-shaped backrest and padded headrest are engineered to promote healthy posture. A waterfall seat edge helps distribute pressure evenly across the thighs, enhancing comfort.

Upholstered with durable genuine cowhide leather on primary contact surfaces and synthetic leather on side areas, the chair combines luxury with practicality. The robust frame is constructed from chrome-plated metal, providing stability and a modern look. Five smooth-rolling plastic casters allow for effortless movement within your work area.

The Salford office chair offers flexible adjustments, including seat height and tilt mechanism tension, to customize your seating position. Its sturdy construction supports a maximum load capacity of 136 kg.

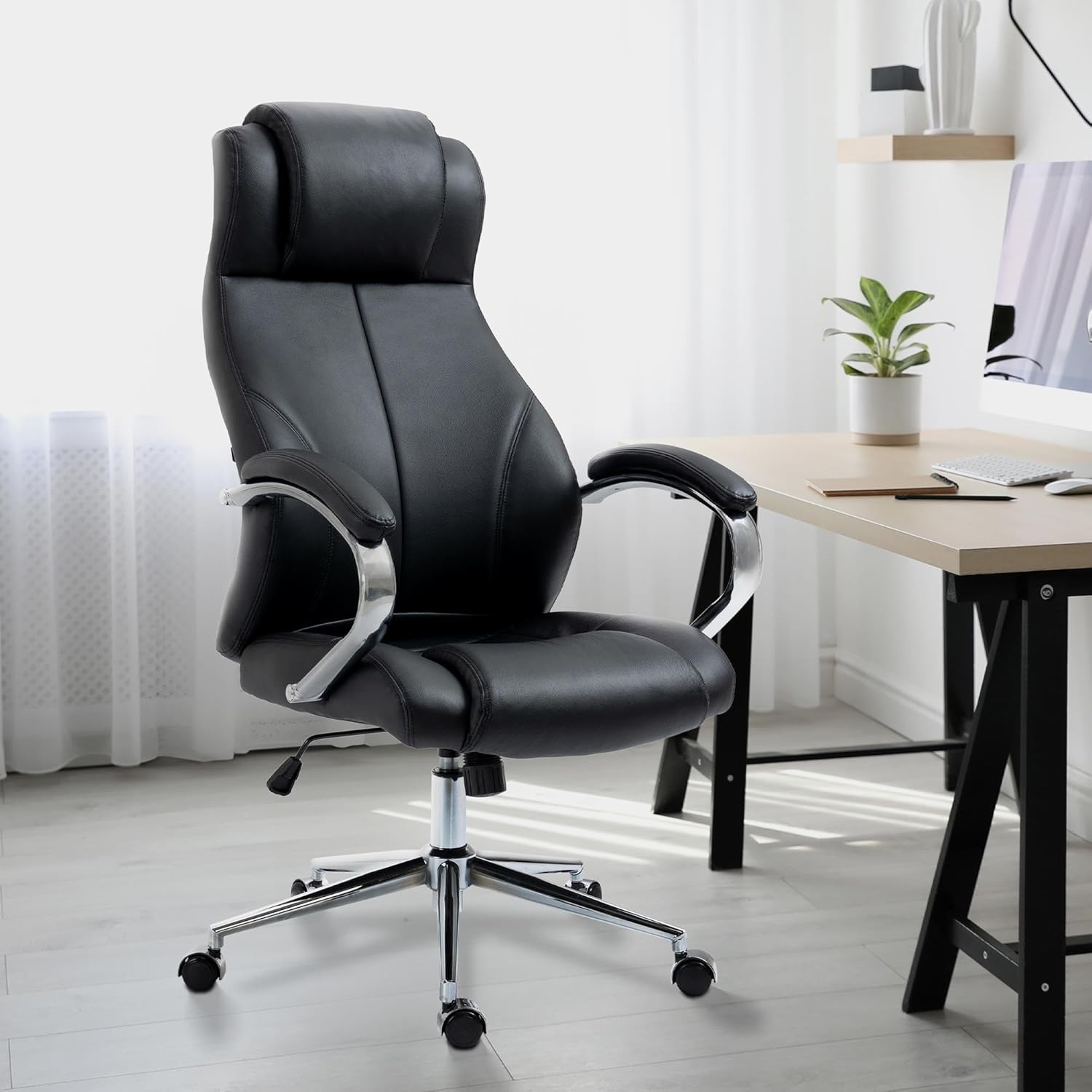

Image 1.1: The CLP Salford Office Chair in a typical office environment.

2. Safety Information

• Warning: Do not use the chair if it is damaged. Inspect all components regularly for wear or damage.
• Do not exceed the maximum load capacity of 136 kg (299 lbs). Overloading can cause damage to the chair and potential injury.
• Exercise caution when using the swivel and adjustable height mechanisms to prevent accidental movement or pinching.
• Ensure all screws and fasteners are securely tightened before use and periodically check for looseness.
• Keep hands and feet clear of moving parts during adjustment.

Image 2.1: The chair is designed to safely support a maximum weight of 136 kg.

3. Setup and Assembly

While specific assembly instructions are typically provided with the product packaging, this section outlines general steps for assembling your CLP Salford office chair. It is recommended to lay out all components on a soft, clean surface before beginning assembly.

3.1 Unpacking and Component Check

• Carefully remove all parts from the packaging.
• Verify that all components listed in the product's packing list are present and undamaged.

3.2 Base Assembly

1. Insert the five casters into the openings at the ends of the star base until they click securely into place.
2. Place the gas lift cylinder into the central hole of the assembled star base.

Image 3.1: The robust five-star base with smooth-rolling casters.

3.3 Seat and Backrest Assembly

1. Attach the mechanism plate to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
2. Secure the backrest to the seat assembly using the appropriate brackets and screws. Do not fully tighten screws at this stage to allow for minor adjustments.

3.4 Armrest Attachment

1. Attach the armrests to both the seat and backrest using the designated screws. The armrests often help stabilize the connection between the seat and backrest.
2. Once all components are loosely assembled, gradually tighten all screws, ensuring the chair is aligned correctly.

Image 3.2: Detail of the padded armrest and chrome support.

3.5 Final Assembly

1. Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring it is firmly seated.
2. Test the chair's stability and all adjustment functions before regular use.

4. Operating Instructions

The CLP Salford office chair offers several adjustable features to optimize your comfort and support.

4.1 Seat Height Adjustment

• To raise the seat: While taking your weight off the seat, pull the lever located under the right side of the seat upwards. The seat will rise automatically. Release the lever at the desired height.
• To lower the seat: While seated, pull the lever located under the right side of the seat upwards. The seat will lower. Release the lever at the desired height.

4.2 Tilt Function and Tension Adjustment

• To activate the tilt function: Pull the same lever (used for height adjustment) outwards. The chair will now allow you to recline.
• To lock the chair in an upright position: Push the lever inwards.
• To adjust tilt tension: Rotate the round knob located under the front of the seat. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).

Image 4.1: The chair's tilt function allows for comfortable reclining.

4.3 Swivel Function

• The chair's seat can rotate 360 degrees, allowing for easy movement and access to different areas of your workspace without needing to reposition the entire chair.

Image 4.2: The chair offers 360-degree swivel and adjustable height for optimal positioning.

5. Maintenance

Proper care and maintenance will extend the life and appearance of your CLP Salford office chair.

5.1 Leather Upholstery Care

• Regularly dust the leather surfaces with a soft, dry cloth.
• For spills, immediately blot with a clean, absorbent cloth. Do not rub.
• For general cleaning, use a damp cloth with a mild soap solution, then wipe dry with a clean cloth. Avoid harsh chemicals or abrasive cleaners.
• Periodically apply a leather conditioner to keep the leather supple and prevent drying or cracking.
• Keep the chair away from direct sunlight and heat sources to prevent fading and drying of the leather.

5.2 Metal and Caster Care

• Wipe chrome-plated metal parts with a soft, damp cloth. Dry immediately to prevent water spots.
• Periodically check all screws and fasteners and tighten them if necessary to ensure stability.
• Clean casters regularly to remove dust, hair, and debris that can impede smooth rolling. You may use a small brush or vacuum cleaner.
• If casters become stiff, a small amount of silicone spray lubricant can be applied to the axle.

6. Troubleshooting

This section addresses common issues you might encounter with your office chair.

• Chair is wobbly or unstable: Check all assembly screws and bolts, especially those connecting the seat, backrest, and armrests. Tighten any loose fasteners. Ensure the gas lift is properly seated in the base.
• Seat height adjustment not working: Ensure the lever is fully engaged. If the gas lift cylinder is not responding, it may be faulty and require replacement.
• Casters not rolling smoothly: Inspect casters for trapped debris (hair, lint, dirt) and clean them thoroughly. Lubricate with a silicone spray if necessary.
• Tilt function is too stiff or too loose: Adjust the tilt tension knob located under the seat. Turn clockwise to increase tension, counter-clockwise to decrease it.
• Squeaking noises: Apply a small amount of silicone lubricant to moving parts, joints, and the gas lift cylinder. Check for any loose connections that might be causing friction.

7. Specifications

Image 7.1: Detailed dimensions of the CLP Salford office chair.
