DUAL DL-DAB3-001 DAB+/Bluetooth Alarm Clock Radio with Induction Charging

1. Introduction

Thank you for purchasing the DUAL DL-DAB3-001 DAB+/Bluetooth Alarm Clock Radio. This device combines a digital radio (DAB+ and FM), Bluetooth connectivity for audio streaming, a dual alarm clock, and convenient induction charging for compatible smartphones. This manual provides essential information for safe operation, setup, and maintenance of your device. Please read it thoroughly before use and retain it for future reference.

Figure 1.1: The DUAL DL-DAB3-001 alarm clock radio positioned on a bedside table, demonstrating its compact design and integration into a modern bedroom environment. A smartphone is shown on the induction charging pad, and the digital display shows the time and date.

2. Safety Instructions

• Read all instructions before operating the device.
• Do not expose the device to rain, moisture, or extreme temperatures.
• Ensure proper ventilation; do not block any ventilation openings.
• Use only the provided AC adapter. Using unauthorized adapters may damage the device and void the warranty.
• Do not attempt to disassemble or modify the device. Refer all servicing to qualified personnel.
• Keep the device away from strong magnetic fields.
• Dispose of batteries responsibly according to local regulations.

3. Package Contents

Please check that all items listed below are present in your package:

• DUAL DL-DAB3-001 Alarm Clock Radio
• AC Power Adapter (Input: AC 100-240V ~ 50/60 Hz 1A; Output: DC 9V 2.5A)
• User Manual (this document)

Note: 2 x AAA R4 batteries for backup are not included and must be purchased separately.

4. Product Overview

4.1 Front and Top View

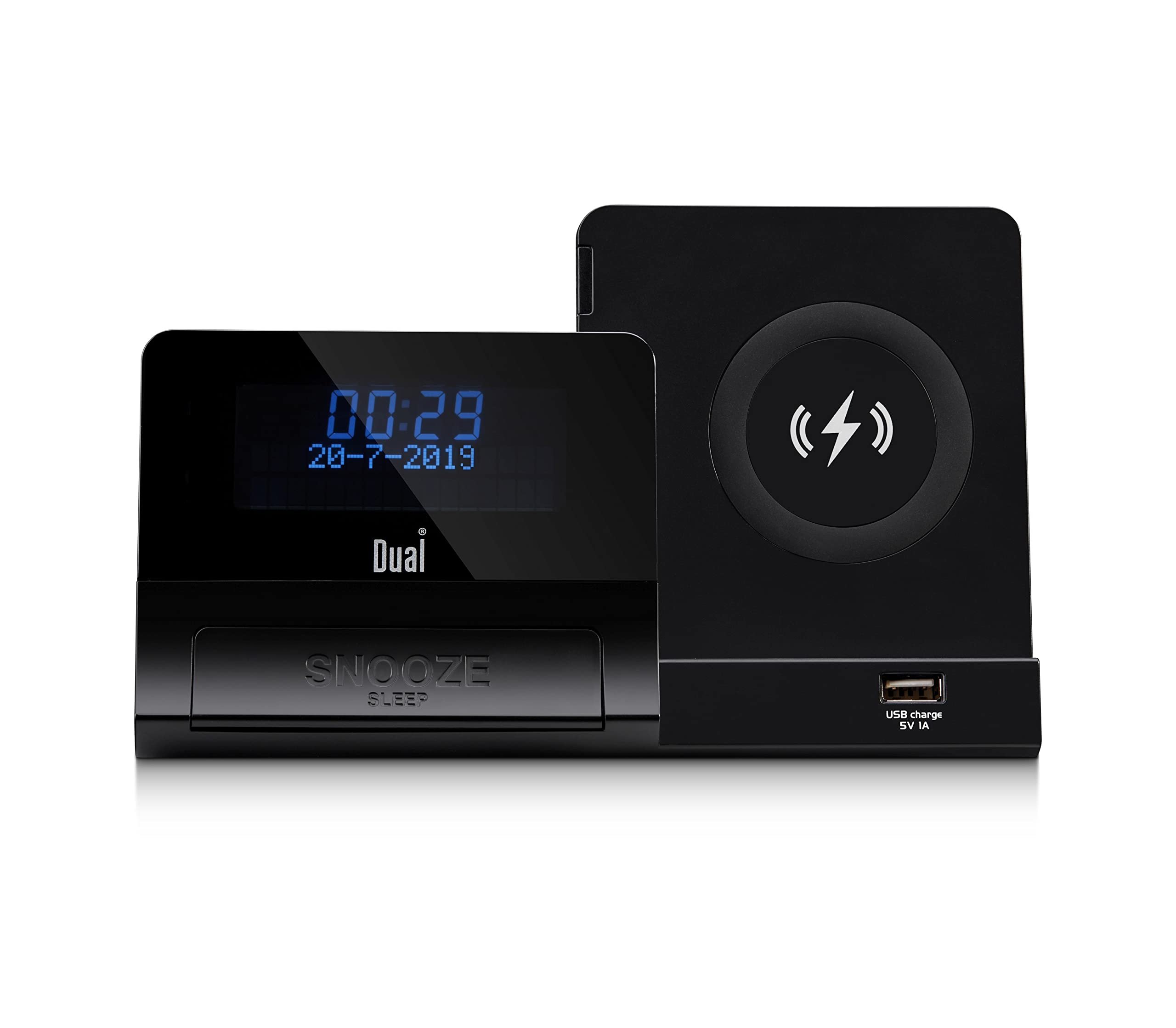

Figure 4.1: Detailed view of the DUAL DL-DAB3-001, highlighting the 5-inch LCD display, the large 'SNOOZE' button, the circular wireless induction charging pad on the right, and the USB charging port (5V 1A) located below the charging pad.

• LCD Display: Shows time, date, radio information, and alarm status.
• SNOOZE/SLEEP Button: Activates snooze during an alarm or sleep timer during playback.
• Wireless Charging Pad: For induction charging of compatible smartphones.
• USB Charging Port (5V 1A): For charging other USB-powered devices.
• Control Buttons (not visible in this view, typically on top/side): Power, Mode, Tune/Scan, Volume, Alarm Set, Presets.

4.2 Rear Panel (General Description)

The rear panel typically includes:

• DC IN Jack: For connecting the AC power adapter.
• AUX IN Jack: For connecting external audio devices.
• Headphone Jack: For private listening.
• Battery Compartment: For 2 x AAA R4 backup batteries.

5. Setup

5.1 Power Connection

1. Insert the DC plug of the supplied AC adapter into the DC IN jack on the rear of the unit.
2. Plug the AC adapter into a standard wall outlet (AC 100-240V ~ 50/60 Hz).
3. The unit will power on or enter standby mode.

5.2 Battery Installation (Backup)

For time and alarm settings backup during power outages:

1. Open the battery compartment cover on the rear of the unit.
2. Insert 2 x AAA R4 batteries (not included), observing the correct polarity (+/-).
3. Close the battery compartment cover securely.

5.3 Initial Power On and Time Synchronization

Upon first power-on, the unit will typically attempt to synchronize the time and date automatically via DAB+ signal. Ensure the antenna is extended for optimal reception.

6. Operating Instructions

6.1 Radio Operation (DAB+/FM)

1. Power On: Press the Power button to turn on the radio.
2. Select Mode: Press the Mode button to switch between DAB+ and FM radio.
3. Auto Scan (DAB+): In DAB+ mode, the radio will automatically scan for available stations upon first use. For a manual scan, refer to the specific button (e.g., Scan or Menu options).
4. Tuning (FM): In FM mode, use the Tune +/- buttons to manually tune or press and hold for auto-scan to the next available station.
5. Saving Presets: To save a station, tune to the desired station, press and hold the Preset button, select a preset number using Tune +/-, and press Preset again to confirm.
6. Recalling Presets: Press the Preset button briefly, then use Tune +/- to select the desired preset.

6.2 Bluetooth Operation

1. Enter Bluetooth Mode: Press the Mode button until "Bluetooth" appears on the display. The unit will enter pairing mode, indicated by a flashing Bluetooth icon.
2. Pairing: On your smartphone or other Bluetooth device, enable Bluetooth and search for available devices. Select "DL-DAB3-001" from the list.
3. Connection: Once paired, the Bluetooth icon on the radio's display will stop flashing and remain solid. You can now stream audio from your device to the radio.
4. Playback Control: Use your connected device or the radio's controls (if available) to play, pause, skip tracks, and adjust volume.

6.3 Alarm Clock Function

The DL-DAB3-001 features a dual alarm system.

1. Setting Alarms: Press and hold the Alarm Set button (or similar, refer to specific button labels). Use Tune +/- to set the alarm time, then press Alarm Set to confirm. Repeat for the second alarm.
2. Alarm Source: Select your preferred alarm source (DAB+ radio, FM radio, or buzzer) using the Mode or Alarm Set button during the alarm setup process.
3. Activating/Deactivating Alarms: Briefly press the Alarm Set button to toggle alarms on/off. An alarm icon will appear on the display when active.
4. Snooze: When an alarm sounds, press the SNOOZE button to temporarily silence it for a set period (e.g., 9 minutes).
5. Stopping Alarm: Press the Power button to turn off the alarm completely until the next set time.
6. Sleep Timer: While playing audio, press the SNOOZE/SLEEP button repeatedly to cycle through sleep timer options (e.g., 15, 30, 60, 90 minutes) before the unit automatically turns off.

6.4 Induction Charging

The unit features a wireless induction charging pad for Qi-compatible smartphones.

1. Ensure the radio is powered on and connected to the AC adapter.
2. Place your Qi-compatible smartphone directly onto the wireless charging pad.
3. The charging indicator on your phone should activate, confirming that charging has begun.
4. If charging does not start, adjust the position of your phone on the pad. Remove any thick cases that may interfere with charging.

6.5 USB Charging

The USB port on the front of the unit provides 5V 1A power output for charging other devices.

1. Connect your device's USB charging cable to the USB charging port on the radio.
2. Ensure the radio is powered on and connected to the AC adapter.
3. Charging will begin automatically.

6.6 Auxiliary Input

Connect external audio sources (e.g., MP3 player) via the AUX IN jack.

1. Connect a 3.5mm audio cable (not included) from your external device's headphone jack to the AUX IN jack on the radio.
2. Press the Mode button to select AUX mode.
3. Control playback and volume from your external device.

7. Maintenance

• Cleaning: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the unit. Do not use abrasive cleaners or solvents.
• Storage: If storing the unit for an extended period, disconnect it from power and remove the backup batteries. Store in a cool, dry place.
• Antenna: Handle the telescopic antenna carefully to avoid damage.

8. Troubleshooting

9. Specifications

• Model: DL-DAB3-001
• Power Supply: DC 9V 2.5A (via AC adapter)
• Backup Batteries: 2 x AAA R4 (not included)
• Radio Tuner: DAB+, FM
• Bluetooth Version: 5.0
• Output Power: 2 x 3 Watts
• Display: 5-inch LCD (adjustable brightness)
• Induction Charging: Qi-compatible
• USB Charging Output: 5V 1A
• Connectivity: Auxiliary Input, Headphone Jack
• Dimensions (L x W x H): 18 x 10.8 x 9.8 cm
• Weight: 800 grams

10. Warranty and Support

This DUAL product is covered by a manufacturer's warranty. Please refer to the warranty card included in your package or contact your retailer for specific warranty terms and conditions. For technical support or service inquiries, please contact the customer service department of your place of purchase or visit the official Dual website for further assistance.
