OLIGHT Javelot Mini 1000 Lumens EDC Tactical Light User Manual

1. Introduction

The OLIGHT Javelot Mini is a compact and lightweight long-range Everyday Carry (EDC) flashlight designed for various applications including hunting, searching, and emergency situations. It delivers a maximum output of 1000 lumens and boasts a impressive throw distance of 600 meters. This manual provides detailed instructions for the proper use, care, and maintenance of your Javelot Mini flashlight.

Image: The OLIGHT Javelot Mini flashlight, showcasing its compact design and black finish.

2. What's Included

Upon unboxing your OLIGHT Javelot Mini, please ensure all the following components are present:

• Javelot Mini Flashlight (including battery) x 1
• Charging Cable (MCC1A/MCC3 compatible) x 1
• Holster x 1
• User Manual x 1

Image: All components included in the OLIGHT Javelot Mini package: flashlight, charging cable, holster, and user manual.

3. Setup

3.1. Battery & Charging

The Javelot Mini comes with a pre-installed Lithium Ion battery. Before first use, it is recommended to fully charge the device.

1. Connect the magnetic charging cable (MCC1A/MCC3) to a USB power source.
2. Attach the magnetic end of the cable to the tail cap of the flashlight. The cable will magnetically snap into place.
3. The indicator on the charging cable will show red when charging is in progress and turn green when the battery is fully charged.

Image: The magnetic charging cable attached to the tail cap of the Javelot Mini, showing the charging indicator.

4. Operating Instructions

4.1. Power On/Off & Mode Selection

The Javelot Mini features a dual-stage tactical tail switch for intuitive operation:

• Light Press: Lightly press the tail switch to produce a low light output.
• Hard Press: Press the tail switch firmly to produce a high light output.
• Momentary Mode: Single-click the tail switch to activate momentary mode, ideal for tactical use where quick bursts of light are needed.

Image: A hand demonstrating the use of the dual-stage tactical tail switch on the Javelot Mini.

4.2. Brightness Levels

The Javelot Mini offers distinct brightness levels for various needs:

• High Mode: Delivers a maximum output of 1000 lumens.
• Low Mode: Provides a lower output for extended runtime or closer illumination.

Image: The Javelot Mini flashlight illustrating its high (1000 lumens) and low (200 lumens) output modes and corresponding runtimes.

4.3. Beam Performance

The Javelot Mini is engineered for long-range illumination, providing a focused beam with minimal spill:

• Max Throw: Achieves a maximum beam distance of 600 meters (1968 feet).
• Novel Design: Features a round light source, which is a first for Olight's EDC flashlights, providing a softer and more balanced beam compared to traditional square hotspots.

Image: A person using the Javelot Mini flashlight, demonstrating its powerful beam reaching a significant distance in a dark outdoor environment.

4.4. Vibrating Power Indicator

The Javelot Mini incorporates a vibrating power indicator to alert you when the battery level is low, without requiring visual inspection:

• Battery < 30%: Vibrates once every 5 minutes.
• Battery < 10%: Vibrates twice per minute.
• Battery < 5%: Vibrates three times every 10 seconds.

Image: An illustration showing the Javelot Mini vibrating in a hand, indicating a low battery alert.

5. Maintenance

5.1. Water Resistance

The Javelot Mini is designed with IPX8 water resistance, meaning it can withstand continuous immersion in water up to 2 meters for 30 minutes. This feature ensures durability in various harsh environments.

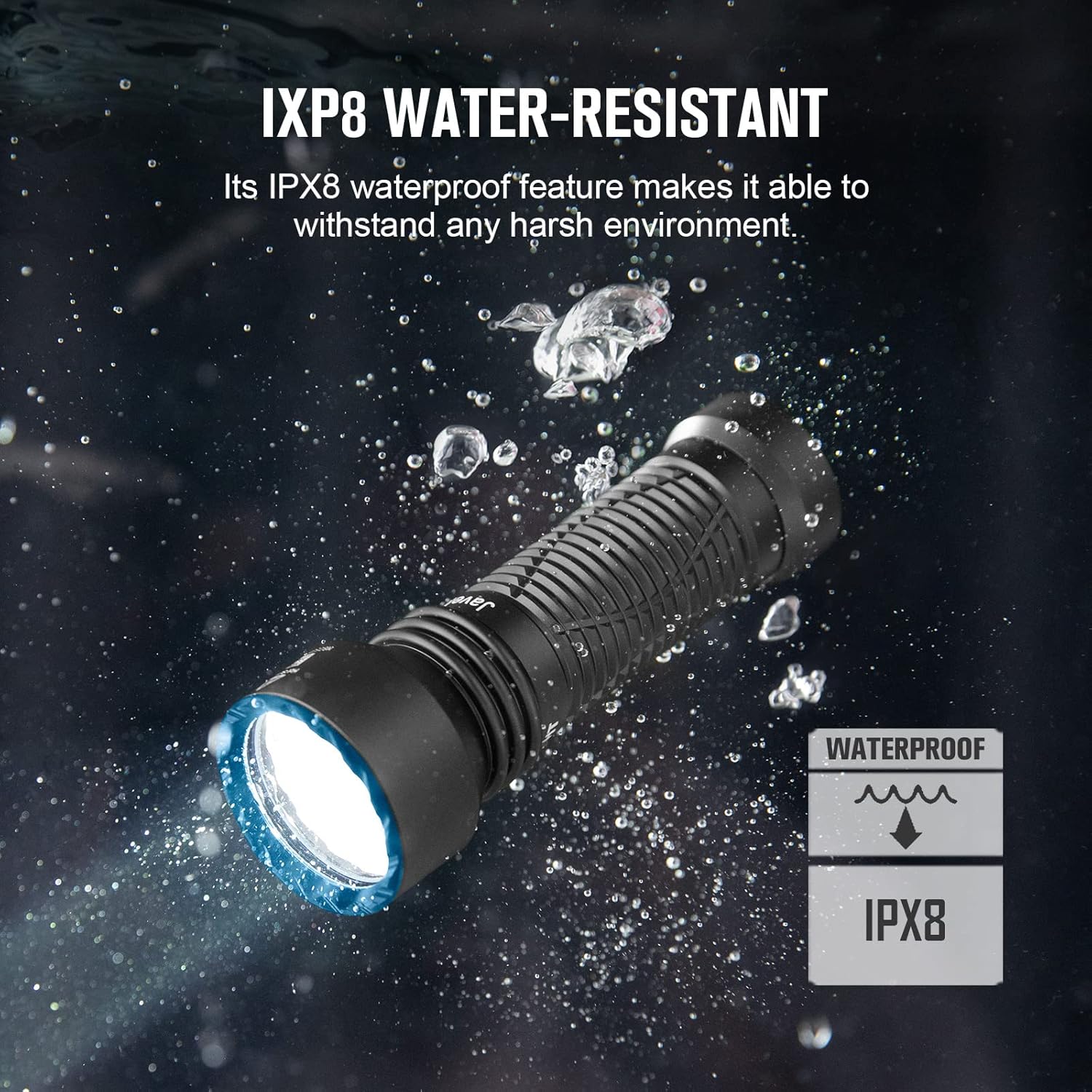

Image: The Javelot Mini flashlight submerged in water, demonstrating its IPX8 water-resistant capability.

5.2. General Care

• Keep the flashlight clean, especially the lens and charging port. Use a soft, clean cloth for wiping.
• Avoid disassembling the flashlight head as this may damage the light and void the warranty.
• Store the flashlight in a cool, dry place when not in use for extended periods.

6. Troubleshooting

If you encounter issues with your Javelot Mini, please refer to the following common troubleshooting steps:

• Flashlight not turning on:
  • Ensure the battery is fully charged.
  • Check if the tail cap is screwed on tightly. A loose tail cap can prevent electrical contact.
• Light is dim or flickering:
  • The battery may be low. Recharge the flashlight.
  • Clean the contact points on the tail cap and the flashlight body with a clean cloth.
• Charging issues:
  • Ensure the magnetic charging cable is properly connected to both the power source and the flashlight's tail cap.
  • Verify the power source is functioning correctly.

If the problem persists after trying these steps, please contact OLIGHT customer support for further assistance.

7. Specifications

8. Warranty & Support

8.1. Warranty Information

The OLIGHT Javelot Mini is covered by a comprehensive Olight 5-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

8.2. Customer Support

For any questions, concerns, or assistance with your OLIGHT Javelot Mini, please feel free to contact OLIGHT customer support. They are available to help with product inquiries, troubleshooting, and warranty claims.

You can also refer to the official User Manual (PDF) for additional details and diagrams.
