TYMO HIGH-Speed Hair Dryer User Manual

1. Introduction

Thank you for choosing the TYMO HIGH-Speed Hair Dryer, Model HC601. This professional hair dryer is engineered for efficient and gentle hair drying, featuring advanced technology to minimize heat damage and enhance hair health. Please read this manual thoroughly before using the appliance to ensure safe and optimal performance. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

• DANGER – As with most electrical appliances, electrical parts are electrically live even when the switch is off. To reduce the risk of death by electric shock:
• Always unplug this appliance immediately after using.
• Do not use while bathing or in a shower.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, unplug it immediately. Do not reach into the water.
• WARNING – To reduce the risk of burns, electrocution, fire, or injury to persons:
• This appliance should never be left unattended when plugged in.
• Close supervision is necessary when this appliance is used by, on, or near children or individuals with certain disabilities.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped, damaged, or dropped into water.
• Keep the cord away from heated surfaces. Do not wrap the cord around the appliance.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Never use while sleeping.
• Never drop or insert any object into any opening.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use an extension cord with this appliance.
• Do not direct hot air towards eyes or other heat-sensitive areas.
• Attachments may be hot during use. Allow them to cool before handling.
• Do not place appliance on any surface while it is operating.

3. Product Overview and Components

The TYMO HIGH-Speed Hair Dryer comes with several attachments designed to cater to various styling needs.

Figure 3.1: TYMO HIGH-Speed Hair Dryer and Included Attachments.

This image displays the TYMO HIGH-Speed Hair Dryer along with its included accessories: a concentrator nozzle for precise styling, a styling comb for detangling and straightening, and a diffuser for enhancing natural curls and waves.

Components:

• Main Unit: The core hair dryer with power controls, heat settings, and fan speed controls.
• Concentrator Nozzle: For focused airflow, ideal for precise styling and smoothing.
• Styling Comb: Designed with single wide teeth to reduce tangles and breakage while styling.
• Diffuser: Features adjustable prongs for two modes: Texture Mode (prongs down) for natural curls/waves and Volume Mode (prongs up) for added bounce.

4. Setup

1. Unpacking: Carefully remove the hair dryer and all accessories from the packaging. Retain the packaging for storage or future transport.
2. Inspect: Check the appliance and its accessories for any signs of damage. Do not use if any damage is observed.
3. Attach Accessories: The magnetic attachments (concentrator nozzle, styling comb, diffuser) can be easily attached to the front of the dryer. Simply align the attachment with the nozzle and it will snap into place magnetically. Ensure it is securely fastened before use.
4. Power Connection: Plug the power cord into a suitable electrical outlet. Ensure the voltage matches the specifications of the appliance.

5. Operating Instructions

The TYMO HIGH-Speed Hair Dryer is designed for efficient and gentle drying with customizable settings.

5.1 Powering On/Off

• To turn on the dryer, press the power button located on the handle.
• To turn off the dryer, press the power button again.

5.2 Temperature and Fan Speed Settings

The dryer features multiple heat and fan speed settings for optimal control:

• Heat Settings: There are 4 distinct heat settings. Use the temperature control button to cycle through them.
• Fan Speed Settings: There are 3 fan speed settings. Use the fan speed control button to adjust the airflow intensity.
• Cold Shot Button: Press and hold the cold shot button for a burst of cool air to set your style.

5.3 High-Speed Drying Technology

The TYMO dryer utilizes a powerful motor and advanced airflow design for rapid drying.

Figure 5.1: High-Speed Drying Mechanism.

This diagram illustrates the powerful airflow generated by the TYMO High-Speed Hair Dryer, driven by a motor operating at 110,000 RPM, achieving a wind speed of 23 meters per second for significantly faster drying.

With a motor speed of 110,000 RPM and a wind speed of 23 M/S, this dryer significantly reduces drying time compared to conventional models.

5.4 Reduced Heat Damage

The TYMO HIGH-Speed Hair Dryer is designed to dry hair effectively with less heat, minimizing potential damage.

Figure 5.2: Hair Health Comparison.

This image compares the results of drying hair with the TYMO High-Speed Hair Dryer, which uses lower heat (140°F) and higher speed (23 m/s) to reduce heat damage, against a traditional high-heat dryer (210°F, 10 m/s).

By optimizing airflow and temperature, the dryer achieves efficient drying while maintaining hair health, resulting in up to 70% less heat damage compared to traditional high-heat dryers.

5.5 Built-in Ionic System

The dryer incorporates a built-in ionic system to enhance hair smoothness and shine.

Figure 5.3: Ionic System Display.

This image highlights the integrated ionic system of the TYMO High-Speed Hair Dryer, designed to emit 50,000,000 ions per cubic centimeter, contributing to reduced frizz, static, and flyaways for a smoother, shinier hair finish.

This system releases 50,000,000 ions/cm³ to help reduce frizz, static, and flyaways, promoting a smooth, shiny finish and healthy, hydrated strands.

5.6 Using Attachments

• Concentrator Nozzle: Ideal for precise drying and smoothing sections of hair. Direct the airflow downwards along the hair shaft for a sleek finish.
• Styling Comb: Use this attachment for detangling and straightening hair. Its single wide teeth design minimizes pulling and breakage.

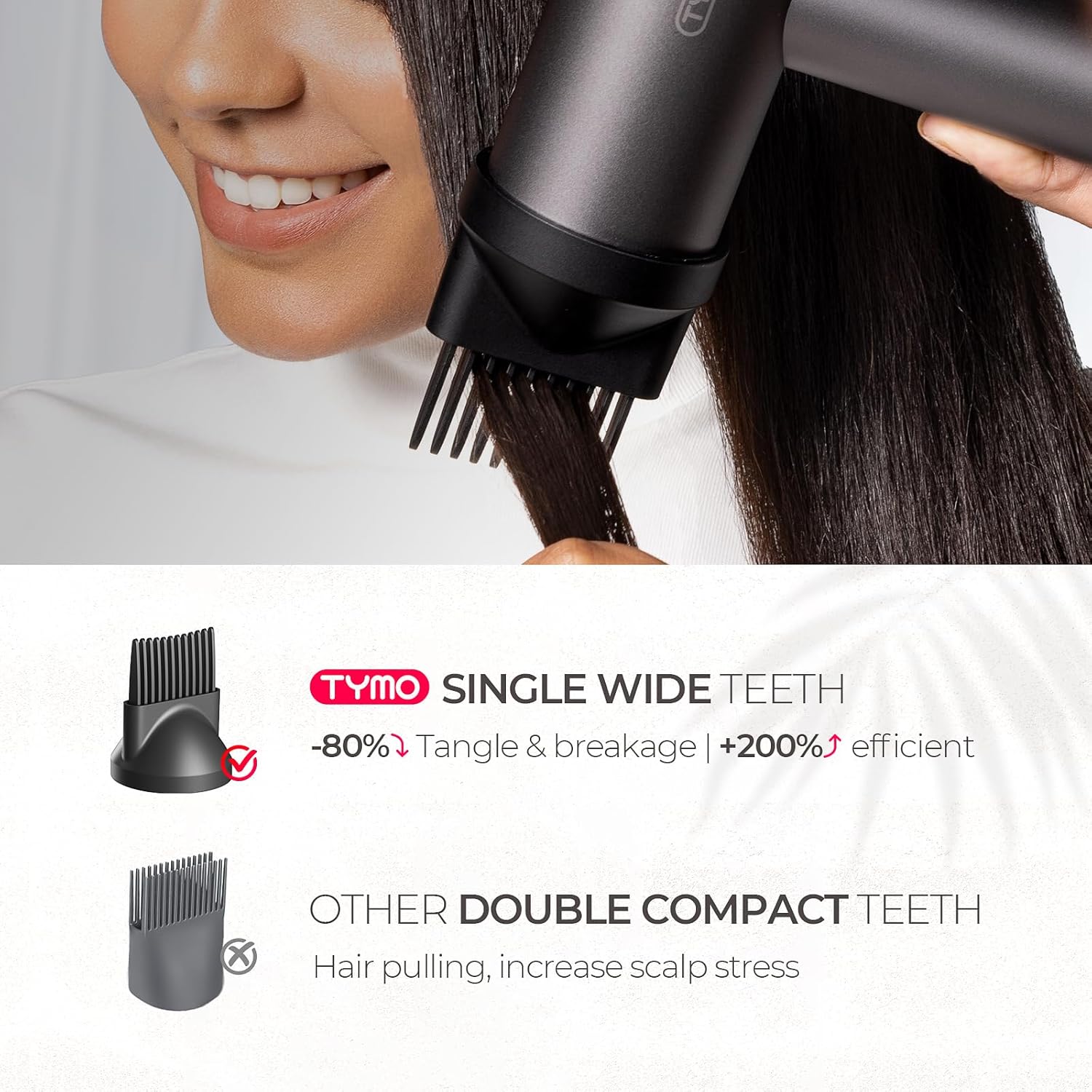

Figure 5.4: Styling Comb Design.

This image illustrates the design of the TYMO single wide teeth styling comb attachment, which is engineered to minimize tangles and breakage during use, compared to conventional double compact teeth combs.

• Diffuser: Perfect for enhancing natural curls and waves, adding volume, and reducing frizz.

Figure 5.5: Adjustable Diffuser Modes.
This image demonstrates the two modes of the adjustable diffuser attachment: 'Texture Mode' with prongs down for natural curls and waves, and 'Volume Mode' with prongs up for increased bouncy volume.
• Texture Mode: Prongs down for defining natural curls and waves.
• Volume Mode: Prongs up for adding 20% more bouncy volume.

6. Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your TYMO HIGH-Speed Hair Dryer.

1. Cleaning the Air Filter: Regularly check and clean the rear air filter to prevent lint and dust buildup, which can affect performance and lead to overheating.
• Ensure the dryer is unplugged and completely cool.
• Gently twist or pull off the rear filter cover (refer to product diagram if available).
• Remove any accumulated lint or hair using a soft brush or cloth.
• Replace the filter cover securely.
2. Cleaning the Exterior: Wipe the exterior of the dryer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Storage: Store the dryer in a cool, dry place when not in use. Do not wrap the power cord tightly around the dryer, as this can damage the cord. Use the provided storage bag if available.

7. Troubleshooting

If you encounter issues with your TYMO HIGH-Speed Hair Dryer, please refer to the following common problems and solutions:

8. Specifications

Key technical specifications for the TYMO HIGH-Speed Hair Dryer, Model HC601:

9. Warranty Information

TYMO products are manufactured to the highest quality standards. For detailed information regarding the warranty period, terms, and conditions applicable to your TYMO HIGH-Speed Hair Dryer, Model HC601, please refer to the warranty card included in your product packaging or visit the official TYMO website. Please retain your proof of purchase for warranty claims.

10. Customer Support

If you have any questions, require technical assistance, or need to report an issue with your TYMO HIGH-Speed Hair Dryer, please contact TYMO Customer Support. Contact information can typically be found on the product packaging, the official TYMO website, or through your retailer's support channels. When contacting support, please have your product model number (HC601) and purchase details ready.
