1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Enhulk 20V Cordless Leaf Blower. Please read this manual thoroughly before using the product and retain it for future reference.
The Enhulk 20V Cordless Leaf Blower is designed for clearing leaves, debris, snow, and dust from various surfaces. It features a brushless motor, turbine fan technology, and variable speed control for versatile use.
What's Included:
- 1x Enhulk Leaf Blower Unit
- 2x 20-Volt 4.0Ah Lithium-Ion Batteries
- 1x 1.8A Fast Charger
- 1x Detailed Instruction Manual
2. Safety Information
WARNING: Read all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and gloves, during operation.
- Keep children and bystanders away while operating the leaf blower.
- Do not operate the blower in wet conditions or rain.
- Ensure the battery is fully charged before use and properly inserted into the tool.
- Never point the blower nozzle at people or animals.
- Inspect the blower for any damage before each use. Do not operate if damaged.
- Use only Enhulk-approved batteries and chargers.
3. Product Overview and Features
The Enhulk 20V Cordless Leaf Blower combines advanced technology with an ergonomic design for efficient outdoor cleaning tasks.
Key Features:
- Advanced Brushless Motor: Operates cooler and offers a longer service life compared to brushed motors, providing gas-like power with reduced noise.
- Turbine Fan Technology: Features larger air vents for maximum air intake and an optimized jet fan design for peak efficiency, delivering supercharged airflow.
- Variable Speed Trigger: Allows seamless switching between Turbo and Eco modes for different applications.
- Lightweight & Ergonomic Design: Weighs only 7.8 lbs, with a comfortable handle for easy control and maneuverability.
- 2-in-1 Functionality: Can be configured for both blowing and vacuuming (sweeper) functions.
Figure 1: Enhulk 20V Cordless Leaf Blower main unit.

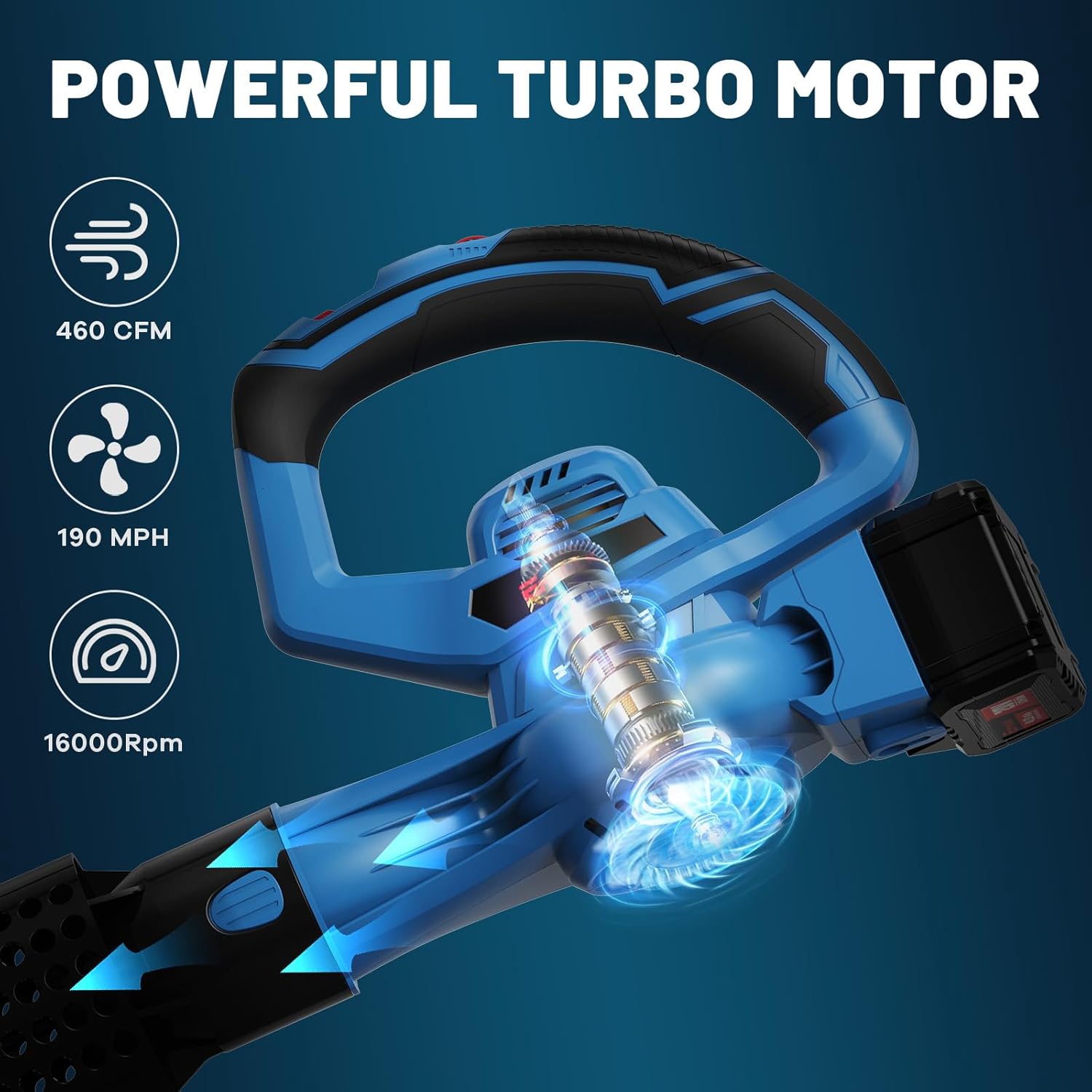

Figure 2: Illustration of the powerful turbo motor and internal components.
Figure 3: Diagram highlighting the brushless motor technology.
Figure 4: Illustration of the axial turbine fan for enhanced airflow.
4. Setup
4.1 Battery Charging and Installation
- Connect the 1.8A fast charger to a standard power outlet.
- Insert the 20-Volt 4.0Ah lithium-ion battery into the charger. The indicator light on the charger will show the charging status.
- Once fully charged, remove the battery from the charger.
- Align the charged battery with the battery slot on the leaf blower handle and slide it in until it clicks securely into place.
Figure 5: The 4.0Ah battery and fast charger.
4.2 Blower Tube Assembly
- Ensure the blower is turned off and the battery is removed before assembly.
- Align the blower tube with the outlet on the main unit.
- Push and twist the tube until it locks securely into position.
Figure 6: Illustration of the easy assembly process for the blower tube.
5. Operation
5.1 Starting and Stopping
- Ensure the battery is installed and the blower tube is securely attached.
- To start, press the power button and then squeeze the variable speed trigger.
- To stop, release the variable speed trigger.
5.2 Variable Speed Control
The blower features a variable speed trigger and a mode selection button to switch between Turbo and Eco modes:
- Eco Mode: Ideal for lighter tasks, offering airflow of approximately 330 CFM and 80 MPH. This mode is suitable for cleaning debris from delicate areas like flower beds without disturbing mulch.
- Turbo Mode: Provides maximum performance for demanding applications, delivering airflow up to 430 CFM and 120 MPH. Use this mode for heavy leaf piles or stubborn debris.
Figure 7: The 6 variable speed control allows for precise power adjustment.
5.3 2-in-1 Functionality (Blower & Sweeper)
The Enhulk leaf blower can be converted into a sweeper (vacuum) for collecting debris.
- Blowing: Attach the standard blower tube to the air outlet for blowing tasks.
- Vacuuming (Sweeper): To convert to a vacuum, remove the blower tube from the air outlet. Attach the collection bag to the air outlet and the vacuum nozzle to the air intake. The blower will then draw air and debris into the collection bag.
Figure 8: The 2-in-1 design allows for both blowing (big jet tube) and vacuuming (concentrator tube) functions.
5.4 Applications
- Clearing leaves from lawns, driveways, and patios.
- Removing light debris and dust from workshops or garages.
- Blowing light snow from vehicles or walkways.
Figure 9: The leaf blower can effectively clear light snow from surfaces.
Video 1: Demonstrates the quick connect feature, lightweight design, turbine fan technology, and different speed settings of the Enhulk 20V 4.0Ah Cordless Leaf Blower.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Enhulk Leaf Blower.
- Cleaning: After each use, wipe down the exterior of the blower with a damp cloth. Ensure air vents are clear of debris.
- Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods. Charge batteries before long-term storage.
- Storage: Store the leaf blower in a dry, secure location away from direct sunlight and extreme temperatures.
- Inspection: Periodically check all fasteners and connections for tightness. Inspect the blower tube for cracks or damage.
7. Troubleshooting
If you encounter issues with your Enhulk Leaf Blower, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Blower does not start | Battery not charged or improperly installed. | Ensure battery is fully charged and correctly inserted until it clicks. |
| Reduced airflow | Air intake or blower tube is obstructed. | Clear any debris from the air intake and blower tube. |
| Short battery run-time | Battery not fully charged or operating in Turbo mode continuously. | Fully charge the battery. Use Eco mode for lighter tasks to conserve battery life. |
If the problem persists after attempting these solutions, please contact Enhulk customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Enhulk |
| Power Source | Battery Powered |
| Voltage | 20 Volts (DC) |
| Air Flow Capacity (Max) | 430 Cubic Feet Per Minute (CFM) |
| Speed (Max) | 120 Miles per Hour (MPH) |
| Noise Level | 80 Decibels |
| Item Weight | 7.8 Pounds |
| Battery Type | Lithium Ion (2 included) |
| Material | Weather-Resistant Construction (IPX4) |
9. Warranty and Support
Enhulk provides a 12-month limited warranty for this product. Additionally, a free 18-month battery replacement service is offered upon registration (details typically found in the included manual or on the manufacturer's website).
For technical support, warranty claims, or replacement parts, please contact Enhulk customer service through their official website or the retailer where the product was purchased.
Consider purchasing an extended protection plan for additional coverage:
- 2-Year Protection Plan: Available for $18.99
- 3-Year Protection Plan: Available for $25.99
