Andoer LM100W LED Photography Fill Light Instruction Manual

Introduction

Thank you for choosing the Andoer LM100W Portable LED Photography Fill Light. This professional studio video light is designed to provide stable and powerful illumination for various photography and videography needs, including product, portrait, wedding photography, and live streaming. This manual provides essential information for safe operation, setup, and maintenance of your device.

Safety Information

• Do not expose the device to rain, moisture, or high humidity.
• Do not disassemble or modify the light. Repairs should only be performed by authorized personnel.
• Use only the specified power cord and adapter. Ensure the power supply matches the light's requirements.
• Avoid direct eye exposure to the light source, as it can cause discomfort or damage.
• Keep the device out of reach of children.
• Ensure adequate ventilation around the light during operation to prevent overheating.
• Always turn off and unplug the light before cleaning or maintenance.

Package Contents

Please check the package to ensure all items are present:

• 1 x Andoer LM100W LED Video Light
• 1 x Remote Control
• 1 x Lamp Cover
• 1 x Power Cord

Product Overview

The Andoer LM100W features a high-quality COB bead, providing 100W of stable illumination with a 5600K color temperature. Its design includes efficient heat dissipation and a versatile Bowens mount for various accessories.

Image: The Andoer LM100W LED Photography Fill Light with its remote control.

Key Features:

• High Power Output: 100W COB bead for bright and stable illumination.
• Daylight Color Temperature: Fixed 5600K±200K, ideal for natural lighting.
• Adjustable Brightness: Dimmable from 0% to 100%.
• Excellent Color Fidelity: CRI >95 ensures accurate color rendering.
• Efficient Cooling: Aluminum cooling fin and built-in silent fan prevent overheating.
• Bowens Mount: Compatible with a wide range of photography accessories.
• Portable Design: Lightweight (approx. 1.04kg) for easy transport.
• Dual Control: Adjust settings via the control knob on the light or the included remote control.

Image: High-quality COB bead for superior illumination and color accuracy.

Image: Physical dimensions of the light and a detailed view of the 15mm light stand mounting hole.

Image: The standard Bowens mount design, compatible with reflectors, softboxes, and other accessories.

Image: Illustration of the excellent heat dissipation system, ensuring stable performance during extended use.

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Mounting the Light: Attach the Andoer LM100W light to a compatible light stand. Insert the stand's top pin into the 15mm mounting hole on the light's bracket and tighten the locking knob securely.
3. Connecting Power: Connect the provided power cord to the AC input port on the back of the light. Then, plug the other end of the power cord into a standard electrical outlet.
4. Attaching Accessories (Optional): If using Bowens mount accessories (e.g., reflector, softbox), align the accessory with the Bowens mount on the front of the light. Insert and twist clockwise until it locks into place.

Operating Instructions

1. Power On/Off: Locate the ON/OFF switch on the back panel of the light. Flip the switch to 'ON' to power on the device, and to 'OFF' to power it down.
2. Adjusting Brightness:
   • Manual Control: Rotate the control knob on the back of the light to adjust the brightness level from 0% (minimum) to 100% (maximum). The current brightness percentage will be displayed on the screen.
   • Remote Control: Use the 'K+' button on the remote control to increase brightness and the 'K-' button to decrease brightness.


   Image: Adjusting brightness using the control knob on the back of the light.

3. Adjusting Lighting Angle: Loosen the locking knob on the light's mounting bracket. Tilt the light to the desired angle, then tighten the knob firmly to secure its position.

Image: The light's flexible design allows for easy adjustment of the lighting angle.
4. Using the Remote Control: The included remote control allows for convenient adjustment of the light's brightness from a distance of approximately 20 meters. Ensure the remote has 2 AAA batteries installed (not included).

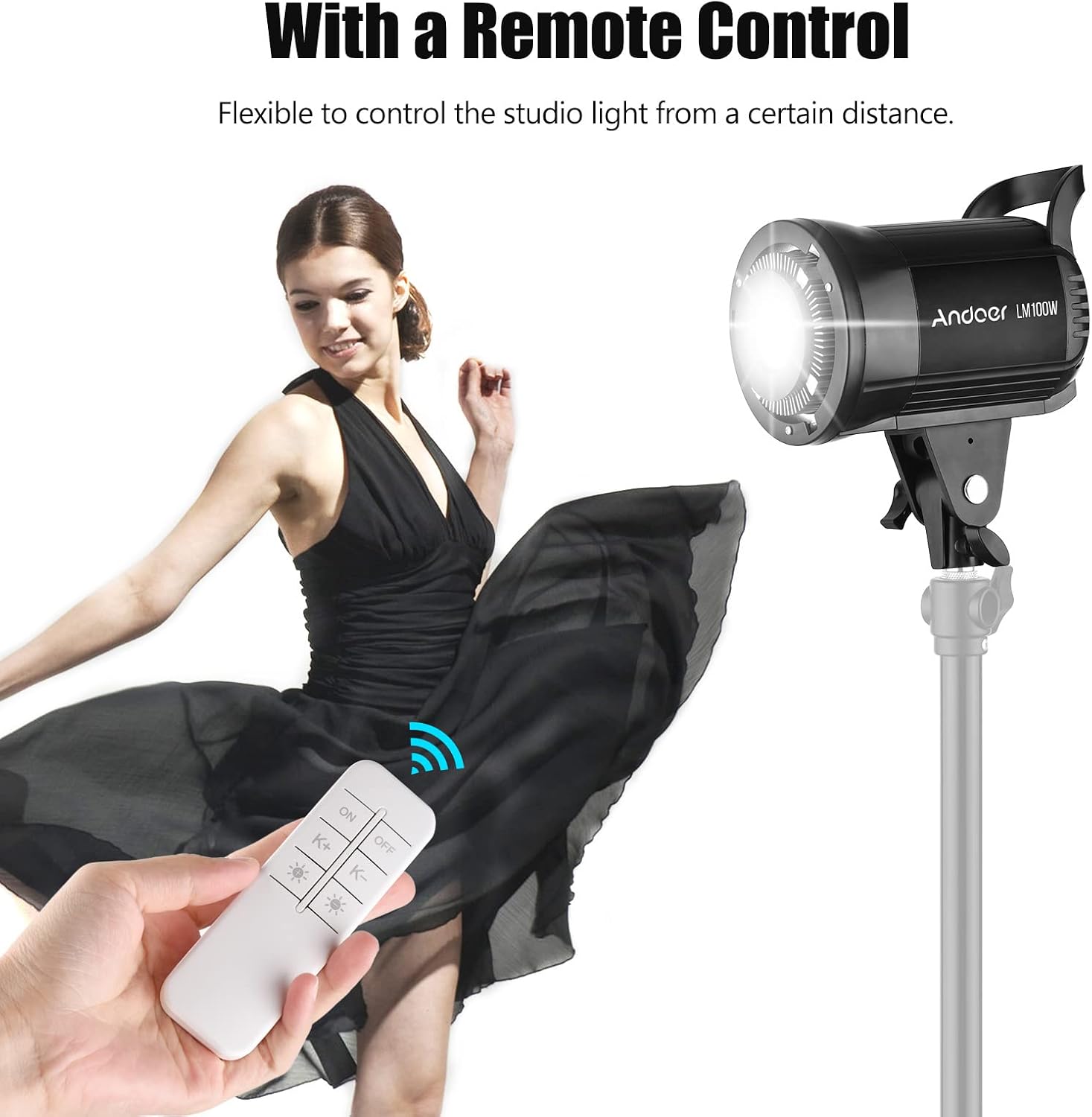

Image: Controlling the studio light remotely for flexible operation.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the light. Do not use abrasive cleaners or solvents. For the COB bead, use a lens cleaning cloth if necessary, ensuring the light is off and cool.
• Storage: When not in use, store the light in a cool, dry place, away from direct sunlight and moisture. It is recommended to use the original packaging for protection.
• Power Cord: Regularly inspect the power cord for any signs of damage. If damaged, replace it with an approved cord.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase for any warranty claims.
