Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the H&chuanpin Steering Control Unit, Part Number 211-1010-002. This unit is designed for use in hydraulic steering systems, specifically compatible with Char-Lynn 211-1010-002 and Eaton 211-1010 applications. Adhering to the guidelines in this manual will ensure optimal performance and longevity of the product.
Product Overview
The H&chuanpin Steering Control Unit 211-1010-002 is a critical component in hydraulic steering systems, facilitating precise control and smooth operation. It is engineered to meet the specifications required for Char-Lynn 211-1010-002 and Eaton 211-1010 systems.

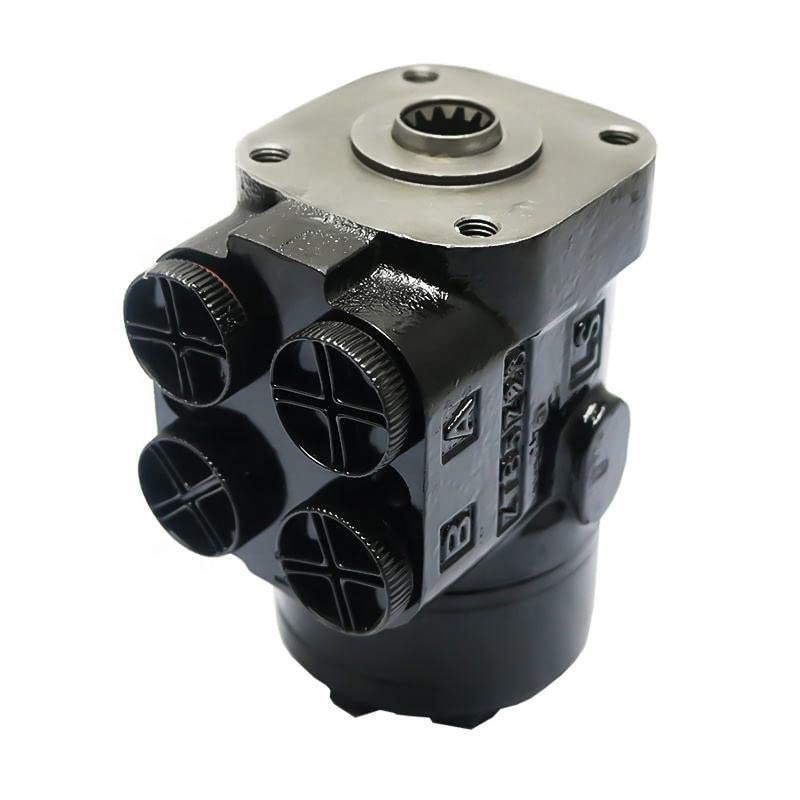

Image: The H&chuanpin Steering Control Unit 211-1010-002, showing its robust black housing, multiple hydraulic ports with threaded caps, and a splined shaft on the top mounting plate. The unit features clear markings for ports A and B, and a serial number.
Key features include:
- Part Number: 211-1010-002
- Application: Specifically designed for Char-Lynn 211-1010-002 and Eaton 211-1010 hydraulic steering systems.
- Construction: Durable design for reliable performance in demanding hydraulic environments.
Safety Information
Always observe the following safety precautions when handling, installing, or maintaining the steering control unit:
- Professional Installation: Installation should only be performed by qualified personnel with experience in hydraulic systems.
- System Depressurization: Ensure all hydraulic systems are completely depressurized before beginning any work.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, gloves, and protective clothing.
- Fluid Handling: Hydraulic fluid can be under high pressure and hot. Handle with extreme care. Dispose of fluids responsibly.
- Cleanliness: Maintain a clean work environment to prevent contamination of hydraulic components.
- Torque Specifications: Adhere to all specified torque values for fasteners to prevent leaks or damage.
- Component Compatibility: Ensure all connected components (hoses, fittings, pumps) are compatible with the unit and the system's operating pressures.
Setup and Installation
Proper installation is crucial for the correct function and longevity of the steering control unit. Follow these general steps:
- Preparation:
- Ensure the work area is clean and free of debris.
- Gather all necessary tools, including wrenches, torque wrench, and hydraulic fluid.
- Verify that the replacement unit matches the specifications of the original unit.
- System Isolation:
- Turn off the power to the hydraulic system.
- Depressurize the entire hydraulic system according to the equipment manufacturer's guidelines.
- Drain hydraulic fluid if necessary.
- Removal of Old Unit:
- Carefully disconnect all hydraulic lines, noting their original positions and labeling them if needed.
- Remove mounting bolts and carefully detach the old steering control unit.
- Installation of New Unit:
- Inspect the mounting surface for cleanliness and flatness.
- Position the new H&chuanpin 211-1010-002 unit and secure it with mounting bolts. Tighten to the manufacturer's specified torque.
- Reconnect all hydraulic lines to their correct ports. Ensure fittings are clean and properly sealed. Tighten fittings to specified torque.
- System Priming and Testing:
- Refill the hydraulic reservoir with the recommended type and amount of hydraulic fluid.
- Slowly re-pressurize the system, checking for leaks at all connections.
- Bleed air from the system as per equipment manufacturer instructions.
- Test the steering function in a controlled environment, checking for smooth operation and responsiveness.
Operating Instructions
Once installed and the system is fully operational, the steering control unit requires no specific user interaction beyond normal steering inputs. Ensure the hydraulic system is always maintained within its specified operating parameters.
- Smooth Operation: The unit is designed for smooth and responsive steering. Any unusual stiffness, looseness, or noise should be investigated immediately.
- Fluid Levels: Regularly check the hydraulic fluid level in the system reservoir. Low fluid levels can lead to cavitation and damage to hydraulic components.
- System Pressure: Ensure the hydraulic pump is providing the correct pressure and flow as required by the steering system.
Maintenance
Regular maintenance helps ensure the longevity and reliable performance of your steering control unit and the overall hydraulic system.
- Fluid Inspection: Periodically check the hydraulic fluid for contamination (discoloration, particles) and proper level. Change fluid according to equipment manufacturer recommendations.
- Leak Detection: Inspect all hydraulic lines and connections around the steering unit for any signs of leaks. Address leaks promptly.
- Connection Integrity: Verify that all mounting bolts and hydraulic fittings remain tight. Re-torque if necessary, following specified values.
- Filter Replacement: Ensure hydraulic filters are replaced at recommended intervals to prevent contaminants from reaching the steering unit.
- General Cleanliness: Keep the exterior of the unit clean to prevent dirt buildup around seals and connections.
Troubleshooting
This section provides guidance for common issues. For complex problems, consult a qualified hydraulic technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Stiff or difficult steering | Low hydraulic fluid level, air in system, faulty pump, restricted lines, internal unit wear. | Check fluid level and add if necessary. Bleed air from system. Inspect pump and lines. Consult technician for internal unit issues. |
| No steering response | Complete loss of hydraulic pressure, severe air lock, major internal failure. | Check pump operation and fluid supply. Bleed system thoroughly. Immediate professional inspection required. |
| Hydraulic fluid leaks | Loose fittings, damaged seals, cracked housing. | Tighten fittings to specified torque. Replace damaged seals. If housing is cracked, unit replacement is necessary. |
| Excessive noise from unit | Air in system, cavitation, worn bearings, internal damage. | Bleed air. Ensure proper fluid level and type. Professional diagnosis for internal component wear. |
Specifications
| Attribute | Detail |
|---|---|
| Part Number | 211-1010-002 |
| Application Compatibility | Char-Lynn 211-1010-002, Eaton 211-1010 |
| Manufacturer | H&chuanpin |
| ASIN | B0B8R8XLS4 |
| First Available Date | August 5, 2022 |
Warranty Information
For specific warranty terms and conditions related to the H&chuanpin Steering Control Unit 211-1010-002, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty coverage typically addresses manufacturing defects under normal operating conditions.
Customer Support
Should you require technical assistance, have questions regarding installation, or need to report an issue, please contact the seller or the manufacturer, H&chuanpin. Provide your product model number (211-1010-002) and ASIN (B0B8R8XLS4) when seeking support to expedite the process.
