1. Introduction
Thank you for choosing the XIIW XTB1600 Concrete Milling Machine. This powerful 1600W tool is designed for efficient removal of various surface materials such as plaster, lime scale, mortar, floor adhesive, coatings, old paints, carpet residues, and fly ash. It is suitable for both indoor and outdoor applications on walls, ceilings, and floors. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your machine.
Figure 1: Overall view of the XIIW XTB1600 Concrete Milling Machine.
2. Safety Instructions
Always adhere to the following safety guidelines to prevent injury and damage to the machine:
- Personal Protective Equipment: Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and a dust mask, during operation.
- Work Area: Ensure your work area is well-lit and free from obstructions. Keep bystanders and children away.
- Power Supply: Connect the machine to a grounded power outlet. Do not operate in wet conditions.
- Overheating Prevention: The machine features a brush motor. Prolonged continuous operation can lead to motor overheating. It is recommended to allow the machine to rest for 10 to 15 minutes after 30 minutes of continuous use (or up to 2 hours if used with a vacuum cleaner) before resuming operation.
- Dust Extraction: Always connect the machine to an industrial vacuum cleaner (35mm connection diameter) to minimize dust exposure.
- Working Direction: When milling walls, always work from top to bottom. Working from bottom to top can cause the pressure plate to shift, affecting milling depth and resulting in an uneven finish.
- Side Cutters: Install the side cutters only when working on wall corners. For other applications, use only the main milling head to reduce dust and the risk of concrete fragment splashes.
- Secure Grip: Use both ergonomic handles to maintain firm control over the tool during operation.
- Maintenance: Disconnect the machine from the power supply before performing any maintenance, cleaning, or blade changes.
3. Package Contents
Verify that all components are present upon unpacking:
- XIIW XTB1600 Concrete Milling Machine
- XTB-32W Hard Metal Milling Blades (pre-installed or separate)
- Carrying Case
- Instruction Manual
Figure 2: The XIIW XTB1600 concrete milling machine and its carrying case, highlighting the XTB-32W milling head.
Figure 3: Detailed view of the hard metal double milling blades (XTB-32W) with 32 individual segments.
4. Setup
Follow these steps to prepare your milling machine for use:
- Unpack: Carefully remove the machine and all accessories from the packaging.
- Inspect: Check the machine for any signs of damage. Do not operate a damaged machine.
- Milling Blade Installation: Ensure the XTB-32W milling blades are securely installed. Refer to the maintenance section for blade replacement instructions if needed.
- Dust Extraction Connection: Connect an industrial vacuum cleaner hose (35mm diameter) to the machine's dust extraction port. The machine features three channels directly behind the roller for efficient dust and residue removal.
- Adjust Milling Depth: Use the stepless height adjustment knob to set the desired milling depth between 1mm and 4mm. Rotate the knob to raise or lower the milling head.
Figure 4: Close-up of the stepless height adjustment knob, allowing milling depths from 1mm to 4mm.
5. Operating Instructions
Proper operation ensures effective material removal and extends tool life:
- Power On: Connect the machine to a suitable 230V power supply. Hold the machine firmly with both hands on the ergonomic handles.
- Start Milling: Press the power switch to start the machine. Allow the milling head to reach full speed before contacting the surface.
- Milling Technique: Apply gentle, even pressure and move the machine steadily across the surface. When working on walls, always mill from top to bottom to maintain consistent depth and prevent the pressure plate from shifting. The polished base (slide) of the XTB1600 ensures smooth and uniform gliding.
- Edge and Corner Milling: For precise work around corners or edges, attach the separate side cutters using the quick-change chuck. Remember to only use side cutters when necessary to minimize dust and debris.
- Monitor Overheating: Due to the brush motor, continuous operation can cause overheating. Adhere to the recommended rest periods: 10-15 minutes rest after 30 minutes of use (or up to 2 hours with a vacuum cleaner).
- Power Off: Release the power switch to turn off the machine. Wait for the milling head to stop completely before setting the machine down.
Figure 5: Operator using the XIIW XTB1600 concrete milling machine on a wall, demonstrating effective dust extraction.

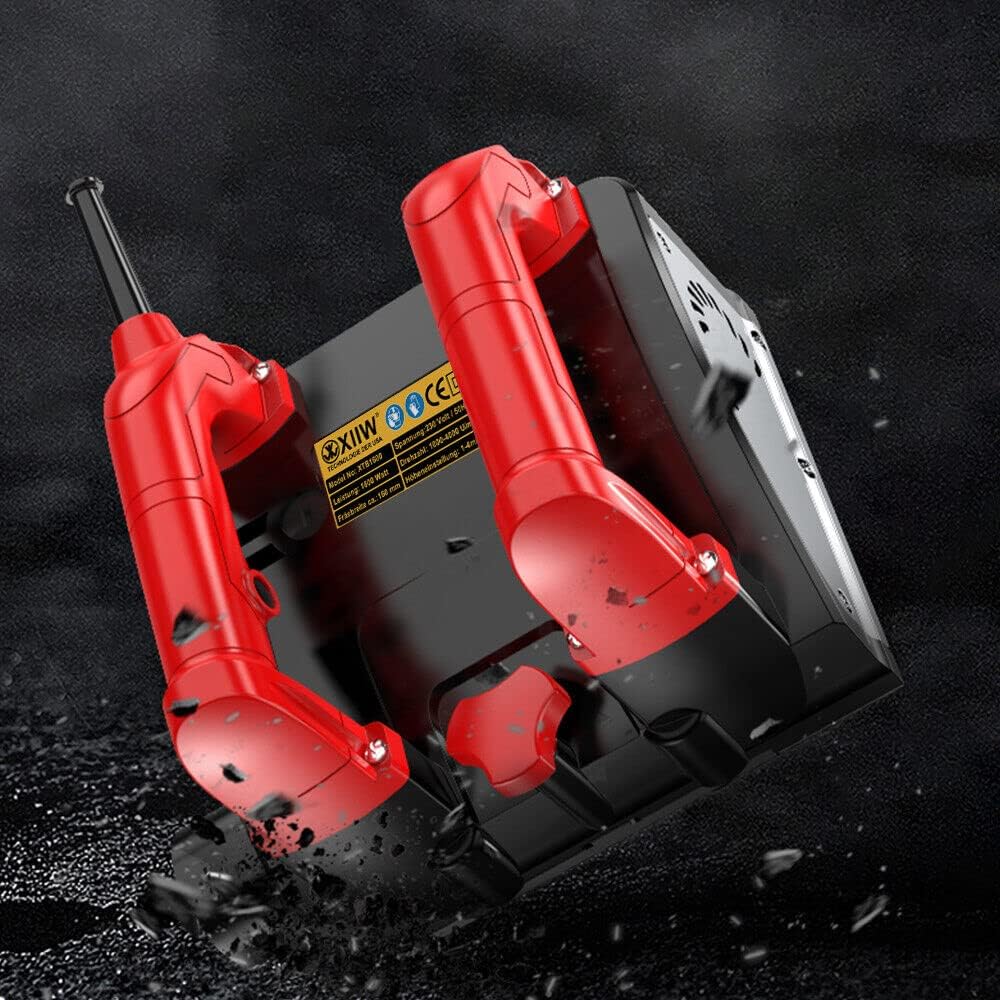

Figure 6: The XIIW XTB1600 concrete milling machine after use, illustrating the debris removal capability.
6. Maintenance
Regular maintenance ensures the machine's performance and extends its lifespan:
- Cleaning: After each use, disconnect the power and clean the machine thoroughly. Remove any dust and debris from the milling head, dust extraction ports, and motor vents.
- Milling Blade Inspection: Regularly inspect the XTB-32W milling blades for wear or damage. The ultra-hard roller cutter features 32 individual segments that can be resharpened. Replace worn or damaged segments as needed.
- Motor Cooling System: The reinforced aluminum housing and self-cooling system protect the drive from overload and overheating. Ensure the motor vents are clear of obstructions to allow proper airflow.
- Storage: Store the machine in its carrying case in a dry, secure location, out of reach of children.
Figure 7: Internal view of the 1600W motor and self-cooling drive system, designed for overload and overheating protection.
7. Troubleshooting
Refer to this section for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power supply; Faulty power cord/switch | Check power connection; Inspect power cord and switch for damage. |
| Machine overheats quickly | Prolonged continuous use; Obstructed motor vents | Allow machine to rest as per safety guidelines; Clean motor vents. |
| Uneven milling result | Incorrect working direction (bottom-up); Improper depth adjustment; Worn blades | Always mill top-to-bottom on walls; Re-adjust milling depth; Inspect and replace blades. |
| Excessive dust during operation | Dust extractor not connected or clogged; Side cutters used unnecessarily | Ensure dust extractor is properly connected and clear; Use main milling head for general surfaces. |
| Reduced milling performance | Worn or dull milling blades | Inspect and replace or resharpen milling blades. |
8. Technical Specifications
Key technical details for the XIIW XTB1600 Concrete Milling Machine:
| Feature | Specification |
|---|---|
| Model Number | XTB1600 |
| Power | 1600 Watts |
| Voltage | 230 Volts |
| Power Type | DC |
| Rotational Speed | 1000-4000 RPM |
| Milling Width | Approx. 160 mm |
| Height Adjustment | 1-4 mm |
| Weight | 5.3 Kilograms |
| Material | Stainless Steel (for cutters) |
| Included Components | Roller cutter + milling blades |
Figure 8: Overall view of the XIIW XTB1600 concrete milling machine with key dimensions indicated.
9. Warranty Information
This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided with your purchase or contact customer support.
10. Customer Support
If you have any questions, require technical assistance, or need to report an issue, please contact XIIW customer support through your retailer or the official XIIW website. Have your model number (XTB1600) and purchase details ready when contacting support.
