NEWLUX V900 2-in-1 Corded Stick Vacuum Cleaner User Manual

Introduction

Welcome to the NEWLUX V900 2-in-1 Corded Stick Vacuum Cleaner. This versatile appliance is designed for efficient cleaning of various surfaces in your home. It functions as both a powerful stick vacuum and a convenient handheld unit. Please read this manual thoroughly before first use to ensure proper operation and maintenance.

Important Safety Information

Always follow basic safety precautions when using electrical appliances:

• Do not immerse the appliance in water or any other liquid.
• Keep the vacuum cleaner away from heat sources and direct sunlight.
• Do not use the vacuum cleaner to pick up flammable or combustible liquids, hot ashes, or sharp objects.
• Ensure the power cord is not damaged before use.
• Unplug the appliance from the power outlet before cleaning or performing maintenance.
• This appliance is for household use only.

Package Contents

Verify that all items are present in the package:

• NEWLUX V900 Vacuum Cleaner Unit
• Floor Brush
• Extension Tube (for stick vacuum configuration)
• Crevice Nozzle
• Small Brush
• PETFRIEND Rotary Brush (for pet hair)
• User Manual

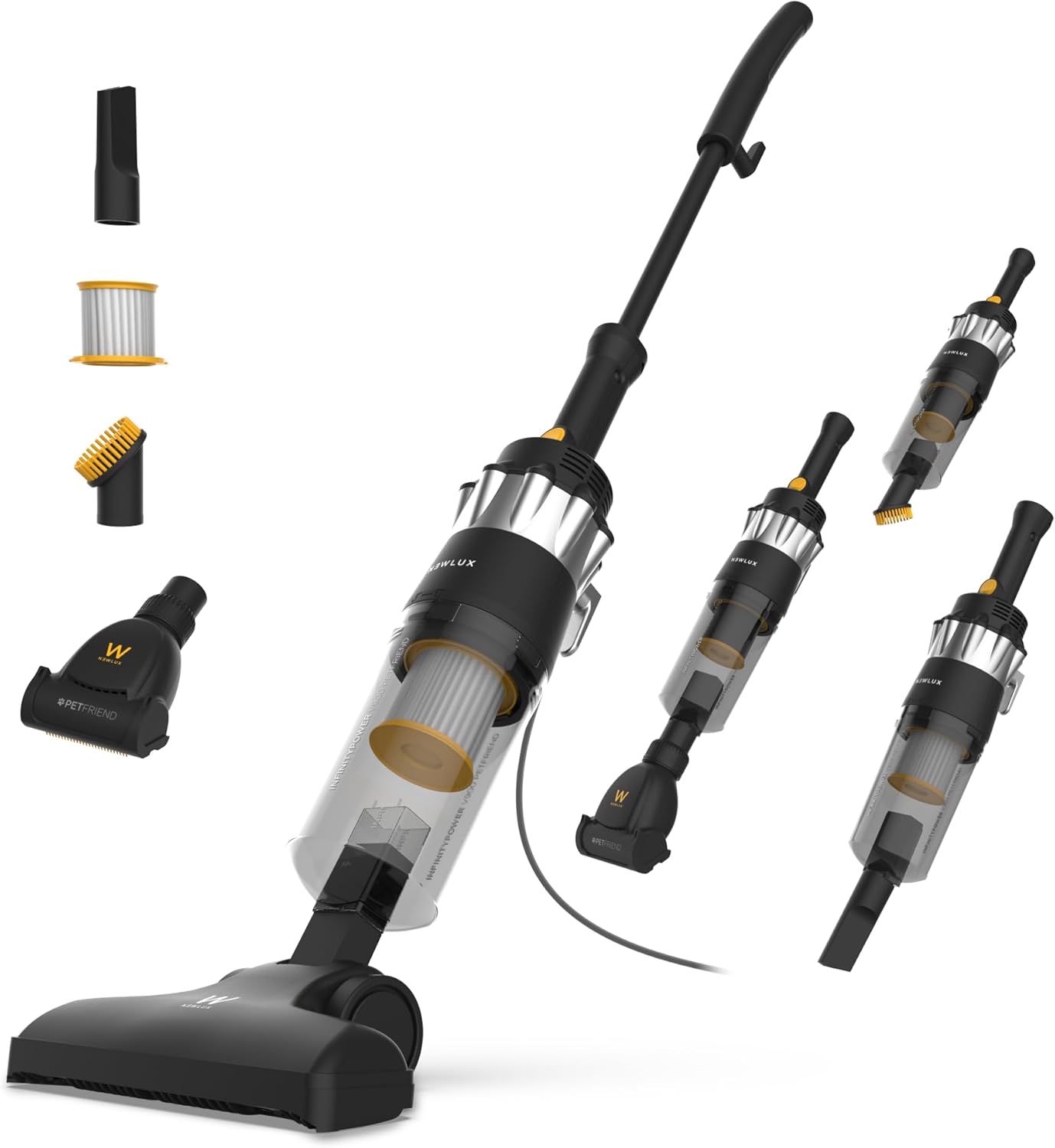

Image: All components of the NEWLUX V900 vacuum cleaner, including the main unit, various attachments, and filters.

Setup and Assembly

1. Assembling the Stick Vacuum:
   • Insert the extension tube into the main vacuum unit until it clicks into place.
   • Attach the floor brush to the other end of the extension tube.
   • Ensure all connections are secure before use.
2. Assembling the Handheld Vacuum:
   • For handheld use, detach the extension tube and floor brush from the main unit.
   • Attach the desired accessory (crevice nozzle, small brush, or PETFRIEND rotary brush) directly to the main vacuum unit.

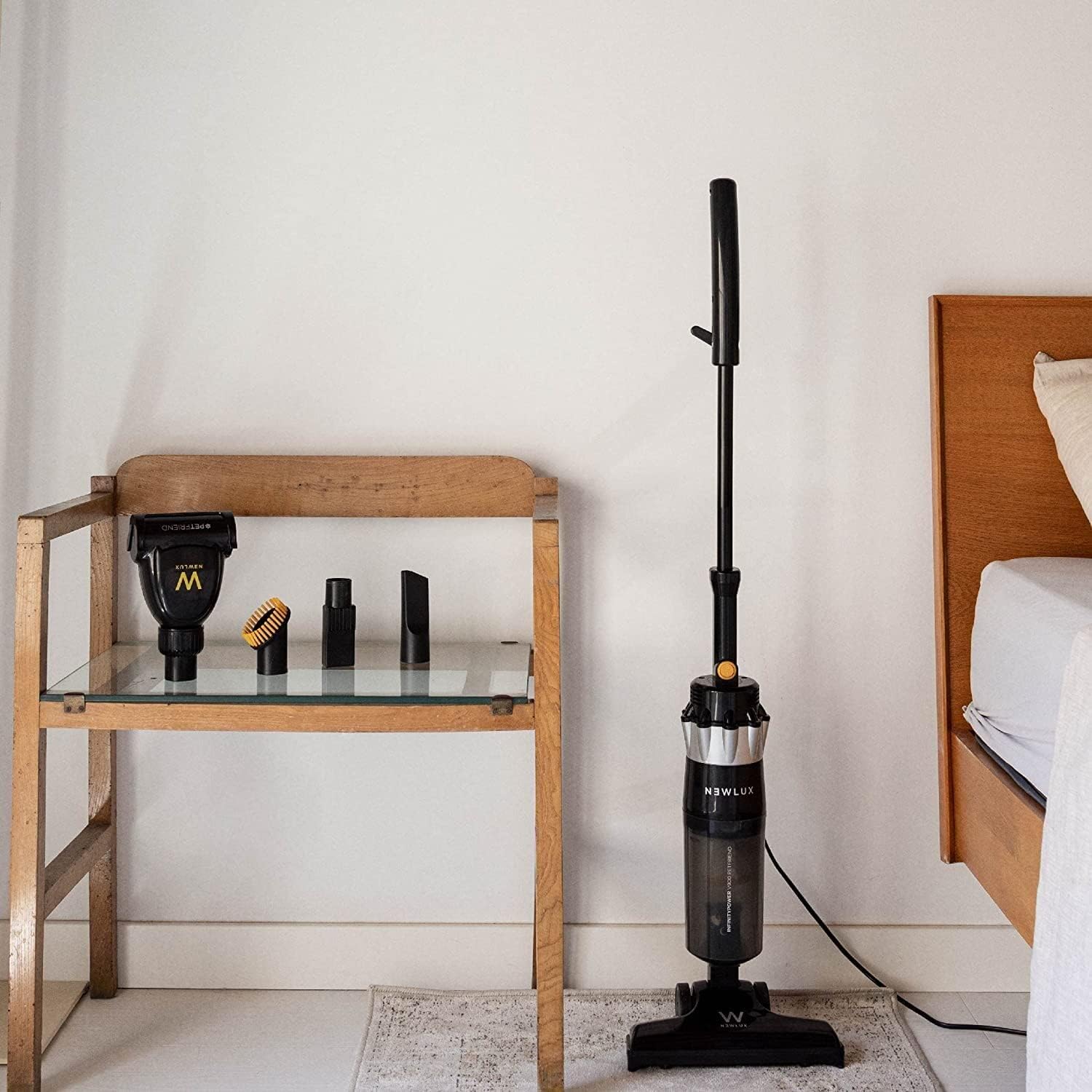

Image: The NEWLUX V900 in its upright stick vacuum configuration, ready for use.

Operating Instructions

General Operation

1. Plug the power cord into a suitable electrical outlet (AC220-240V, 50-60Hz).
2. Press the power button located on the handle to turn on the vacuum cleaner.
3. Guide the vacuum cleaner over the surface to be cleaned. The powerful 800W motor provides up to 16.5 Kpa of suction.
4. The 4.5m XXL cable provides a working radius of over 5 meters, allowing you to reach various areas without frequently changing outlets.
5. To turn off the vacuum cleaner, press the power button again.
6. Unplug the appliance after use.

Image: A user operating the NEWLUX V900 in stick mode on a rug.

Using the Handheld Mode

The V900 easily converts into a handheld vacuum for cleaning furniture, car interiors, or hard-to-reach areas.

1. Disconnect the extension tube and floor brush.
2. Attach the appropriate accessory directly to the main unit.
3. Use the crevice nozzle for narrow gaps and corners.
4. Use the small brush for dusting surfaces.

Image: The NEWLUX V900 being used in handheld mode to clean a sofa.

Using the PETFRIEND Accessory

The included PETFRIEND rotary brush is specifically designed to effectively pick up pet hair from various textile surfaces.

1. Attach the PETFRIEND accessory to the main vacuum unit (in handheld mode).
2. Gently move the brush over carpets, sofas, cushions, and other upholstered surfaces to collect pet hair.

Image: The PETFRIEND accessory effectively removing pet hair from a surface.

Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner. Always unplug the appliance before cleaning.

Emptying the Dustbin

1. The V900 features a 0.8L dustbin with a non-contact emptying system.
2. Press the release button to detach the dustbin from the main unit.
3. Position the dustbin over a trash can and press the bottom release latch to open the dustbin and empty its contents.
4. Close the dustbin and reattach it to the main unit, ensuring it clicks securely into place.

Cleaning the Filtration System

The V900 features a triple filtration system, including a HEPA filter, a washable micro-perforated filter, and a motor protection filter.

1. Remove the dustbin as described above.
2. Carefully remove the HEPA filter and the micro-perforated filter from the dustbin.
3. Tap the HEPA filter gently to remove dust. Do not wash the HEPA filter with water.
4. Rinse the micro-perforated filter under running water until clean.
5. Allow all washable parts to air dry completely before reassembling.
6. Reinsert the filters and reattach the dustbin.

Image: The transparent dustbin and internal filter components of the NEWLUX V900.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the contact details provided with your purchase documentation or visit the official Newlux website.

For further assistance, you may contact Newlux customer service.
