Ambition Soldier Wireless Tattoo Machine User Manual

1. Introduction

Thank you for choosing the Ambition Soldier Wireless Tattoo Machine. This professional-grade rotary tattoo pen kit is designed for precision and durability, featuring a coreless motor and a long-lasting battery. This manual provides essential information for the safe and effective use of your new tattoo machine.

Image 1: Ambition Soldier Wireless Tattoo Machine.

2. Package Contents

The Ambition Soldier Wireless Tattoo Machine Kit includes the following components:

• 1x Tattoo Pen Machine
• 1x Extra 2400mAh Battery
• 1x Silicone RCA Cord
• 1x Power Cable
• 1x RCA Adapter
• 80x Tattoo Cartridge Needles (20x1203RL, 20x1207RL, 20x1207RM, 20x1209RM)
• 1x Tattoo Pen Holder
• 3x Bandages
• 1x 4.0mm Stroke Cam
• 1x Large Carrying Case

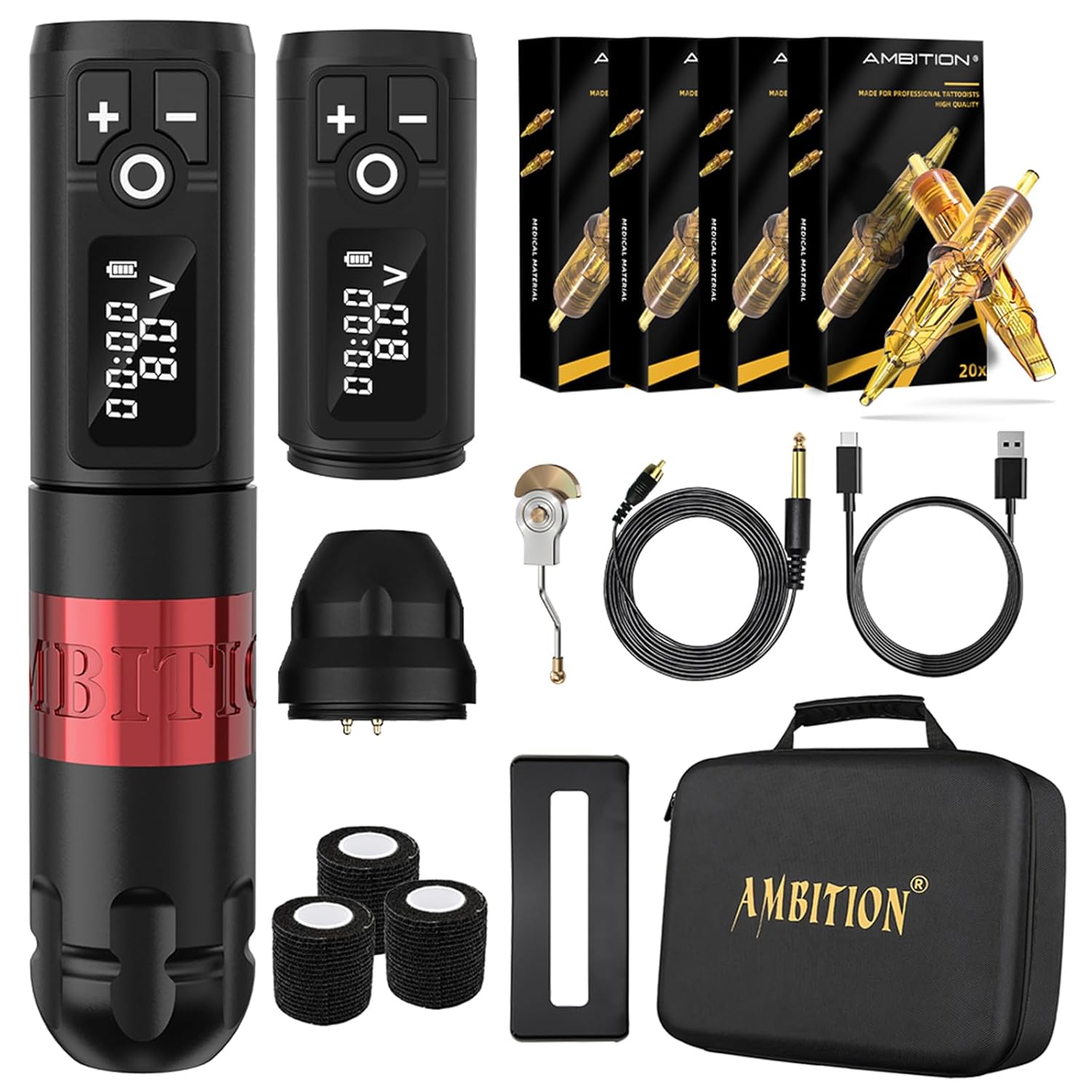

Image 2: All components included in the Ambition Soldier Wireless Tattoo Machine Kit.

Image 3: Individually packaged and sterilized Ambition Glory tattoo cartridge needles.

3. Product Features

3.1. Design and Material

The Ambition rotary battery tattoo gun is crafted from an aluminum alloy frame and CNC carved for precision. Its length is 148mm and it weighs 210g. The machine is designed to be fully detachable, allowing for easy disassembly, maintenance, and replacement of spare parts.

Image 4: Close-up of the machine's click system, featuring a wear-resistant, high-precision stainless steel ball for stable needle adjustment.

3.2. Motor Performance

Equipped with a custom coreless motor, the Ambition rotary battery tattoo pen machine operates at 10V - 9000RPM. This powerful motor ensures low skin trauma, fast coloring, and remains cool during extended working sessions. The direct drive system enhances the machine's strength, making it suitable for both lining and shading. It is compatible with all cartridge needle types.

Image 5: Internal view of the Ambition Soldier Wireless Tattoo Machine's coreless motor.

Image 6: Diagram illustrating the Ambition Customized Coreless Motor and 4.0mm Stroke Cam, ideal for demanding lining and color packing.

3.3. Battery Life and Charging

Each battery has a capacity of 1950mAh, featuring three built-in 650mAh lithium batteries. This provides stable output for long-term tattoo work. An 8V output voltage supports 5-6 hours of operation per battery (up to 12 hours with two batteries). A full charge takes approximately 1.5-2 hours. The batteries are designed for easy replacement.

Image 7: The removable battery for the Ambition Soldier Wireless Tattoo Machine.

3.4. Cartridge Needles

Ambition Glory tattoo cartridges are made of 316 medical stainless steel. Each needle undergoes strict screening and testing. They feature a safety membrane to prevent ink leakage into the tube or machine and are individually packaged for sterility.

Image 8: Illustration of the unique system for stabilizing ultra-sharp needles, ensuring durability and strength.

4. Setup

Before first use, ensure all components are clean and sterilized according to professional tattooing standards.

1. Charge the Battery: Connect the power cable to the battery and a suitable power source. Allow 1.5-2 hours for a full charge.
2. Assemble the Machine: The machine is detachable. Carefully assemble the pen machine components. Ensure the 4.0mm stroke cam is correctly installed if you are using it.
3. Insert Cartridge Needle: Select the appropriate Ambition Glory tattoo cartridge needle. Twist and lock the needle into the machine. The machine is compatible with all cartridge needle types.
4. Adjust Needle Depth: Rotate the grip to adjust the needle depth to your desired setting. The click system provides precise and stable adjustments.

Image 9: Disassembled view of the tattoo machine, showing its main components for assembly and maintenance.

5. Operating Instructions

Familiarize yourself with the controls before operating the machine.

• Power ON/OFF: Long press the 'O' key for 3 seconds to turn the machine on or off.
• Adjust Output Voltage: Press the '+' or '-' key to adjust the output voltage. Each press adjusts the voltage by +/- 0.1V.
• Output Pause/Resume: Short press the 'O' key to pause the output, and short press it again to resume the output.
• Working Time Display: The machine displays the working time accurately to the minute.

Image 10: Display and control buttons for the Ambition Soldier Wireless Tattoo Machine, showing power display, timer, voltage adjustment keys, and power switch.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your tattoo machine.

• Cleaning: After each use, disassemble the machine and clean all components thoroughly. Use appropriate sterilization solutions and methods as per industry standards.
• Lubrication: Periodically lubricate moving parts as recommended by professional tattoo equipment guidelines to ensure smooth operation.
• Storage: Store the machine and its components in the provided carrying case in a clean, dry environment when not in use.
• Battery Care: Do not overcharge or completely drain the batteries. Store them at a moderate charge level if not used for extended periods.

7. Safety Warnings

Adhere to these safety guidelines to prevent injury or damage to the equipment.

• For External Use Only: This device is intended for professional tattooing applications only.
• Avoid Contact with Eyes: Keep the machine and needles away from eyes.
• Keep Away from Naked Flame: Do not expose the machine or batteries to open flames or high temperatures.
• Professional Use: This equipment is designed for use by trained and certified tattoo artists. Improper use can lead to injury or infection.
• Sterilization: Always use new, individually packaged, and sterilized needles. Ensure all reusable parts are properly sterilized before each use.
• Power Source: Use only the provided power cable and adapter for charging.

8. Specifications

Image 11: Detailed product parameters and specifications.

9. Troubleshooting

If you encounter issues with your Ambition Soldier Wireless Tattoo Machine, consider the following common solutions:

• Machine Not Turning On: Ensure the battery is fully charged and properly inserted. Long press the 'O' button for 3 seconds.
• Inconsistent Power: Check battery charge level. Ensure all connections are secure if using the RCA cord.
• Needle Not Moving: Verify the cartridge needle is correctly seated and locked. Check for any obstructions in the needle mechanism.
• Unusual Noise/Vibration: Disassemble and clean the machine. Check for any loose parts or debris. Ensure proper lubrication.
• Short Battery Life: Ensure the battery is fully charged. Battery performance can degrade over time; consider replacing if significantly reduced.

If problems persist, please contact Ambition customer support for further assistance.

10. Product Videos

11. Warranty and Support

For warranty information, technical support, or any inquiries regarding your Ambition Soldier Wireless Tattoo Machine, please refer to the official Ambition website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

You can visit the Ambition Store on Amazon for more information and contact options.
