Important Safety Information
Please read and understand all instructions before assembly and use. Failure to follow safety instructions may result in injury or damage to the product.
- Weight Limit: Do not exceed the maximum weight recommendation of 220 pounds (100 kg) on the desktop.
- Clearance: Ensure there are no obstructions above or below the desk when adjusting height to prevent collisions.
- Children and Pets: Keep children and pets away from the desk during operation.
- Power Supply: Use only the provided power adapter. Disconnect power before cleaning or maintenance.
- Stability: Always ensure the desk is on a level surface. Do not sit or stand on the desk.
- Assembly: Assembly may require two people due to the weight of components.
For any assistance, please contact FLEXISPOT customer support.
Product Overview
The FLEXISPOT E6 Essential Standing Desk is designed to provide a versatile and ergonomic workspace. Featuring a robust 3-stage dual motor lift system and a spacious one-piece desktop, it allows for seamless transitions between sitting and standing positions.
This model (ET365) includes a 55.1" x 27.5" mahogany desktop and a black frame, offering ample space for your work essentials.
Package Contents
Verify all components are present before beginning assembly. Refer to the assembly video for visual guidance.
- Desktop (One-piece Mahogany)
- Desk Frame (Black, 3-stage dual motor system)
- Control Panel with Memory Presets
- Power Adapter and Cables
- Assembly Hardware (screws, tools)
- Cable Management Accessories
Setup and Assembly
Follow these steps to assemble your FLEXISPOT E6 Essential Standing Desk. It is recommended to have two people for assembly.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Assemble Frame: Attach the lifting columns to the feet, then connect the crossbar. Ensure all screws are tightened securely.
- Attach Desktop: Place the desktop upside down on a soft surface. Position the assembled frame onto the desktop, aligning with the pre-drilled holes. Secure the desktop to the frame using the provided screws.
- Install Control Panel: Mount the control panel to the underside of the desktop in a convenient location.
- Connect Electronics: Connect the motor cables, control panel cable, and power adapter to the control box. Secure cables using the provided cable management accessories.
- Initial Setup: Plug the power adapter into a wall outlet. Perform the initial reset procedure as described in the operating instructions.
For detailed visual instructions, please watch the official installation video.
Operating Instructions
The E6 Essential desk features an intuitive control panel for easy height adjustments and memory presets.
Control Panel Overview
- Up/Down Arrows: Press and hold to manually adjust the desk height.
- Memory Buttons (1, 2, 3, 4): Store and recall up to four preferred height settings.
- Memory Set Button (M): Used to program height presets.
- LED Display: Shows the current height of the desk in inches.
Adjusting Height
Press the Up or Down arrow buttons to move the desk to your desired height. Release the button to stop the movement.
Setting Memory Presets
- Adjust the desk to your desired height using the Up/Down arrows.
- Press the M button. The LED display will show "S-".
- Within 3 seconds, press one of the memory buttons (1, 2, 3, or 4). The current height will be saved to that button.
Recalling Memory Presets
Press the desired memory button (1, 2, 3, or 4). The desk will automatically move to the saved height.
Key Features
3-Stage Lift System
The advanced 3-stage lifting columns provide a wide height adjustment range from 23.6 inches (60 cm) to 48.8 inches (124 cm), accommodating users of various heights, from children to tall adults.
Figure 4: 3-Stage Lift System height range. Quiet and Smooth Dual Motors
Equipped with dual motors, the desk offers quiet operation (under 50 dB) and smooth height transitions. These motors provide enhanced stability and can handle a maximum load capacity of 220 lbs (100 kg).
Figure 5: Dual motor system for quiet and stable operation. Spacious One-Piece Desktop

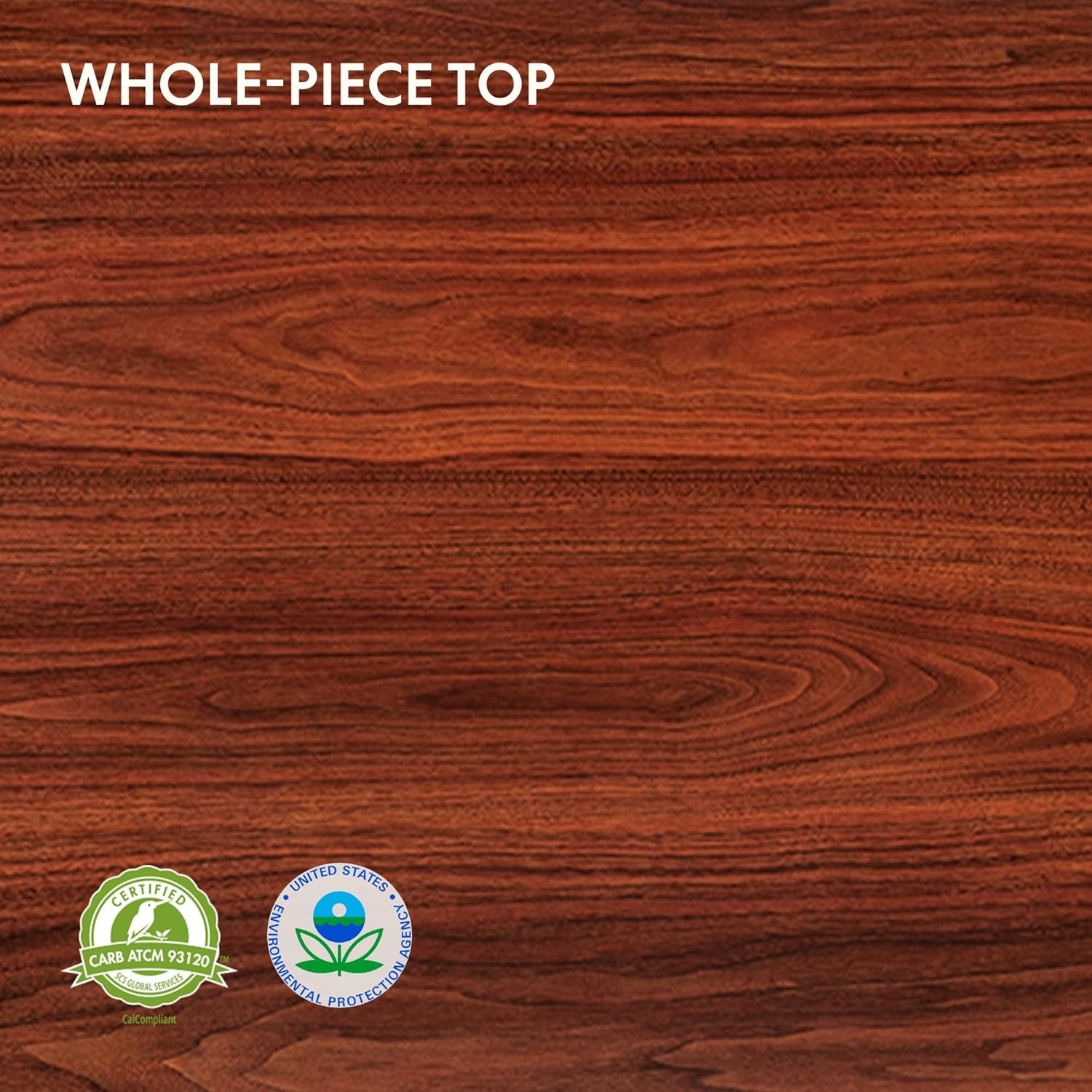

The 55.1" x 27.5" one-piece desktop provides a generous and seamless work surface, ideal for multiple monitors and accessories. The desktop is made of FSC-Certified engineered wood with a mahogany finish.
Figure 6: One-piece FSC-Certified mahogany desktop. Anti-Collision System
The built-in anti-collision system detects obstacles during height adjustment and automatically stops or reverses movement to prevent damage or injury.
Figure 7: Anti-collision system in action.
Maintenance
- Cleaning: Wipe the desktop and frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Cable Management: Regularly check and organize cables to prevent tangles and damage.
- Fasteners: Periodically check all screws and bolts to ensure they are tight. Tighten if necessary.
- Motor Care: Avoid overloading the desk beyond its specified weight capacity to prolong motor life.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk does not move. | Power cable disconnected; control box error. | Check power connections. Perform reset procedure (refer to full manual). |
| Uneven height adjustment. | Obstruction; uneven load; motor synchronization issue. | Remove obstructions. Redistribute weight evenly. Perform reset procedure. |
| Anti-collision system triggers frequently. | Sensitivity setting too high; actual obstruction. | Check for obstructions. Adjust anti-collision sensitivity (refer to full manual). |
If issues persist, please contact FLEXISPOT customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Name | E6 Essential |
| Model Number | ET365 |
| Desktop Dimensions | 55.1"D x 27.5"W (140cm x 70cm) |
| Height Range | 23.6" - 48.8" (60cm - 124cm) |
| Lift System | 3-Stage Dual Motor |
| Load Capacity | 220 lbs (100 kg) |
| Noise Level | <50 dB |
| Desktop Material | FSC-Certified Engineered Wood (Mahogany Finish) |
| Frame Material | Metal (Black Finish) |
| Item Weight | 55 Pounds |
| Special Features | Programmable Controller (4 Memory Presets), Anti-Collision System |
Warranty and Support
FLEXISPOT provides comprehensive warranty coverage for your peace of mind:
- 5-Year Coverage: Applies to the desk frame and motor.
- 2-Year Coverage: Applies to the control panel and electronics.
For warranty claims, technical support, or any questions regarding your FLEXISPOT E6 Essential Standing Desk, please contact FLEXISPOT customer support directly. Refer to your purchase documentation for specific contact details.
