1. Safety Information
Please read these instructions carefully before installation and operation. Retain this manual for future reference.
- Electrical Safety: Always turn off power at the circuit breaker before installing, servicing, or cleaning the fixture. Ensure proper grounding to avoid electrical shock. If you are unsure about electrical wiring, consult a qualified electrician.
- Installation Location: This fixture is designed for outdoor use. Ensure the mounting surface is sturdy enough to support the fixture's weight.
- Operating Voltage: This floodlight operates on 120V AC. Do not connect to any other voltage.
- Heat: The LED light heads can become hot during operation. Avoid touching them directly.
- Waterproof Rating: The fixture has an IP65 waterproof rating, suitable for wet locations. However, ensure all connections are sealed properly during installation.
2. Package Contents
Verify that all components are present before beginning installation:
- EMANER EMR-8020 Floodlight (2 units for 2-Pack)
- Wiring Caps (x3)
- Screw Nut (x1)
- Spout Plug (x1)
- Screws (various types, as shown in diagram)
- Spring Washer (x1)
- Bar-Shaped Plate (x1)
- Spongy Cushion (x1)
Image: Product dimensions and a visual representation of all included components.
3. Installation
Follow these steps for proper installation of your EMANER EMR-8020 floodlight. Ensure power is OFF at the circuit breaker before starting.
- Prepare the Junction Box: Use Screw B to fix the cross bar securely to the junction box.
- Attach Gasket: Stick the provided gasket to the aluminum cross bar to ensure a watertight seal.
- Wire Connections: Connect the wires according to standard electrical codes:
- Black wire (Live/L) from fixture to Black wire from power supply.
- White wire (Neutral/N) from fixture to White wire from power supply.
- Green wire (Ground) from fixture to the ground wire from power supply.
- Mount the Fixture: Use Screw C to fix the lamp body to the cross bar Screw A through the middle hole. Ensure the fixture is firmly attached to the wall surface.
- Seal the Fixture: Apply silicone caulking compound completely around where the back plate meets the wall surface. This prevents water intrusion and maintains the IP65 rating.
Video: EMANER Dimmable security light installation video. This video provides a visual guide for the installation steps.
Image: EMANER floodlight shown mounted on a wall, demonstrating the wall-mounted installation.
4. Operation
The EMANER EMR-8020 floodlight features intelligent motion sensing and dusk-to-dawn functionality.
- Motion Sensor: The light is equipped with a motion sensor that detects movement up to 26 feet within a 180° detection angle. It will automatically turn on when motion is detected.
- Dusk-to-Dawn Feature: The floodlight will only activate at night when motion is detected. It remains off during daylight hours.
- Lighting Duration: Once triggered by motion, the light will stay on for approximately 60 seconds.
- Adjustable Light Heads: The three light heads are flexible and can be adjusted to direct illumination precisely where needed, providing wider and larger area lighting.
Image: The floodlight detecting motion from a person, pet, and car in a driveway at night, illustrating its motion detection capabilities.

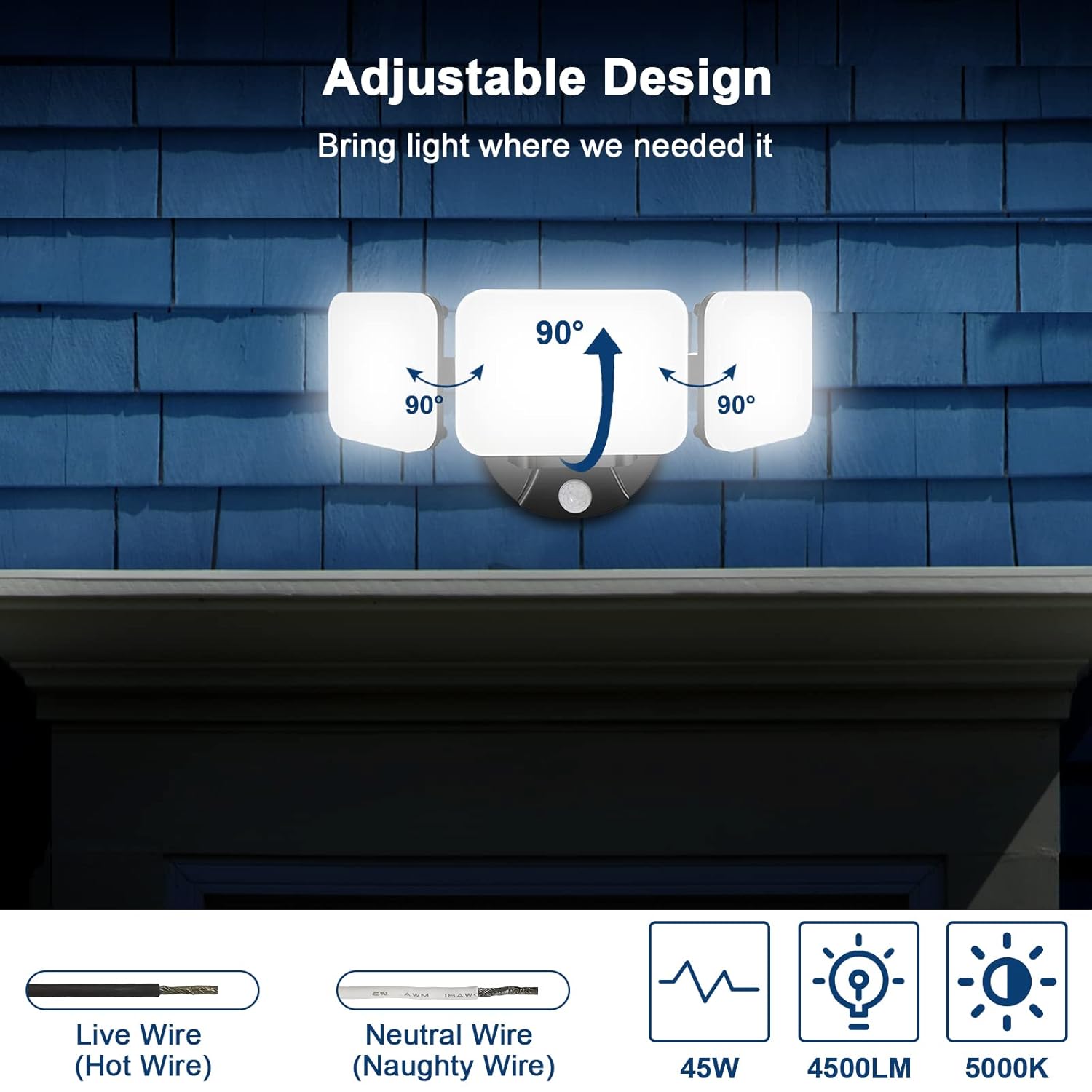

Image: The floodlight with its three adjustable heads, demonstrating their 90-degree rotation capability for flexible lighting direction.
5. Maintenance
To ensure optimal performance and longevity of your EMANER floodlight, follow these maintenance guidelines:
- Cleaning: Periodically clean the light heads and motion sensor lens with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Inspection: Regularly inspect the fixture for any signs of damage, loose wiring, or wear. Address any issues promptly.
- Waterproof Integrity: The ultrasonic welding technology provides IP65 waterproof and dust-proof protection. Ensure the silicone caulk seal around the base remains intact.
Image: The floodlight installed on a wall during rainfall, emphasizing its IP65 waterproof and weather-resistant design.
6. Troubleshooting
If you encounter issues with your EMANER EMR-8020 floodlight, refer to the following common problems and solutions:
- Light does not turn on:
- Check if the power is on at the circuit breaker.
- Verify all wire connections are secure.
- Ensure it is dark enough for the dusk-to-dawn sensor to activate.
- Test the motion sensor by walking within its detection range.
- Light stays on continuously:
- Check if the motion sensor is obstructed or if there is constant movement within its range.
- Ensure the light is not installed near a heat source or reflective surface that might trigger the sensor.
- Verify the wiring connections are correct.
- Light flickers or dims:
- Check for loose wire connections.
- Ensure the operating voltage is stable at 120V.
- If the issue persists, contact customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | EMANER |
| Model Name | EMR-8020 |
| Light Output | 4500 Lumens |
| Wattage | 45 Watts |
| Color Temperature | 5000 Kelvin (Daylight White) |
| Voltage | 120 Volts (AC) |
| Motion Sensor Range | Up to 26 feet |
| Motion Sensor Angle | 180° |
| Lighting Duration (Motion) | 60 seconds |
| Water Resistance Level | IP65 Waterproof |
| Material | Polycarbonate |
| Average Life | 50,000 Hours |
| Product Dimensions | 5"L x 12"W x 4.5"H |
| Item Weight | 2 Pounds |
8. Warranty and Support
The EMANER EMR-8020 Outdoor Motion Sensor Floodlight comes with a Lifetime Warranty, ensuring long-lasting performance and peace of mind.
For technical assistance, warranty claims, or any questions regarding your product, please contact EMANER customer support through the retailer's platform where the product was purchased. You can typically find a 'Contact Seller' or 'Ask a question' option on the product page or in your order history.
