CUCKOO CRP-LHTR0609F Twin Pressure Induction Heating Rice Cooker User Manual

Introduction

Thank you for choosing the CUCKOO CRP-LHTR0609F Twin Pressure Induction Heating Rice Cooker. This appliance is designed to provide perfectly cooked rice and a variety of other dishes with ease and efficiency. Featuring advanced induction heating technology and dual pressure cooking options, this rice cooker ensures optimal results every time. Please read this manual thoroughly before use to ensure safe and proper operation.

Product Overview & Key Features

The CUCKOO CRP-LHTR0609F is a versatile 6-cup (uncooked) capacity rice cooker equipped with cutting-edge technology for superior cooking performance.

• 16 Versatile Menu Options: Offers a wide range of cooking modes including white (glutinous) rice, GABA/brown rice, veggie rice, high/non-pressure, and baby food.
• Dual Cooking Pressure Selections: Choose between high-pressure for sticky, chewy rice or non-pressure for fluffy, soft rice.
• Induction Heating (IH): Induction technology surrounds the inner pot, ensuring quick, even, and efficient heating for consistent results.
• Premium-Grade Quality: Features a durable 304 food-grade stainless steel inner pot with a premium nonstick black coating for easy cleaning and longevity.
• Smart Algorithm: Detects grain type and internal temperature to optimize cooking.
• Self-Cleaning Function: Hassle-free maintenance with an automatic cleaning mode.

Image: Key features of the CUCKOO CRP-LHTR0609F Rice Cooker, highlighting its sleek design, twin-pressure cooking capability, self-cleaning mode, and extensive menu options.

Image: Detailed view of the Xwall Stainless Inner Pot, emphasizing its stainless steel casing, induction heating, enhanced durability, and curved design for optimal heat circulation.

Included Components

Your CUCKOO CRP-LHTR0609F rice cooker comes with the following items:

• CUCKOO CRP-LHTR0609F Rice Cooker Unit
• Stainless Steel Inner Pot with Nonstick Coating
• Product Manual (this document)
• Rice Spatula
• Rice Measuring Cup
• Steam Plate

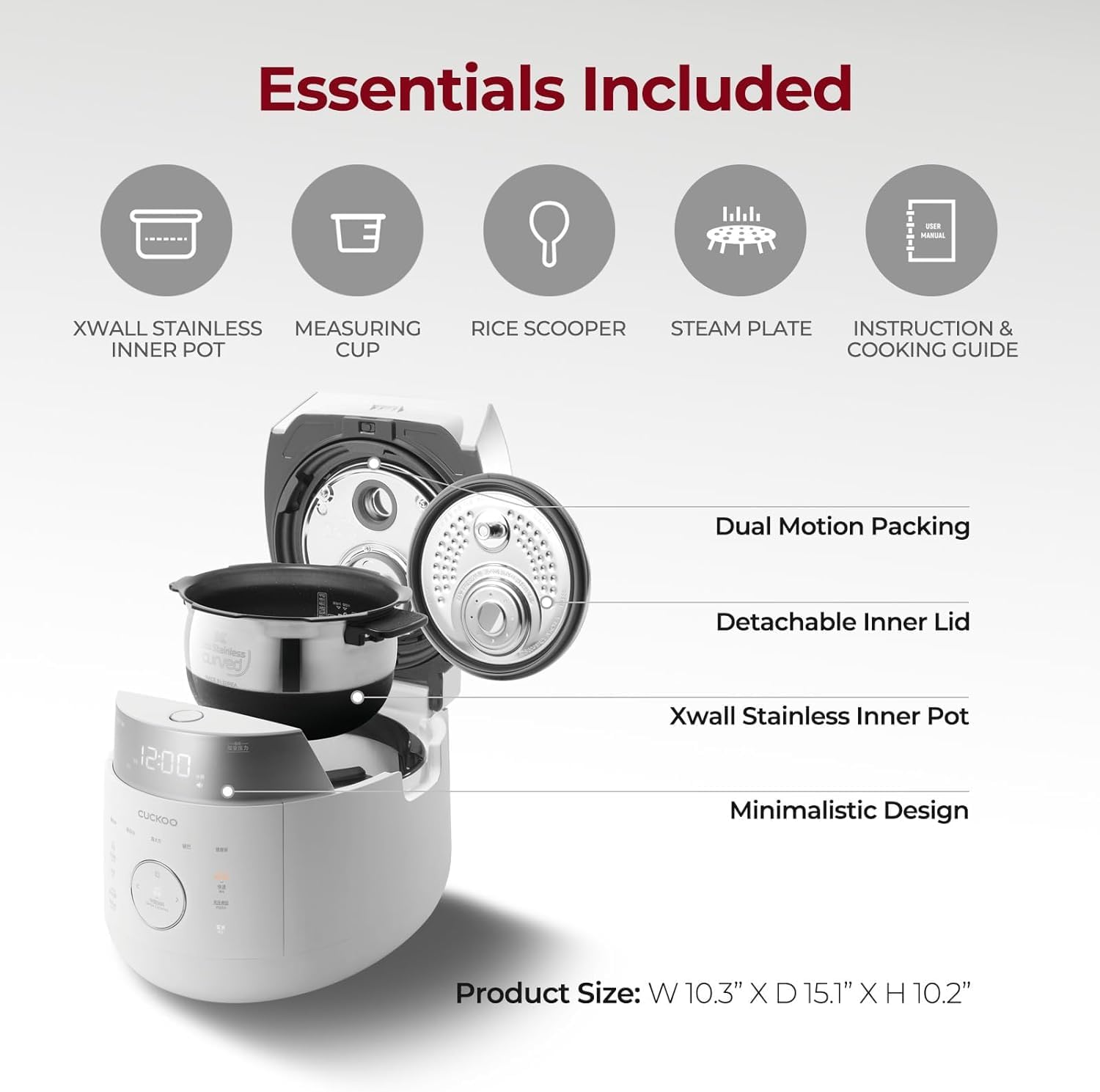

Image: Visual representation of all essential items included with the CUCKOO CRP-LHTR0609F, such as the inner pot, measuring cup, rice scooper, steam plate, and the instruction manual.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Initial Cleaning: Before first use, wash the inner pot, detachable inner lid, rice spatula, and measuring cup with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp cloth.
3. Placement: Place the rice cooker on a stable, flat, and heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
4. Power Connection: Plug the power cord into a grounded 120V AC electrical outlet.

Operating Instructions

Basic Rice Cooking (White Rice Example)

1. Measure Rice: Use the provided measuring cup to measure the desired amount of rice. For 6 cups (uncooked) capacity, you can cook up to 6 cups of white rice.
2. Wash Rice: Rinse the rice thoroughly in a separate container until the water runs clear.
3. Add Water: Place the washed rice into the inner pot. Add water up to the corresponding water level mark indicated inside the inner pot for your chosen rice type (e.g., 'WHITE' for white rice).
4. Place Inner Pot: Insert the inner pot into the main body of the rice cooker, ensuring it is seated correctly.
5. Close Lid: Close the top lid firmly until it locks into place.
6. Select Menu: Use the 'MENU/SELECTION' buttons to navigate and select 'WHITE RICE' or your desired rice type.
7. Choose Pressure: Rotate the pressure dial on the lid to either 'HIGH PRESSURE' or 'NON-PRESSURE' based on your preference for rice texture.
8. Start Cooking: Press the 'COOK' button to begin the cooking cycle. The display will show the remaining cooking time.
9. Completion: Once cooking is complete, the cooker will automatically switch to 'KEEP WARM' mode and emit an audible signal.

Other Menu Options

Explore the various menu options for different grains and dishes:

• GABA/Brown Rice: For healthier whole grains.
• Veggie Rice: For cooking rice with vegetables.
• Porridge: Ideal for creamy porridges.
• Baby Food: Specialized setting for preparing baby food.
• Mixed Rice: For cooking various rice blends.

Image: A visual guide to the diverse cooking capabilities of the rice cooker, showing different rice textures and dishes like porridge and steamed seafood, along with their approximate cooking durations.

Keep Warm & Reheat

• Keep Warm: The cooker automatically enters 'KEEP WARM' mode after cooking to maintain optimal rice temperature.
• Reheat: Use the 'REHEAT' function to warm up previously cooked rice.

Preset Timer

The preset timer allows you to set a delayed cooking start time, so your rice is ready exactly when you need it.

1. Prepare rice and water as usual.
2. Close the lid and select your desired menu option.
3. Press the 'TIME SETTING' button and adjust the desired completion time using the navigation buttons.
4. Press 'COOK' to activate the preset timer. The cooker will start cooking automatically at the set time.

Cleaning and Maintenance

Regular cleaning ensures optimal performance and longevity of your rice cooker.

Inner Pot & Detachable Inner Lid

• Always allow the inner pot to cool before cleaning.
• Wash the inner pot and detachable inner lid with warm, soapy water using a soft sponge. Avoid abrasive cleaners or metal utensils to protect the nonstick coating.
• Rinse thoroughly and dry completely before reassembling.

Steam Vent & Exterior

• Wipe the steam vent and exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
• Ensure the steam vent is clear of any food debris.

Auto Clean Function

The auto clean function helps to sanitize the interior of the cooker and remove odors.

1. Fill the inner pot with water up to the 'AUTO CLEAN' mark.
2. Close the lid and select the 'AUTO CLEAN' menu option.
3. Press 'COOK' to start the cleaning cycle.
4. After the cycle, discard the water and wipe the interior dry.

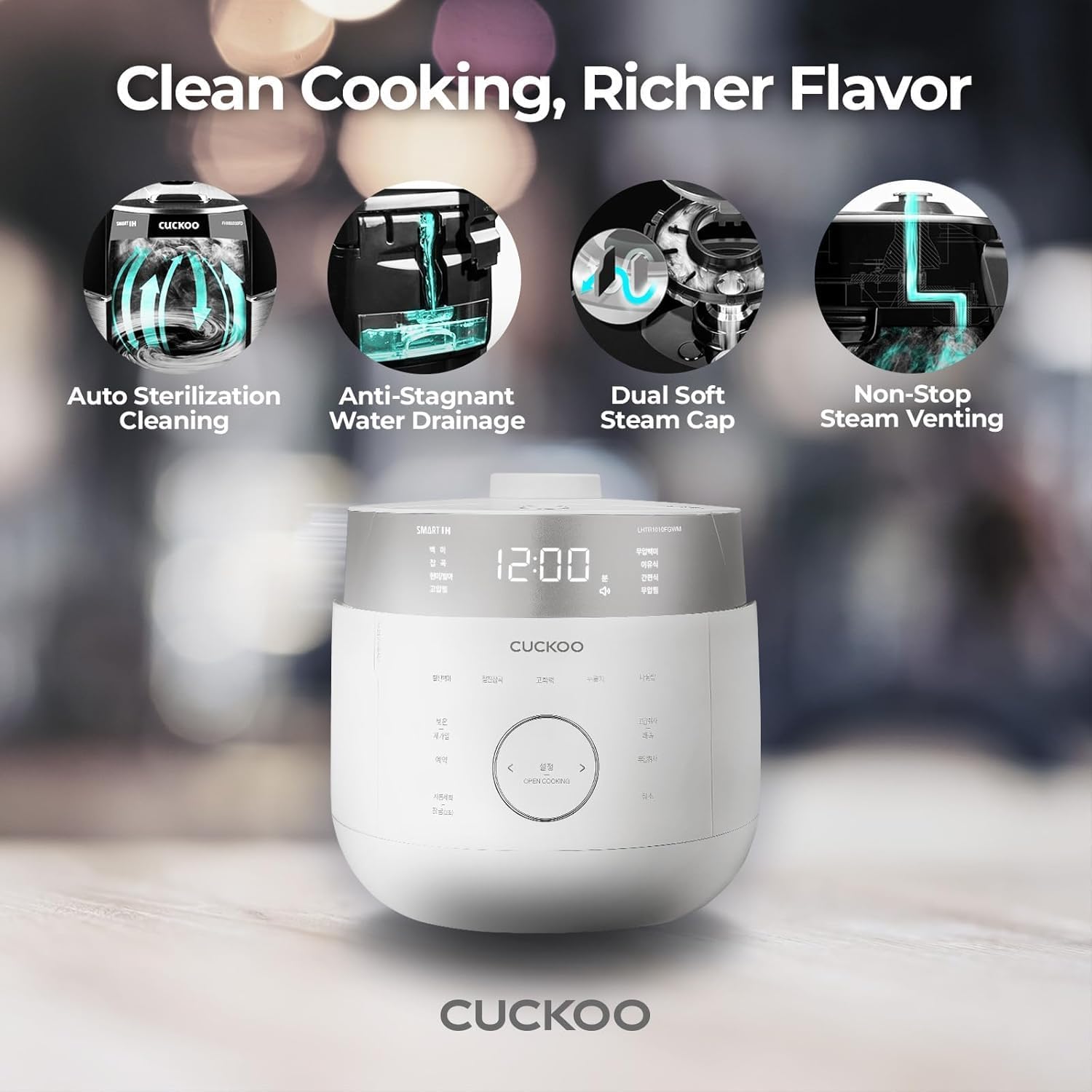

Image: Cleaning features of the CUCKOO CRP-LHTR0609F, showing auto sterilization, anti-stagnant water drainage, dual soft steam cap, and non-stop steam venting for a hygienic cooking environment.

Troubleshooting

If you encounter any issues with your rice cooker, please refer to the following common solutions. For more detailed troubleshooting, consult the comprehensive product manual.

• Rice is too hard/soft: Adjust the water ratio. For harder rice, use slightly less water; for softer rice, use slightly more. Ensure the correct pressure setting is selected.
• Cooker not starting: Check if the power cord is securely plugged in. Ensure the lid is properly closed and locked. Verify that a menu option has been selected and the 'COOK' button pressed.
• Error message on display: Refer to the full product manual for specific error code meanings and solutions.
• Steam leaking: Check if the detachable inner lid and steam packing are correctly installed and free from debris.

Specifications

Product Summary Video

Warranty and Support

For warranty information, product registration, or technical support, please refer to the official CUCKOO website or contact their customer service. Keep your purchase receipt for warranty claims. The included product manual also contains detailed contact information and warranty terms.
