Introduction
This user manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your GOWIN Kitchen Faucet with Side Sprayer. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Keep this manual for future reference.
Safety Information
- Always turn off the main water supply before beginning any installation or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use harsh chemicals or abrasive cleaners on the faucet finish, as this may damage the surface.
- Ensure all connections are secure and leak-free before restoring water supply.
Package Contents
Verify that all components are present before beginning installation:
- Kitchen Sink Faucet Assembly
- Side Sprayer (18 inch hose)
- Hot and Cold Water Hoses (35 inch)
- Mounting Hardware
- Installation Manual (this document)

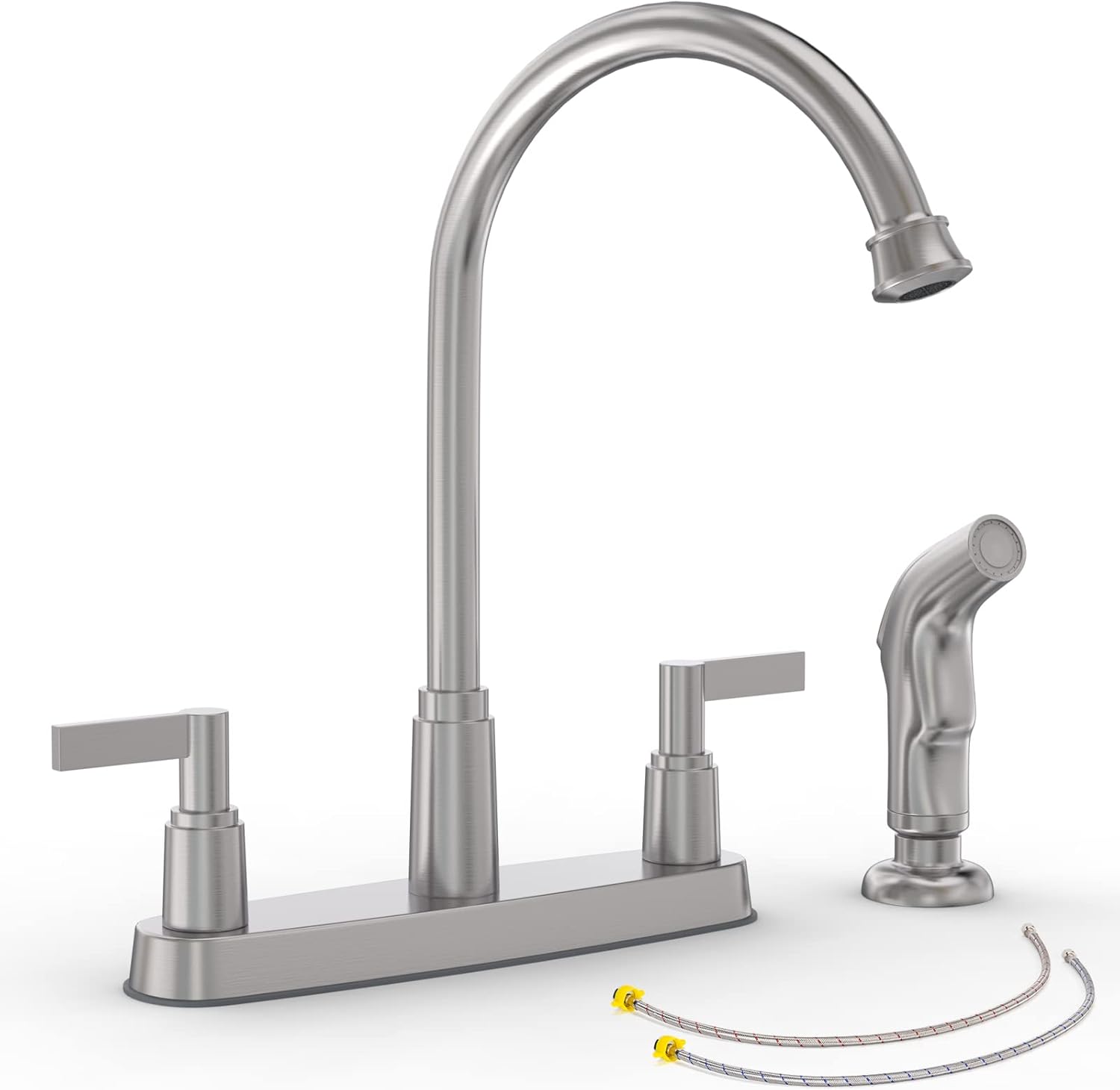

Image: All components included in the GOWIN Kitchen Faucet package, including the main faucet body, side sprayer, and connection hoses.
Specifications
| Feature | Detail |
|---|---|
| Brand | GOWIN |
| Model Name | GOWIN Kitchen FAUCET (FKR-2022B) |
| Material | SUS 304 Stainless Steel Body |
| Finish Type | Brushed Nickel |
| Mounting Type | Deck Mount |
| Number of Handles | 2 |
| Hole Count | 3 or 4 Hole Compatible (8 Inch Centerset) |
| Spout Height | 9 Inches |
| Spout Reach | 8.2 Inches |
| Hose Length (Water Hoses) | 35 Inches |
| Hose Length (Side Sprayer) | 35 Inches (pull-out) |
| Maximum Flow Rate | 1.8 Gallons Per Minute |
| Cartridge Type | High Quality Ceramic Cartridge |
Image: Key features and components of the GOWIN Kitchen Faucet, highlighting the 360-degree swivel spout, two-handle operation, durable stainless steel body, and brushed nickel finish.
Image: Detailed dimensions of the faucet and side sprayer, along with hole size requirements for both 3-hole and 4-hole sink installations.
Setup and Installation
Follow these steps for proper installation of your GOWIN Kitchen Faucet. Ensure the main water supply is turned off before you begin.
- Prepare the Sink: Ensure your sink has either 3 or 4 holes with an 8-inch centerset configuration. Clean the mounting surface thoroughly.
- Install the Faucet Body: Insert the faucet body into the center holes of the sink. Secure it from underneath the sink using the provided mounting hardware (washers and nuts). Tighten firmly but do not overtighten.
- Connect Water Hoses: Attach the hot and cold water supply hoses to the corresponding inlets on the faucet body. The hoses are 35 inches long. Ensure a tight seal, using plumber's tape if necessary. Connect the other ends of the hoses to your hot and cold water supply lines.
- Install Side Sprayer: Insert the side sprayer base into the designated hole on the sink. Secure it from underneath with the provided nut. Connect the sprayer hose to the dedicated outlet on the faucet body. The sprayer hose can extend up to 35 inches.
- Check for Leaks: Once all connections are made, slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks are detected, tighten the connections as needed.
Image: Step-by-step visual guide for installing the GOWIN Kitchen Faucet, showing the placement of the faucet and sprayer, connecting hoses, and securing components.
Image: Detail of the water hose connections, showing 3/8" Compression and 1/2" IPS fittings for proper attachment to water supply lines.
Operating Instructions
Your GOWIN Kitchen Faucet is designed for ease of use and durability.
- Water Flow and Temperature Control: The faucet features two handles. Rotate the left handle forward 90 degrees to control hot water, and the right handle forward 90 degrees to control cold water. Adjust both handles to achieve your desired water temperature and flow rate.
- Spout Swivel: The high-arc spout can swivel 360 degrees, providing wide range access and flexibility for various sink tasks.
- Side Sprayer Operation: To use the side sprayer, simply pick it up from its holder. The thumb-pressed spray head provides a high-pressure directional power spray, ideal for rinsing dishes or cleaning the sink. The sprayer hose extends up to 35 inches for extended reach.
Image: The GOWIN Kitchen Faucet demonstrating its 360-degree swivel spout and separate hot and cold water controls for precise temperature adjustment.
Image: The side sprayer in action, illustrating its long reach and the powerful spray mode activated by the thumb-pressed head. Note: Product specification states 35-inch extension.
Maintenance
Regular maintenance will help preserve the finish and functionality of your faucet.
- Cleaning the Finish: Clean the brushed nickel finish with a soft, damp cloth and mild soap. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning the Bubbler: The bubbler (aerator) consists of plastic filter nets and 304 stainless steel housings. It can be detached for cleaning. Periodically unscrew the bubbler from the spout and rinse any debris or mineral buildup under running water. Reattach securely.
- Ceramic Cartridge: The faucet uses a high-quality ceramic cartridge designed for long-lasting, drip-free performance (tested for 500,000 cycles). If you experience persistent dripping, the cartridge may need inspection or replacement. This typically requires professional assistance.
Image: Detail of the ABS detachable bubbler, which can be removed for easy cleaning to maintain optimal water flow.
Image: Close-up view of the brushed nickel finish, illustrating its texture and appearance.
Troubleshooting
If you encounter any issues with your faucet, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valves; kinked supply lines. | Clean the aerator (bubbler). Ensure shut-off valves are fully open. Check supply lines for kinks. |
| Faucet Drips | Worn ceramic cartridge; debris in cartridge. | Contact customer support for assistance or consider professional replacement of the ceramic cartridge. |
| Leaks at Connections | Loose connections; worn washers/seals. | Ensure all connections are tightened securely. Replace any damaged washers or seals. |
| Side Sprayer Not Working | Kinked sprayer hose; clogged sprayer head. | Check the sprayer hose for kinks. Clean the sprayer head for any blockages. |
Warranty Information
The GOWIN Kitchen Faucet comes with a limited warranty. For specific details regarding warranty coverage and terms, please refer to the warranty card included with your purchase or contact GOWIN customer support.
Customer Support
If you have any questions, require technical assistance, or need to report an issue, please contact our service team. We aim to provide a satisfactory answer within 24 hours.
- Email: support@gowin.com
- Website: GOWIN Official Store on Amazon
