INNO STAGE 5-Gallon Ash Vacuum Cleaner User Manual

1. Product Overview and Components

The INNO STAGE 5-Gallon Ash Vacuum Cleaner is a versatile tool designed for efficient cleanup of cold ash and debris. It features a powerful 1200W motor and a robust metal construction for durability. This section provides an overview of the main unit and its included components.

Figure 1.1: The INNO STAGE Ash Vacuum Cleaner with its primary components, including the main unit, hose, extension wand, and filtration elements.

Figure 1.2: Detailed diagram illustrating the components included with your ash vacuum cleaner, such as the sealed vacuum lid, cartridge filter, flame retardant ash filter, metal tank, optional wheels, metal hose, and aluminum extension wand.

Key Features:

• 1200W Powerful Suction: Provides strong suction for quick cleaning of cold ash.
• Dual Functionality: Operates as both a vacuum for dust and debris and a blower for leaves and other light materials.
• Double Stage Filtration System: Includes a cartridge filter and a flame retardant ash filter for thorough filtration.
• 5-Gallon Large Capacity: Ample capacity for daily ash absorption needs.
• Durable Construction: Robust metal body and internal components ensure longevity.
• Portable Design: Equipped with a sturdy handle for easy carrying.

2. Setup and Assembly

Before operating your ash vacuum cleaner, ensure all components are correctly assembled and secured. Follow these steps for proper setup.

Assembly Steps:

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all items listed in the product overview are present.
2. Install Filters: Place the flame retardant ash filter into the metal tank, followed by the cartridge filter. Ensure they are seated correctly for optimal filtration.
3. Secure Lid: Place the sealed vacuum lid onto the metal tank. Secure it firmly using the lid latches on the sides of the unit.
4. Attach Hose: Connect the metal hose to the vacuum port on the side of the unit. Ensure the connection is secure to prevent loss of suction.
5. Attach Extension Wand/Nozzle: Connect the aluminum extension wand and desired nozzle (round or flat) to the end of the metal hose.

Figure 2.1: Close-up view demonstrating the portable handle for easy transport, the secure lid latches, and the vacuum port latch for hose connection.

3. Operating Instructions

This section details how to use your INNO STAGE Ash Vacuum Cleaner for both vacuuming and blowing functions. Always observe safety precautions during operation.

Important Safety Warning:

The INNO STAGE ash vacuum cleaner is designed to handle COLD ASH ONLY. The ash temperature must be below 40°C (104°F). Do not vacuum hot ash, burning firewood, or unburned logs. Do not absorb wet ash or wet garbage.

Figure 3.1: Critical safety warnings indicating that the vacuum is for cold ash only and should not be used with water, burning materials, or large unburned logs.

Vacuum Function:

1. Ensure the hose is connected to the vacuum intake port.
2. Plug the power cord into a suitable electrical outlet.
3. Press the ON/OFF switch to turn on the vacuum.
4. Use the appropriate nozzle (round for heavy dust/wood chips/small debris, flat for corner dust) to clean cold ash from fireplaces, pellet stoves, fire pits, or BBQ grills.
5. After use, press the ON/OFF switch to turn off the vacuum and unplug it from the power outlet.

Figure 3.2: This image illustrates the dual functionality of the vacuum, showing its use for cleaning ash from a fireplace and as a blower for clearing leaves.

Blower Function:

1. To use as a blower, disconnect the hose from the vacuum intake port.
2. Connect the hose to the air outlet port, typically located on the top or side of the motor unit.
3. Plug the power cord into a suitable electrical outlet.
4. Press the ON/OFF switch to activate the blower.
5. Direct the airflow to clear debris from your yard or workspace.
6. After use, press the ON/OFF switch to turn off the unit and unplug it.

Temperature Control Function:

The ash vacuum is equipped with an overheating protection function. If the internal temperature exceeds 105°C (221°F), the machine will automatically stop to prevent damage.

• If the vacuum stops unexpectedly, unplug the power plug immediately.
• Wait for the temperature to drop to normal levels.
• Once cooled, you can plug it back in and resume operation.

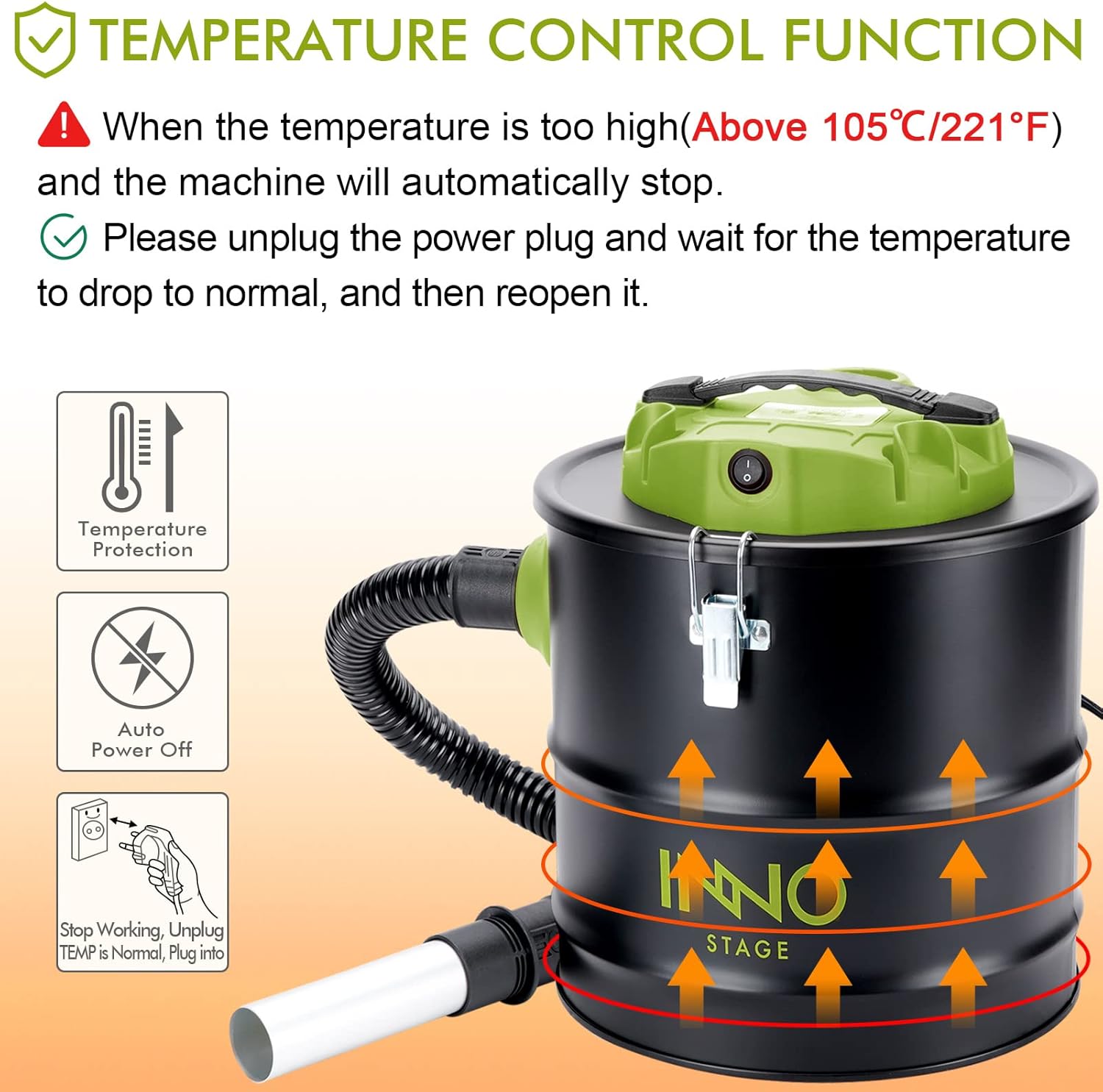

Figure 3.3: Illustration of the temperature control function, showing how the unit automatically powers off if it overheats (above 105°C/221°F) and the steps to reset it after cooling.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your INNO STAGE Ash Vacuum Cleaner. The primary maintenance task involves cleaning the filters.

Filter System:

Your vacuum features a double-stage filtration system, including a cartridge filter and a flame retardant ash filter. These filters are designed to be reusable after washing.

Figure 4.1: An exploded view of the multiple filtration system, showing the on/off switch, cartridge filter, flame retardant ash filter, metal tank, metal hose, and aluminum extension wand.

How to Clean the Filter:

It is recommended to clean the filter after each use to maintain effective dust removal and suction power.

1. Unplug the vacuum cleaner from the power outlet.
2. Unlatch and remove the sealed vacuum lid.
3. Carefully remove the cartridge filter and the flame retardant ash filter.
4. Gently tap the filters to dislodge loose ash and debris.
5. Rinse the filters under running water until clean. Ensure all ash is removed.
6. Allow the filters to air dry completely before reassembling them into the vacuum. Do not use the vacuum with wet filters.

Figure 4.2: A step-by-step visual guide demonstrating the process of removing, washing, and drying the filters to ensure proper maintenance and continued performance.

5. Troubleshooting

This section addresses common issues you might encounter with your INNO STAGE Ash Vacuum Cleaner and provides solutions.

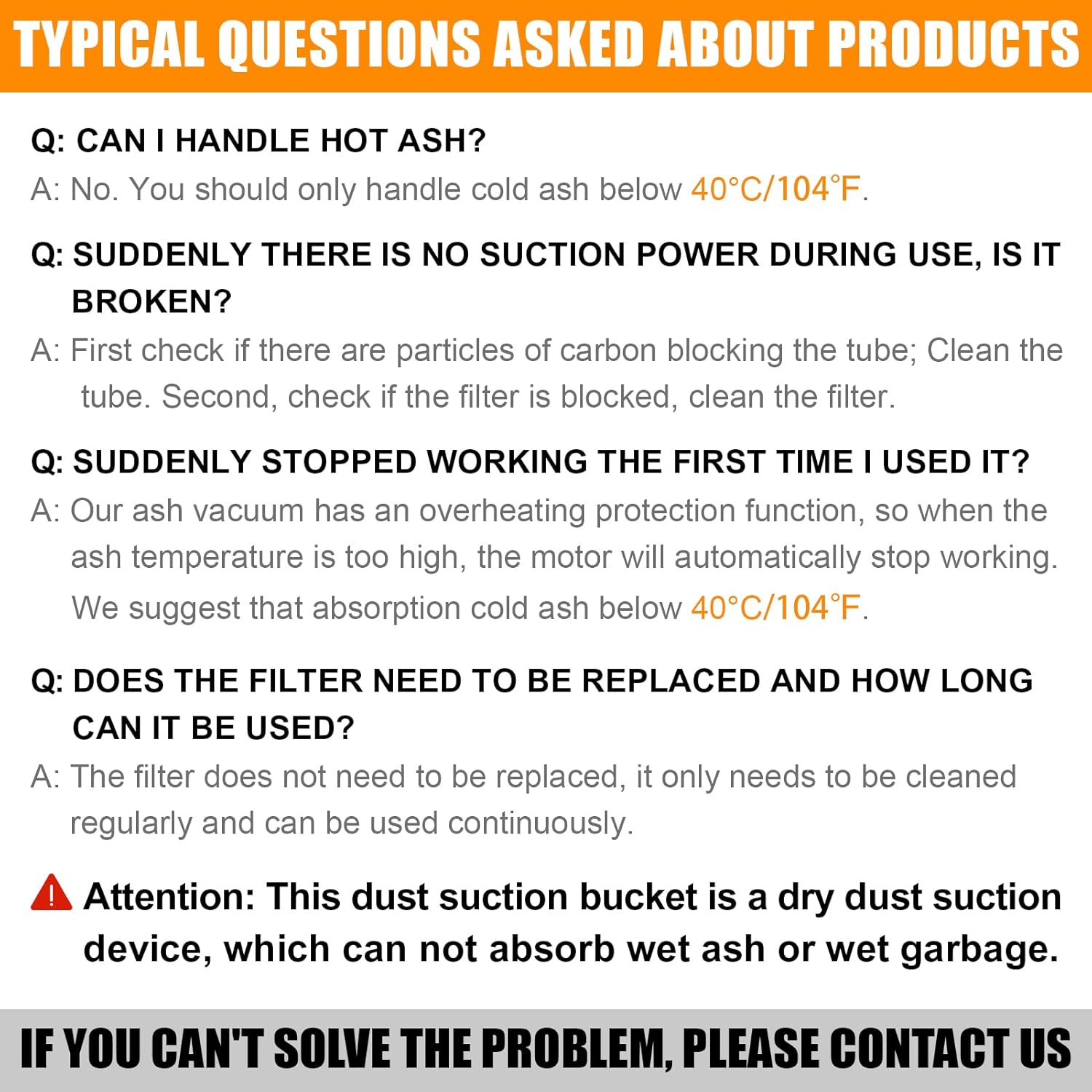

Figure 5.1: A visual representation of frequently asked questions regarding the product, offering quick solutions to common operational concerns.

Common Issues and Solutions:

Q: Can I handle hot ash?

A: No. You should only handle cold ash below 40°C (104°F).

Q: Suddenly there is no suction power during use, is it broken?

A: First, check if there are particles of carbon blocking the tube. Clean the tube. Second, check if the filter is blocked. Clean the filter as described in the Maintenance section.

Q: Suddenly stopped working the first time I used it?

A: Our ash vacuum has an overheating protection function. If the ash temperature is too high or the motor overheats, it will automatically stop working. Unplug the unit and wait for it to cool down before restarting. We suggest absorption of cold ash below 40°C (104°F).

Q: Does the filter need to be replaced and how long can it be used?

A: The filter does not need to be replaced; it only needs to be cleaned regularly and can be used continuously.

6. Specifications

Figure 6.1: Visual representation of the product's dimensions, including the hose length and overall unit size.

7. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact INNO STAGE customer service directly. Refer to the product packaging or the official INNO STAGE website for the most current contact details.

You can also visit the INNO STAGE Store on Amazon for additional product information and support resources.
