FOHERE Nugget Ice Maker Machine Instruction Manual

Important Safety Information

Please read all instructions carefully before using this appliance. Keep this manual for future reference.

• Ensure the ice maker is placed on a stable, level surface away from direct sunlight or heat sources.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Supervise children when the appliance is in use.
• Use only potable water in the water reservoir.
• Unplug the ice maker before cleaning or when not in use.

Product Overview

The FOHERE Nugget Ice Maker Machine is designed to produce chewable nugget ice quickly and efficiently. It features a compact design, low noise operation, and a convenient self-cleaning function.

Key Features:

• High Ice Output: Produces up to 38 lbs of nugget ice in 24 hours.
• Fast Ice Making: First batch of ice in approximately 5-10 minutes.
• Chewable Nugget Ice: Soft, chewable ice that is gentle on teeth and enhances beverage flavor.
• Upgraded Cooling System: Features a fast and efficient compressor, low noise fan, and high-density insulation for energy efficiency.
• Self-Clean Function: Easy one-click self-cleaning for hassle-free maintenance.
• Compact Design: Space-saving countertop design suitable for various occasions.
• Low Noise Operation: Operates at approximately 45dB, minimizing disturbance.

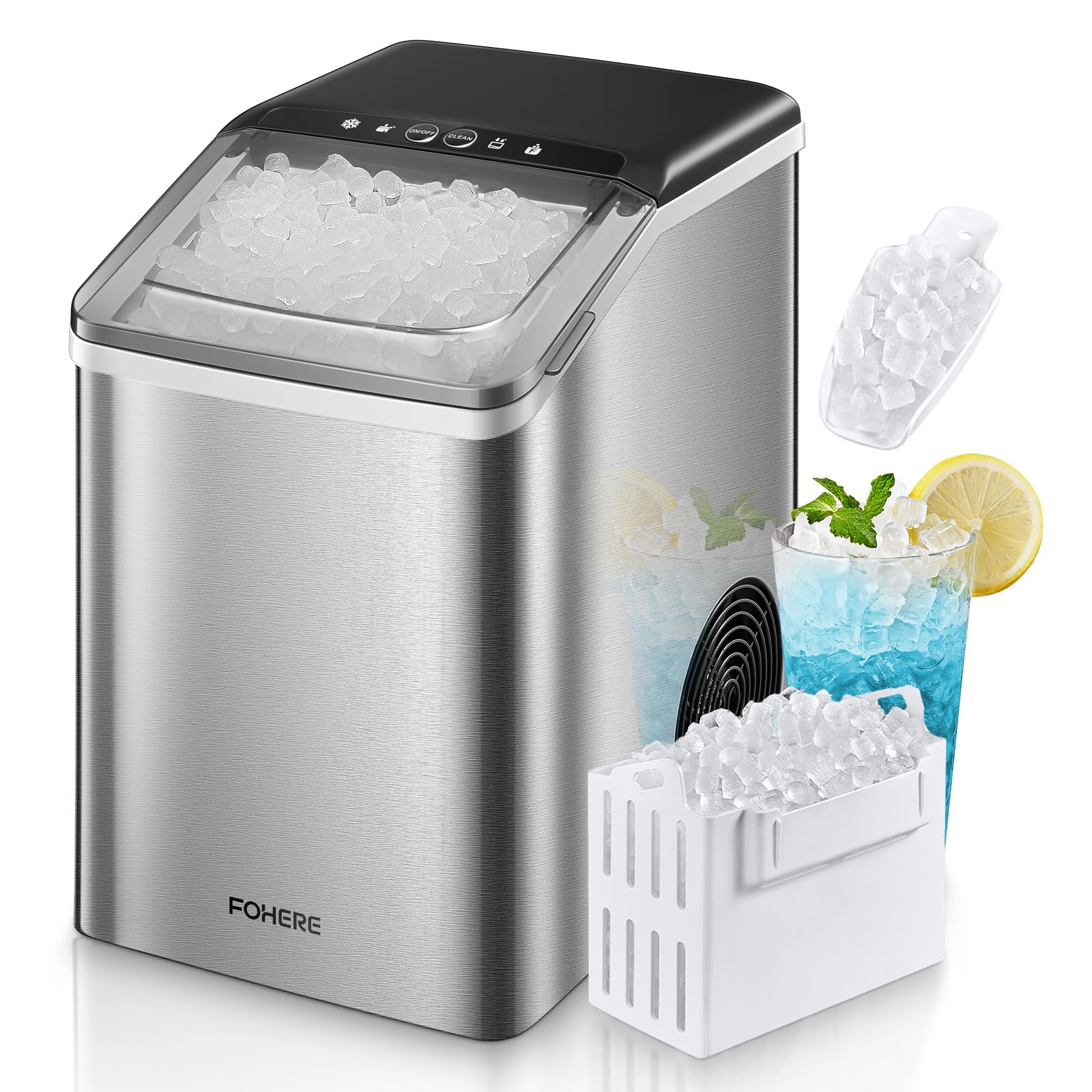

Product Images:

Setup and First Use

Unboxing and Placement:

1. Carefully remove the ice maker from its packaging.
2. Place the unit on a stable, level surface. Ensure there is at least 6 inches of clearance around the unit for proper ventilation.
3. Wipe down the exterior with a soft, damp cloth.

Initial Cleaning:

1. Before first use, clean the interior of the ice maker.
2. Fill the water reservoir with clean water up to the MAX line.
3. Press and hold the 'Clean' button for 3 seconds to activate the self-cleaning cycle.
4. Once the cycle is complete, drain the water using the drain plug located at the back of the unit.
5. Repeat the cleaning process with fresh water if desired.

Setup Video:

Operating Instructions

Making Ice:

1. Ensure the drain plug is securely closed.
2. Open the top lid and fill the water reservoir with potable water up to the MAX fill line. Do not overfill.
3. Close the lid and plug the power cord into a grounded electrical outlet.
4. Press the 'On/Off' button to start the ice making process. The snowflake indicator will light up.
5. The first batch of ice will be ready in approximately 5-10 minutes. Subsequent batches will be faster.
6. When the 'Ice Full' indicator lights up, the ice basket is full. The machine will pause ice production until some ice is removed.
7. When the 'Add Water' indicator lights up, the water reservoir is low. Add more water to continue ice production.

Operation Videos:

Maintenance

Self-Cleaning Function:

The ice maker features a convenient self-cleaning function to maintain hygiene and performance.

1. Ensure the ice basket is empty.
2. Fill the water reservoir with clean water and a small amount of mild detergent (e.g., vinegar or citric acid solution).
3. Press and hold the 'Clean' button for approximately 3 seconds to start the self-cleaning cycle.
4. The cleaning cycle will run for several minutes. Once complete, drain the cleaning solution from the unit.
5. Rinse the reservoir thoroughly with fresh water and run another self-cleaning cycle with only clean water to remove any detergent residue. Drain again.

Draining Water:

To drain water from the unit:

1. Locate the drain plug at the back of the ice maker.
2. Place a container under the drain plug.
3. Remove the drain plug to allow water to flow out.
4. Once all water has drained, securely close the drain plug.

Regular Cleaning:

• Wipe the exterior of the ice maker with a soft, damp cloth regularly.
• Clean the ice basket and scoop with warm, soapy water. Rinse thoroughly and dry before returning to the unit.
• For optimal performance, perform the self-cleaning cycle at least once a week or as needed based on usage.

Maintenance Image:

Troubleshooting

If you encounter any issues with your FOHERE Nugget Ice Maker Machine, please refer to the following common problems and solutions:

• 'Add Water' Indicator On: The water reservoir is low. Refill with potable water up to the MAX line.
• 'Ice Full' Indicator On: The ice basket is full. Remove some ice to resume production. Ensure the ice sensor is not obstructed.
• Ice Not Forming:
  • Check if the water reservoir is filled.
  • Ensure the unit is plugged in and powered on.
  • Verify that the ambient temperature is within the recommended operating range (typically 50°F-90°F).
  • Clean the unit as per maintenance instructions to prevent mineral buildup.
• Unusual Noise: This may be normal during the ice making cycle as ice drops into the basket or water circulates. If the noise is excessive or persistent, contact customer support.
• Water Leakage: Ensure the drain plug is securely closed. Check for any cracks or damage to the water reservoir or hoses.

If the problem persists after attempting these solutions, please contact FOHERE customer support for assistance.

Specifications

Warranty and Support

FOHERE products are manufactured to high-quality standards and are backed by a limited warranty. For specific warranty details, product support, or to inquire about replacement parts, please refer to the warranty card included with your purchase or visit the official FOHERE website.

You can also visit the FOHERE Store on Amazon for more information and contact options.
