1. Introduction
This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your BUCKTOOL BD1801DS Dual Speed 1" x 42" Belt Disc Sander Combo. This robust benchtop tool is designed for metalworking, knife sharpening, and general sanding tasks, featuring a direct-drive brushless motor and dual-speed functionality. Please read this manual thoroughly before operating the sander to ensure safe and efficient use.
2. Safety Instructions
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Eye Protection: Always wear ANSI-approved safety goggles or a face shield when operating the sander.
- Respiratory Protection: Use a dust mask or respirator, especially when sanding wood or materials that produce fine dust.
- Hearing Protection: Wear hearing protection during extended operation.
- Work Area: Keep your work area clean, well-lit, and free from clutter. Ensure adequate ventilation.
- Secure Workpiece: Always secure the workpiece firmly against the work table to prevent kickback or loss of control.
- Avoid Loose Clothing: Do not wear loose clothing, gloves, neckties, or jewelry that can get caught in moving parts. Tie back long hair.
- Electrical Safety: Ensure the power supply matches the tool's requirements (220 Volts). Do not operate in wet conditions. Disconnect power before making adjustments or changing accessories.
- Guard Usage: Never operate the sander without all guards in place.
- Children and Bystanders: Keep children and bystanders at a safe distance from the operating area.
- Tool Condition: Inspect the tool for damage before each use. Do not operate if damaged.
3. Product Overview and Components
The BUCKTOOL BD1801DS is a versatile belt and disc sander combo designed for precision and durability. It features a robust construction with metal components for enhanced stability and longevity, particularly suited for metalworking applications.
Figure 3.1: Overall view of the BUCKTOOL BD1801DS Dual Speed Belt Disc Sander.
Key Features:
- Dual Speed Direct Driven Motor: A 4.8A, 3/4 HP brushless induction motor provides speeds of 1750 RPM and 3450 RPM, offering 25% more sanding efficiency than traditional belt-driven motors.
- Maintenance-Free Operation: The brushless induction motor eliminates the need for yearly belt changes, reducing maintenance requirements.
- Durable Metal Construction: Components such as work tables, machine base, belt frame, and dust ports are constructed from metal, making it ideal for metalworking tasks.
- Easy Belt and Disc Change: Features an easy-remove belt cover, quick belt release system, and hook & loop design for disc replacement, simplifying abrasive changes.
- Multi-Angle Sanding: The work table for the sanding disc is adjustable from 0-45 degrees, accommodating various sanding angles.
Figure 3.2: Labeled components including the 8-inch disc, 1x42 inch belt, and 4.8A brushless motor.

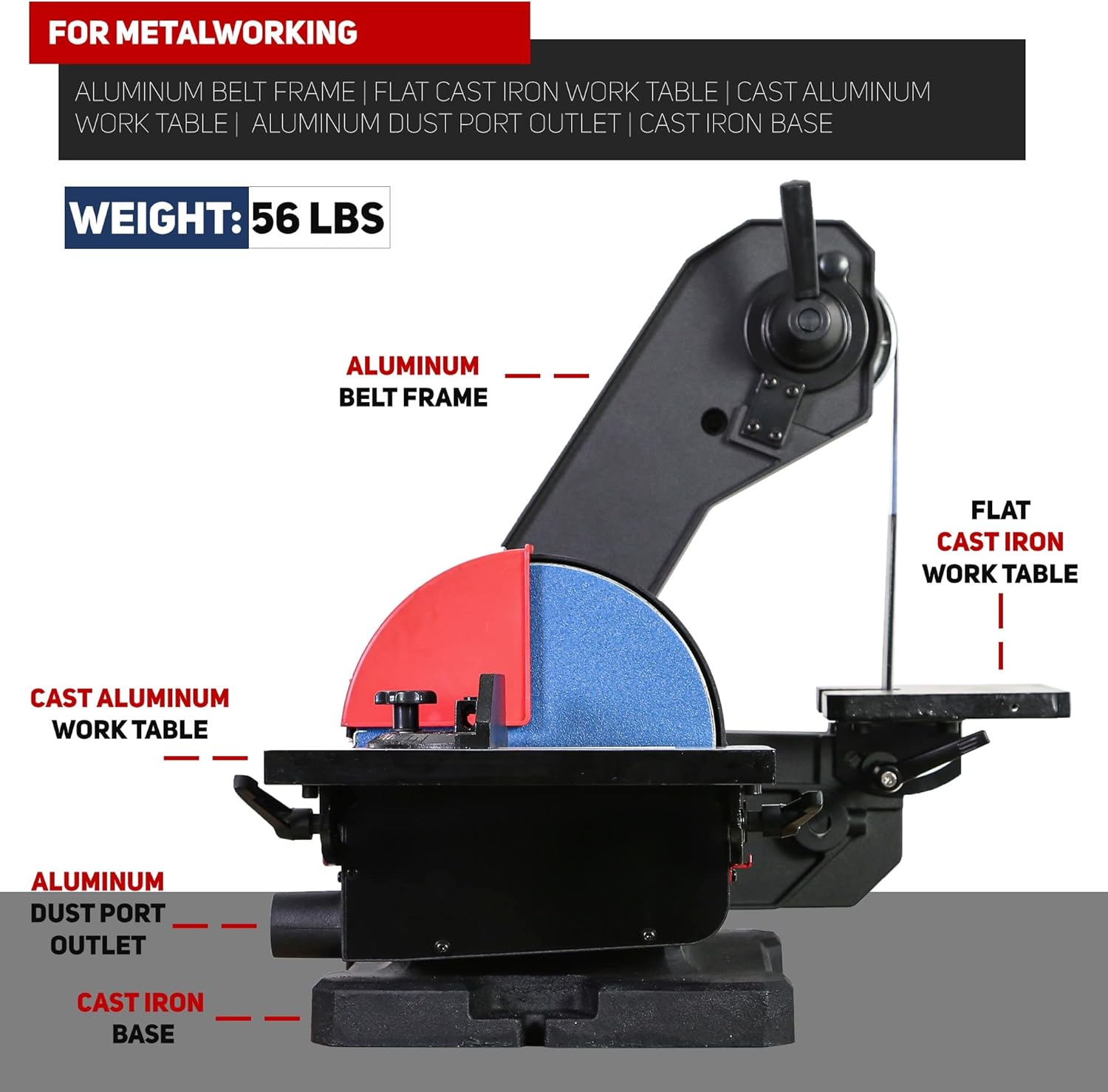

Figure 3.3: Illustration of metal components including aluminum belt frame, cast iron work table, aluminum dust port, and cast iron base.
Figure 3.4: Features such as miter gauge and wrench storage, and easy-remove belt cover for quick belt changes.
4. Setup
The BUCKTOOL BD1801DS is designed for minimal assembly, allowing you to quickly get started.
Assembly Steps:
- Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage.
- Work Table Installation: Attach the two work tables to their respective positions on the belt and disc sander units. Ensure they are securely fastened using the provided hardware.
- Power Connection: Connect the power cord to a compatible 220V electrical outlet. Ensure the power switch is in the 'OFF' position before plugging in.
- Work Area Preparation: Place the sander on a stable, level workbench. Ensure sufficient space around the tool for safe operation and material handling.
Figure 4.1: Product dimensions (approximately 20.2"L x 17.72"W x 20.2"H) for planning your workspace.
5. Operating Instructions
Powering On/Off and Speed Selection:
- Power Switch: Locate the power switch on the front of the unit.
- Speed Selection: Use the toggle switch to select between 'Low Speed' (1750 RPM) and 'High Speed' (3450 RPM) depending on your application.
- Starting the Sander: Move the toggle switch to your desired speed setting. The motor will start.
- Stopping the Sander: Move the toggle switch to the 'OFF' (center) position. Wait for all moving parts to come to a complete stop before leaving the machine.
Figure 5.1: Close-up of the dual speed switch, indicating High Speed (3450 RPM) and Low Speed (1750 RPM) settings.
Using the Belt Sander:
- Ensure the 1" x 42" sanding belt is correctly installed and tensioned.
- Adjust the flat cast iron work table to the desired angle.
- Apply light, even pressure when sanding. Avoid excessive force, which can slow the motor or damage the workpiece.
- Move the workpiece consistently across the belt to ensure even material removal and prevent overheating.
Using the Disc Sander:
- Verify the 8-inch sanding disc is securely attached via its hook & loop backing.
- Adjust the cast aluminum work table for the disc from 0-45 degrees as needed for bevels or specific angles.
- Use the miter gauge for precise angle sanding.
- Always sand on the downward-rotating side of the disc to prevent the workpiece from being thrown upwards.
Figure 5.2: Direct drive motor transmits torque directly to the belt end, increasing sanding efficiency by 25% compared to belt-driven systems.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your BUCKTOOL BD1801DS sander.
- Motor: The brushless induction motor is designed to be maintenance-free and does not require lubrication or belt changes.
- Cleaning: Regularly clean dust and debris from the machine, especially around the motor vents, work tables, and dust ports. Use compressed air or a brush.
- Belt Replacement: To replace the 1" x 42" sanding belt, disconnect power, remove the easy-access belt cover, release the belt tension, and replace the belt. Ensure the new belt tracks correctly before resuming operation.
- Disc Replacement: The 8-inch sanding disc uses a hook & loop design for easy replacement. Simply peel off the old disc and press on a new one.
- Work Table Adjustment: Periodically check and adjust the work tables to ensure they are square to the belt/disc or at the desired angle.
- Dust Collection: Ensure dust collection ports are clear and connected to an appropriate dust extraction system for efficient debris removal.
7. Troubleshooting
This section addresses common issues you might encounter with your sander.
| Problem | Possible Cause | Solution |
|---|---|---|
| Sander does not start | No power, faulty switch, motor issue | Check power connection, circuit breaker. Ensure switch is fully engaged. If problem persists, contact support. |
| Belt tracking issues | Belt tension, alignment, worn belt | Adjust belt tension and tracking knob until the belt runs centrally. Replace worn belts. |
| Disc table not square/smooth adjustment | Mounting bracket, debris in mechanism | Loosen adjustment bolts, clean any debris, and re-square the table using a machinist square. Tighten bolts. |
| Motor stalls under load | Excessive pressure, dull abrasive, electrical issue | Reduce workpiece pressure. Replace dull belts/discs. Check power supply. If stalling persists with light pressure, contact support. |
| Poor dust collection | Clogged ports, inadequate vacuum, damaged guard | Clear dust ports. Ensure dust collector/shop vac is powerful enough. Inspect guards for damage that might impede airflow. |
| Plastic guard melting (disc side) | Friction from workpiece or disc contact | Ensure workpiece does not contact the guard. If the guard is damaged, replace it. Consider using a metal guard if available or fabricating one. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Bucktool |
| Model Number | BD1801-DS |
| Motor | 4.8A, 3/4 HP Brushless Induction Motor |
| Voltage | 220 Volts |
| Power Source | Corded Electric |
| Belt Size | 1" x 42" |
| Disc Diameter | 8 inches |
| Maximum Rotational Speed | 3450 RPM (High Speed) |
| Low Rotational Speed | 1750 RPM (Low Speed) |
| Grit Type (Included) | Fine (80 Grit) |
| Product Dimensions (L x W x H) | 20.2" x 17.72" x 20.2" |
| Item Weight | 56.7 pounds |
9. Warranty and Support
BUCKTOOL products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or visit the official BUCKTOOL website.
Customer Support:
If you have any questions, require technical assistance, or need to report an issue, please contact BUCKTOOL customer support:
- Phone: 909-255-1088 (8 AM - 5 PM PST)
- Website: www.bucktool.com
