NORTHCLAN Ice Maker User Manual

Introduction

Welcome to the NORTHCLAN Ice Maker user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new ice maker. Please read this manual thoroughly before using the appliance.

Image: The NORTHCLAN Ice Maker in silver, shown with an ice scoop and freshly made ice cubes.

Product Features

• Rapid Ice Production: Produces 9 bullet-shaped ice cubes in just 6-8 minutes, with a daily capacity of 12-14 kg.
• Smart One-Touch Control: Easy operation with an intuitive LED display indicating low water level or full ice basket.
• Quiet Operation: Operates at less than 40 dB, ensuring a peaceful environment.
• Energy & Water Saving: Features a high-quality foam layer for insulation and re-freezes melted ice, reducing waste.
• Easy to Clean & Portable: Durable ABS casing, food-grade interior, and a convenient drain plug for effortless cleaning. Compact size and lightweight for easy transport.
• Versatile Use: Ideal for home, office, BBQs, outdoor parties, and various beverages.

Image: The ice maker shown with a large quantity of ice, highlighting its rapid production capability.

Image: The ice maker operating quietly, demonstrating its low noise level, with a child sleeping peacefully nearby.

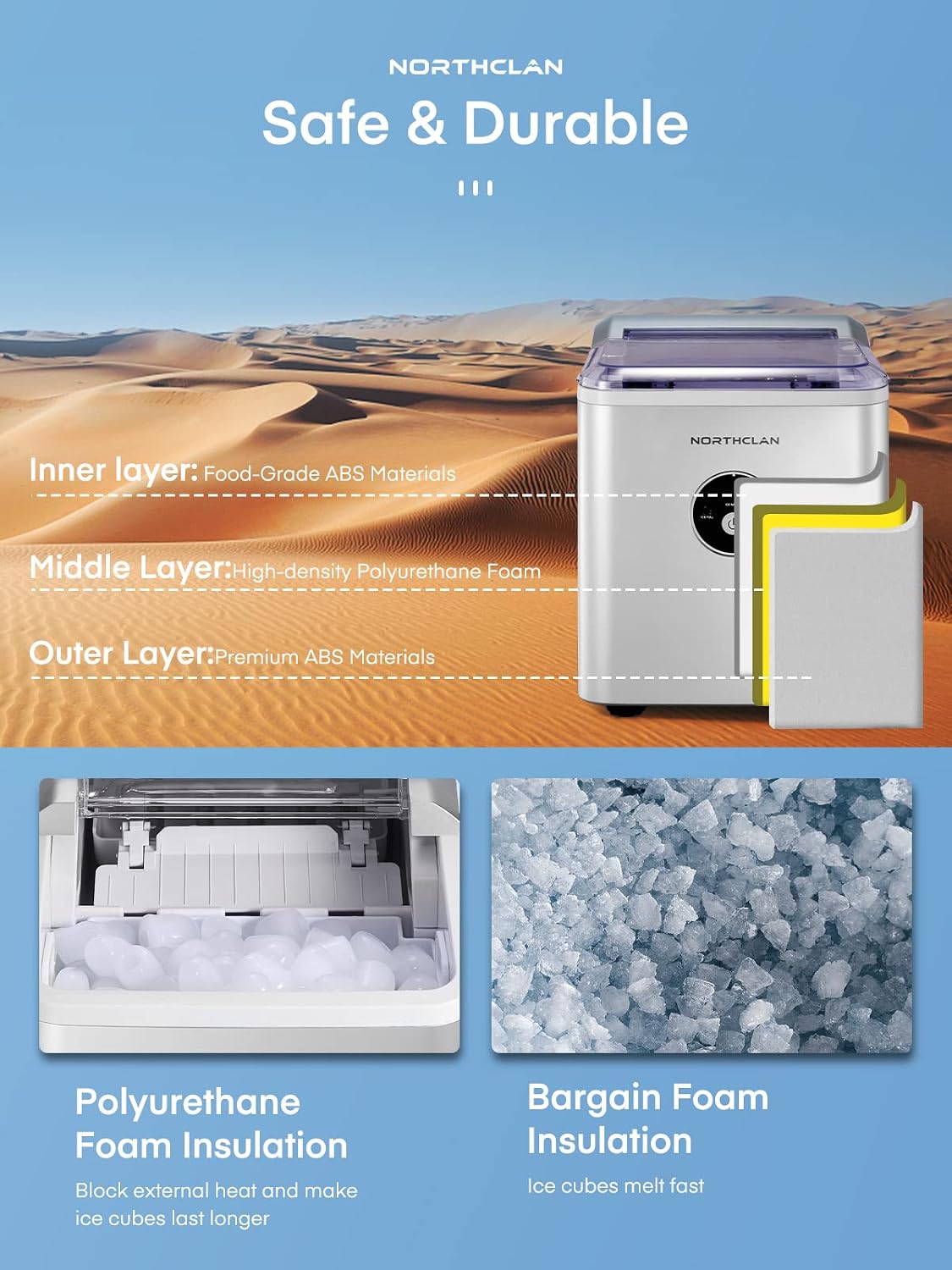

Image: A cutaway diagram illustrating the durable construction of the ice maker, including its food-grade inner layer, high-density polyurethane foam middle layer, and premium ABS outer layer.

Setup

1. Unpack: Carefully remove the ice maker from its packaging. Retain packaging for future storage or transport.
2. Placement: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
3. Clean Before First Use: Before first use, clean the interior of the ice maker as described in the "Maintenance and Cleaning" section.
4. Power Connection: Plug the power cord into a grounded electrical outlet (220 Volts).

Image: The ice maker positioned on a countertop next to a coffee maker, illustrating its compact size and how it fits in a typical kitchen space.

Operating Instructions

1. Add Water: Open the lid and fill the water reservoir with clean, potable water up to the MAX fill line. Do not overfill.
2. Start Production: Close the lid and press the "ON/OFF" button on the control panel. The "ICE MAKING" indicator light will illuminate.
3. Monitor Progress: The ice maker will begin producing ice cubes. You can observe the process through the transparent lid. The first batch of ice may take slightly longer and the cubes might be smaller or irregular. This is normal.
4. Ice Full Indicator: When the ice basket is full, the "ICE FULL" indicator light will turn on, and the machine will automatically stop ice production. Remove ice from the basket to resume production.
5. Add Water Indicator: If the water level is too low, the "ADD WATER" indicator light will turn on, and the machine will stop. Add more water to the reservoir to continue.
6. Stop Production: To stop the ice maker at any time, press the "ON/OFF" button again.

Note: The ice maker is not a freezer. Ice cubes will gradually melt if left in the basket for extended periods. Transfer ice to a freezer for long-term storage.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and hygiene of your ice maker.

Daily Cleaning:

• After each use, unplug the unit.
• Remove the ice basket.
• Drain any remaining water from the reservoir using the drain plug at the bottom of the unit.
• Wipe the interior with a soft cloth and mild detergent. Rinse thoroughly with clean water.
• Dry all surfaces before closing the lid.

Monthly Cleaning (or as needed):

• Prepare a solution of water and white vinegar (10:1 ratio) or a dedicated ice maker cleaning solution.
• Pour the solution into the water reservoir.
• Run the ice maker for a few cycles (without consuming the ice).
• Drain the solution completely.
• Rinse the reservoir and interior thoroughly with clean water multiple times to remove any residue or odor.
• Wipe down the exterior with a damp cloth.

Important: Always unplug the ice maker before cleaning. Do not immerse the unit in water.
