Goodyear Retractable Extension Cord Reel Instruction Manual

1. Safety Information

Read and understand all safety warnings and instructions before operating this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

1.1 General Safety

• Always wear appropriate personal protective equipment (PPE) when working with electrical tools and equipment.
• Keep children and bystanders away while operating the cord reel. Distractions can cause you to lose control.
• Store idle cord reels out of the reach of children and do not allow persons unfamiliar with the cord reel or these instructions to operate the cord reel.
• Maintain the cord reel. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the cord reel’s operation. If damaged, have the cord reel repaired before use.

1.2 Electrical Safety

• Do not expose the cord reel to rain or wet conditions. Water entering an electrical product will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the cord reel. Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
• Ensure the cord reel is properly grounded. This product is equipped with a 3-prong grounded plug.
• Do not overload the cord reel. The maximum power rating is 1625 Watts (13 Amps at 125 Volts AC). Exceeding this rating can cause overheating and fire.
• Always uncoil the cord completely when using the full length to prevent heat buildup.
• The cord reel includes a circuit breaker for protection. If the circuit breaker trips, reduce the load and press the reset button.

2. Product Overview

The Goodyear Retractable Extension Cord Reel is designed for convenient power access in various environments, featuring durable construction and user-friendly operation.

2.1 Key Features

• 14AWG x 100' SJTOW Cable: Heavy-duty, all-weather cable resistant to acids, alkalis, ozone, and kinking. Operable in temperatures from -40°F to 221°F (-40°C to 105°C).
• Triple Tap (S3) Connector: Provides three grounded outlets for multiple tool connections.
• Industrial Steel Construction: Heavy gauge commercial steel body with corrosion-resistant powder coating for durability.
• Spring Driven Auto-Rewind: Automatically retracts the cord for neat storage.
• Improved Ratcheting System: Locks the cord at any desired length.
• Adjustable Cable Stopper: Allows you to set the desired length of cord that remains extended.
• 4 Non-Snag Rollers: Reduces cord abrasion during extension and retraction.
• Circuit Breaker: Protects the reel and operator from overloads.

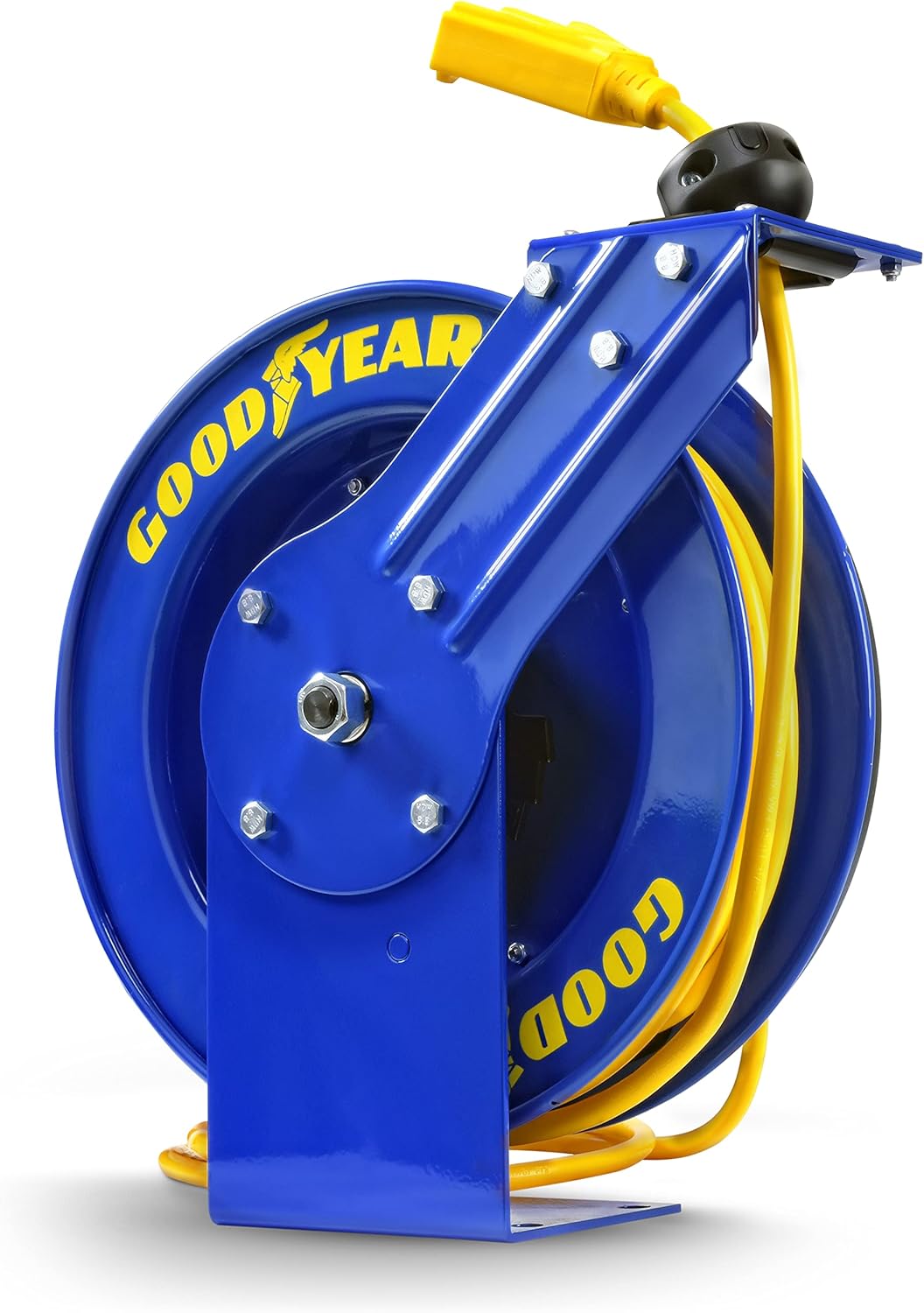

Figure 1: Main view of the Goodyear Retractable Extension Cord Reel.

Figure 2: Illustration of the durable steel construction and powder coating for enhanced protection.

Figure 3: Details of the 14 AWG power cable and triple tap connector, highlighting its efficiency for various tools.

Figure 4: Close-up of the non-snag rollers and the adjustable hose stopper, designed for smooth operation and cord management.

Figure 5: Visual representation of the 100-foot SJTOW extension cable, emphasizing its durability and flexibility.

Figure 6: Illustration of the retractable mechanism, including the auto-guide rewind and ratcheting system for controlled cord management.

3. Setup & Installation

This cord reel is designed for wall or ceiling mounting. Proper installation is crucial for safety and optimal performance.

3.1 Mounting Location

• Choose a sturdy mounting surface capable of supporting the weight of the cord reel and the force applied during cord extension/retraction.
• Ensure the location allows for full extension of the cord without obstruction.
• Mount the reel in a dry area, away from direct moisture or excessive heat.

3.2 Mounting Steps

1. Position the cord reel against the desired mounting surface (wall or ceiling). The single 6" L-shaped arm has 1/2" drilled holes for anchoring.
2. Mark the locations for the mounting hardware through the pre-drilled holes in the steel mount base.
3. Drill pilot holes appropriate for your chosen mounting hardware (not included). Ensure the drill bit size matches the hardware for a secure fit.
4. Secure the cord reel to the surface using heavy-duty bolts or lag screws (recommended). Ensure all fasteners are tightened securely.
5. Once mounted, gently pull out a short length of cord to test the stability of the installation.

Figure 7: Example of the cord reel mounted in a garage setting, demonstrating its space-saving design.

4. Operation

Operating the Goodyear Retractable Extension Cord Reel is straightforward, designed for ease of use and efficient power delivery.

4.1 Extending the Cord

1. Grasp the triple tap connector firmly.
2. Slowly pull the cord outwards from the reel. You will hear a clicking sound as the internal ratcheting mechanism engages.
3. To lock the cord at a desired length, stop pulling when you hear a click. The cord will remain extended at that position.
4. If you pull past a desired lock point, simply pull slightly further until the next click, then allow the cord to retract slightly until it locks.

4.2 Retracting the Cord

1. Ensure all devices are unplugged from the triple tap connector.
2. Grasp the triple tap connector and pull the cord gently but firmly outwards, just enough to disengage the ratcheting lock. You will hear a distinct click as it unlocks.
3. Slowly guide the cord back into the reel. Do not release the cord abruptly, as this can cause the cord to whip and potentially damage the reel or cause injury.
4. Allow the auto-rewind mechanism to smoothly retract the cord until the adjustable cable stopper rests against the reel housing.

4.3 Using the Outlets

• Plug the main power cord of the reel into a grounded 125V AC outlet.
• Plug your tools or appliances into the triple tap connector.
• Ensure the total wattage of all connected devices does not exceed 1625 Watts (13 Amps).
• If the circuit breaker trips, unplug all devices, press the reset button on the reel, and then reconnect devices ensuring the load is within limits.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Goodyear Retractable Extension Cord Reel.

5.1 Regular Inspection

• Before each use, inspect the entire length of the cord for any cuts, abrasions, or damage to the insulation. Do not use if damaged.
• Check the triple tap connector and the main plug for any signs of damage, bent prongs, or corrosion.
• Verify that the auto-rewind mechanism operates smoothly and that the ratcheting system locks and unlocks correctly.
• Inspect the mounting hardware for tightness and ensure the reel is securely attached to the surface.

5.2 Cleaning and Storage

• Disconnect the reel from the power source before cleaning.
• Wipe down the cord and reel housing with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure the cord is clean and dry before fully retracting it for storage.
• Store the cord reel in a dry, protected area when not in use.

6. Troubleshooting

This section addresses common issues you might encounter with your cord reel.

7. Specifications

Detailed technical specifications for the Goodyear Retractable Extension Cord Reel.

8. Warranty & Support

8.1 Warranty Information

This Goodyear Retractable Extension Cord Reel (Model GUR073) comes with a 1-Year Limited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, neglect, alteration, or unauthorized repair.

8.2 Customer Support

For technical assistance, warranty claims, or general inquiries, please contact Goodyear customer support. Refer to your purchase documentation for specific contact details or visit the official Goodyear product website.
