PUTIKEEG MCL-01 Morse Code Reference Plate User Manual

1. Product Overview

The PUTIKEEG MCL-01 is a durable steel reference plate designed to enhance the experience of learning and operating Morse code. It features an integrated Morse code alphabet and number list for quick reference and provides a stable, non-slip surface for various CW (Continuous Wave) Morse keys, particularly those with magnetic bases.

Key Features:

• Integrated Morse Code List: Clearly printed alphabet and number reference for convenient learning and operation.
• Durable Construction: Made from high-quality hardened steel with a sandblasted finish for longevity and resistance to rust.
• Anti-Slip Design: Equipped with non-slip rubber pads on the bottom to prevent movement and protect surfaces.
• Magnetic Compatibility: Provides a secure base for Morse code keys with magnetic feet, ensuring stability during use.
• Portable Design: Features a convenient storage hole for easy hanging and transport.

2. Components

The PUTIKEEG MCL-01 package typically includes:

• 1 x PUTIKEEG MCL-01 Morse Code Reference Plate
• Self-adhesive non-slip rubber pads (pre-attached or included for user application)

3. Setup and Installation

Follow these steps to set up your Morse Code Reference Plate:

1. Unpack: Carefully remove the reference plate from its packaging.
2. Apply Anti-Slip Pads (if not pre-attached): If the rubber pads are not already affixed, peel the backing from the self-adhesive pads and attach them to the four corners on the underside of the plate. Ensure they are firmly pressed into place.
3. Placement: Position the reference plate on a flat, stable surface where you intend to operate your Morse code key. The non-slip pads will help secure it in place.
4. Key Placement: Place your Morse code key (especially those with magnetic bases) onto the plate. The magnetic attraction will provide a firm and stable operating platform.

4. Operation

The PUTIKEEG MCL-01 serves as a practical aid for Morse code enthusiasts.

• Reference Chart: Utilize the clearly printed Morse code alphabet and number list on the plate for quick reference during practice or communication. This is especially useful for beginners or when encountering less common characters.
• Stable Keying Platform: The plate provides a solid and stable base for your Morse code key. Its weight and anti-slip pads prevent unwanted movement, allowing for precise and consistent keying.

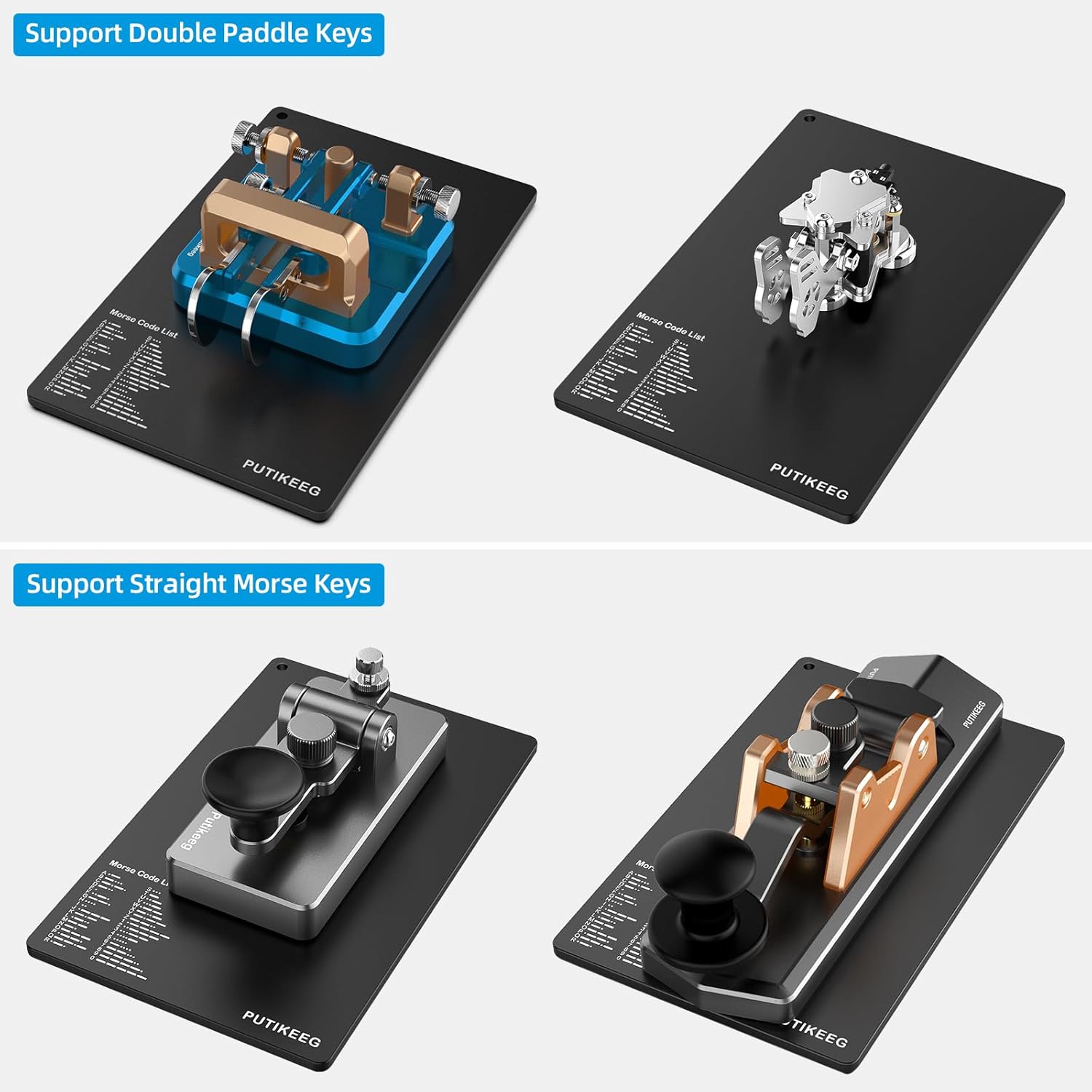

• Compatibility: The plate is designed to accommodate various types of Morse code keys, including double paddle keys and straight keys, particularly those with magnetic bases for enhanced stability.

5. Maintenance and Care

To ensure the longevity and optimal performance of your PUTIKEEG MCL-01 Morse Code Reference Plate, follow these maintenance guidelines:

• Cleaning: Wipe the plate with a soft, dry cloth to remove dust and fingerprints. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or solvents, as these may damage the finish or printed code list.
• Storage: Store the plate in a dry environment to prevent moisture accumulation. The integrated storage hole allows for convenient hanging, keeping it off surfaces and reducing the risk of scratches.
• Avoid Scratches: While the plate is designed to be scratch-resistant, avoid dragging sharp or heavy objects across its surface to maintain its aesthetic and functional integrity.

6. Troubleshooting

Here are solutions to common issues you might encounter:

• Plate is slipping on the desk:
  • Ensure the non-slip rubber pads are clean and free of debris.
  • Verify that the desk surface is clean and dry.
  • If pads are worn, consider replacing them with similar adhesive rubber feet.
• Morse code key does not feel secure:
  • Confirm that your Morse code key has magnetic feet. The plate relies on magnetic attraction for optimal stability with compatible keys.
  • Ensure the key's magnetic feet are clean and making full contact with the plate surface.
• Concerns about rust:
  • The plate is made of hardened steel with a sandblasted finish designed to resist rust. However, prolonged exposure to moisture or corrosive substances should be avoided.
  • Always store the plate in a dry environment.

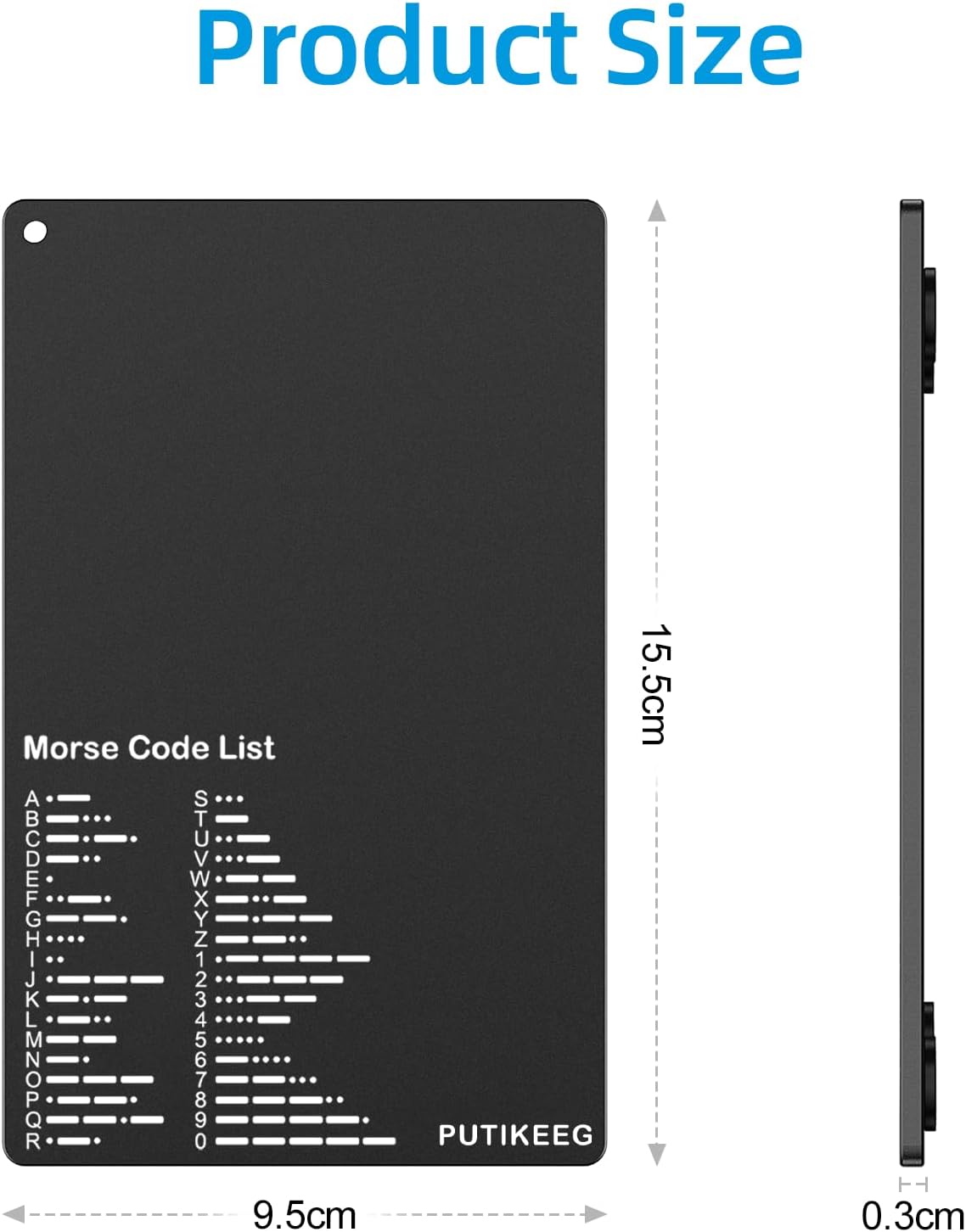

7. Specifications

8. Warranty and Support

Information regarding product warranty and customer support is not included in this manual. Please refer to the product packaging or the retailer's website for details on warranty coverage and how to contact customer service for assistance.
