Introduction
This manual provides detailed instructions for replacing the water inlet valve and its associated harness in various GE dishwasher models. This replacement part is compatible with GE GDF520PGJ5BB, GDF520PGJ5CC, GDF520PGJ5WW, GDF520PGJ6BB, GDF520PGJ6CC, GDF520PGJ6WW, GDF520PMJ0ES, GDF520PMJ2ES, GDF520PMJ4ES, GDF520PMJ5ES, and GDF520PMJ6ES dishwashers. Please read all instructions carefully before beginning the replacement process.
Safety Information
WARNING: Risk of Electric Shock and Water Damage.
- Always disconnect power to the dishwasher at the circuit breaker or fuse box before performing any service or maintenance.
- Turn off the water supply to the dishwasher before disconnecting any water lines.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- Ensure the work area is dry and well-lit.
- If you are unsure about any step, consult a qualified appliance technician.
Parts Identification
The replacement kit includes a water inlet valve and its pre-attached electrical harness. Familiarize yourself with the component before installation.

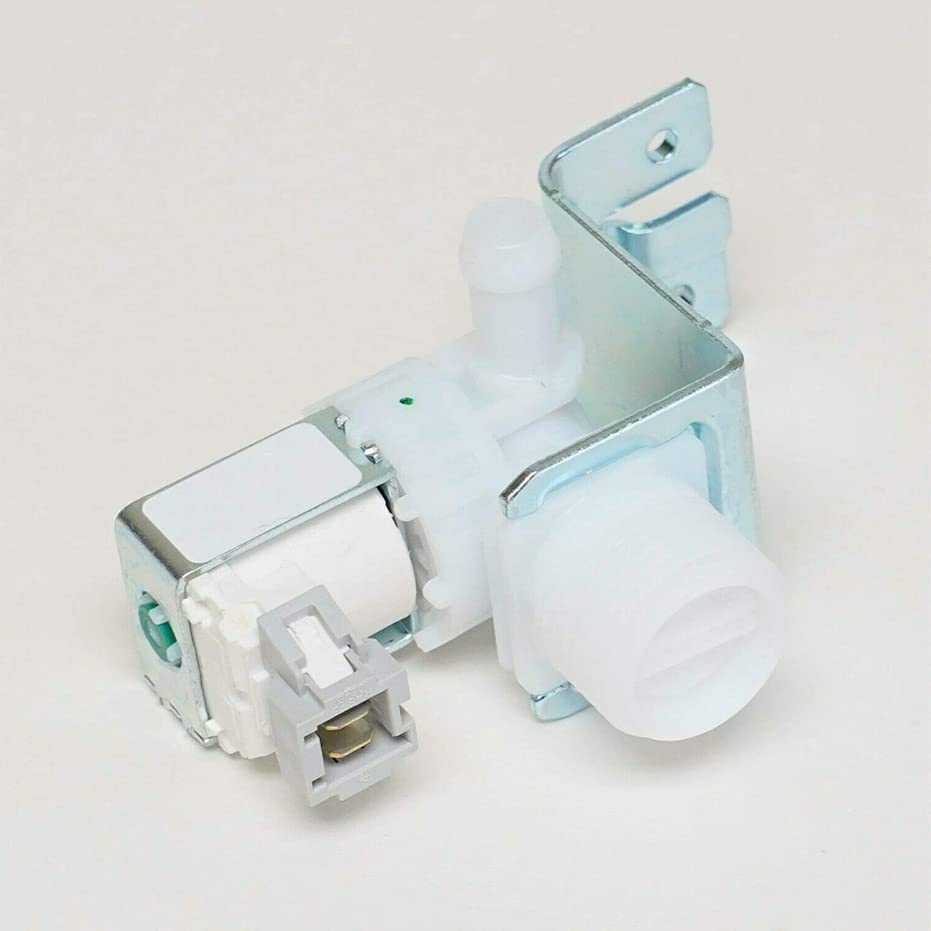

Image: The water inlet valve assembly, featuring the solenoid, water inlet port, outlet port, and attached electrical harness connector.
- Water Inlet Valve: Controls the flow of water into the dishwasher.
- Electrical Harness: Connects the valve to the dishwasher's control system.
Installation Instructions
Follow these steps carefully to replace the water inlet valve and harness.
- Preparation:
- Disconnect the dishwasher's power supply at the circuit breaker.
- Turn off the water supply valve to the dishwasher, typically located under the sink or behind the dishwasher.
- Place towels or a shallow pan under the dishwasher's water inlet area to catch any residual water.
- Accessing the Valve:
- Carefully pull the dishwasher out from its cabinet enclosure to gain access to the rear or underside.
- Locate the lower access panel at the front of the dishwasher. Remove the screws securing it and set the panel aside.
- Disconnecting the Old Valve:
- Using a wrench, disconnect the main water supply line from the old water inlet valve. Be prepared for some water to drain out.
- Disconnect the internal water line (often a rubber hose) from the valve.
- Carefully disconnect the electrical harness connector from the old valve. Note its orientation.
- Removing the Old Valve:
- The valve is typically secured by one or two screws or a mounting bracket. Remove these fasteners.
- Carefully remove the old water inlet valve from its mounting position.
- Installing the New Valve:
- Position the new water inlet valve in the same location as the old one.
- Secure the valve with the mounting screws or bracket.
- Connect the internal water line to the new valve, ensuring a secure fit.
- Connect the main water supply line to the new valve. Hand-tighten first, then use a wrench for a snug fit, but do not overtighten.
- Connect the electrical harness connector to the new valve, ensuring it clicks into place.
- Reassembly:
- Replace the lower access panel and secure it with its screws.
- Carefully slide the dishwasher back into its cabinet enclosure.
- Testing:
- Turn on the water supply valve to the dishwasher. Check for any leaks around the connections.
- Restore power to the dishwasher at the circuit breaker.
- Run a short wash cycle and observe the water filling process and check for leaks during operation.
Post-Installation Check
After completing the installation, perform the following checks to ensure proper operation:
- Leak Inspection: Visually inspect all water connections for any signs of leaks immediately after turning on the water supply and again after running the first wash cycle.
- Water Fill: During the initial wash cycle, listen for the sound of water filling the dishwasher. Ensure it fills to the appropriate level.
- Normal Operation: Confirm that the dishwasher completes its cycle without any error codes related to water intake.
Care and Longevity
While the water inlet valve is a sealed component and does not require routine maintenance, following these general dishwasher care tips can contribute to the longevity of all components:
- Regularly clean the dishwasher's filter to prevent debris from entering the water system.
- Use appropriate dishwasher detergents and rinse aids.
- Periodically check water supply hoses for kinks or wear.
Troubleshooting
If you encounter issues after replacing the water inlet valve, consider the following:
- No Water Filling:
- Check if the water supply valve is fully open.
- Ensure the dishwasher's power is on and the circuit breaker has not tripped.
- Verify the electrical harness is securely connected to the new valve.
- Inspect the water supply line for kinks or blockages.
- Continuous Water Filling/Overflow:
- This indicates a faulty water inlet valve that is stuck open. If this occurs with a newly installed valve, it may be defective.
- Immediately turn off the water supply and power to the dishwasher.
- Leaks:
- Turn off the water supply and power.
- Carefully inspect all water connections (main supply line, internal hose) for proper seating and tightness. Ensure no cross-threading occurred.
- Check if the rubber gaskets or washers are correctly installed and not damaged.
Specifications
- Product Type: Water Inlet Valve and Harness Assembly
- Compatible Dishwasher Models: GE GDF520PGJ5BB, GDF520PGJ5CC, GDF520PGJ5WW, GDF520PGJ6BB, GDF520PGJ6CC, GDF520PGJ6WW, GDF520PMJ0ES, GDF520PMJ2ES, GDF520PMJ4ES, GDF520PMJ5ES, GDF520PMJ6ES
- ASIN: B0B64WMBDD
- Brand: Generic
Warranty Information
This replacement part is typically covered by a limited manufacturer's warranty. Please refer to the product packaging or contact your retailer for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
Customer Support
For further assistance or if you encounter issues not covered in this manual, please contact the retailer or the manufacturer of the replacement part. When contacting support, have your product details (ASIN: B0B64WMBDD) and dishwasher model number ready.
