Introduction
Thank you for choosing the Vicco R-Line 40 cm Anthracite Wall Cabinet. This manual provides essential information for the safe assembly, installation, and maintenance of your new cabinet. Please read these instructions thoroughly before beginning assembly and retain them for future reference.
The R-Line kitchen wall cabinets are designed to efficiently utilize wall space, offering additional storage for your kitchen essentials. This open-shelf cabinet allows for clear and accessible organization of items such as glasses, dishes, or spices across multiple levels.
Safety Information
Important! Retain for future reference. Read carefully!
- Falling furniture can cause serious or fatal injuries due to entrapment.
- To prevent the cabinet from falling, it must be securely fastened to the wall using appropriate mounting devices.
- Before installation, check your wall material to ensure it has sufficient load-bearing capacity for the cabinet's weight and its contents.
- Use screws and wall plugs that are suitable for your specific wall type. If you are unsure, consult a local hardware store or a qualified professional.
- Always read the assembly instructions carefully and follow each step precisely.
Package Contents
Your package should contain the following items:
- Vicco R-Line 40 cm Anthracite Wall Cabinet components for self-assembly.
- Detailed Assembly Instructions.
- Required Mounting Hardware (screws, dowels, etc.).
Note: Decorative items shown in product images are not included in the delivery.
Specifications
| Brand | Vicco |
| Model Name | R-Line |
| Model Number | 37349 |
| Color | Anthracite |
| Material | 16 mm Particle Board with Melamine Resin Coating |
| Dimensions (W x D x H) | 40 cm x 29 cm x 60 cm |
| Item Weight | 11.4 Kilograms |
| Maximum Weight Capacity | 12 Kilograms |
| Number of Shelves | 3 (Adjustable) |
| Installation Type | Wall Mount |
| Assembly Required | Yes |
| Recommended Use | Storage for dishes, baskets, kitchen utensils |
Image: Dimensional drawing showing the width (400mm), depth (290mm), and height (600mm) of the wall cabinet.
Setup and Assembly
The Vicco R-Line wall cabinet requires self-assembly. Please follow the detailed steps provided in the included assembly instructions. Ensure you have all components and tools before starting.
- Unpack Components: Carefully unpack all parts and check them against the parts list in the assembly instructions.
- Assemble the Cabinet Frame: Follow the diagrams to connect the side panels, top, and bottom panels using the provided hardware.
- Install Shelves: Insert the adjustable shelf supports into the desired holes. Place the shelves onto the supports.
- Prepare for Wall Mounting: Identify the appropriate location on your wall. Use a stud finder to locate wall studs if possible, or use appropriate wall anchors for your wall type (e.g., drywall, concrete).
- Mount the Cabinet: Securely attach the cabinet to the wall using the provided mounting hardware. Ensure the cabinet is level and firmly fixed to prevent any risk of falling.

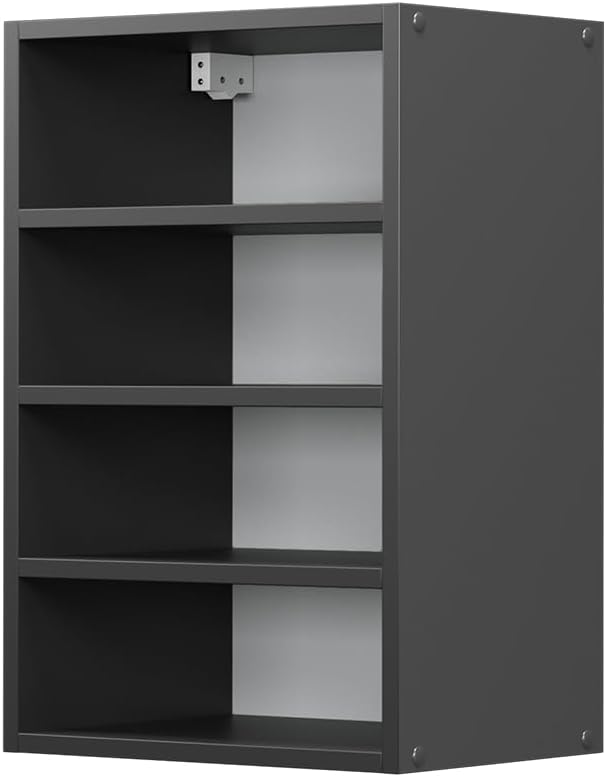

Image: An interior view of the assembled anthracite wall cabinet, showing the adjustable shelves and mounting brackets.
Image: Detailed view of the cabinet's construction, highlighting the internal structure and assembly points.
Operating Instructions (Usage)
This wall cabinet is designed for open storage in your kitchen or other suitable areas. Its adjustable shelves allow for flexible organization.
- Shelf Adjustment: To adjust the shelf height, remove the shelf and its supports. Reinsert the supports into the desired holes on the side panels, then place the shelf back into position.
- Loading Capacity: Do not exceed the maximum weight capacity of 12 kilograms per cabinet. Distribute weight evenly across the shelves.
- Recommended Items: Ideal for storing dishes, glasses, spices, small kitchen appliances, or decorative items.
Image: The Vicco R-Line wall cabinet shown as part of a complete modular kitchen system, demonstrating its intended use for open storage.
Maintenance
To ensure the longevity and appearance of your Vicco R-Line wall cabinet, follow these simple maintenance guidelines:
- Cleaning: Wipe the surfaces with a dry, soft cloth. For stubborn marks, a slightly damp cloth can be used, followed immediately by a dry cloth. Avoid abrasive cleaners, harsh chemicals, or excessive moisture.
- Spills: Clean up spills immediately to prevent staining or damage to the melamine coating.
- Inspection: Periodically check all mounting hardware and connections to ensure they remain tight and secure. Re-tighten if necessary.
- Avoid Overloading: Do not place items heavier than the maximum weight capacity on the shelves.
Troubleshooting
If you encounter any issues with your Vicco R-Line wall cabinet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet feels unstable or wobbly. | Mounting hardware is loose or not properly secured. | Check all wall mounting screws and connections. Tighten them securely. Ensure appropriate wall plugs were used for your wall type. |
| Shelves are not level. | Shelf supports are not inserted correctly or the cabinet itself is not level. | Ensure shelf supports are fully inserted into corresponding holes. Use a spirit level to check if the cabinet is mounted level on the wall; adjust if necessary. |
| Difficulty assembling parts. | Incorrect orientation of parts or missing a step in the instructions. | Refer to the detailed assembly instructions and diagrams. Double-check part numbers and orientations. Do not force parts together. |
If you continue to experience issues, please contact Vicco customer support.
Warranty and Support
For information regarding warranty coverage, returns, or technical support, please refer to your purchase documentation or visit the official Vicco website. You can also contact the seller directly for assistance.
