Benibela Digital Picture Frame JT101M-A02 User Manual

1. Introduction

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Benibela Digital Picture Frame, model JT101M-A02. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.

2. Safety Information

Observe the following safety precautions to prevent injury or damage to the device:

• Do not expose the device to water or excessive moisture.
• Avoid placing the device near heat sources or in direct sunlight for extended periods.
• Use only the provided power adapter.
• Do not attempt to disassemble or repair the device yourself. Contact customer support for assistance.
• Keep the device out of reach of children.

3. Package Contents

Verify that all items are present in the package:

• Benibela Digital Picture Frame (JT101M-A02)
• Power Adapter
• User Manual (this document)
• Stand (if applicable)

4. Setup

4.1 Initial Power On

1. Unpack the Frame: Carefully remove the digital picture frame from its packaging.
2. Attach the Stand: If your frame includes a detachable stand, securely attach it to the back of the frame.
3. Connect Power: Plug the power adapter into the DC IN port on the frame, then plug the adapter into a wall outlet. The frame will automatically power on.
4. Initial Setup Wizard: Follow the on-screen instructions to select your language, time zone, and connect to a Wi-Fi network.

Figure 1: Benibela Digital Picture Frame JT101M-A02 displaying a family photo. This image shows the front view of the frame with its screen and a smartphone mirroring the frame's content.

4.2 Connecting to Wi-Fi

A Wi-Fi connection is required to use cloud features and receive photos remotely.

1. From the home screen, tap on "Settings".
2. Select "Wi-Fi" and turn it on.
3. Choose your desired Wi-Fi network from the list.
4. Enter the Wi-Fi password and tap "Connect".

5. Operating Instructions

5.1 Main Interface Overview

The main interface provides access to various functions:

• Photos: View all stored photos.
• Videos: Play stored videos.
• Settings: Configure frame options.
• Clock: Display time and date.
• Music: Play background music (if supported).

Figure 2: The main menu interface of the Benibela Digital Picture Frame, showing icons for various functions like Clock, Video, Music, and Settings, along with weather information.

5.2 Adding Photos and Videos

There are several methods to add media to your frame:

• VPhoto App: Download the "VPhoto" app on your smartphone (available on App Store and Google Play). Connect the app to your frame using the unique frame ID. You can then send photos and short videos directly from your phone to the frame.
• Cloud Wi-Fi: Utilize the cloud service associated with the VPhoto app to send media remotely.
• E-mail: Some frames support sending photos via a dedicated email address. Check your frame's settings for this option.
• SD Card: Insert a compatible SD card (up to 32GB) into the SD card slot to display photos and videos stored on it.
• USB Drive: Connect a USB flash drive to the USB port to display media.

Figure 3: Various methods for transferring photos and videos to the digital picture frame, including the VPhoto App, Cloud Wi-Fi, E-mail, SD Card, and USB Drive, emphasizing privacy.

5.3 Photo Management

The frame supports AI Face Recognition to help classify uploaded photos.

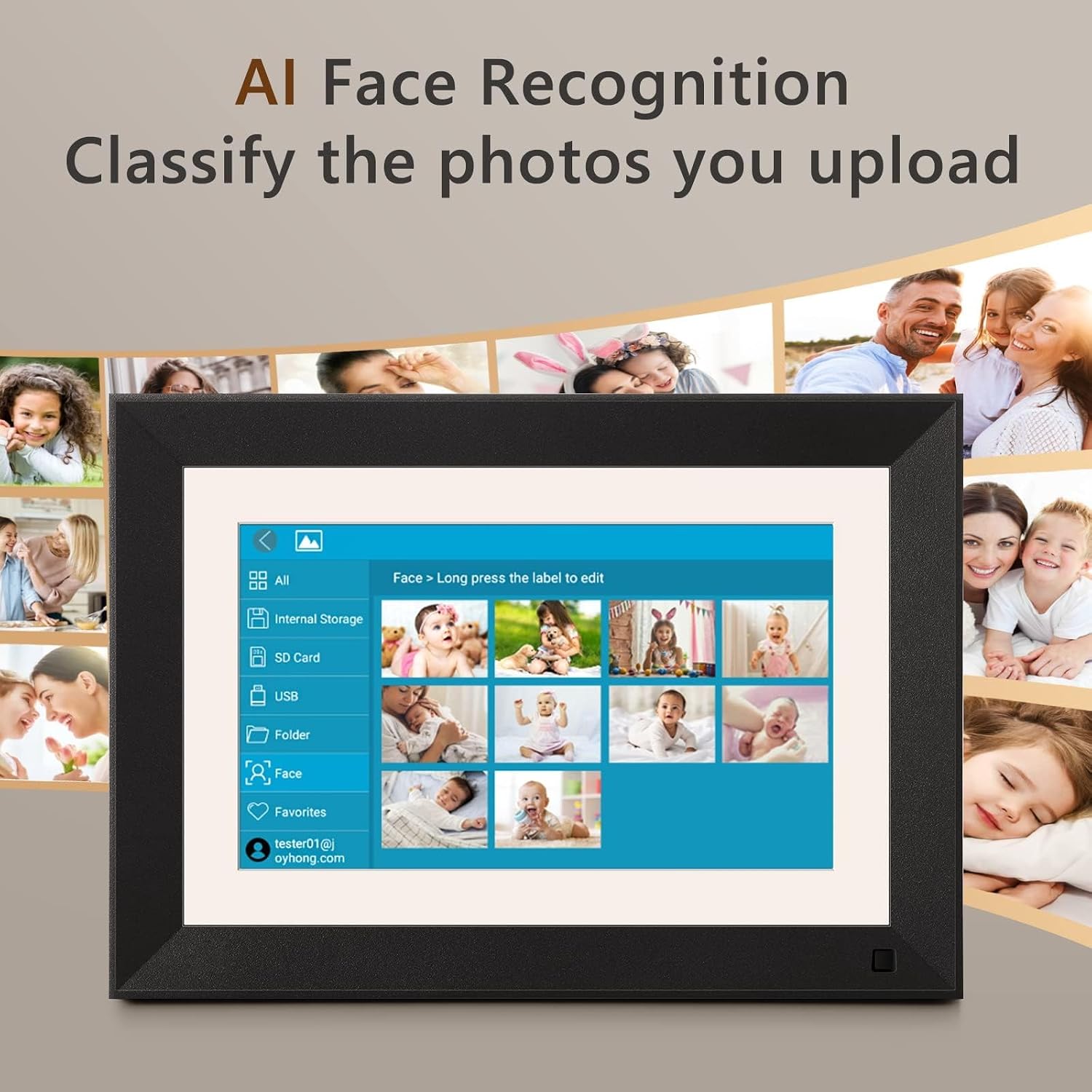

Figure 4: The photo management interface on the digital picture frame, illustrating options for organizing photos by source (internal, SD card, USB) and by recognized faces.

5.4 Advanced Features

• Gravity Sensing: The frame automatically adjusts photo orientation based on its physical position (portrait or landscape).
• Motion Detection: The frame can be set to turn on or off when motion is detected in its vicinity, saving power.
• Auto Turn On/Off: Schedule specific times for the frame to power on and off automatically.
• Memory Filters: Apply various filters to photos, such as "Memory Filter" for a vintage look or "Museum Filter" for a classic black and white effect.

Figure 5: Illustration of the frame's advanced features: Gravity Sensing for automatic orientation, Motion Detection for power saving, and Auto Turn On/Off for scheduled operation.

Figure 6: Examples of photo filters available on the frame, showing a "Memory Filter" for a sepia tone and a "Museum Filter" for a black and white effect.

6. Maintenance

6.1 Cleaning the Frame

• Screen: Use a soft, lint-free cloth specifically designed for electronics screens. Do not use abrasive cleaners or sprays directly on the screen.
• Frame Body: Wipe with a soft, dry cloth. If necessary, slightly dampen the cloth with water, then wipe dry immediately.

6.2 Software Updates

Periodically check for software updates in the "Settings" menu to ensure optimal performance and access to new features.

7. Troubleshooting

8. Specifications

Figure 7: The digital picture frame highlighting its 32GB internal storage capacity, capable of holding over 30,000 photos.

9. Warranty and Support

9.1 Warranty Information

Benibela products are covered by a limited warranty against defects in materials and workmanship. Please refer to the warranty card included in your package or visit the official Benibela website for detailed warranty terms and conditions.

9.2 Customer Support

If you encounter any issues not covered in this manual or require further assistance, please contact Benibela customer support:

• Email: support@benibela.com
• Website: Visit the Benibela Store on Amazon
