1. Introduction
This manual provides detailed instructions for the safe and effective use of the Heemol DC-DC Adjustable Step-Up Boost Converter Module. This high-performance switching current (BOOST) module is designed to convert a lower DC input voltage to a higher DC output voltage, offering broad application in various electronic projects and power supply solutions.
Please read this manual thoroughly before operating the module to ensure proper functionality and to prevent potential damage or injury.
2. Safety Information
WARNING:
- The input voltage should NOT exceed 30V to prevent potential damage to the module.
- Ensure correct polarity when connecting input and output terminals. Incorrect connections can damage the module and connected devices.
- Do not short-circuit the input or output terminals.
- Operate the module within its specified voltage and current limits. Exceeding these limits may lead to overheating and failure.
- Keep the module away from moisture, dust, and extreme temperatures.
- Handle with care to avoid electrostatic discharge (ESD) damage.
3. Product Overview
The Heemol DC-DC Adjustable Step-Up Boost Converter Module utilizes second-generation high-frequency switching technology, offering superior performance compared to older designs. It features integrated 4A efficient MOSFET switches, enabling high efficiency.
3.1. Key Features
- Wide Input Voltage Range: 3V to 32V (optimal operating range: 5V to 32V).
- Wide Output Voltage Range: 5V to 35V.
- High Efficiency: Up to 94% due to integrated 4A MOSFET switches.
- High Switching Frequency: 400KHz, allowing for smaller filter capacitors and reduced ripple.
- Adjustable Output Voltage: Via an onboard potentiometer.

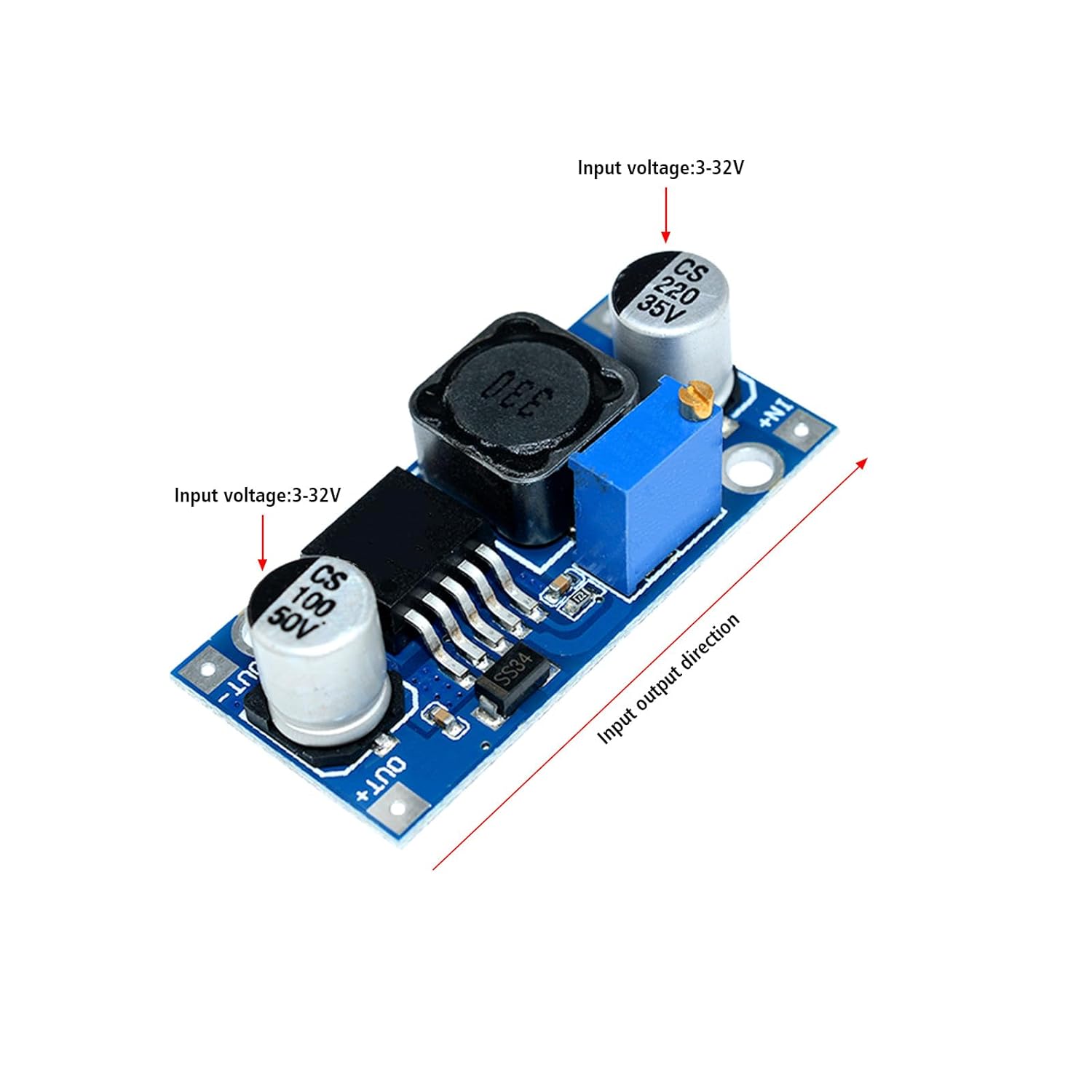

3.2. Component Identification
4. Specifications
| Parameter | Value |
|---|---|
| Model Number | Heemol-LH-0100445 |
| Input Voltage (Vin) | 3V - 32V (Optimal: 5V - 32V) |
| Output Voltage (Vout) | 5V - 35V (Adjustable) |
| Maximum Output Current | 4A |
| Maximum Output Power | 30W |
| Efficiency | Up to 94% |
| Switching Frequency | 400KHz |
| Dimensions (L x W) | 43mm x 21mm (1.69in x 0.83in) |
5. Setup and Installation
Follow these steps to correctly set up and install your DC-DC boost converter module:
- Identify Terminals: Locate the input terminals (IN+, IN-) and output terminals (OUT+, OUT-) on the module. Refer to Figure 2 for visual identification.
- Connect Input Power: Connect your DC power source to the input terminals. Ensure the positive terminal of your power source connects to IN+ and the negative terminal connects to IN-.
Important: Do not exceed 30V input voltage.
- Connect Load: Connect your load (the device or circuit requiring power) to the output terminals. Ensure the positive terminal of your load connects to OUT+ and the negative terminal connects to OUT-.
- Initial Check: Before applying power, double-check all connections for correct polarity and secure contact.
6. Operating Instructions
Once the module is connected, you can adjust the output voltage:
- Apply Power: Turn on your DC input power source. The power light on the module (refer to Figure 3) should illuminate.
- Measure Output Voltage: Use a multimeter to measure the voltage across the OUT+ and OUT- terminals.
- Adjust Output Voltage: Carefully turn the blue potentiometer (variable resistor) on the module using a small screwdriver.
- Turning the potentiometer clockwise will generally increase the output voltage.
- Turning the potentiometer counter-clockwise will generally decrease the output voltage.
- Monitor Load: Ensure the connected load operates correctly within the adjusted voltage and current.
7. Performance Data (Test Reference)
The following table provides reference data from typical test scenarios. Actual performance may vary based on input voltage, output load, and environmental conditions.
| Input Voltage (Vin) | Output Voltage (Vout) | Output Current (Iout) | Output Power (Pout) |
|---|---|---|---|
| 3V | 12V | 0.4A | 4.8W |
| 5V | 12V | 0.8A | 9.6W |
| 7.4V | 12V | 1.5A | 18W |
| 12V | 15V | 2A | 30W |
| 12V | 16V | 2A | 32W |
| 12V | 18V | 1.6A | 28.8W |
| 12V | 19V | 1.5A | 28.5W |
| 12V | 24V | 1A | 24W |
The relationship between input and output power is approximately given by: Vin * Iin * Efficiency = Vout * Iout
- Vin: Input Voltage
- Iin: Input Current
- Vout: Output Voltage
- Iout: Output Current
8. Troubleshooting
- No Output Voltage:
- Check input power source: Ensure it is providing voltage within the 3V-32V range.
- Verify connections: Confirm IN+, IN-, OUT+, OUT- are correctly wired and secure.
- Check potentiometer setting: The output voltage might be set too low. Adjust it clockwise.
- Inspect for damage: Look for any visible signs of damage on the module.
- Output Voltage Unstable/Incorrect:
- Input voltage fluctuations: Ensure your input power source is stable.
- Overload: The load might be drawing too much current, exceeding the module's 4A limit. Reduce the load.
- Loose connections: Re-check all wiring.
- Module Overheating:
- Exceeding current/power limits: Ensure the output current does not exceed 4A and power does not exceed 30W.
- Insufficient ventilation: Ensure the module has adequate airflow, especially under heavy loads.
9. Maintenance
The Heemol DC-DC Adjustable Step-Up Boost Converter Module requires minimal maintenance:
- Cleaning: Keep the module clean and free from dust and debris. Use a soft, dry brush or compressed air for cleaning.
- Storage: Store the module in a dry, cool environment when not in use.
- Inspection: Periodically inspect connections for looseness or corrosion.
10. Warranty Information
Warranty information for this product is not provided in the available product details. Please refer to your purchase documentation or contact the seller for specific warranty terms.
11. Customer Support
Customer support contact details are not provided in the available product details. For assistance, please contact the retailer or seller from whom you purchased this product.
