BERCOL XHP160.4 Rechargeable High Lumen Flashlight Instruction Manual

1. Introduction

Thank you for choosing the BERCOL XHP160.4 Rechargeable High Lumen Flashlight. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your device. Please read it thoroughly before operation.

1.1 Product Overview

The BERCOL XHP160.4 Flashlight is a high-performance illumination tool designed for various applications, including camping, hiking, fishing, emergencies, and general home use. It features an advanced XHP160.4 LED chip, delivering exceptional brightness and a long beam range.

Image 1.1: The BERCOL XHP160.4 Rechargeable High Lumen Flashlight, showcasing its design and powerful beam in a dark environment.

1.2 Key Features

• Advanced LED Technology: Equipped with an upgraded XHP160.4 LED chip, providing up to 150,000 lumens of output.
• Extended Beam Range: Capable of illuminating distances up to 1000 meters (3280 feet).
• Multiple Lighting Modes: Features 5 modes: High, Medium, Low, Strobe, and SOS.
• Zoom Functionality: Adjustable focus from a wide floodlight to a concentrated spotlight.
• USB Rechargeable: Integrated fast-charging port with overcharge and discharge protection.
• Durable Construction: Made from aviation-grade aluminum alloy, offering scratch, abrasion, and corrosion resistance.
• Water and Shock Resistant: IP67 rated for water resistance and designed to withstand impacts.

Image 1.2: Illustration of the flashlight's super bright and long-range capabilities, highlighting its 150,000 lumens output and 3280 ft beam range, along with icons for rechargeable, 8-10 hours runtime, 5 modes, and IPX6 waterproof rating.

1.3 Package Contents

• BERCOL XHP160.4 Flashlight
• USB Charging Cable
• Lanyard

2. Setup

2.1 Initial Charge

Before first use, fully charge the flashlight. Connect the provided USB charging cable to the flashlight's charging port and to a compatible USB power source (e.g., AC adapter, power bank, laptop). The power indicator light will show charging status.

3. Operating Instructions

3.1 Power On/Off

Press the power button once to turn the flashlight on. To turn it off, cycle through all modes until it switches off, or press and hold the power button for approximately 5 seconds in any mode.

3.2 Switching Modes

With the flashlight on, press the power button repeatedly to cycle through the 5 lighting modes in the following order: High → Medium → Low → Strobe → SOS.

Image 3.1: Visual representation of the flashlight's 5 lighting modes: High, Medium, Low, Strobe, and SOS, demonstrating their appearance in a dark outdoor setting.

3.3 Zoom Function

To adjust the beam focus, gently pull the head of the flashlight outwards for a concentrated spotlight beam, or push it inwards for a wider floodlight beam. This allows adaptation to different lighting environments.

4. Charging the Flashlight

4.1 Charging Process

The flashlight is equipped with a USB charging port. Connect the provided USB cable to the port. The power indicator light will change color (e.g., from green for low power to red for fully charged) to indicate charging status. A full charge typically takes 4-5 hours and provides 8-12 hours of continuous operation, depending on the mode used.

Image 4.1: Diagram illustrating the USB charging port and various compatible charging methods (laptop, power bank, AC adapter, car charger), along with power indicator states (low power and fully charged).

4.2 Power Bank Functionality

The flashlight features a USB output port, allowing it to function as a power bank to charge other devices, such as your smartphone, in emergency situations.

5. Maintenance

5.1 General Care

• Keep the flashlight clean and dry. Wipe with a soft, damp cloth if necessary.
• Avoid dropping the flashlight or subjecting it to severe impacts.
• Store in a cool, dry place away from direct sunlight and extreme temperatures.

5.2 Battery Care

• To maintain battery health, charge and discharge the product at least once every three months if it is not used for an extended period.
• The integrated battery has a long lifespan, designed for over 150,000 charge cycles.

6. Safety Information

• Eye Safety: Do not point the flashlight directly into your eyes or the eyes of others. Direct exposure to the powerful LED light can cause irreversible retinal damage.
• Water Resistance: The flashlight is rated IP67 for water resistance, meaning it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it is not suitable for diving.
• Charging Safety: Always charge the flashlight away from flammable and explosive materials.
• Children: Keep out of reach of children.

Image 6.1: The BERCOL flashlight demonstrating its IP67 water-resistant feature under water droplets, alongside its approximate dimensions (19.3 inches length, 6.3 inches head diameter, 6 inches body diameter).

7. Troubleshooting

If you encounter issues with your BERCOL flashlight, consider the following general troubleshooting steps:

• Flashlight not turning on: Ensure the battery is fully charged.
• Dim light output: Recharge the battery. Check for any obstructions on the lens.
• Inconsistent mode switching: Ensure the power button is pressed firmly and released completely between presses.

For persistent issues, please refer to the support information provided with your purchase.

8. Specifications

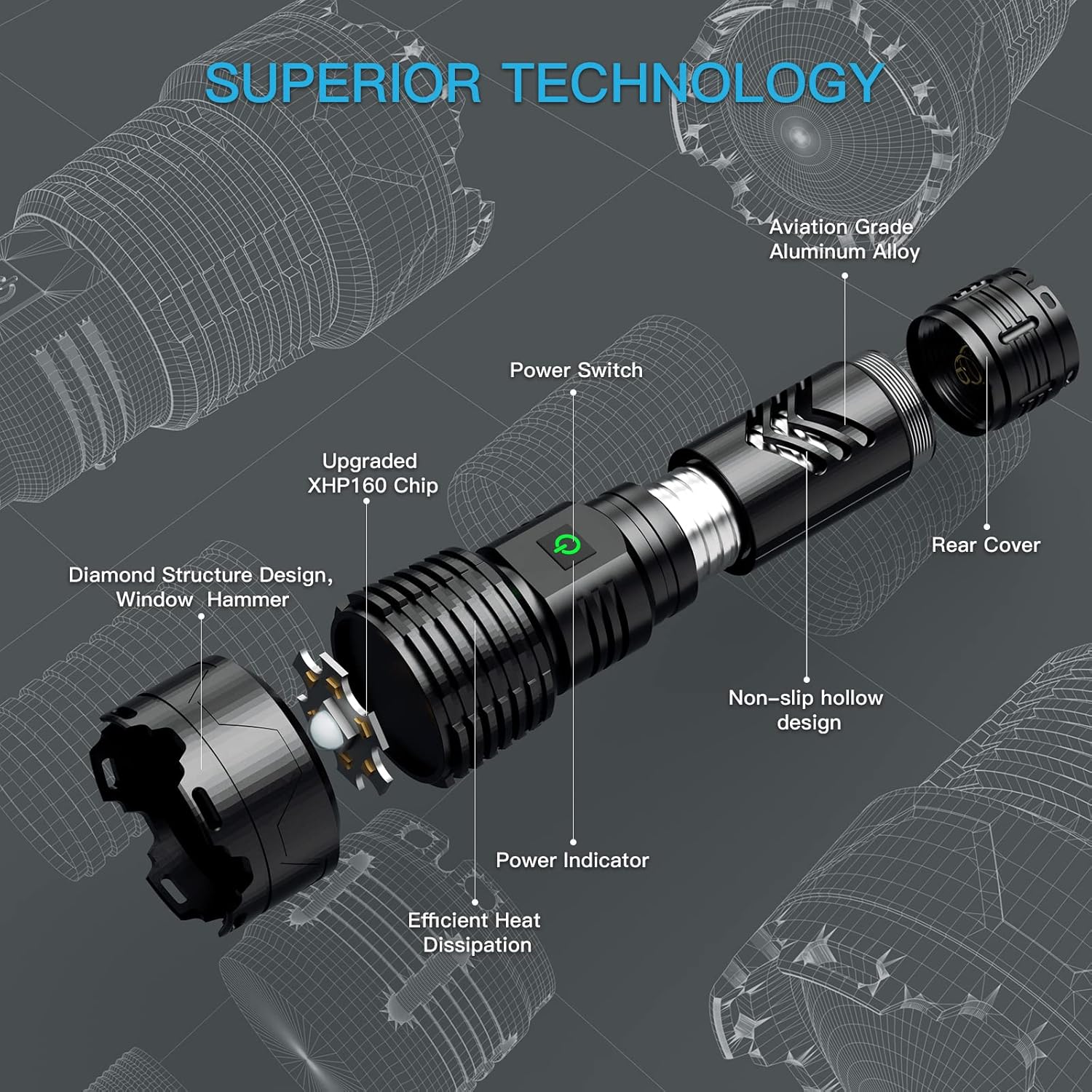

Image 8.1: Exploded view of the BERCOL flashlight, detailing its internal components such as the upgraded XHP160 chip, power switch, power indicator, efficient heat dissipation, non-slip hollow design, and aviation-grade aluminum alloy construction.

9. Warranty and Support

Information regarding specific warranty terms and customer support channels for the BERCOL XHP160.4 Rechargeable High Lumen Flashlight is not available in the provided product data. Please refer to the documentation included with your purchase or contact the seller directly for warranty claims and technical assistance.
