ALLJOY Heated Blanket Electric Blanket Throw (50'' x 60'') Instruction Manual

1. Introduction

Thank you for choosing the ALLJOY Heated Blanket Electric Blanket Throw. This manual provides essential information for the safe and efficient use of your new heated blanket. Please read all instructions carefully before use and retain this manual for future reference.

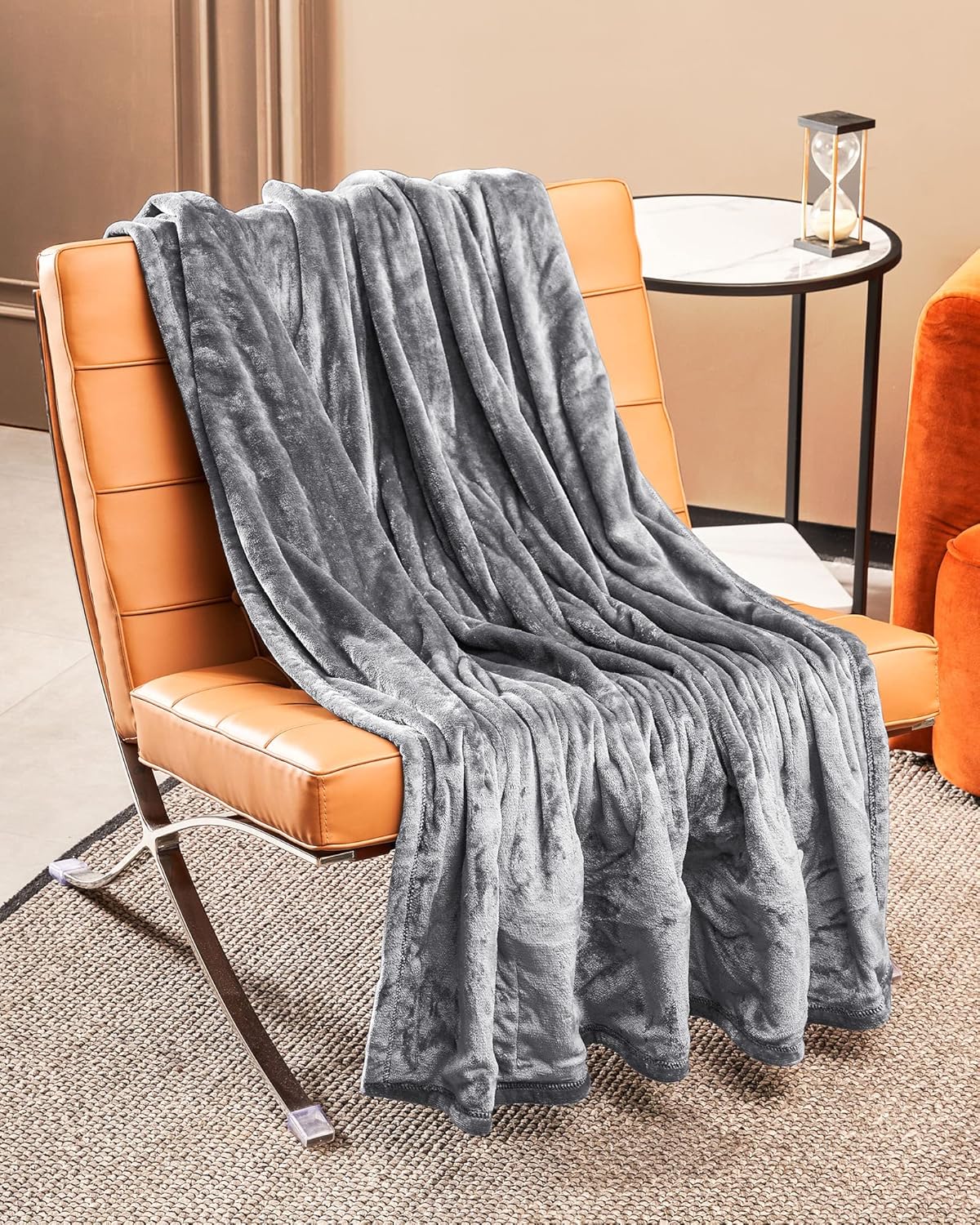

Image: The ALLJOY Heated Blanket in grey, draped over a brown leather armchair, showcasing its soft flannel texture.

2. Important Safety Information

To reduce the risk of burns, electric shock, fire, or injury, this product must be used in accordance with the following instructions:

• Do not use with an infant, child, incapacitated person, or anyone insensitive to heat.
• Do not use on areas of the body that are swollen, inflamed, or have open wounds.
• Never use the blanket if it is wet.
• Do not use pins or other metallic objects with this blanket. They may damage the electrical wiring.
• Do not use if the power cord or controller is damaged.
• Always unplug the blanket from the electrical outlet when not in use.
• Do not dry clean this product. Dry cleaning solvents may damage the insulation of the heating element.
• Do not tuck in, pinch, or fold the power cord.
• Ensure the controller is not covered or placed under the blanket during use to prevent overheating.

3. Package Contents

• 1 x ALLJOY Heated Blanket Electric Blanket Throw (50'' x 60'')
• 1 x Detachable Controller with Power Cord
• 1 x User Manual

4. Product Features

• Super Cozy Flannel: Made of 200GSM super cozy flannel for comfort and warmth.
• Fast & Even Heating: Built with tense and evenly distributed heating wires for quick and consistent warmth.
• 6 Heating Levels: Adjustable heat settings (85-110°F) to customize your comfort.
• 8 Timer Settings: Programmable auto-off timer (1-8 hours) for energy saving and safety.
• Safety Assurance: ETL certified with overheat protection.
• Machine Washable: Easy to clean and maintain.
• Long Power Cord: 9.5ft power cord for flexible use.

Image: A cross-section diagram illustrating the internal layers of the heated blanket, highlighting the heating wires and flannel material.

5. Setup Instructions

1. Unpack the heated blanket and controller from its packaging.
2. Lay the blanket flat on a bed, sofa, or other desired surface.
3. Locate the connector on the blanket and the corresponding plug on the controller.
4. Firmly connect the controller plug into the blanket connector until it clicks securely into place.
5. Plug the power cord of the controller into a standard 120V AC electrical outlet.

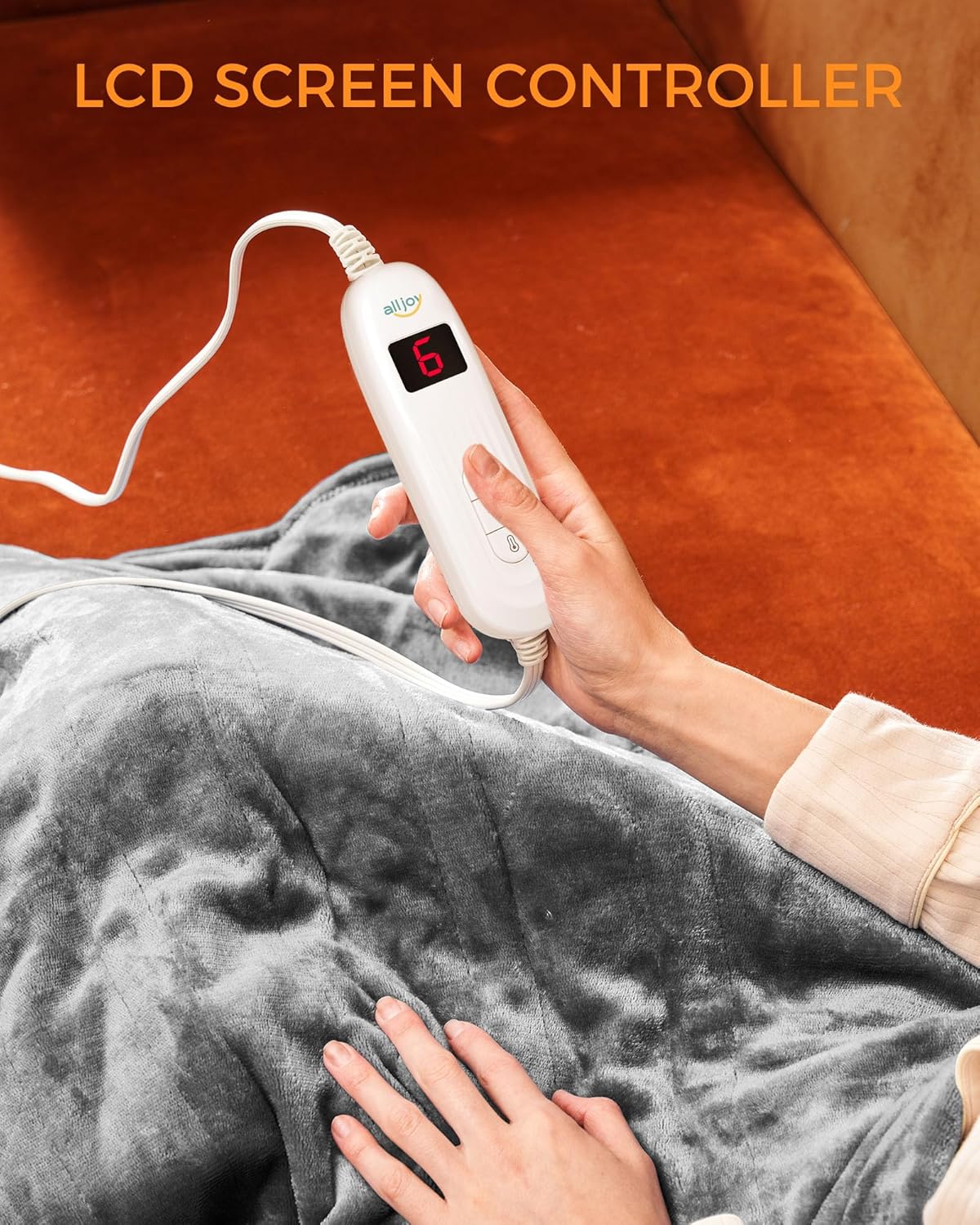

Image: A hand holding the ALLJOY heated blanket controller, displaying the current heat setting on its LCD screen.

6. Operating Instructions

The controller allows you to adjust the heat level and set a timer for automatic shut-off.

Power On/Off

• Press the power button (O/I) to turn the blanket on or off. The display will illuminate when on.

Adjusting Heat Levels

• Press the 'Heat' button (+/-) to cycle through the 6 heating levels (L1-L6 or 1-6, depending on model).
• The current heat level will be displayed on the controller's screen.

Setting the Timer

• Press the 'Timer' button (Clock icon) to select an auto-off time from 1 to 8 hours.
• The selected timer duration will be displayed on the screen. The blanket will automatically turn off after the set time.

Image: A person sleeping soundly under the ALLJOY Heated Blanket, illustrating its use for warmth during rest.

7. Maintenance

Cleaning Instructions

1. Always unplug the blanket from the wall outlet and detach the controller before cleaning.
2. Machine wash on a gentle cycle with cold water.
3. Use a mild detergent. Do not use bleach.
4. Tumble dry on low heat or air dry. Ensure the blanket is completely dry before reconnecting the controller or plugging it in.
5. Do not iron or dry clean.

Image: The ALLJOY Heated Blanket being prepared for machine washing, demonstrating its easy care.

8. Troubleshooting

• Blanket not heating: Ensure the power cord is securely plugged into both the wall outlet and the blanket connector. Check if the outlet is functional.
• Controller display not working: Verify power connection. If the issue persists, contact customer support.
• Blanket feels too hot or not hot enough: Adjust the heat settings using the controller.
• Automatic shut-off: The blanket has a built-in timer. If it turns off unexpectedly, check the timer setting.

9. Specifications

10. Warranty and Support

The ALLJOY Heated Blanket comes with a 365-day worry-free warranty. For any product inquiries, technical support, or warranty claims, please contact ALLJOY customer support. Refer to the contact information provided with your purchase or visit the official ALLJOY website for assistance.
