1. Introduction
Thank you for choosing the VIFOCUFY 12V 3A AC Adapter Charger. This product is designed to provide a reliable power supply for compatible AeroGarden Harvest series indoor gardening systems. Please read this manual carefully to ensure proper usage and to maximize the lifespan of your adapter.
Image 1.1: The VIFOCUFY 12V 3A AC Adapter Charger with its power cord.
2. Compatibility
This VIFOCUFY AC Adapter is specifically designed for use with various AeroGarden Harvest series models. Please verify your AeroGarden model number against the list below to ensure compatibility.
Compatible AeroGarden Models:
- AeroGarden Harvest 360 / Slim
- AeroGarden Harvest Elite / Elite 360 / Elite Slim
- AeroGarden Model Numbers: 100690, 100690-RED, 100690-WHT, 100690-BLK, 100690-GRY
- AeroGarden Model Numbers: 100691, 100691-BSS, 100691-PSG, 100691-PPL, 100691-PCP
- AeroGarden Model Numbers: 100692, 100692-WHT, 100692-RED, 100692-BLK
- AeroGarden Model Numbers: 100693, 100693-PPL, 100693-PRE, 100693-BSS, 100693-PCP
- AeroGarden Model Numbers: 100694, 100694-SGE, 100694-BLK, 100694-WHT
- AeroGarden Model Numbers: 100695, 100695-PCP, 100695-PPL, 100695-BSS
Note: This charger is not compatible with AeroGarden models not listed above. Please check your unit's compatibility before use.
Image 2.1: Visual guide to compatible AeroGarden Harvest series models.
3. Specifications
| Feature | Specification |
|---|---|
| Input Voltage | AC 100V-240V |
| Output Voltage | 12 Volts |
| Output Current | 3 Amps |
| Power Cable Length | 6 feet (1.8 meters) |
| Connector Type | Male-to-Male (Barrel Connector) |
| Plug Format | Type B (US Standard) |
| Item Model Number | VFC-001 |
| Item Weight | 6.4 ounces |
| Dimensions (Adapter Body) | 2.7 x 1.6 x 1.2 inches (approximate) |
Image 3.1: Detailed dimensions of the adapter body.
Image 3.2: Illustration of the 6.5-foot (1.8 meter) power cord length.
4. Setup Instructions
Follow these steps to correctly set up your VIFOCUFY AC Adapter with your AeroGarden unit:
- Unpack the Adapter: Carefully remove the VIFOCUFY AC Adapter from its packaging.
- Verify Compatibility: Double-check that your AeroGarden model is listed as compatible in Section 2 of this manual.
- Connect to AeroGarden: Insert the barrel connector end of the VIFOCUFY AC Adapter into the power input port on your AeroGarden unit. Ensure a snug and secure connection.
- Connect to Power Outlet: Plug the AC prongs of the adapter into a standard 100V-240V AC wall outlet.
- Power On: Your AeroGarden should now receive power. Refer to your AeroGarden's specific manual for instructions on initial setup and operation.
Image 4.1: The VIFOCUFY adapter providing power to an AeroGarden Harvest Elite unit.
Image 4.2: The VIFOCUFY adapter plugged into a standard wall outlet.
5. Operating Instructions
The VIFOCUFY AC Adapter operates automatically once connected to a power source and a compatible AeroGarden unit. It converts the AC wall current to the appropriate 12V DC power required by your AeroGarden.
- Ensure the adapter is always plugged into a functional wall outlet.
- Do not attempt to use this adapter with devices requiring different voltage or current specifications.
- The adapter is designed for indoor use only.
Image 5.1: An AeroGarden unit operating with the VIFOCUFY power adapter.
6. Safety Features
The VIFOCUFY AC Adapter is equipped with multiple safety protection functions to ensure safe and reliable operation:
- Over Temperature Protection (OTP): Prevents overheating of the adapter.
- Over Voltage Protection (OVP): Safeguards against excessive voltage input.
- Over Current Protection (OCP): Protects against current exceeding safe limits.
- Over Load Protection (OLP): Prevents damage from excessive power draw.
- Short Circuit Protection (SCP): Automatically shuts down in case of a short circuit.
- Over Charge Protection: Ensures safe charging by preventing overcharging.

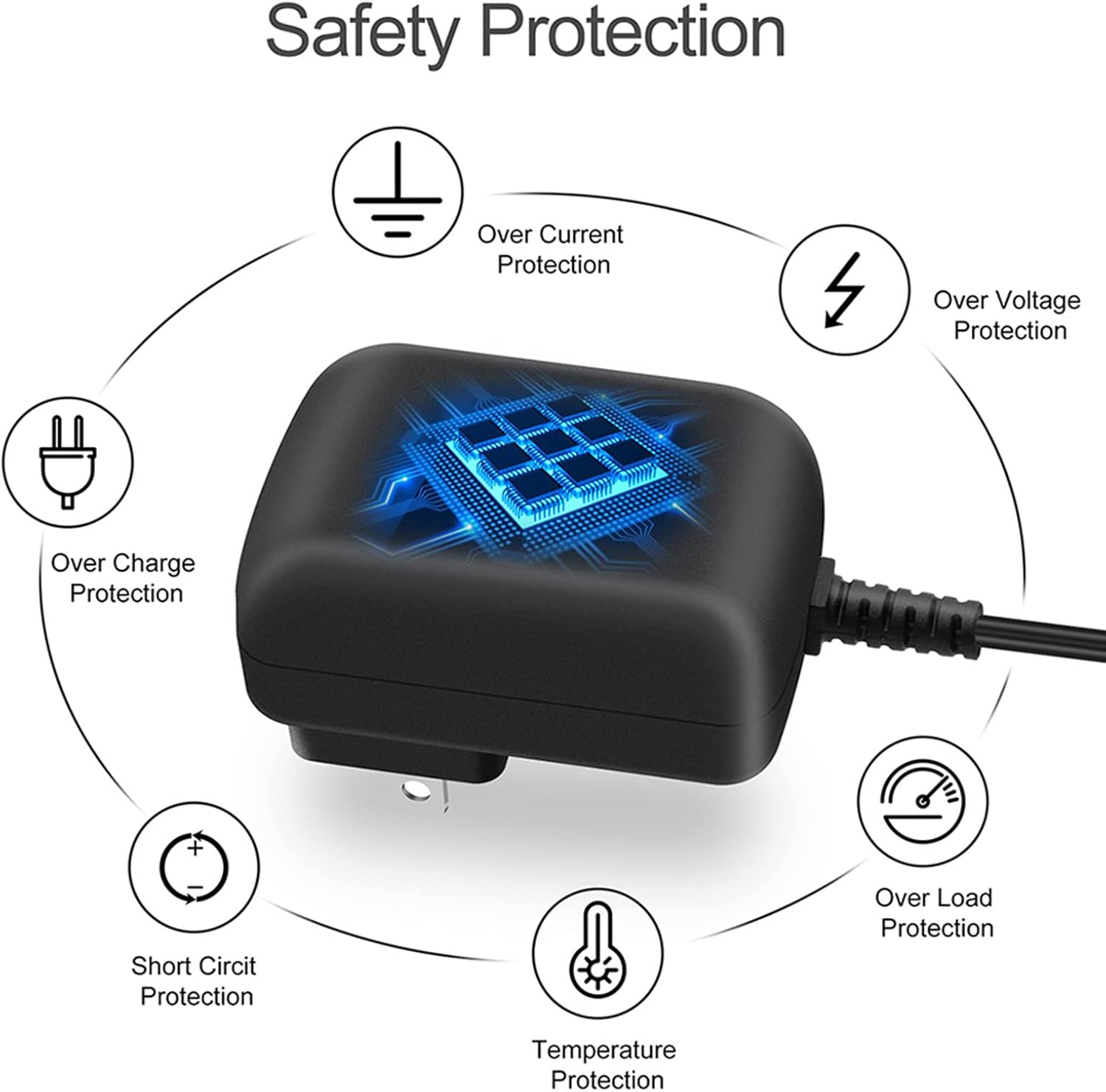

Image 6.1: Visual representation of the adapter's built-in safety protections.
7. Maintenance
To ensure optimal performance and longevity of your VIFOCUFY AC Adapter, follow these simple maintenance guidelines:
- Cleaning: Disconnect the adapter from the power outlet and your AeroGarden before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
- Storage: When not in use, store the adapter in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling the cable to prevent damage.
- Inspection: Periodically inspect the power cord and adapter body for any signs of damage, such as cuts, fraying, or cracks. If damage is observed, discontinue use immediately.
8. Troubleshooting
If you encounter issues with your VIFOCUFY AC Adapter, please refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| AeroGarden not powering on. | 1. Adapter not properly connected. 2. Wall outlet is not functional. 3. AeroGarden model is incompatible. 4. Adapter or AeroGarden malfunction. | 1. Ensure both ends of the adapter are securely plugged in. 2. Test the wall outlet with another device. 3. Refer to Section 2 for compatibility. Ensure your AeroGarden model is listed. 4. If issues persist, contact VIFOCUFY customer support. |
| Adapter feels excessively hot. | 1. Overload or poor ventilation. 2. Internal fault. | 1. Disconnect immediately. Ensure the adapter is in a well-ventilated area and not covered. Verify the AeroGarden is not drawing excessive power. 2. Discontinue use and contact VIFOCUFY customer support. |
| Visible damage to the adapter or cable. | Physical damage. | Discontinue use immediately to prevent electrical hazards. Do not attempt to repair. Contact VIFOCUFY customer support for assistance. |
9. Warranty and Support
VIFOCUFY provides a 12-month quality assurance for this product. If you have any further questions, concerns, or require support, please do not hesitate to contact us. We are committed to providing solutions and assistance as quickly as possible.
For more information or to contact support, please visit the official VIFOCUFY store or contact us through your purchase platform.
VIFOCUFY Store: Visit the VIFOCUFY Store on Amazon
