Introduction
The Technical Pro CLUB15 is a complete wireless speaker system designed for powerful audio performance. This system includes two 15-inch rechargeable Bluetooth speakers, stands, a remote control, a microphone, and integrated lighting. It features TWS (True Wireless Stereo) technology, allowing both speakers to connect wirelessly to a single Bluetooth source for a synchronized stereo experience without the need for audio cables between them. The built-in rechargeable battery provides hours of continuous music playback, making it ideal for various applications.
Figure 1: Technical Pro CLUB15 Speaker System with included accessories.
What's in the Box
Upon unboxing, please ensure all the following components are present:
- Technical Pro CLUB15 15" Rechargeable Bluetooth Speakers (2 units)
- Speaker Stands (2 units)
- Remote Control
- Microphone
- Party Light
- Power Cable
- User Manual (this document)
Setup
Follow these steps to set up your Technical Pro CLUB15 speaker system for optimal performance.
1. Speaker Placement and Stand Assembly
Carefully remove the speakers and stands from their packaging. Extend the legs of the speaker stands and secure them firmly on a flat, stable surface. Place each speaker onto a stand, ensuring it is securely seated on the pole mount. The speakers are equipped with wheels for easy transport before placement.

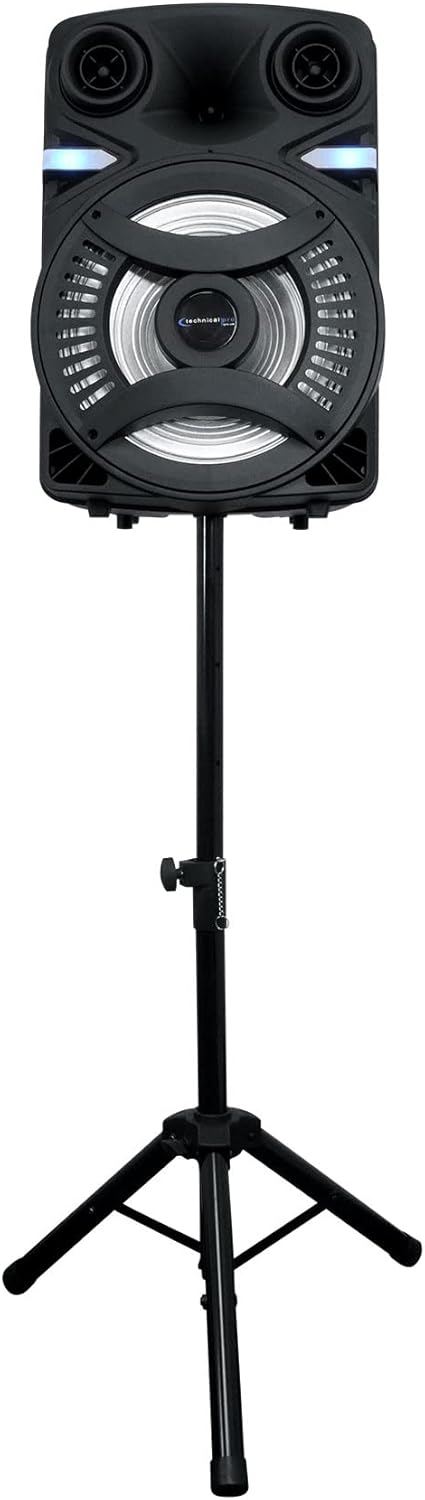

Figure 2: Speaker mounted on its stand.
2. Power Connection and Charging
Connect the provided power cable to the AC input on the rear panel of each speaker and then to a standard electrical outlet (110/220v). The built-in rechargeable battery will begin charging automatically. It is recommended to fully charge the speakers before first use for optimal battery life.

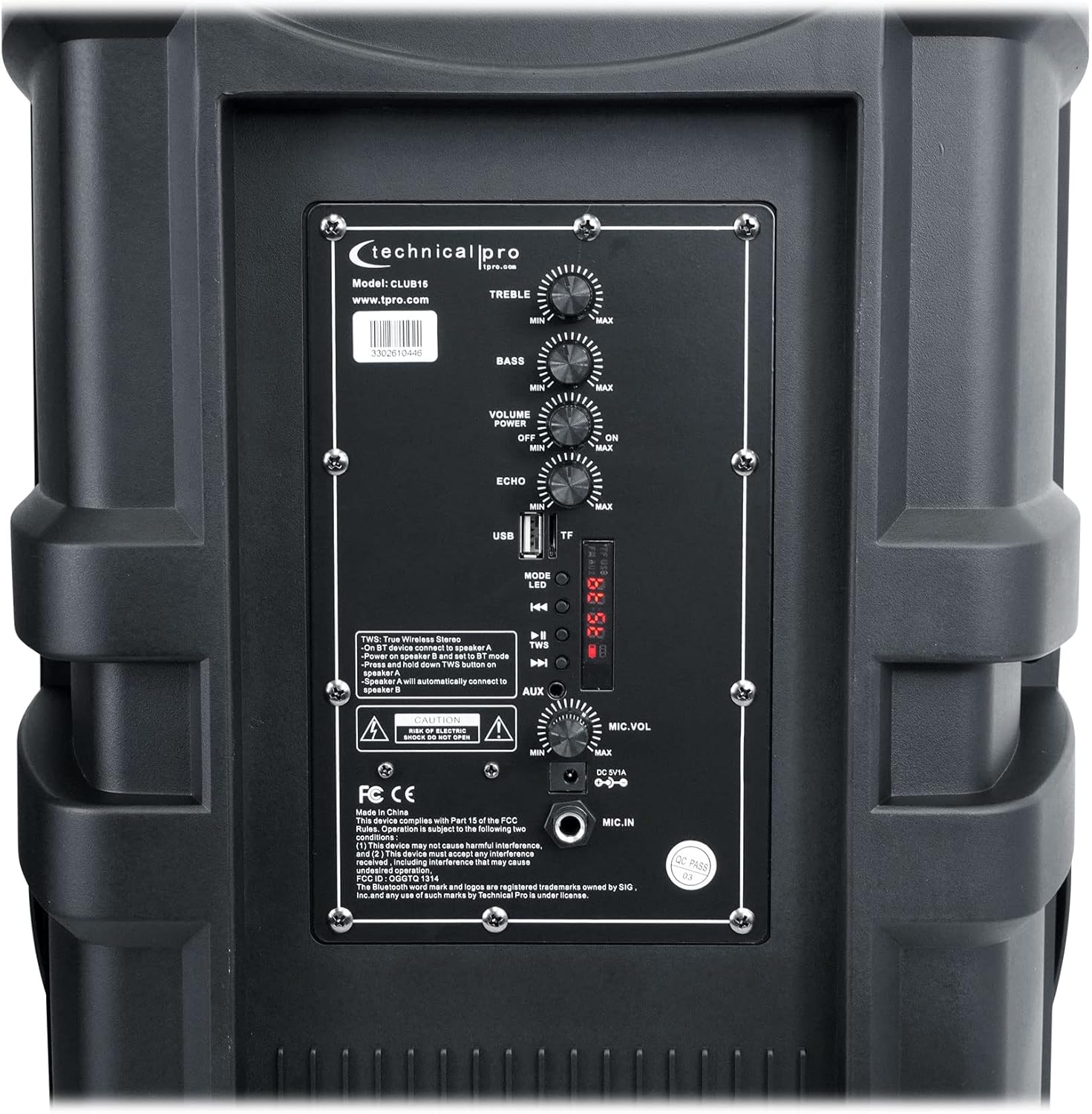

Figure 3: Rear control panel with power input (DC 12V) and other controls.
Ensure the power switch on the rear panel is in the OFF position before connecting the power cable. Once connected, you can turn the power switch ON to operate the speaker or charge the battery.
Operating Instructions
1. Basic Controls Overview
The rear panel of each speaker features various controls for audio adjustment and input selection:
- TREBLE: Adjusts the high-frequency output.
- BASS: Adjusts the low-frequency output.
- VOLUME: Controls the overall master volume.
- ECHO: Adjusts the echo effect for the microphone input.
- MIC.VOL: Controls the volume of the microphone input.
- MODE: Switches between input sources (Bluetooth, USB, TF Card, AUX).
- LED: Toggles the LED lights on/off.
- USB/TF Card Slots: For playing audio files from USB drives and TF cards.
- AUX Input: 3.5mm input for external audio devices.
- MIC.IN: 1/4" input for the included microphone.
2. Bluetooth Connectivity (A2DP & AVRCP)
- Power on the speaker(s).
- Press the MODE button until "BLUE" or "Bluetooth" appears on the LCD screen, indicating Bluetooth mode.
- On your Bluetooth-enabled device (smartphone, tablet, etc.), search for available Bluetooth devices.
- Select "TECHNICAL PRO" or "CLUB15" from the list.
- Once paired, the speaker will emit a confirmation tone, and you can begin streaming audio wirelessly.
Bluetooth Range: Approximately 30 feet (9 meters).
3. TWS (True Wireless Stereo) Function
The TWS function allows two CLUB15 speakers to connect wirelessly to each other, creating a true stereo sound experience from a single Bluetooth source.
- Ensure both CLUB15 speakers are powered on and in Bluetooth mode.
- On one of the speakers (this will be your primary speaker), press and hold the MODE button for a few seconds until you hear a confirmation tone, indicating TWS pairing mode.
- The primary speaker will automatically search for and connect to the second speaker. Once connected, you will hear another confirmation tone.
- Now, connect your Bluetooth device to the primary speaker as described in the "Bluetooth Connectivity" section. Audio will play through both speakers in stereo.
Note: When TWS is active, all other inputs (USB, TF Card, AUX, MIC) will only function on the primary speaker. Only Bluetooth audio will be streamed to both speakers simultaneously.
4. USB/TF Card Playback
The CLUB15 speakers support playback of .mp3 and .wav files from USB flash drives (up to 120GB) and TF cards (up to 32GB).
- Insert a USB flash drive or TF card into the corresponding slot on the rear panel.
- The speaker will automatically switch to USB or TF Card mode and begin playing audio. If not, press the MODE button to select the correct input.
- Use the playback controls (Play/Pause, Next/Previous Track) on the speaker's LCD screen or the remote control to manage your music. The repeat function is available for continuous playback.
5. Microphone Usage
Connect the included microphone to the 1/4" MIC.IN jack on the rear panel.
- Adjust the microphone volume using the MIC.VOL knob.
- Apply echo effect to the microphone audio using the ECHO knob.
Note: When TWS is active, the microphone input will only be active on the primary speaker.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your Technical Pro CLUB15 speakers.
- Cleaning: Use a soft, dry cloth to wipe down the speaker's exterior. Avoid using abrasive cleaners, solvents, or harsh chemicals, as they may damage the finish.
- Battery Care: To maximize the life of the built-in rechargeable battery, avoid completely draining it frequently. Recharge the battery regularly, especially if the speaker will not be used for an extended period. Store the speaker in a cool, dry place.
- Storage: When not in use, store the speakers in a clean, dry environment, away from extreme temperatures and direct sunlight.
- Handling: While the speakers feature a rugged ABS plastic face and perforated steel grill, handle them with care to prevent damage to internal components or the exterior.
Troubleshooting
If you encounter issues with your Technical Pro CLUB15 speakers, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/Speaker not turning on. | Battery drained; Power cable not connected; Power switch off. | Charge the battery; Ensure power cable is securely connected; Turn the power switch ON. |
| No sound from speaker. | Volume too low; Incorrect input mode; Device not paired (Bluetooth); Audio cable loose. | Increase VOLUME; Press MODE to select correct input; Re-pair Bluetooth device; Check audio cable connections. |
| Bluetooth device not pairing. | Speaker not in Bluetooth mode; Device too far; Interference; Speaker already paired. | Ensure speaker is in Bluetooth mode; Move device closer (within 30 ft); Turn off other Bluetooth devices; Disconnect from previous device. |
| TWS not connecting. | Speakers not in TWS pairing mode; Too far apart. | Ensure both speakers are in Bluetooth mode, then press and hold MODE on one speaker to initiate TWS pairing; Keep speakers within close proximity during pairing. |
| Microphone not working. | MIC.VOL too low; Microphone not connected properly; TWS active (mic only works on primary speaker). | Increase MIC.VOL; Ensure microphone is fully plugged into MIC.IN; If TWS is active, use the microphone with the primary speaker. |
| USB/TF card not playing. | Incorrect file format; Card/drive not inserted correctly; Max size exceeded. | Ensure files are .mp3 or .wav; Reinsert card/drive; Check if size is within limits (USB 120GB, TF 32GB). |
Specifications
| Feature | Detail |
|---|---|
| Model Number | CLUB15 |
| Peak Power | 6000 Watts |
| Woofer Size | 15 inches (LED woofer, 1" voice coil) |
| Tweeter Type | Piezo Tweeter |
| Power Source | Battery Powered (Built-in rechargeable battery) |
| Voltage | 110/220v |
| Bluetooth Version | A2DP & AVRCP stereo Bluetooth device compatible |
| Bluetooth Range | 30 Feet (approx. 9 meters) |
| USB Max Size | 120GB |
| TF Card Max Size | 32GB |
| Supported Audio Files | .mp3 & .wav |
| Inputs | Bluetooth, USB, TF Card, Aux (3.5mm), 1/4'' Microphone Input |
| Impedance | 8 ohms |
| Sensitivity | 95 ±2dB (1W@1M) |
| Material | ABS Plastic Face & Rugged perforated steel grill |
| Product Weight (each) | 39 lbs (17.7 kg) |
| Product Dimensions (each) | 16.34" L x 12.8" W x 25" H (41.5 cm L x 32.5 cm W x 63.5 cm H) |
| UPC | 817802017729 |
Warranty and Support
Technical Pro products are designed for reliability and performance. For specific warranty details and terms, please refer to the warranty card included with your product or visit the official Technical Pro website. Keep your purchase receipt as proof of purchase for any warranty claims.
For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Technical Pro customer support through their official channels. You can often find contact information on the manufacturer's website or through the retailer where the product was purchased.
