Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your new Giantex Full Size Bed Frame with 4 Drawers. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This bed frame is designed to offer a sturdy sleeping surface and integrated storage solutions.
Safety Information
WARNING:
- Do not exceed the weight limit of 660 lbs for the bed frame.
- Each drawer has a weight limit of 22 lbs. Do not overload.
- Be cautious of sharp edges during assembly and use.
- Follow assembly instructions carefully to prevent instability or collapse.
- This bed frame is designed for light sleepers; if you are a restless sleeper, consider a sturdier bed frame.
- Keep small parts away from children during assembly to avoid choking hazards.
Product Features
- Helpful Storage Addition: The metal bed features 4 large drawers fitted with smooth PV casters, ideal for storing seasonal clothes, bed sheets, toys, and more. This design is particularly beneficial for small apartments with limited space.
- For Your Own Headboard: Six pre-drilled holes are located on the head side, allowing for the installation of a personalized headboard. The footboard features a rustic industrial design.
- Strong Metal Structure: Constructed from sprayed metal, the heavy-duty platform bed is rustproof and sturdy, capable of withstanding up to 660 lbs without deformation.
- Essential Noise-Free Part: EVA mute bars are strategically placed on the metal frame to reduce friction and noise, ensuring a stable and quiet sleeping experience. Six H-shaped parts further enhance mattress stability.
- Worry-Free Installation: The bed frame's construction is designed for simplified assembly. All necessary components are included, and protective foot pads prevent floor scratches.
Setup and Assembly
The Giantex Full Size Bed Frame is designed for straightforward assembly. All necessary tools and hardware are included in the package. Please follow the step-by-step instructions provided in the included manual. It is recommended to assemble the bed frame in the room where it will be used.
For a visual guide on assembling a similar platform bed frame, please refer to the video below:
Assembly demonstration for a wooden platform bed frame, illustrating general steps and techniques. Note: Specific components may vary slightly from your Giantex model.
For a visual overview of the bed frame's features, including the drawers, please watch the following video:
Product showcase of the Giantex bed frame, highlighting the integrated storage drawers and overall design.
Operating Instructions
- Drawer Usage: The four storage drawers are equipped with smooth PV casters for easy opening and closing. Gently pull the drawer outwards to access contents and push inwards to close.

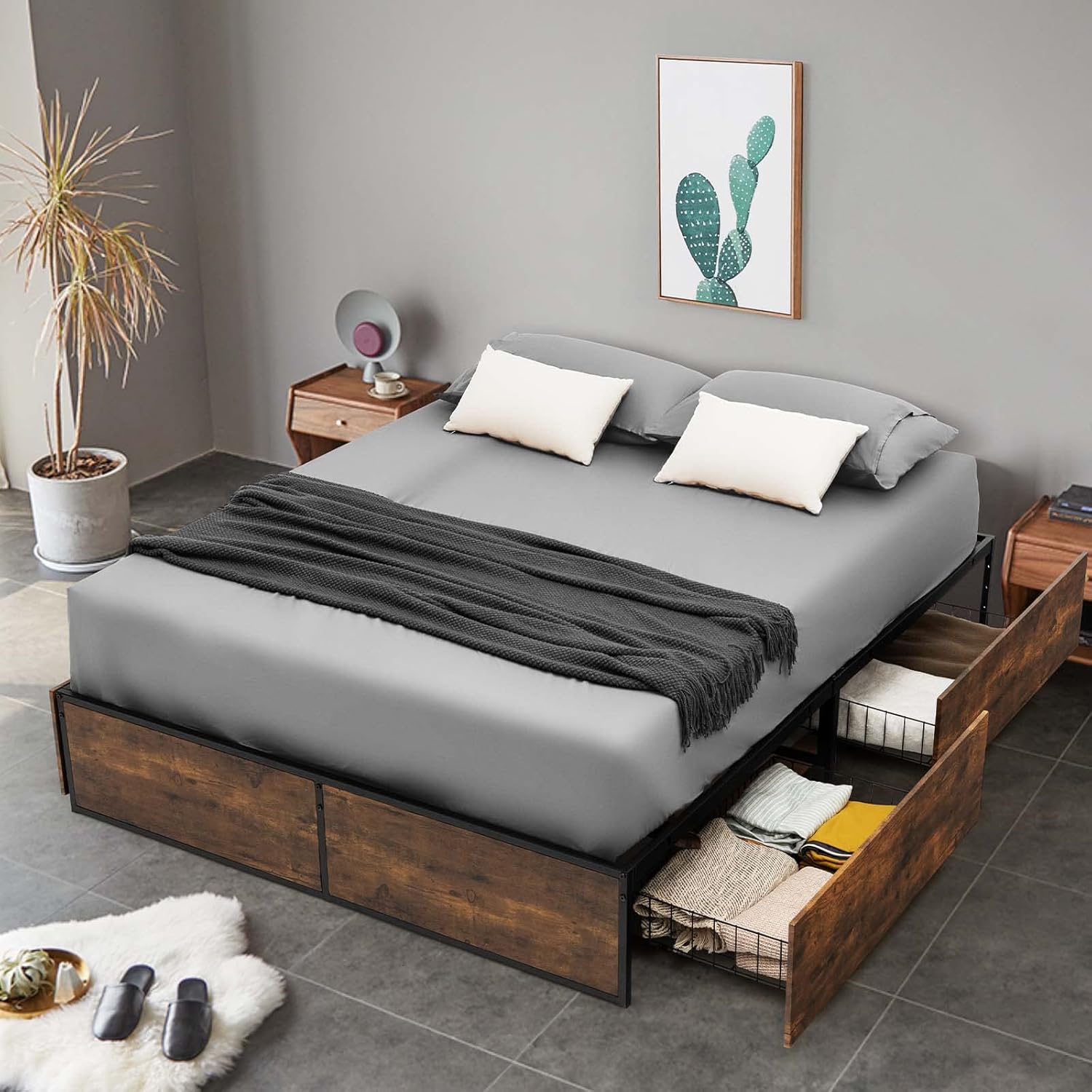

- Mattress Placement: Place your full-size mattress directly onto the metal slats. A box spring is not required for this platform bed. Ensure the mattress is centered and evenly distributed on the frame.
- Headboard Attachment (Optional): If attaching a headboard, align its mounting holes with the pre-drilled holes on the bed frame's head side and secure it using appropriate hardware (not included with the bed frame).
Maintenance
- Cleaning: Wipe down the metal frame and wooden footboard/drawer fronts with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.
- Hardware Check: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and prevent wobbling.
- Drawer Casters: Keep the drawer casters free of debris to ensure smooth operation. If a caster becomes stiff, clean it and apply a small amount of silicone lubricant if needed.
- Protective Foot Pads: Inspect the protective foot pads regularly to ensure they are intact and continue to prevent floor scratches. Replace if worn.
Troubleshooting
- Bed Frame Wobbles: Ensure all assembly screws are securely tightened. Check that the bed frame is placed on a level surface.
- Squeaking Noises: Verify that all connections are tight. The EVA mute bars are designed to prevent noise, but loose connections can still cause squeaking. Re-tighten all bolts.
- Drawers Not Sliding Smoothly: Check the casters for any obstructions (e.g., dust, hair). Clean the casters and ensure they are properly aligned within their tracks.
- Difficulty Attaching Headboard: Ensure your headboard is compatible with standard mounting holes. If the holes do not align perfectly, minor adjustments may be needed, or consult a professional.

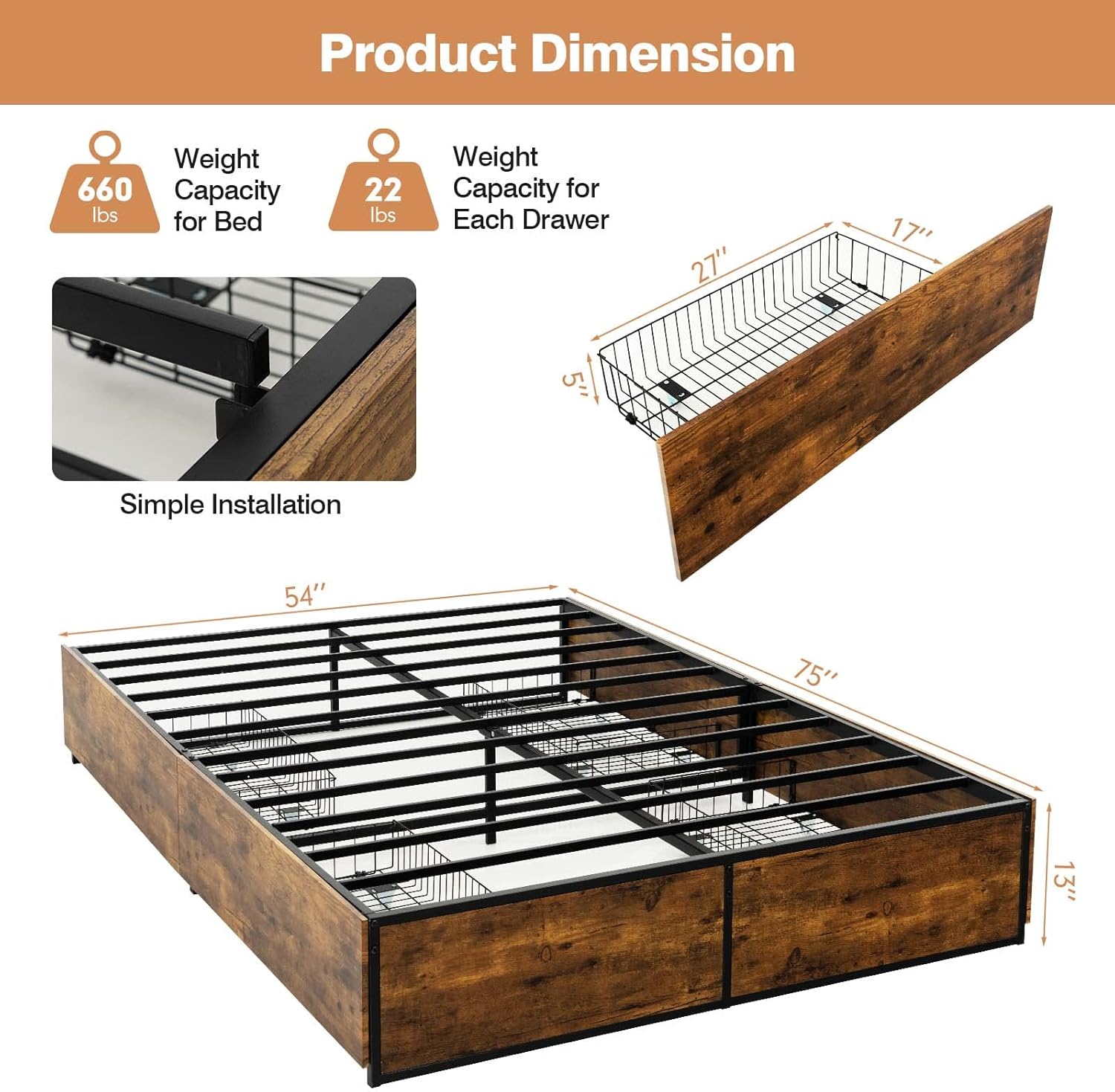

Specifications
| Feature | Detail |
|---|---|
| Size | Full |
| Product Dimensions | 75"L x 54"W x 13"H |
| Special Feature | 4 Drawers |
| Color | Rustic Brown |
| Finish Type | Wooden |
| Included Components | Instruction, Metal Bed Frame |
| Compatible With Mattress Size | Full |
| Brand | Giantex |
| Assembly Required | Yes |
| Ground To Item Distance | 13 Inches |
| Manufacturer | Giantex |
| Item Weight | 100 pounds |
| Item Model Number | GT10201-F-HU |
| Material | Engineered Wood, Metal |
Warranty and Support
For information regarding product warranty, please refer to the documentation included with your purchase or contact Giantex customer support directly. Giantex offers customer support for any inquiries or issues you may encounter.
Protection plans are available for purchase separately:
- 2-Year Protection Plan
- 3-Year Protection Plan
- Complete Protect: One plan covers all eligible past and future purchases (monthly billing)
For customer service, please visit the Giantex Store on Amazon.
