1. Introduction and Safety Information
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Troy-Bilt TB4620C Gas Chainsaw. Please read this manual thoroughly before operating the chainsaw to ensure your safety and the longevity of the product.
General Safety Precautions
- Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and sturdy footwear.
- Never operate the chainsaw when fatigued or under the influence of alcohol or drugs.
- Keep bystanders, children, and pets at a safe distance from the work area.
- Inspect the chainsaw for damage or loose parts before each use.
- Ensure proper ventilation when operating in enclosed spaces.
2. Product Overview
The Troy-Bilt TB4620C is a powerful gas-powered chainsaw designed for demanding cutting tasks. It features a robust engine and user-friendly design elements.
Figure 2.1: Front view of the Troy-Bilt TB4620C Gas Chainsaw, showcasing the 20-inch bar and chain, and the main engine housing.
Key Features:
- Engine: Powerful 46cc, full crank 2-cycle engine.
- Starting System: SpringAssist® technology for easier pull starts.
- Bar and Chain: 20-inch low-kickback bar and chain for efficient cutting.
- Durability: Engineered with a professional-grade, die-cast chassis.
- Comfort: Advanced 5-point anti-vibration handles for optimal user comfort during prolonged use.
- Lubrication: Adjustable, automatic chain oiler ensures proper lubrication of the bar and chain.
- Safety: Automatic, inertia-activated chain brake for enhanced operator safety.
Figure 2.2: Close-up view of the engine housing and front handle, highlighting the robust construction and ergonomic design.
Figure 2.3: Detailed view of the 20-inch low-kickback bar and chain, essential for efficient and safe cutting operations.
3. Setup and Assembly
Before operating your chainsaw, proper assembly and fueling are crucial.
3.1 Bar and Chain Assembly
- Ensure the chain brake is disengaged.
- Remove the chain cover nuts and the chain cover.
- Carefully place the chain around the clutch drum, ensuring the cutting edges face the direction of rotation.
- Fit the guide bar over the bar studs and align the chain with the groove in the guide bar.
- Replace the chain cover and tighten the nuts finger-tight.
- Adjust chain tension (refer to Section 4.2 for details).
3.2 Fueling and Chain Oil
The TB4620C uses a 2-cycle engine and requires a specific fuel mixture.
- Fuel Mixture: Mix unleaded gasoline with 2-cycle engine oil at the ratio specified in the engine oil's instructions (typically 50:1 or 40:1). Use fresh, clean fuel.
- Fuel Tank: Fill the fuel tank carefully, avoiding spills. Ensure the fuel cap is securely tightened.
- Chain Oil: Fill the chain oil reservoir with high-quality bar and chain oil. The automatic oiler will lubricate the chain during operation. Check oil level frequently.

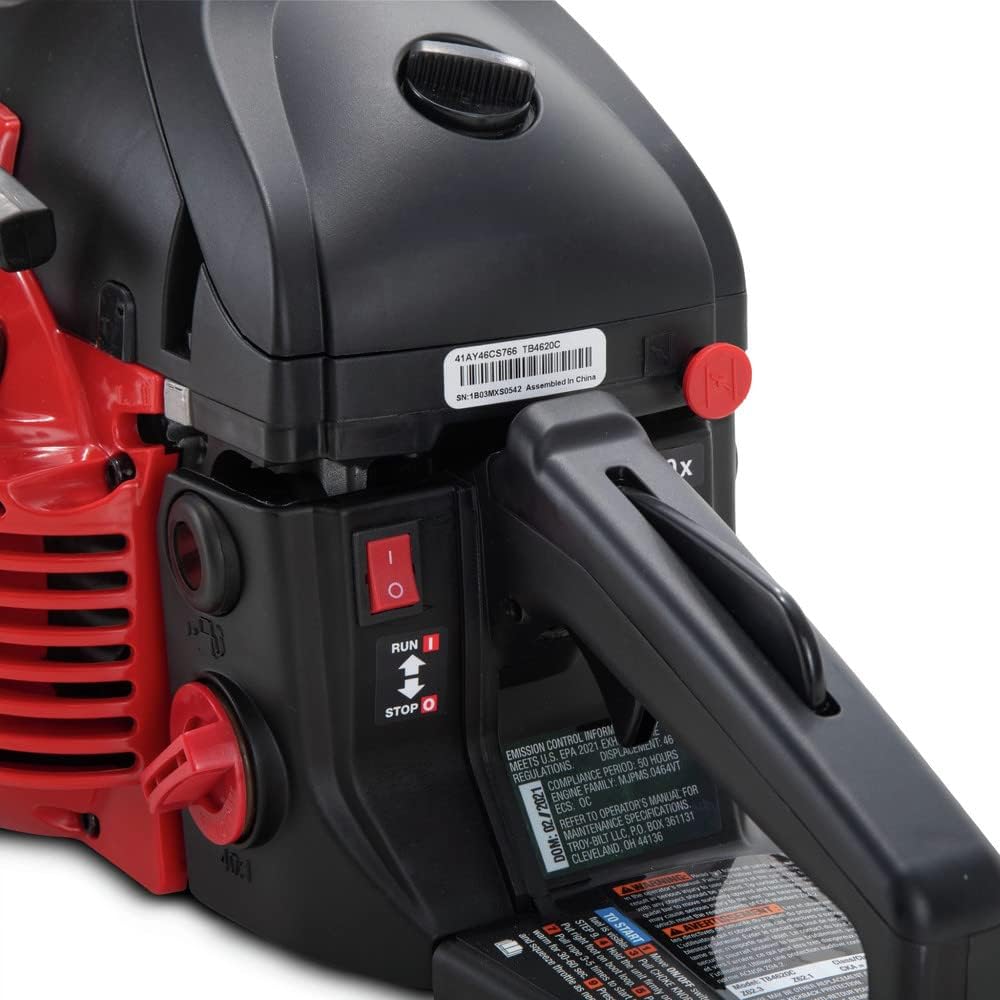

Figure 3.1: Close-up of the chainsaw's controls, including the stop/run switch and fuel/oil caps, indicating their positions for operation and maintenance.
4. Operating Instructions
Follow these steps for safe and effective operation of your chainsaw.
4.1 Starting the Chainsaw (SpringAssist®)
- Place the chainsaw on a firm, flat surface.
- Engage the chain brake by pushing the hand guard forward.
- Set the choke to the FULL CHOKE position.
- Press the primer bulb 6-10 times until fuel is visible.
- Pull the starter rope firmly and smoothly until the engine fires (usually 1-3 pulls). Do not pull the rope to its full extension.
- Once the engine fires, move the choke to the HALF CHOKE position.
- Pull the starter rope again until the engine starts and runs.
- Once running, disengage the chain brake by pulling the hand guard back.
- Allow the engine to warm up for a few moments before beginning cutting.
4.2 Chain Tension Adjustment
Proper chain tension is vital for safe operation and optimal cutting performance. The chain should be snug against the guide bar, but still able to be pulled around the bar by hand. There should be no sag on the underside of the bar.
- Loosen the chain cover nuts slightly.
- Use the tensioning screw (usually located on the side of the chainsaw) to adjust the chain tension.
- Once tension is correct, re-tighten the chain cover nuts securely.
4.3 Cutting Techniques and Safety
- Always maintain a firm grip with both hands on the chainsaw handles.
- Stand with your feet shoulder-width apart for balance.
- Be aware of kickback, which can occur if the tip of the guide bar contacts an object.
- Plan your cuts and clear the work area of obstacles.
- Never cut above shoulder height.
- Always engage the chain brake when moving between cuts or if the chainsaw is not actively cutting.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your Troy-Bilt TB4620C chainsaw.
5.1 Daily Maintenance
- Check chain tension and adjust if necessary.
- Inspect the chain for sharpness and damage. Sharpen or replace as needed.
- Check chain oil and fuel levels.
- Clean debris from the air filter, cooling fins, and chain brake mechanism.
5.2 Periodic Maintenance
- Air Filter: Clean or replace the air filter regularly, especially in dusty conditions.
- Spark Plug: Inspect and clean the spark plug. Replace if worn or fouled.
- Guide Bar: Clean the guide bar groove and oil holes. Flip the guide bar periodically to ensure even wear.
- Chain Sharpening: A dull chain can cause kickback and poor cutting performance. Sharpen the chain regularly using appropriate tools or have it professionally sharpened.
6. Troubleshooting
This section provides solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chainsaw won't start | No fuel, incorrect choke setting, fouled spark plug, clogged fuel filter | Check fuel level and mixture, adjust choke, clean/replace spark plug, replace fuel filter |
| Engine runs, but chain does not move | Chain brake engaged, incorrect chain tension, clutch issue | Disengage chain brake, adjust chain tension, consult service center for clutch issues |
| Poor cutting performance | Dull chain, incorrect chain tension, insufficient chain oil | Sharpen/replace chain, adjust chain tension, fill chain oil reservoir |
| Excessive vibration | Loose components, damaged chain/bar, worn anti-vibration mounts | Check all fasteners, inspect chain/bar for damage, consult service center for mounts |
7. Specifications
Detailed technical specifications for the Troy-Bilt TB4620C Gas Chainsaw.
- Model Number: TB4620C (41AY462S866)
- Engine Displacement: 46cc
- Engine Type: Full crank, 2-cycle
- Bar Length: 20 inches
- Power Source: Gas Powered
- Item Weight: Approximately 25 pounds
- Product Dimensions: 35 x 10.38 x 11.5 inches
- UPC: 084931849259
8. Warranty and Support
8.1 Warranty Information
The Troy-Bilt TB4620C Gas Chainsaw comes with a 2-year limited warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or visit the official Troy-Bilt website.
8.2 Customer Support
For technical assistance, parts, or service, please contact Troy-Bilt customer support. You can typically find contact information on the manufacturer's website or in the product packaging. When contacting support, please have your model number (TB4620C or 41AY462S866) and serial number ready.
